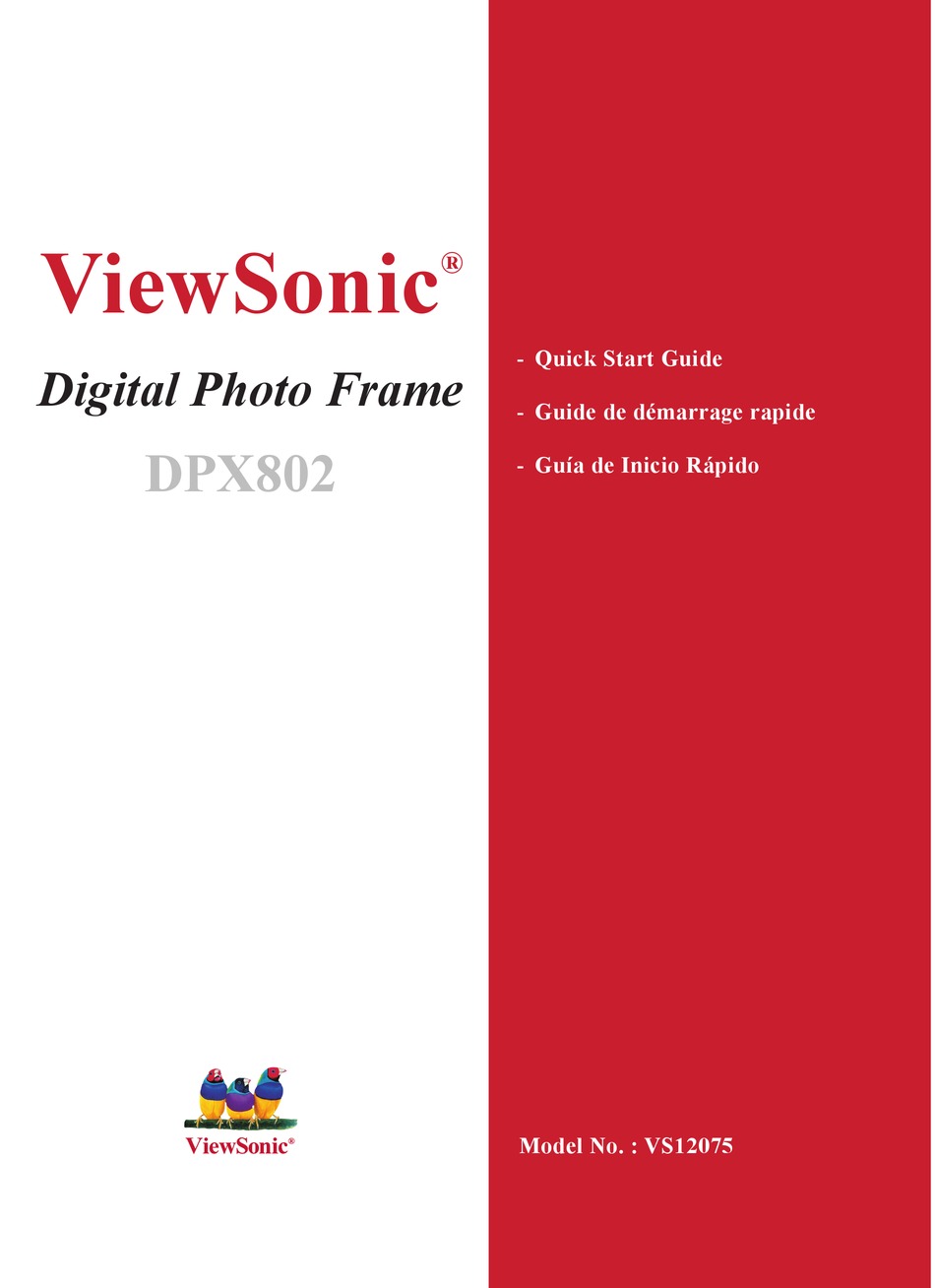

Page 1: Digital Photo Frame
ViewSonic ViewSonic Digital Photo Frame Digital Photo Frame DPX802 DPX702 ® ® - Quick Start Guide - Quick Start Guide - Guide de démarrage rapide - Guía de Inicio Rápido Model No. : VS12075 Model No. : VS12078... -
Page 2: Compliance Information
Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this guide for further instructions. Do not block any ventilation openings. -
Page 4: Declaration Of Rohs Compliance
Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Lead (Pb) -
Page 5: Package Contents
Package contents Check your Digital Photo Frame package for the following items. • Digital Photo Frame • Power adapter • Stand • Quick Start Guide • USB cable • Replacement front panel* * The bundled front panel varies depending on the model you purchase. Replacing front panel If your Digital Photo Frame package contains a spare front panel, follow these instructions to replace the front panel for personal preference. -
Page 6: Turn On/Off The Device
Connect Align the head of the stand with the socket, then rotate clockwise until the stand locks into place. Plug the power adapter from the device to a power outlet. Locate control keys (in the back panel) Locate the control buttons in the back panel according to the following table. -
Page 7: Remote Control
Remote Control Refer to the following image and table for details of the remote control. Item Description 1 POWER Disabled on this model 2 MUSIC Shortcut to the Audio menu 15 ROTATE 3 VIDEO Shortcut to the Video menu 16 DOWN/NEXT 4 MUTE Mute audio output 5 VOLUME UP Increase audio volume... - Page 8 Settings Brightness Allows you to adjust the screen brightness. Language Allows you to select the language you need. Default Go to SETTINGS > Default, then select Yes to retore to the factory default setting or No to discard the selection. Set Beep Allows you to turn on/off the key control sound. Status Displays the software version and the current memory size.
-
Page 9: View Photos
View Photos From the main screen, press the Up and Down navigation keys to select PHOTO, then select the photo source you want to display. Photos pre-stored in the device will appear when no memory card or USB flash disk is connected. When photo source is selected, press OK to switch between 3 view modes: Browse mode: manual viewing of photos one-by-one •... -
Page 10: Photo Setting Menu
Copy multi-photos In Thumnail mode, select one photo, then press the Down navigation . The selected photo is labeled with a "+" mark. Repeat step 1 to other photos you want to copy to a source. Finishing selection, repeat step 2–5 in section Copy photos from your photo source. -
Page 11: Supported Format
Supported format JPEG: JPEG Baseline (4:4:4/4:2:2/4:2:0, support up to 8000x8000 pixels), Progressive JPEG (Support up to 1024x1024 pixels) BMP: MS Windows V3.1/4/8/16/24 uncompressed Bitmap. (Support up to 1024x1024 pixels) The system allows you to display 4000 photos at most from your own memory card or USB flash disk. -
Page 12: View Video
View Video From the main screen, press the navigation keys to select VIDEO, then select the video source you want to play. Videos pre-stored in the device will appear when no memory card or USB flash disk is connected. Insert your memory card containing video into the corresponding slot, or insert your USB flash disk into the USB port. - Page 13 Copy multi-video Select one video, then press the Right navigation key. The selected video is labeled with a "+" mark. Repeat step 1 for the other videos you want to copy to a source. Finishing selection, repeat step 2–5 in section Copy videos from your video source.
-
Page 14: Play Audio
Play Audio From the main screen, press the navigation keys to select AUDIO, then select the audio source you want to play. Audio pre-stored in the device will appear when no memory card or USB flash disk is connected. Insert your memory card containing audio into the corresponding slot, or insert your USB flash disk into the USB port. - Page 15 Copy multi-audio Select one audio, then press the Right navigation key. The selected audio is labeled with a "+" mark. Repeat step 1 for the other audio you want to copy to a source. Finishing selection, repeat step 2–5 in section Copy audio from your audio source.
-
Page 16: Customer Support
(Mexico) Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America www.viewsonic.com/la/ (Peru) Macau www.hk.viewsonic.com...
