Summary of Contents for Hawk Sultan

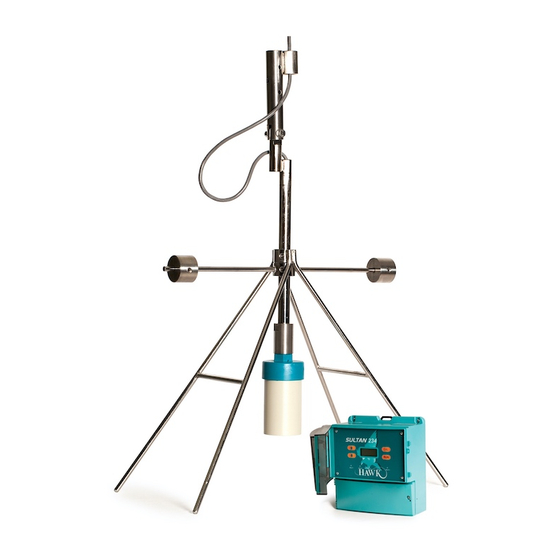

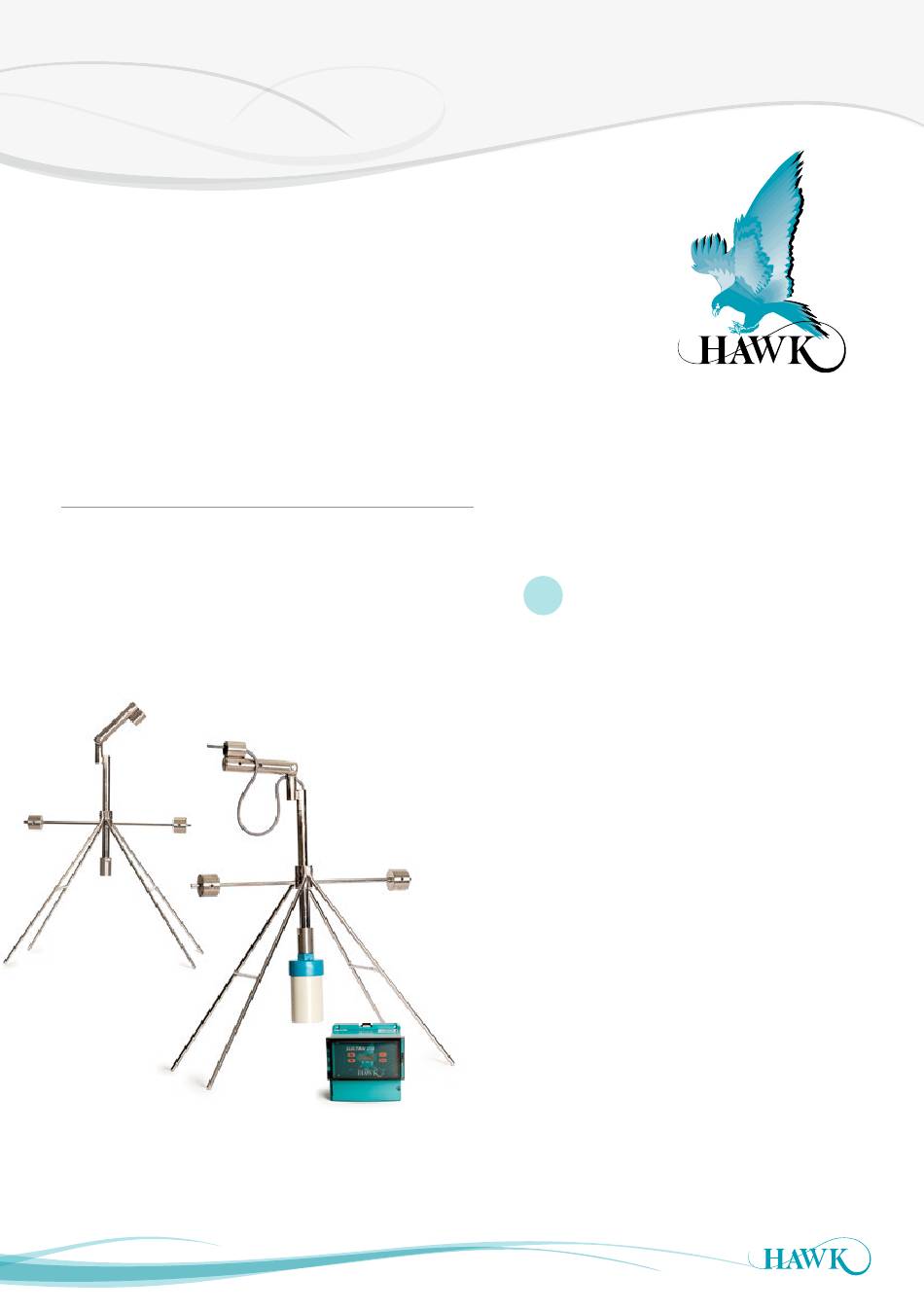

- Page 1 Sultan Sonar Manual Rev 1.0 A Higher Level of Performance Manual Sultan Sonar System > Sludge and Submerged Interface Level Measurement For more information, please visit > www.hawkmeasurement.com...
-
Page 2: Table Of Contents
Table of Contents Sultan Sonar System Contents Relay Actions Overview Relay Actions Principle of Operation Benefits Setup Procedure Features Advanced System Components & Wiring Gain4 default settings Impact Plate Auto Scum Cleaner Operating Diagnostics AWR234 Wiring > Operating State AWR234 Amplifier AWRTS Transducer <... -
Page 3: Overview
To optimize performance under all process environments in each interface application: HAWK uses one transducer with a frequency and power level that is applicable to the density of the interface and process conditions expected in the tank. Also, HAWK can guarantee performance for controlling pumps etc, rather than for monitoring purposes only. -
Page 4: System Components & Wiring
RELAY 4 RELAY 5 Use long nose pliers – + – to extract terminals 4-20mA TRANSDUCER COMMS DC-In AC-In* Sinking 4-20mA from user device 36-60VDC Sultan version will have these terminals marked Sourcing 4-20mA from Sultan as the 36-60VDC input... -
Page 5: Dimensions
Dimensions Sultan Sonar System AWR234 Remote Amplifier 111.5 mm (4.4”) 78 mm (3.1”) 192.5 mm (7.6”) 192.5 mm (7.6”) 14 mm (0.6”) 147 mm (5.8”) 174 mm (6.9”) 33.0 29.0 29.0 33.0 > 182.5 mm (7.2”) 147 mm (5.8”) 50 mm (2”) 158 mm (6.2”) -
Page 6: Dimensions & Mounting Connection
Dimensions & Mounting Connection Sultan Sonar System Impact Plate Mounting Connection The top of the Impact Plate has 3 x 7mm bolt holes Impact Plate Connection Point which can be secured to an angle iron or equivalent M25 x 1.5 INT bracket. -
Page 7: Mounting & Hardware Assembly
Mounting & Hardware Assembly Sultan Sonar System Impact Plate Assembly Description QTY. Impact Plate Dual Direction Sonar Pole Adaptor Impact Plate Counter Balance Sonar Male Clevis Assembly Sonar Female Clevis Assembly M6×45 Stainless Steel Bolt M10×40 Stainless Steel Bolt M10×12 Stainless Steel Set Screw M10×20 Stainless Steel Set Screw... -
Page 8: Mounting
Mounting Sultan Sonar System Transducer Submersion • The transducer should be half submerged in the liquid and mounted 1/3rd radius from the feedwell to the launder • Avoid mounting in the proximity of a feedwell. • Impact Plate must make contact with surface sweeper 1/2 Submerged >... -
Page 9: Setup Procedure
Setup Procedure Sultan Sonar System Powering The Unit When power is applied the unit will start up automatically. It will scroll through its boot diagnostics and display the serial numbers, software version and model types for the amplifier and transducer The unit will display its default operating screen ‘Height’... -
Page 10: Quickset
Setup Procedure Sultan Sonar System Quickset The Quickset menu contains the basic parameters required to get the unit up and running. 1/2 Submerged It is one of the three main menu options in the internal software. Parameter Description Options Unit... -
Page 11: Output Adjustment
Setup Procedure Sultan Sonar System Output Adjustment The Output Adj menu contains parameters related to adjusting analogue, switch & communication protocol relayed settings. Parameter Description Options 4mA Adj Fine tune the 4mA output current Adjustable 20mA Adj Fine tune the 20mA output current... -
Page 12: Relay Actions
Relay Actions Sultan Sonar System Relay Actions Set Relay Parameters in Output Adjustment menu Sub-Menu Description Options The two relay levels are RlyL1 and RlyL2 The display will show RlyL1 1, the last 1 indicated the Adjust Relay switch point... -
Page 13: Setup Procedure
Setup Procedure Sultan Sonar System Advanced The Advanced menu contains parameters for Gain control, manually adjustment of speed of sound, offset and restoring the amplifier and transducer to their default state. These settings typically do not require adjustment unless there are special circumstances. Do not adjust Advanced settings without expert knowledge or consulting your local representation. -
Page 14: Operating Diagnostics
Operating Diagnostics Sultan Sonar System Operating State In this operational state you can use the buttons to navigate through and view unit diagnostics and other measurements. Space Diagnostic Typical Reading Description 2.622m Bed indicates Bed height measured from Low Level... -
Page 15: Communications
Parity: None 40013 - HIGH LEVEL span set point in mm Stop Bits: 1 Relay Function Adjustment (Read/Write) HAWK Sultan series units act as ‘slave’ devices on a MUST Read/Write SINGLES-NOT BLOCKS: Modbus network. 40051 - Relay 1 Mode setting Units are shipped from the factory with a default >... -
Page 16: Hart
Communications Sultan Sonar System Modbus Extended Parameters (Read/Write) *MUST Read/ 40019 - DISPLAY MODE Write SINGLES-NOT BLOCKS*: 3 - Material % 4 - Height 40059 - DISPLAY UNITS 5 - Depth 3-Millimetres 40032 - OFFSET (mm) 4-Centimetres 5-Metres 40020 - LOCK CODE... -
Page 17: Devicenet
(For firmware The DeviceNet factory default of Baud Rate and version 5.54 and above). FBus Address are 125kbps and 63 in a Sultan unit with. To modify these values follow the instructions 1. Displayed Distance below. -
Page 18: Profibus Dp
Sonar System Profibus DP Setting the Profibus DP Address Output Data Factory defaults of FBusAdds is 126 in a Sultan unit DeviceNet now transmits 18 bytes/9 words, with Profibus CommType. To modify this value follow description of the words is as follows (For firmware the instruction below: version 5.54 and above) -
Page 19: Troubleshooting
• Check your unit part number to ensure it has • If using a junction box ensure you follow HAWK correct comms specification for extending cable •... -
Page 20: Error Codes 08 - 11 & 13
The Transducer power (red wire) should draw 8-10VDC. If this figure is too high or too low check Sultan power & supplied power as above. Disconnect transducer from amplifier. There should be no open circuits between wires. Resistances between transducer wires (approximate... -
Page 21: Part Numbering
Part Numbering Sultan Sonar System Amplifier Model AWR234 Remote 3 / 4 Wire, 5 relays, Modbus Housing Polycarbonate Power Supply 12-30VDC 36-60VDC 12-30VDC and 90-260VAC > Additional Communications < S 5 relays with Modbus X 4-20mA with Modbus 4-20mA with HART Isolated 4 wire E Ethernet TCP/IP with 4-20mA &... -
Page 22: Remote Sonar Transducer
Part Numbering Sultan Sonar System Remote Sonar Transducer AWRTS Sultan Sonar Transducer Transducer 151kHz (Bed Level applications) 300kHz (Bed level / dense floating layers approx 2-5% solids) 450kHz (Lighter floating layers approx 0.5-2% solids) 700kHz (Lighter floating layers <0.5% solids) Facing &... -
Page 23: Accessories
Part Numbering Sultan Sonar System Accessories HAWKLink Data Modem Remote stand alone HAWKLink system Power Supply 12-30VDC 12-30VDC and 90-260VAC Network Type 4G Autoband Sim Card > Australian Sim Card expires after 3 months Australian Sim Card expires after 12 months <... -
Page 24: Specifications
Specifications Sultan Sonar System Operating Temperature Sonar Frequency Selection • Remote Electronics -40°C (-40°F) to 80°C (176°F) • 151kHz (Bed Level applications) • Sonar Transducer: -40°C to 50°C • 300kHz (Bed level / dense floating layers approx 2-5% solids) Transducer Material •... - Page 25 Overview Sultan Sonar System > <...
- Page 26 Overview Sultan Sonar System > <...
- Page 27 Overview Sultan Sonar System > <...
- Page 28 GosHawk diagnostic & calibration software; to dial in, calibrate, test, and check the performance of HAWK We Can Help products. This innovative system allows our Global Support Team to assist with commissioning and HAWK understands the difficulties customers face after sales service of HAWK equipment worldwide.
