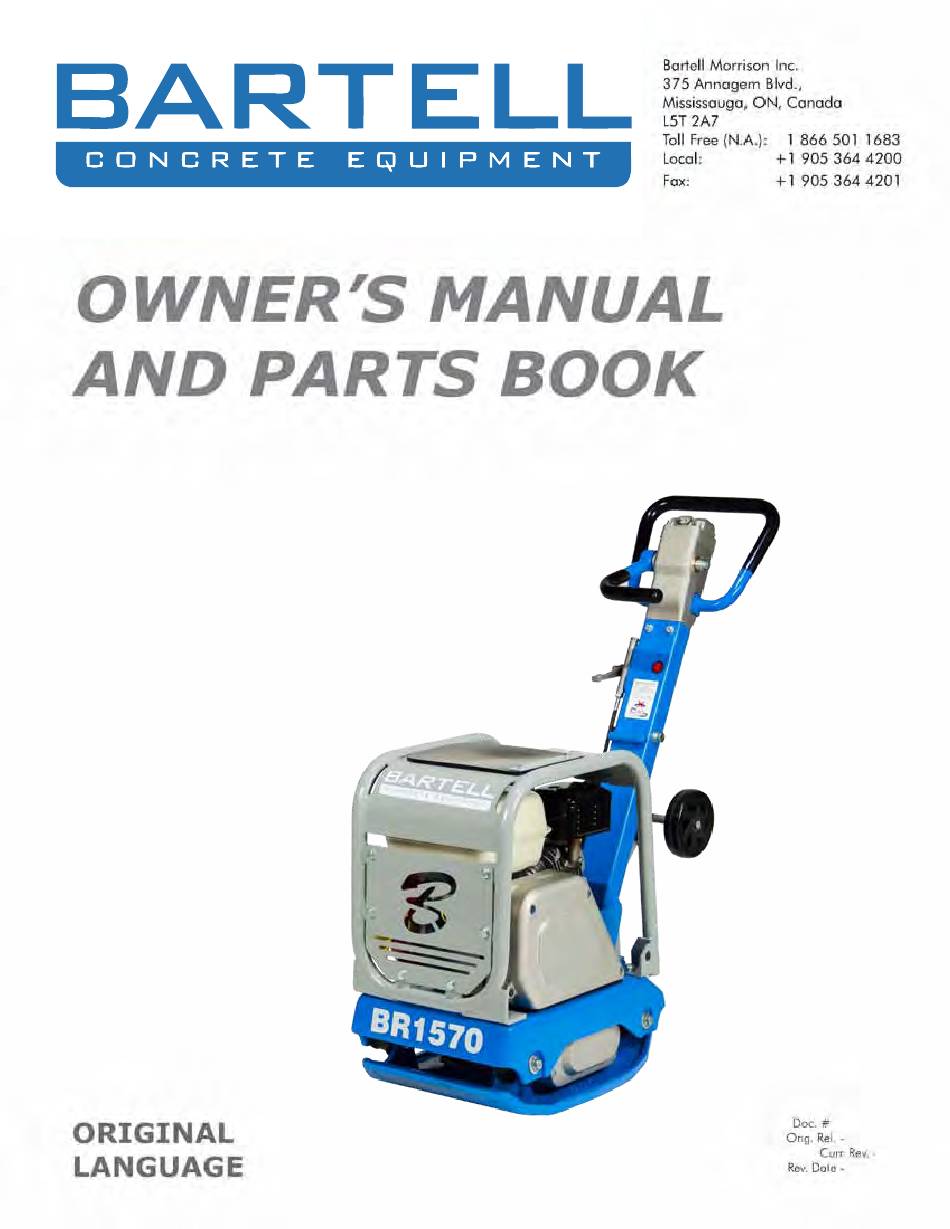

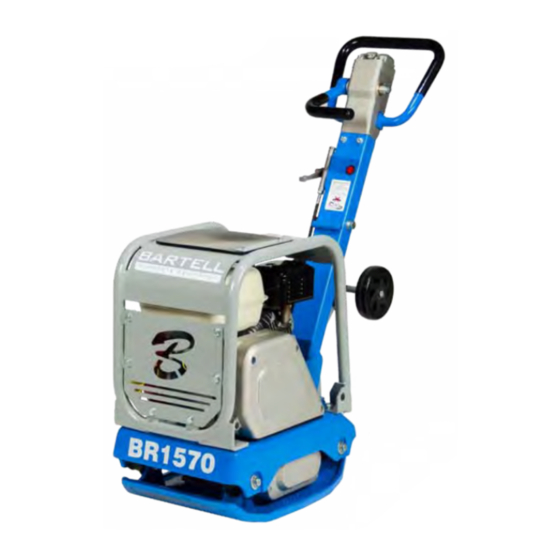

  • Page 1 REVERSIBLE HYDRAULIC PLATE COMPACTORS BR1570 OI-B09044 10/2013 07/2014...
  • Page 2 No part of this work may be reporduced or transmitted in any form or by any means, electronic, or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc, unless such copying is permitted by federal copyright laws.
  • Page 3 SAFETY PRECAUTIONS BR1570...

  • Page 4: Table Of Contents

    OPERATOR’S MANUAL BR1570 QUALITY ASSURANCE / MACHINE BREAK IN WARRANTY INFORMATION SPECIFICATIONS PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN ROUTINE SERVICE INTERVALS FOREWARD SAFETY PRECAUTIONS ASSEMBLY INSTRUCTIONS OPERATING PRINCIPLE STARTING PROCEDURE STOPPING PROCEDURE PRIOR TO OPERATION OPERATION MAINTENANCE STORAGE ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 5: Quality Assurance / Machine Break In

    This will serve to further break in the machine on your specific application, as well as provide you with additional practice using the machine. We thank you for the confidence you have placed in us by purchasing a Bartell Vibratory Plate Compactor and wish you many years of satisfied use.
  • Page 6 Bartell Ltd. within the twelve month warranty period. No further or other guarantee or warranty expressed or implied in connection with the sale of the Compactor is given and our sole liability consists in replacing defective parts or portions thereof.

  • Page 7: Specifications

    SPECIFICATIONS BR1570 DIMENSIONS OVERALL LENGTH, mm (in.) 886 (35”) OVERALL WIDTH, mm (in.) 350 (14”) OVERALL HEIGHT, mm (in.) 880 (35”) PLATE SIZE (WxL), mm (in.) 350x480 (14”x19”) WEIGHT NET WEIGHT, kg. (lb.) 80 (177) OPERATING WEIGHT, kg. (lb.) 85 (187.2)

  • Page 8: Preventative Maintenance And Routine Service Plan

    However, when in need of parts or major service be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your Vibratory Plate Compactor. When in need of parts or service be prepared to provide your Compactor serial number.

  • Page 9: Routine Service Intervals

    ROUTINE SERVICE BR1570 Routine Service Each After 1.5 Each 3 Each 6 Each 9 Each 12 Intervals months months months months months 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Guards Check Check Check Operation Engine:...
  • Page 10 ROUTINE SERVICE INTERNALS BR1570 Due to the nature and environment of use, plate compactors could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your machine. • The initial service for your compactor should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 11: Foreward

    BR1570 OPERATING PRINCIPLE FOREWORD The Bartell Vibratory Plate Compactor is highly effec- An eccentric weight mounted on the exciter shaft tive for a wide variety of surface, sub-soil, and back-fill contained within the exciter housing is driven at high materials. Although relatively light in weight and easy speed by a clutch and belt drive system.

  • Page 12: Prior To Operation

    BR1570 5. STARTING-UP Gasoline Engine (FOR CPC-60, CPC-95, CPC 1. Align fuel cock lever with FLOW position (Fig.3) PRIOR TO OPERATION A regular grade gasoline should be used in the Make sure that all dirt, mud, etc., are thoroughly engine. When filling the fuel tank, make sure 2.

  • Page 13: Maintenance

    BR1570 MAINTENANCE STORAGE Maintaining your compactor will insure long life to the The following steps should be taken to prepare your machine and its components. plate compactor for extended storage. AIR CLEANER - Keep air filter clean at all times.
  • Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 15: Assembly Drawings And Parts List

    BR1570 ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 16: Vibrating Plate

    PARTS LIST 1 PART LIST (A) – VIBRATING PLATE BR1570 VIBRATING PLATE ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-1A VIBRATING PLATE CPC-60-2A SHOCK ABSORBER CPC-60-3A NUT M10 CPC-60-4A SW M10 CPC-60-5A BOLT M10x30T CPC-60-6A SW M10 CPC-60-7A WASHER CPC-60 AS ACCURATE AS AT 01 JULY 08...
  • Page 17 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 18 CIMAR CPC‐60 SPART PART LIST PARTS LIST 2 BR1570 PART LIST (B) – BODY BODY CPC-60 AS ACCURATE AS AT 01 JULY 08 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...

  • Page 19: Body

    PARTS LIST 2 BR1570 BODY ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-1B BASE CPC-60-2B ENGINE CPC-60-3B BOLT M8x40T CPC-60-4B SW M8 CPC-60-5B PW M8 CPC-60-6B BELT COVER PLATE CPC-60-7B BOLT M8x20T CPC-60-8B SW M8 CPC-60-10B CLUTCH ASSEMBLY CPC-60-11B CPC-60-12B CLUTCH WASHER...
  • Page 20 PARTS LIST 2 BR1570 BODY (cont’d) ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-36B HOSE BAND 11.5D CPC-60-37B WASHER, DRAIN PLUG CPC-60-38B BOLT, DRAIN PLUG CPC-60-40B JOINT CPC-60-40B BOLT M8x20T CPC-60-41B SW M8 CPC-60-42B UNION...
  • Page 21 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 22 CIMAR CPC‐60 PARTS LIST 2 SPART PART LIST BR1570 PART LIST (C) – VIBRATOR VIBRATOR CPC-60 AS ACCURATE AS AT 01 JULY 08 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 23 PARTS LIST 2 BR1570 VIBRATOR ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-C VIBRATOR ASSEMBLY CPC-60-1C VIBRATOR CASE CPC-60-2C ROLLER BEARING 6206C4 CPC-60-3C ROTARY SHAFT, DRIVE CPC-60-4C ROTARY SHAFT, DRIVEN CPC-60-5C STOP RING S-35 CPC-60-6C KEY 10x8x19 CPC-60-7C GEAR (DRIVE) CPC-60-8C...
  • Page 24 PARTS LIST 3 BR1570 VIBRATOR (cont’d) ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-33C PULLEY CPC-60-34C WASHER, PULLEY CPC-60-35C WASHER CPC-60-36C SOCKET HEAD BOLT M8x15T CPC06-37OIL BELT COVER (LOWER-OUT) CPC-350-38C SOCKET HEAD BOLT M6x40t CPC-350-39C BOLT M10x30T CPC-350-40C BOLT M10x100T...
  • Page 25 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 26 PARTS LIST 3 CIMAR CPC‐60 SPART PART LIST BR1570 CONTROL PART LIST (D) – CONTROL CPC-60 AS ACCURATE AS AT 01 JULY 08 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 27 PARTS LIST 3 BR1570 CONTROL ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-1D THROTTLE LEVER ASSEMBLY CPC-60-2D THROTTLE WIRE CPC-60-3D HANDLE AY CPC-60-5D BOLT M16x145T CPC-60-6D PW M16 CPC-60-7D CONICAL SPRING WASHER M16 CPC-60-8D NUT M16 CPC-60-9D SHOCK ABSORBER, STOPPER CPC-60-10D...
  • Page 28 PARTS LIST 4 BR1570 HAND PUMP ASSEMBLY HAND PUMP ASSEMBLY...
  • Page 29 PARTS LIST 4 BR1570 HAND PUMP ASSEMBLY ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-60-1E CAN CAMP (PUMP) CPC-60-2E COVER (HAND PUMP) CPC-60-3E PISTON CP CPC-60-4E CONTROL SHAFT (PUMP) CPC-60-5E BUSH CPC-60-6E CAN (PUMP) CPC-60-7E BEARING 607ZZ CPC-60-8E SPACER CPC-60-9E PIN 7x30...
  • Page 30 CIMAR CPC‐60 PARTS LIST 5 SPART PART LIST BR1570 PART LIST (F) – WATER TANK (OPTION) WATER TANK (OPTION) CPC-60 AS ACCURATE AS AT 01 JULY 08 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 31 PARTS LIST 5 BR1570 CIMAR CPC‐60 SPART PART LIST WATER TANK (OPTION) PART LIST (F) – WATER TANK (OPTION) ITEM PART NO. DESCRIPTION QTY. REMARKS S/NO PART NO DESCRIPTION REMARK CPC-60-1E WATER TANK ASSEMBLY CPC-60-1F WATER TANK ASSEMBLY CPC-60-2E CAP , WATER TANK...
  • Page 32 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 33 BARTELL MORRISON BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC. 25 200 Commerce Dr. 375 Annagem Blvd. 12 Industrial Drive. Freehold, New Jersey, USA Mississauga, Ontario, Canada Keyport, New Jersey, USA 07728 L5T3A7 07735 Toll Free: 888-999-1570 Toll Free: 866-501-1683 Toll Free: 888-999-1570...
