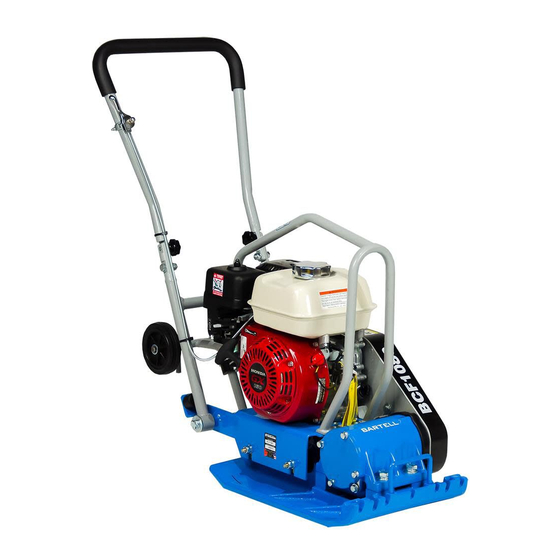

FORWARD PLATE
COMPACTORS
BCF1080
OI-B09051
10/2013
05
08/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCF1080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartell BCF1080

Summary of Contents for Bartell BCF1080

  • Page 1 FORWARD PLATE COMPACTORS BCF1080 OI-B09051 10/2013 08/2015...
  • Page 2 No part of this work may be reporduced or transmitted in any form or by any means, electronic, or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc, unless such copying is permitted by federal copyright laws.
  • Page 3 SAFETY PRECAUTIONS BCF1080...

  • Page 4: Table Of Contents

    OPERATOR’S MANUAL BCF1080 QUALITY ASSURANCE / MACHINE BREAK IN WARRANTY INFORMATION SPECIFICATIONS PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN ROUTINE SERVICE INTERVALS FOREWARD SAFETY PRECAUTIONS OPERATING PRINCIPLE STARTING PROCEDURE STOPPING PROCEDURE PRIOR TO OPERATION OPERATION LUBRICATION MAINTENANCE STORAGE ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 5: Quality Assurance / Machine Break In

    This will serve to further break in the machine on your specific application, as well as provide you with additional practice using the machine. We thank you for the confidence you have placed in us by purchasing a Bartell Vibratory Plate Compactor and wish you many years of satisfied use.

  • Page 6: Warranty Information

    Bartell Ltd. within the twelve month warranty period. No further or other guarantee or warranty expressed or implied in connection with the sale of the Compactor is given and our sole liability consists in replacing defective parts or portions thereof.

  • Page 7: Specifications

    SPECIFICATIONS BCF1080 DIMENSIONS OVERALL LENGTH, mm (in.) 700 (28”) OVERALL WIDTH, mm (in.) 390 (16”) OVERALL HEIGHT, mm (in.) 570 ( PLATE SIZE (WxL), mm (in.) 350x550 WEIGHT NET WEIGHT, kg (lb.) OPERATING WEIGHT, kg (lb.) PERFORMANCE TRAVELING SPEED, m/min (ft/min)

  • Page 8: Preventative Maintenance And Routine Service Plan

    However, when in need of parts or major service be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your Vibratory Plate Compactor. When in need of parts or service be prepared to provide your Compactor serial number.
  • Page 9 ROUTINE SERVICE BCF1080 Routine Service Each After 1.5 Each 3 Each 6 Each 9 Each 12 Intervals months months months months months 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Guards Check Check Check Operation Engine:...

  • Page 10: Routine Service Intervals

    ROUTINE SERVICE INTERVALS BCF1080 Due to the nature and environment of use, plate compactors could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your machine. • The initial service for your compactor should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 11: Foreward

    BCF1080 FOREWORD STARTING PROCEDURE: The Bartell Vibratory Plate Compactor is highly effec- * WARM CLIMATE tive for a wide variety of surface, sub-soil, and back-fill Open fuel valve on gas tank. Set throttle lever to materials. Although relatively light in weight and easy “Fast”...

  • Page 12: Prior To Operation

    BCF1080 PRIOR TO OPERATION A regular grade gasoline should be used in the Make sure that all dirt, mud, etc., are thoroughly engine. When filling the fuel tank, make sure removed from the unit prior to operation. Special the fuel filter is used.

  • Page 13: Lubrication

    BCF1080 MAINTENANCE STORAGE Maintaining your compactor will insure long life to the The following steps should be taken to prepare your machine and its components. plate compactor for extended storage. AIR CLEANER - Keep air filter clean at all times.
  • Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 15: Assembly Drawings And Parts List

    BCF1080 ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 16: Full Assembly

    PARTS LIST 1 BCF1080 FULL ASSEMBLY...
  • Page 17 PARTS LIST 1 BCF1080 FULL ASSEMBLY ITEM PART NO. DESCRIPTION QTY. REMARKS 101237-01001 ENGINE FRAME 101237-01020 PLAIN WASHER M13 101237-01021 HEX HEAD BOLT M12x60x30 101237-01023 PARALLEL KEY 101237-01030 PLAIN WASHER M8.4 101237-01031 HEX HEAD BOLT M8x20 101237-10133 PLAIN WASHER M8.4...
  • Page 18 PARTS LIST 1 BCF1080 FULL ASSEMBLY (cont’d) ITEM PART NO. DESCRIPTION QTY. REMARKS 101539-01005 HANDLE ASSEMBLY 101539-01008 CLUTCH 130/20 101539-01021 VIBRATOR ASSEMBLY 101539-01030 VIBRATOR ISOLATOR BB-35/35-B 651050 THROTTLE LEVER WITH CABLE ASSY...
  • Page 19 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 20 PARTS LIST 2 BCF1080 WHEELS...
  • Page 21 PARTS LIST 2 BCF1080 WHEELS ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-E60-W-001 WHEELS FRAME CPC-E60-W-002 WHEELS CPC-E60-W-003 COLLAR CPC-E60-W-004 WASHER M12 CPC-E60-W-005 CIRCLIP M12 CPC-E60-W-006 SHAFT...
