Bartell BR3570 Owner's Manual And Parts Book

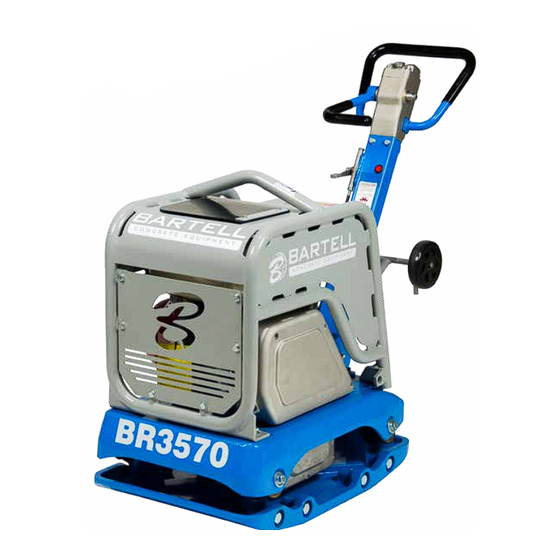

Reversible hydraulic plate compactors
Hide thumbs
Table of Contents

Advertisement

Quick Links

REVERSIBLE HYDRAULIC
PLATE COMPACTORS
BR3570
OI-B09046
10/2013
04
07/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR3570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartell BR3570

Summary of Contents for Bartell BR3570

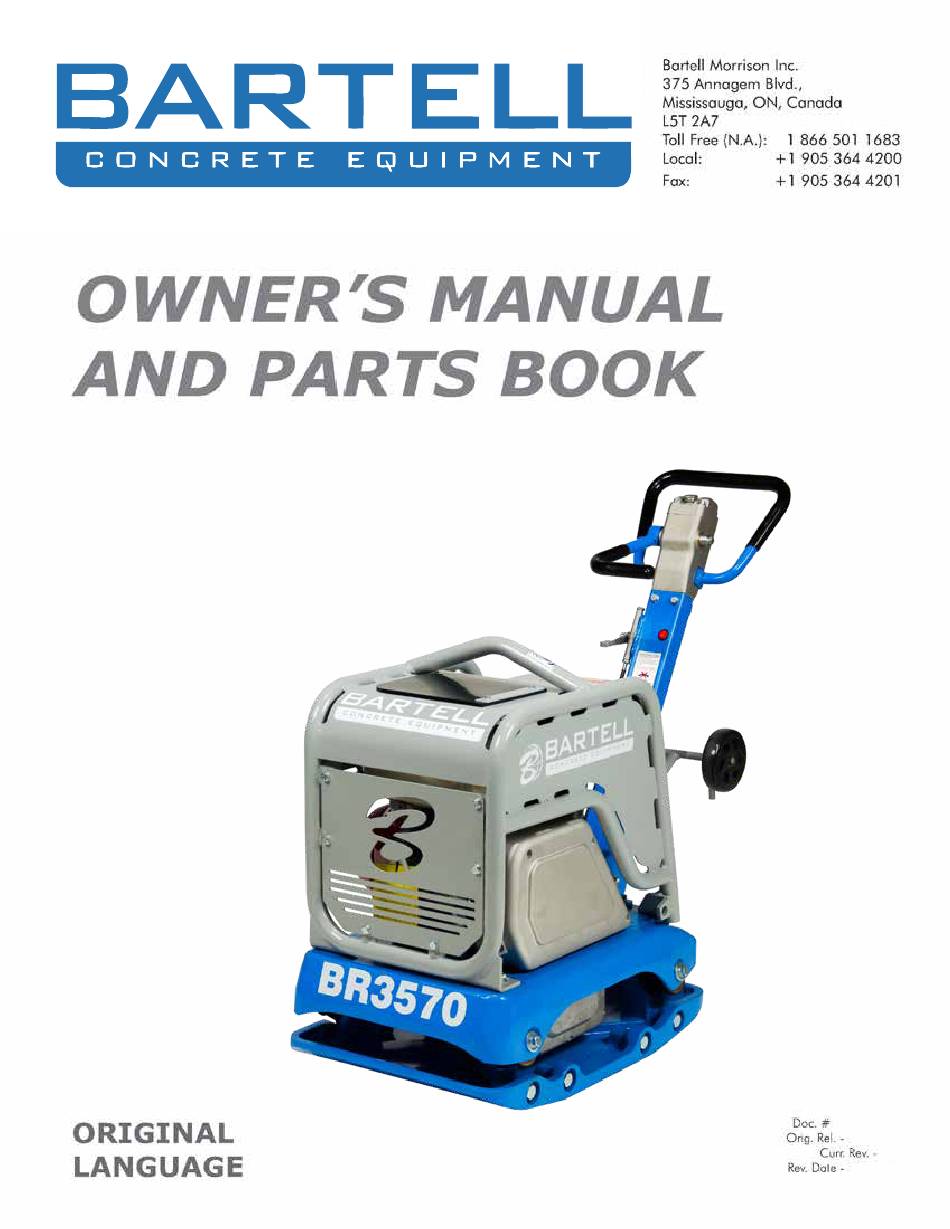

  • Page 1 REVERSIBLE HYDRAULIC PLATE COMPACTORS BR3570 OI-B09046 10/2013 07/2014...
  • Page 2 No part of this work may be reporduced or transmitted in any form or by any means, electronic, or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc, unless such copying is permitted by federal copyright laws.
  • Page 3 SAFETY PRECAUTIONS BR3570...

  • Page 4: Table Of Contents

    OPERATOR’S MANUAL BR3570 QUALITY ASSURANCE / MACHINE BREAK IN WARRANTY INFORMATION SPECIFICATIONS PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN ROUTINE SERVICE INTERVALS FOREWARD SAFETY PRECAUTIONS ASSEMBLY INSTRUCTIONS OPERATING PRINCIPLE STARTING PROCEDURE STOPPING PROCEDURE PRIOR TO OPERATION OPERATION MAINTENANCE STORAGE ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 5: Quality Assurance / Machine Break In

    This will serve to further break in the machine on your specific application, as well as provide you with additional practice using the machine. We thank you for the confidence you have placed in us by purchasing a Bartell Vibratory Plate Compactor and wish you many years of satisfied use.

  • Page 6: Warranty Information

    Bartell Ltd. within the twelve month warranty period. No further or other guarantee or warranty expressed or implied in connection with the sale of the Compactor is given and our sole liability consists in replacing defective parts or portions thereof.

  • Page 7: Specifications

    SPECIFICATIONS BR3570 DIMENSIONS OVERALL LENGTH, mm (in.) 1340 (53”) OVERALL WIDTH, mm (in.) 450 (18”) OVERALL HEIGHT, mm (in.) 960 (38”) PLATE SIZE (WxL), mm (in.) 450x700 (18”x28”) WEIGHT NET WEIGHT, kg. (lb.) 240 (529) OPERATING WEIGHT, kg. (lb) 250 (551)

  • Page 8: Preventative Maintenance And Routine Service Plan

    However, when in need of parts or major service be sure to see your Bartell dealer. For your convenience we have provided this space to record relevant data about your Vibratory Plate Compactor. When in need of parts or service be prepared to provide your Compactor serial number.
  • Page 9 ROUTINE SERVICE BR3570 Routine Service Each After 1.5 Each 3 Each 6 Each 9 Each 12 Intervals months months months months months 50 hrs 100 hrs 200 hrs 300 hrs 400 hrs General Inspection: Guards Check Check Check Operation Engine:...

  • Page 10: Routine Service Intervals

    ROUTINE SERVICE INTERNALS BR3570 Due to the nature and environment of use, plate compactors could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your machine. • The initial service for your compactor should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 11: Foreward

    BR3570 FOREWORD OPERATING PRINCIPLE The Bartell Vibratory Plate Compactor is highly effec- An eccentric weight mounted on the exciter shaft tive for a wide variety of surface, sub-soil, and back-fill contained within the exciter housing is driven at high materials. Although relatively light in weight and easy speed by a clutch and belt drive system.

  • Page 12: Prior To Operation

    BR3570 5. STARTING-UP Gasoline Engine (FOR CPC-60, CPC-95, CPC 1. Align fuel cock lever with FLOW position (Fig.3) PRIOR TO OPERATION A regular grade gasoline should be used in the 2. When cold or somehow starting is difficult, turn choke Make sure that all dirt, mud, etc., are thoroughly...

  • Page 13: Maintenance

    BR3570 MAINTENANCE STORAGE Maintaining your compactor will insure long life to the The following steps should be taken to prepare your machine and its components. plate compactor for extended storage. AIR CLEANER - Keep air filter clean at all times.
  • Page 14 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 15: Assembly Drawings And Parts List

    BR3570 ASSEMBLY DRAWINGS AND PARTS LIST...

  • Page 16: Vibrating Plate

    CPC-240 SPART PART LIST PARTS LIST 1 BR3570 PART LIST (A) – VIBRATING PLATE VIBRATING PLATE ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-01A VIBRATING PLATE CPC-240 CPC-240-02A SHOCK ABSORBER AS ACCURATE AS AT 01 JUNE 07 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 17 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 18: Body

    CPC-240 SPART PART LIST PARTS LIST 2 PART LIST (B) – BODY BR3570 BODY CPC-240 AS ACCURATE AS AT 01 JUNE 07 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 19 PARTS LIST 2 BR3570 BODY ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-01B BASE CPC-240-02B ENGINE CPC-240-03B BOLT M8x40T CPC-240-04B SW M8 CPC-240-05B PW M8 CPC-240-06B BELT COVER PLATE CPC-240-07B BOLT M8x20T CPC-240-09B CLUTCH ASSEMBLY CPC-240-10B KEY 5x5x30 CPC-240-11B CLUTCH WASHER...

  • Page 20: Vibrator

    CPC-240 SPART PART LIST PARTS LIST 3 BR3570 PART LIST (C) – VIBRATOR VIBRATOR CPC-240 AS ACCURATE AS AT 01 JUNE 07 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 21 PARTS LIST 3 BR3570 VIBRATOR ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-C VIBRATOR ASSEMBLY CPC-240-01C VIBRATING CASE ROLLER BEARING NJ307EM CPC-240-02C ROLLER BEARING NJ307C4 CPC-240-03C ROTARY SHAFT, DRIVE CPC-240-04C ROTARY SHAFT, DRIVEN CPC-240-05C STOP RING S-35 CPC-240-06C KEY 10x8x19 CPC-240-07C...
  • Page 22 PARTS LIST 3 BR3570 VIBRATOR (cont’d) ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-33C PULLEY CPC-240-34C KEY 8x7x25 CPC-240-35C BOLT M8x40T CPC-240-36C SW M8 CPC-240-37C BOLT M12x45T CPC-240-38C BOLT M12x120T CPC-240-39C SW M12 CPC-240-40C PW M12 CPC-240-41C BELT COVER (LOWER) CPC-240-42C...
  • Page 23 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...

  • Page 24: Control

    PARTS LIST 4 CPC-240 SPART PART LIST BR3570 PART LIST (D) – CONTROL CONTROL CPC-240 AS ACCURATE AS AT 01 JUNE 07 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 25 PARTS LIST 4 BR3570 CONTROL ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-01D THROTTLE LEVER ASSEMBLY CPC-240-02D THROTTLE WIRE CPC-240-03D HANDLE UPPER AY CPC-240-04D HANDLE LOWER AY CPC-240-05D BOLT M16x150T CPC-240-06D PW M16 CPC-240-07D CONICAL SPRING WASHER M16 CPC-240-08D NUT M16...

  • Page 26: Hand Pump Assembly

    CPC-240 SPART PART LIST PARTS LIST 5 BR3570 PART LIST (E) – HAND PUMP HAND PUMP ASSEMBLY CPC-240 AS ACCURATE AS AT 01 JUNE 07 MANUFACTURER RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRENOTICE...
  • Page 27 PARTS LIST 5 BR3570 HAND PUMP ASSEMBLY ITEM PART NO. DESCRIPTION QTY. REMARKS CPC-240-01E CAN COMP (PUMP) CPC-240-02E COVER (HAND PUMP) CPC-240-03E PISTON CP 0CPC-240-04E CONTROL SHAFT (PUMP) CPC-240-05E BUSH CPC-240-06E CAN (PUMP) CPC-240-07E BEARING 607ZZ CPC-240-08E SPACER CPC-240-09E PIN 7x30...
  • Page 28 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 29 BARTELL MORRISON BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC. 25 200 Commerce Dr. 375 Annagem Blvd. 12 Industrial Drive. Freehold, New Jersey, USA Mississauga, Ontario, Canada Keyport, New Jersey, USA 07728 L5T3A7 07735 Toll Free: 888-999-1570 Toll Free: 866-501-1683 Toll Free: 888-999-1570...
