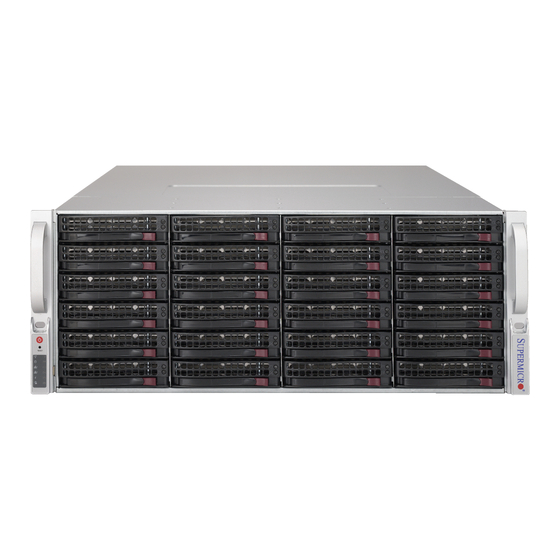

Supermicro SuperStorage 6049P-E1CR36H User Manual
  1. Manuals
  2. Brands
  3. Supermicro Manuals
  4. Network Storage Server
  5. SuperStorage 6049P-E1CR36H
  6. User manual

Supermicro SuperStorage 6049P-E1CR36H User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

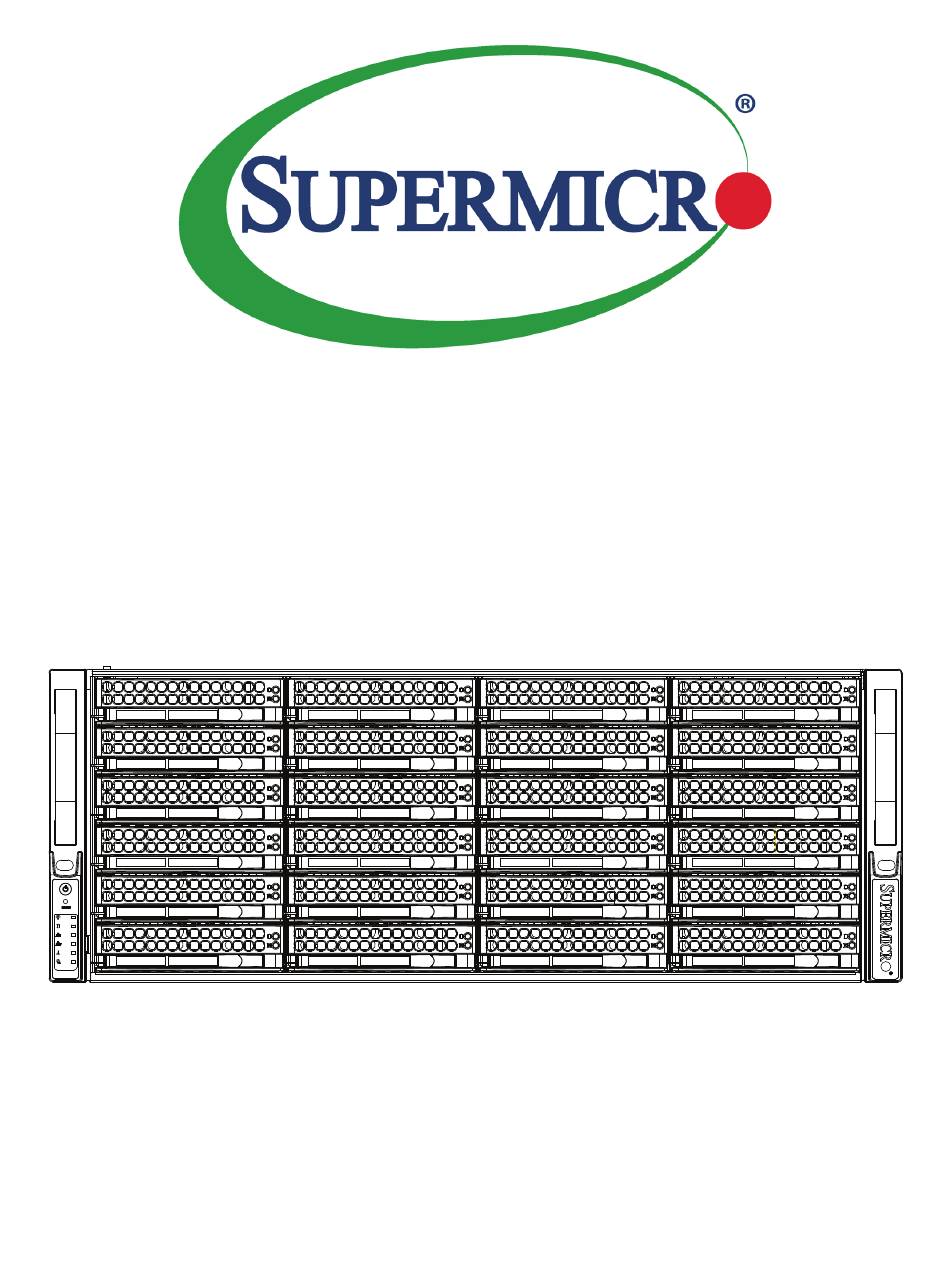

SuperStorage Server
6049P-E1CR36H
6049P-E1CR36L
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SuperStorage 6049P-E1CR36H

Summary of Contents for Supermicro SuperStorage 6049P-E1CR36H

  • Page 1 SuperStorage Server 6049P-E1CR36H 6049P-E1CR36L USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 If you have any questions, contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Warnings Special attention should be given to the following symbols used in this manual.

  • Page 4: Table Of Contents

    Preface Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Unpacking the System ......................8 1.3 System Features ........................9 1.4 Server Chassis Features ....................10 Control Panel ........................10 Front Features ........................11 Rear Features ........................12 1.5 Motherboard Layout ......................13 Quick Reference Table ......................14 Chapter 2 Server Installation 2.1 Overview ..........................17 2.2 Preparing for Setup ......................17 Choosing a Setup Location ....................17...
  • Page 5 SuperStorage Server 6049P-E1CR36H/L User's Manual The Xeon Scalable Processor ..................27 Overview of the Processor Socket Assembly ..............27 Overview of the Processor Heatsink Module (PHM) .............29 Assembling the Processor Package ................30 Assembling the Processor Heatsink Module (PHM) .............31 Removing the Processor Heatsink Module from the Motherboard .......32 Installing Memory ......................33 Memory Support ......................33 DIMM Installation ......................34...
  • Page 6 Preface Chapter 5 Software 5.1 OS Installation ........................59 Installing the Windows OS for a RAID System ..............59 Installing Windows to a Non-RAID System ..............59 5.2 Driver Installation ........................60 5.3 SuperDoctor 5 ........................61 ® 5.4 IPMI ............................62 Chapter 6 BIOS 6.1 Introduction .........................63 6.2 Main Setup .........................64 6.3 Advanced Setup Configurations ..................66 6.4 Event Logs .........................92...
  • Page 7 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 8: Chapter 1 Introduction

    SuperStorage Server 6049P-E1CR36H/L User's Manual Chapter 1 Introduction 1.1 Overview This chapter provides a brief outline of the functions and features of the 6049P-E1CR36H/L. The 6049P-E1CR36H/L is based on the X11DPH-T motherboard and the 847BE1C4-R1K23LPB chassis. In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

  • Page 9: System Features

    Chapter 1: Introduction 1.3 System Features The following table provides an overview of the main features of the 6049P-E1CR36H/L. Refer to Appendix C for additional specifications. System Features Motherboard X11DPH-T Chassis 847BE1C4-R1K23LPB Intel Xeon 81xx/61xx/51xx/41xx/31xx Series processors* [Socket P0-LGA 3647 processor with up to 28 cores and a thermal design power (TDP) of up to 205W] Socket Type P0-LGA 3647...

  • Page 10: Server Chassis Features

    SuperStorage Server 6049P-E1CR36H/L User's Manual 1.4 Server Chassis Features Control Panel The switches and LEDs located on the control panel are described below. The control panel is located on the left handle of the chassis. See Chapter 4 for details on the control panel connections.

  • Page 11: Front Features

    Chapter 1: Introduction Front Features The 847BE1C4-R1K23LPB is a 4U chassis. See the illustration below for the features included on the front of the chassis. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Control Panel Front control panel with LEDs and buttons (see preceding page) Hard Drive Carrier Carrier for hot-swap hard drive Rack Ear Brackets...

  • Page 12: Rear Features

    SuperStorage Server 6049P-E1CR36H/L User's Manual Rear Features The illustration below shows the features included on the rear of the chassis. Figure 1-3. Chassis Rear View Rear Chassis Features Item Feature Description Power Supply 1200W power supply module (two modules for power redundancy) I/O Back Panel Rear I/O ports (see Section 4.3) Expansion Card Slots...

  • Page 13: Motherboard Layout

    Chapter 1: Introduction 1.5 Motherboard Layout Below is a layout of the X11DPH-T with jumper, connector, and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information, and jumper settings, refer to Chapter 4. USB2/3 (3.0) SLOT7 JSDCARD1...

  • Page 14: Quick Reference Table

    SuperStorage Server 6049P-E1CR36H/L User's Manual Quick Reference Table Jumper Description Default Setting JBT1 CMOS Clear Open (Normal) JPG1 VGA Enable Pins 1-2 (Enabled) JPL1 LAN1/LAN2 Enable Pins 1-2 (Enabled) JPME1 ME Recovery Pins 1-2 (Normal) JPME2 ME Manufacturing Mode Pins 1-2 (Normal) JVRM1 VRM SMB Clock (to BMC or PCH) Closed (Normal: SMB Clock to BMC)
  • Page 15 Description (CPU2) SLOT2, SLOT4, PCI-Express 3.0 x16 slot supported by CPU2 SLOT5 S-SATA0, S-SATA1 Powered SATA 3.0 ports with support of Supermicro SuperDOM (Disk-On-Module) T-SGPIO1 Serial Link General Purpose I/O (SGPIO) port USB0/1, USB2/3 Universal Serial Bus (USB) 3.0 ports USB4/5 Internal USB 3.0 header for front access...
  • Page 16 SuperStorage Server 6049P-E1CR36H/L User's Manual #F-0 VCCP1 12v VCCP0 12v #M-0 #E-0 #L-0 VR13 VR13 #D-1 #K-1 5+1 PHASE 6+1 PHASE #D-0 #K-0 up to 255W #C-0 10.4/11.2G #J-0 #B-0 #H-0 VCCP1 VCCP0 #A-1 #G-1 #A-0 #G-0 SNB CORE SNB CORE DDR4 DDR4 PECI: 30...

  • Page 17: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2.1 Overview This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory, etc., refer to Chapter 4 for details on installing those components. Caution: Electrostatic Discharge (ESD) can damage electronic components.

  • Page 18: Server Precautions

    SuperStorage Server 6049P-E1CR36H/L User's Manual • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always verify that the rack is stable before extending a server or other component from the rack.

  • Page 19: Circuit Overloading

    Chapter 2: Server Installation Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 20: Installing The System Into A Rack

    SuperStorage Server 6049P-E1CR36H/L User's Manual 2.3 Installing the System into a Rack This section provides information on installing the 847BE1C4 chassis into a rack unit with the rails provided. Due to the variety of rack units on the market, the assembly procedure might differ slightly.

  • Page 21: Releasing The Inner Rails

    Chapter 2: Server Installation Releasing the Inner Rails Follow the steps below to release the inner rails from the outer rails. Installing the Inner Rails from the Outer Rails 1. Identify the left and right outer rail assemblies as described on the previous page. 2.

  • Page 22: Installing The Inner Rails On The Chassis

    SuperStorage Server 6049P-E1CR36H/L User's Manual Installing The Inner Rails on the Chassis Installing the Inner Rails 1. Confirm that the left and right inner rails have been correctly identified. 2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 23: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail into the outer rail. 3. Hang the front hooks of the outer rail onto the slots on the front of the rack. If necessary, use screws to secure the outer rails to the rack.
  • Page 24 SuperStorage Server 6049P-E1CR36H/L User's Manual Figure 2-5. Installing the System into a Rack Note: Figures are for illustrative purposes only. Always install servers to the bottom of a rack first.

  • Page 25: Chapter 3 Component Installation And Maintenance

    SuperStorage Server 6049P-E1CR36H/L User's Manual Chapter 3 Component Installation and Maintenance This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and part numbers given. Remove power from the system before installing or replacing components. Refer to Section 3.1.

  • Page 26: Motherboard Components

    When receiving a motherboard without a processor pre-installed, verify that the plastic CPU socket cap is in place and none of the socket pins are bent. Otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support.

  • Page 27: The Xeon Scalable Processor

    SuperStorage Server 6049P-E1CR36H/L User's Manual The Xeon Scalable Processor Figure 3-2. Xeon Scalable Processors Note: All graphics, drawings, and pictures shown in this manual are for illustration only. The components that came with your server might not look exactly the same as those shown in this manual.
  • Page 28 Chapter 3: Component Installation and Maintenance 3. Dust Cover 4. CPU Socket Note: When the CPU is not installed, cover the CPU socket with the dust cover.

  • Page 29: Overview Of The Processor Heatsink Module (Phm)

    SuperStorage Server 6049P-E1CR36H/L User's Manual Overview of the Processor Heatsink Module (PHM) The PHM contains 1) a heatsink, 2) a narrow processor clip, and 3) the processor. 1. Heatsink 2. Narrow processor clip 3. Processor...

  • Page 30: Assembling The Processor Package

    Chapter 3: Component Installation and Maintenance Assembling the Processor Package Attach the processor to the narrow processor clip to create the processor package. Caution: Exercise extreme caution when handling the CPU. Do not touch the underside of the CPU to avoid damaging it. Wear ESD gloves when handling components. 1.

  • Page 31: Assembling The Processor Heatsink Module (Phm)

    SuperStorage Server 6049P-E1CR36H/L User's Manual Assembling the Processor Heatsink Module (PHM) After creating the processor package assembly, mount it onto the heatsink to create the processor heatsink module (PHM). 1. Locate "1" on the heatsink label and the corner next to it. With your index finger pressed against the screw at this corner, carefully turn the heatsink upside down with the thermal grease side facing up.

  • Page 32: Removing The Processor Heatsink Module From The Motherboard

    Chapter 3: Component Installation and Maintenance Removing the Processor Heatsink Module from the Motherboard Before removing the processor heatsink module (PHM), power down the server as described in Section 3.1 and remove the top cover as described in Section 3.2. 1.

  • Page 33: Installing Memory

    SuperStorage Server 6049P-E1CR36H/L User's Manual Installing Memory Memory Support The X11DPH-T supports up to 512GB of RDIMM or 2TB of 3DS LRDMIMM DDR4 (288-pin) ECC memory with speeds of up to 2666MHz in 16 memory slots. Refer to the table below for additional memory information.

  • Page 34: Dimm Installation

    Reverse the steps above to remove the DIMM modules from the motherboard. Press both notches straight down into the memory slot. Notches Release Tabs Figure 3-2. Installing DIMMs Note: Visit the product page on the Supermicro website for possible updates to memory support (www.supermicro.com).

  • Page 35: Installing Pci Expansion Cards

    SuperStorage Server 6049P-E1CR36H/L User's Manual Installing PCI Expansion Cards The 6049P-E1CR36H/L can accommodate up to four PCI expansion cards. Installing an Add-on Card Begin by removing power from the system as described in Section 3.1, and remove the cover as described in Section 3.2. 1.

  • Page 36: Chassis Components

    Figure 3-4. Removing a Hard Drive Carrier Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro website at http://www.

  • Page 37: Hard Drive Backplane

    SuperStorage Server 6049P-E1CR36H/L User's Manual Figure 3-5. Mounting a Drive in a Carrier Caution: Except for short periods of time, do not operate the server without the chassis cover in place. The cover must be in place to allow proper airflow and prevent overheating. Hard Drive Backplane The hard drives plug into a backplane that provides power, drive ID, and bus termination.

  • Page 38: System Cooling

    2. System power does not need to be shut down since the fans are hot-pluggable. 3. Replace the failed fan with an identical 8-cm, 12 volt fan (available from Supermicro). 4. Position the new fan into the space vacated by the failed fan previously removed. An audible click indicates that the fan is fully installed in place and the power connections are made.

  • Page 39: Air Shroud

    SuperStorage Server 6049P-E1CR36H/L User's Manual Figure 3-7. Installing a System Fan Air Shroud Generally you do not need to remove the air shroud to perform any service on the system. However, if you need to temporarily remove it (the air shroud should always be in place when the system is operating), follow this procedure.

  • Page 40: Power Supply

    Replacements can be ordered directly from Supermicro (see contact information in the Preface). The power supply modules have hot-swap capability, so you can replace the failed module without powering down the system.
  • Page 41 SuperStorage Server 6049P-E1CR36H/L User's Manual Removing/Replacing the Power Supply 1. Unplug the power cord from the failed power supply module. 2. Push the release tab on the back of the power supply as illustrated. 3. Pull the power supply out using the handle provided. 4.

  • Page 42: Power Connections

    SuperStorage Server 6049P-E1CR36H/L User's Manual Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations can be found in Chapter 1.

  • Page 43: Headers And Connectors

    Chapter 4: Motherboard Connections 8-Pin Power Connector JPWR1 is an 8-pin 12V DC power input for the processors, which must be connected to the power supply. Refer to the table below for pin definitions. 8-pin Power Pin Definitions Pin# Definition 1 - 4 Ground 5 - 8...
  • Page 44 A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. The following document provides information about the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...
  • Page 45 Ground NVMe I C Header Connector JNVI C1 is a management header for the Supermicro AOC NVMe PCI-E peripheral card. Please connect the I C cable to this connector. VRM SMBus Header JVRM1 is a voltage regulator module (VRM) SMBus header. Use this header to program the...
  • Page 46 Note: For more information on the SATA HostRAID configuration, please refer to the Intel SATA HostRAID user's guide posted on our website at http://www.supermicro.com. NVMe Slots Two NVM Express slots are located at JNVME1 and JNVME2 on the motherboard. Use these...

  • Page 47: Control Panel

    Chapter 4: Motherboard Connections Intel RAID Key Header The JRK1 header allows the user to enable RAID functions. Refer to the table below for pin definitions. Overheat LED Pin Definitions Pin# Defintion PU 3.3V Stdby PCH RAID KEY Control Panel JF1 contains header pins for various control panel connections.
  • Page 48 SuperStorage Server 6049P-E1CR36H/L User's Manual Reset Button The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions. Reset Button Pin Definitions (JF1) Pins...
  • Page 49 Chapter 4: Motherboard Connections HDD LED The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to show hard drive activity status. Refer to the table below for pin definitions. HDD LED Pin Definitions (JF1) Pins Definition...
  • Page 50 SuperStorage Server 6049P-E1CR36H/L User's Manual Overheat (OH)/Fan Fail Connect an LED cable to pins 7 and 8 of JF1 to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheat or fan failure. OH/Fan Fail Indicator OH/Fan Fail LED Status Pin Definitions (JF1)
  • Page 51 Chapter 4: Motherboard Connections Power LED The Power LED connection is located on pins 15 and 16 of JF1. Power LED Pin Definitions (JF1) Pin# Definition 3.3V Power LED NMI Button The non-maskable interrupt button header is located on pins 19 and 20 of JF1. NMI Button Pin Definitions (JF1) Pin#...

  • Page 52: Ports

    SuperStorage Server 6049P-E1CR36H/L User's Manual 4.3 Ports Figure 4-2. Rear I/O Ports Description Description COM Port 1 USB9 Port (USB3.0) Dedicated IPMI LAN LAN1/LAN2 Ports USB1 Port (USB2.0) VGA Port USB0 Port (USB2.0) UID Switch USB10 Port (USB3.0) COM Ports Two COM connections (COM1 and COM2) are located on the motherboard.
  • Page 53 Chapter 4: Motherboard Connections Universal Serial Bus (USB) Ports There are two USB 2.0 ports (USB0/1) and two USB 3.0 ports (USB9/10) located on the I/O back panel. The motherboard also has three front accessible USB 2.0 headers (USB2/3, USB4/5, and USB6/7) and one front accessible USB 3.0 header (USB11/12). The USB8 header is USB 3.0 Type-A.

  • Page 54: Jumpers

    Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com. UID Switch...
  • Page 55 Chapter 4: Motherboard Connections CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1. First power down the system and unplug the power cord(s). 2.
  • Page 56 SuperStorage Server 6049P-E1CR36H/L User's Manual ME Manufacturing Mode Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in manufacturing mode. This allows the user to flash the system firmware from a host server for system setting modifications.

  • Page 57: Led Indicators

    Chapter 4: Motherboard Connections 4.5 LED Indicators LAN LEDs Four LAN ports (LAN 1 ~ LAN 4) are located on the I/O back panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.
  • Page 58 SuperStorage Server 6049P-E1CR36H/L User's Manual Onboard Power LED The Onboard Power LED is located at LEDPWR on the motherboard. When this LED is on, the system is on. Be sure to turn off the system and unplug the power cord before removing or installing components.

  • Page 59: Chapter 5 Software

    You must first configure RAID settings (if using RAID) before you install the Windows OS and the software drivers. To configure RAID settings, refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals. Installing the Windows OS for a RAID System 1.

  • Page 60: Driver Installation

    SuperStorage Server 6049P-E1CR36H/L User's Manual 5.2 Driver Installation The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro. com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, navigate to the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 61: Superdoctor ® 5

    5.3 SuperDoctor ® Supermicro SuperDoctor 5 is a program that functions in a command line or web-based interface for Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, and fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 62: Ipmi

    The X11DPH-T supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring, and management. There are several BIOS settings that are related to IPMI. For general documentation and information on IPMI, visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

  • Page 63: Chapter 6 Bios

    Chapter 6: BIOS Chapter 6 BIOS 6.1 Introduction This chapter describes the AMIBIOS™ Setup utility for the motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 64: Main Setup

    Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset. Supermicro X11DPH-T BIOS Version This item displays the version of the BIOS ROM used in the system.
  • Page 65 Chapter 6: BIOS CPLD Version This item displays the Complex Programmable Logic Device version. Memory Information Total Memory This item displays the total size of memory available in the system.

  • Page 66: Advanced Setup Configurations

    SuperStorage Server 6049P-E1CR36H/L User's Manual 6.3 Advanced Setup Configurations Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items. Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. When this occurs, revert to default manufacturer settings.
  • Page 67 Chapter 6: BIOS Wait For "F1" If Error Use this feature to force the system to wait until the "F1" key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors "capture"...
  • Page 68 SuperStorage Server 6049P-E1CR36H/L User's Manual Power Button Function This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer.
  • Page 69 Chapter 6: BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Select Enabled to enable the Execute Disable Bit, which allows the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.
  • Page 70 SuperStorage Server 6049P-E1CR36H/L User's Manual AES-NI Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable. Advanced Power Management Configuration   CPU P State Control This feature allows the user to configure the following CPU power settings: Speedstep (Pstates) Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation.
  • Page 71 Chapter 6: BIOS  CPU C State Control Autonomous Core C-State Enabling this setting allows the hardware to autonomously choose to enter a C-state based on power consumption and clock speed. The options are Disable and Enable. CPU C6 Report Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system.
  • Page 72 SuperStorage Server 6049P-E1CR36H/L User's Manual  UPI Configuration The following UPI information displays: • Number of CPU • Number of IIO • Current UPI Link Speed • Current UPI Link Frequency • UPI Global MMIO Low Base / Limit • UPI Global MMIO High Base / Limit •...
  • Page 73 Chapter 6: BIOS  Memory Configuration Enforce POR Select POR (Plan of Record) to enforce POR restrictions on DDR4 frequency and volt- age programming. The options are POR and Disable. Memory Frequency Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1866, 2000, 2133, 2200, 2400, 2600, and 2666.
  • Page 74 SuperStorage Server 6049P-E1CR36H/L User's Manual Mirror Mode This feature allows memory to be mirrored between two channels, providing 100% redundancy. The options are Disable, Mirror Mode 1LM, and Mirror Mode 2LM. UEFI ARM Mirror Select Enable to support the UEFI-based address range mirroring with setup option. The options are Disable and Enable.
  • Page 75 Chapter 6: BIOS IIO Configuration EV DFX Features When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor always remain clear during electric tuning. The options are Disable and Enable.  CPU Configuration IOU0 (II0 PCIe Br1) This item configures the PCI-E port Bifuraction setting for a PCI-E port specified by the user.
  • Page 76 SuperStorage Server 6049P-E1CR36H/L User's Manual  IOAT Configuration Disable TPH Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature increases performance. The options are No and Yes. Prioritize TPH Use this feature to enable Prioritize TPH support.
  • Page 77 Chapter 6: BIOS Posted Interrupt Use this feature to enable VT_D Posted Interrupt. The options are Enable and Disable. Coherency Support (Non-Isoch) Use this feature to maintain setting coherency between processors or other devices. Select Enable for the Non-Iscoh VT-d engine to pass through DMA to enhance system performance.
  • Page 78 SuperStorage Server 6049P-E1CR36H/L User's Manual Hot Plug Capable (Available when the device is detected by the system) Use this feature to enable hot plug support for PCIe root ports 2A~2D. The options are Disable and Enable. VMD Config for PStack2 Intel®...
  • Page 79 Chapter 6: BIOS Port 60/64 Emulation This feature allows legacy I/O support for USB devices like mice and keyboards. The options are Enabled and Disabled. Server ME Configuration The following General ME Configuration settings display: • Oper. Firmware Version • Backup Firmware Version •...
  • Page 80 SuperStorage Server 6049P-E1CR36H/L User's Manual Aggressive Link Power Management When this item is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller puts the link in a low-power mode during extended periods of I/O inactivity, and returns the link to an active state when I/O activity resumes.
  • Page 81 Chapter 6: BIOS Configure sSATA as Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are AHCI and RAID.
  • Page 82 SuperStorage Server 6049P-E1CR36H/L User's Manual PCIe/PCI/PnP Configuration The following information displays: • PCI Bus Driver Version • PCI Devices Common Settings: Above 4G Decoding (Available if the system supports 64-bit PCI decoding) Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.
  • Page 83 Chapter 6: BIOS VGA Priority Use this feature to select VGA priority when multiple VGA devices are detected. Select On- board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard. M.2 PCI-E 3.0 X4 OPROM Use this feature to select which firmware type to be loaded for the add-on card in this slot.
  • Page 84 SuperStorage Server 6049P-E1CR36H/L User's Manual Onboard Video Option ROM Use this item to select the Onboard Video Option ROM type. The options are Disabled, Legacy, and EFI. Onboard NVMe1 ROM Use this item to select the firmware type for onboard NVMe1. The options are Disabled, Legacy, and EFI.
  • Page 85 Chapter 6: BIOS Super IO Configuration The following Super IO information will display: • Super IO Chip AST2500 Serial Port 1 Configuration  This submenu allows the user to configure the settings of Serial Port 1. Serial Port 1 Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.
  • Page 86 SuperStorage Server 6049P-E1CR36H/L User's Manual Serial Port 2 Attribute (Available for Serial Port 2 only) Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The options are SOL and COM. Serial Port Console Redirection COM1 Console Redirection Select Enabled to enable console redirection support for a serial port specified by the user.
  • Page 87 Chapter 6: BIOS COM1 Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2. COM1 Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow.
  • Page 88 SuperStorage Server 6049P-E1CR36H/L User's Manual SOL/COM2 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. COM2 Terminal Type Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set.
  • Page 89 Chapter 6: BIOS COM2 Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. COM2 Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.
  • Page 90 SuperStorage Server 6049P-E1CR36H/L User's Manual Out-of-Band Mgmt Port The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2. Terminal Type Use this feature to select the target terminal emulation type for Console Redirection.
  • Page 91 Chapter 6: BIOS Trusted Computing  Security Device Support If this feature and the TPM (Trusted Platform Module) jumper on the motherboard are both set to Enabled, onboard security devices are enabled for TPM support to enhance data integrity and network security. Reboot the system for a change on this setting to take effect. The options are Disable and Enable.

  • Page 92: Event Logs

    SuperStorage Server 6049P-E1CR36H/L User's Manual 6.4 Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 93 Chapter 6: BIOS SMBIOS Event Log Standard Settings Log System Boot Event This option toggles the System Boot Event logging to Enabled or Disabled. The options are Disabled and Enabled. MECI The Multiple Event Count Increment (MECI) counter tracks the number of duplicate occurrences of an event until the MECI counter is incremented.

  • Page 94: Ipmi

    SuperStorage Server 6049P-E1CR36H/L User's Manual 6.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. BMC Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status (Baseboard Management Controller) This item indicates the status of the IPMI firmware installed in your system. System Event Log Enabling/Disabling Options SEL Components...
  • Page 95 Chapter 6: BIOS When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 96 SuperStorage Server 6049P-E1CR36H/L User's Manual Station MAC Address This item displays the Station MAC address for this computer. MAC addresses are six 2-digit hexadecimal numbers. Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 172.31.0.1).

  • Page 97: Security

    Chapter 6: BIOS 6.6 Security This menu allows the user to configure the following security settings. Administrator Password Press <Enter> to create a new or change an existing administrator password. User Password Press <Enter> to create a new or change an existing user password. Password Check Select Setup for the system to check for a password at Setup.
  • Page 98 SuperStorage Server 6049P-E1CR36H/L User's Manual Secure Boot Use this item to enable secure boot. The options are Disabled and Enabled. Secure Boot Mode Use this item to configure Secure Boot variables without authentication. The options are Standard and Custom. CSM Support Select Enabled to support the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot.
  • Page 99 Chapter 6: BIOS  Key Exchange Key Set New Select Yes to load the KEK (Key Exchange Key) from the manufacturer's defaults. Select No to load the KEK from a file. The options are Yes and No. Append Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file.
  • Page 100 SuperStorage Server 6049P-E1CR36H/L User's Manual  OsRecovery Signature This item uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are: 1) Public Key Certificate a. EFI Signature List b.

  • Page 101: Boot

    Chapter 6: BIOS 6.7 Boot Use this feature to configure Boot Settings. Boot Mode Select Use this item to select the type of device that the system is going to boot from. The options are Legacy, UEFI, and Dual. Legacy to EFI Support This feature enables the system to boot to EFI OS if boot fails from Legacy boot order.
  • Page 102 SuperStorage Server 6049P-E1CR36H/L User's Manual • Legacy/UEFI/Dual Boot Option #7 • Legacy/UEFI/Dual Boot Option #8 • UEFI/Dual Boot Option #9 • Dual Boot Option #10 • Dual Boot Option #11 • Dual Boot Option #12 • Dual Boot Option #13 •...
  • Page 103 Chapter 6: BIOS If any storage media is detected,, the following items are available for configuration: Add New Boot Option  This feature allows the user to add a new boot option to the boot priority features for your system. Add Boot Option Specify the name for the new boot option.

  • Page 104: Save & Exit

    SuperStorage Server 6049P-E1CR36H/L User's Manual 6.8 Save & Exit Use this option to save, discard, or reset setting changes. Save Options Discard Changes and Exit Select this option to quit the BIOS Setup without saving any changes to the system configuration.
  • Page 105 Chapter 6: BIOS Default Options Restore Optimized Defaults Select this option to restore the system to its factory settings. Factory settings are designed for maximum system stability, not for maximum performance. Save As User Defaults Select this option to save the current BIOS setup as user-defined default settings. You can restore the system to user defaults at any time.

  • Page 106: Appendix A Bios Codes

    SuperStorage Server 6049P-E1CR36H/L User's Manual Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the bootup process.
  • Page 107 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 108: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 109 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 110 SuperStorage Server 6049P-E1CR36H/L User's Manual . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 111 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 112 SuperStorage Server 6049P-E1CR36H/L User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 113 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 114 SuperStorage Server 6049P-E1CR36H/L User's Manual ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت قبم‬ ‫انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 115 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד‬ ‫واملدربيه...
  • Page 116 SuperStorage Server 6049P-E1CR36H/L User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 117 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 118 SuperStorage Server 6049P-E1CR36H/L User's Manual ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 119 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 120 SuperStorage Server 6049P-E1CR36H/L User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 121 Appendix B: Standardized Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 122 SuperStorage Server 6049P-E1CR36H/L User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 123 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 124 SuperStorage Server 6049P-E1CR36H/L User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 125 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 126 ‫حجم املوصل والقابس السليم. استخدام أي كابالت ومحوالت أخرى قد يتسبب يف عطل أو حريق. يحظر قانون السالمة لألجهزة الكهربائية واملعدات استخدام الكابالت املعتمدة‬ ‫ من قبل‬UL ‫ أو‬CSA ‫( والتي تحمل عالمة‬UL/CSA) ‫ مع أي معدات أخرى غري املنتجات املعنية واملحددة من قبل‬Supermicro.
  • Page 127 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 128: Appendix C System Specifications

    SuperStorage Server 6049P-E1CR36H/L User's Manual Appendix C System Specifications Processors Dual Intel Xeon 81xx/61xx/51xx/41xx/31xx Series processors [Socket P0-LGA 3647 processor with up to 28 cores and a thermal design power (TDP) of up to 205W, FPGA/Fabric processors not supported] Note: Refer to the motherboard specifications pages on our website for updates to supported processors. Chipset Intel C624 chipset BIOS...
  • Page 129 Appendix C: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class A, EN 55032 Class A, EN 61000-3-2/3-3, CISPR 22 Class A Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) Perchlorate Warning California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products...

  • Page 130: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 131 USB device or a writable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website www.supermicro.com to download the BIOS image into a USB flash device and rename it to "Super.ROM" for BIOS recovery use.
  • Page 132 SuperStorage Server 6049P-E1CR36H/L User's Manual 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 133 Appendix D: UEFI BIOS Recovery 6. After the BIOS recovery process is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a USB flash drive. 8. Press <Del> continuously during system boot to enter the BIOS setup utility. From the top of the tool bar, click on Boot and press <Enter>...
  • Page 134 SuperStorage Server 6049P-E1CR36H/L User's Manual 9. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 7. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process. Note: Do not interrupt this process until the BIOS flashing is complete.
