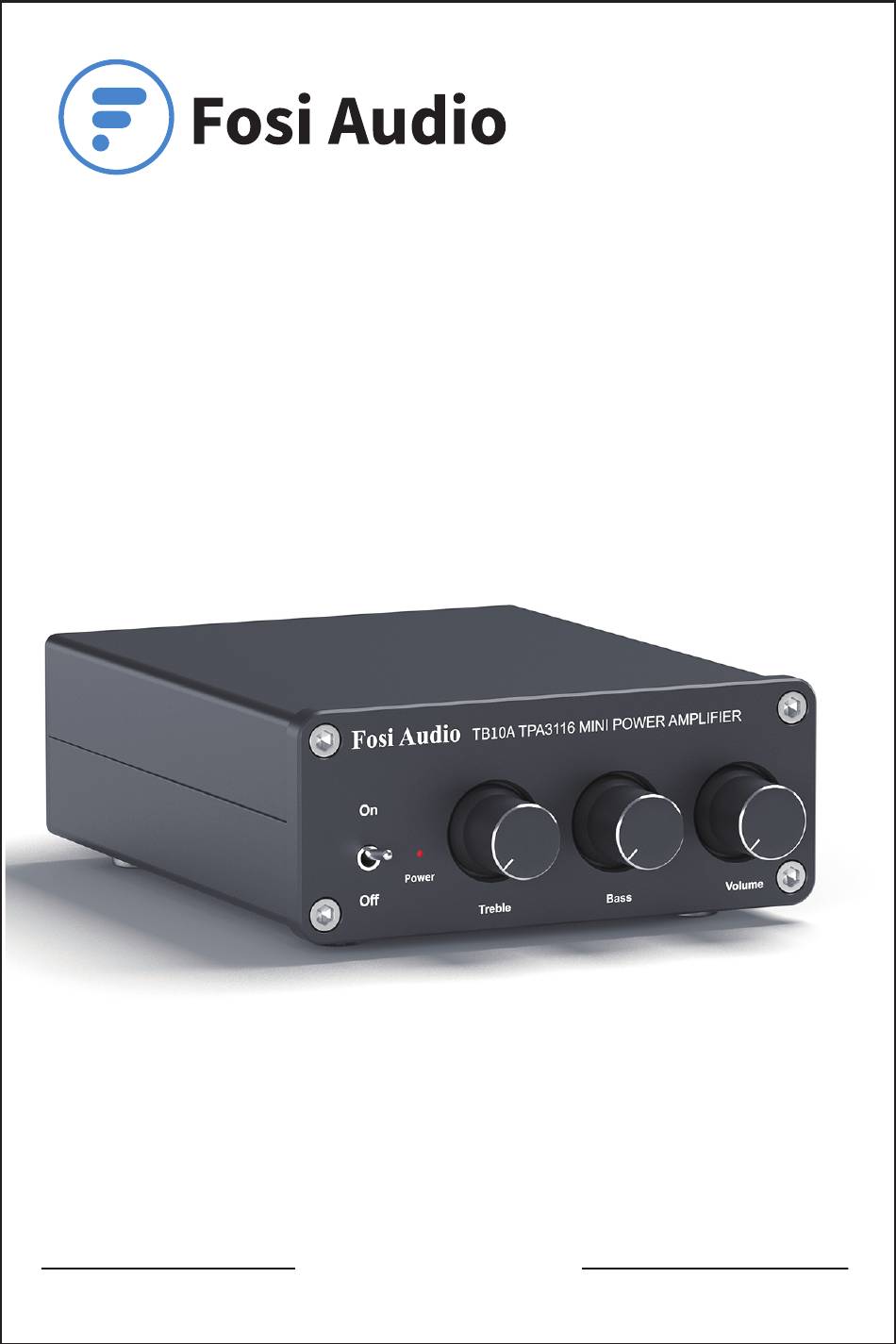

- Page 1 Fosi Audio TB10A User Manual Thanks for choosing us!
-
Page 2: Product Specifications

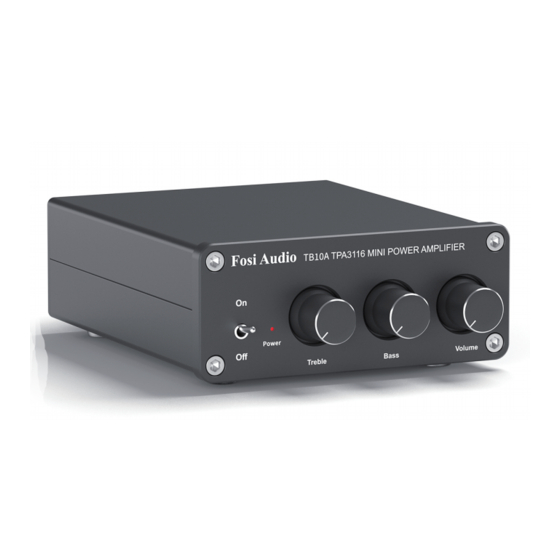

Product Specifications Fosi Audio TB10A is a Hi-Fi stereo 2-channel amplifier that features 100W x 2 output, , it is a mini power amp which is equipped with bass and treble control. Simple compact design but practical and powerful! Home Hi-Fi integrated amplifier... - Page 3 Product Overview & Control Functions Power Indicator Power Switch Treble Control Bass Switch Volume Control RCA Input DC 12-24V Input Speakers Output...
-
Page 4: Package Contents
Prepare 1: TB10A, 24V power supply, passive speakers, speaker wires or banana plugs; Prepare 2: Connect the TB10A to the passive speakers via the speaker wire or banana plugs; Prepare 3: Connect the 24V power supply to the DC input;... - Page 5 (take a phone as an example), a RCA cable or a 3.5mm AUX to RCA cable (some devices will need). Step 1: Connect your phone to TB10A via a 3.5mm to RCA cable; Step 2: After a successful connection to TB10A,The input mode indicator light will turn red;...
-
Page 7: Troubleshooting/Qa
• A common feature of Class D power amplifiers is that they can cause serious noise when used with a radio, so we do not recommend using the TB10A with a radio or too close to it. 3: Can I connect a turntable to TB10A amp, why is the volume is extremely Low? •... - Page 8 • Please check whether the cable of power supply is connected to TB10A and whether the power indicator is on. • Make sure the TB10A's indicator light is on when the power is turned on. • Please check that the TB10A and your source components are turned on and not set to minimum volume, if possible replace your source and test again.
- Page 9 • NO, this amplifier can't be bridged. 12: How can I connect TB10A to TV? • Because the TB10A has an RCA input, it can be connected to a TV. 13: Will I be able to turn up the volume using my TV controller or will I need to adjust the volume manually? •...
- Page 10 • Try to reduce the sound of the sound source. • Try to change the audio source to test. • Reduce the volume of the treble and bass knob on the TB10A. • Ensure that the positive and negative poles of the speaker output do not touch together.
- Page 11 Comparison Section Model TB10A TDA7498E V1.0G V1.0B Picture 2.0 CH Amp 2.0 CH Amp Type 2.0 CH Amp 2.0 CH Amp Input Output Passive Speakers Passive Speakers Passive Speakers Passive Speakers 24V/4.5A Power Adapter 24V/4.5A 19V/4.74A 19V/4.74A 160 wattx2 MAX Power Output 100 wattx2...
-
Page 12: Warranty Information
Great sound, simple but elegant designs, high-quality materials, and truly useful features are what Fosi Audio is about. We sincerely hope you get as much enjoyment from our products as we’ve had to create them! Our website: www.fosiaudio.com...
