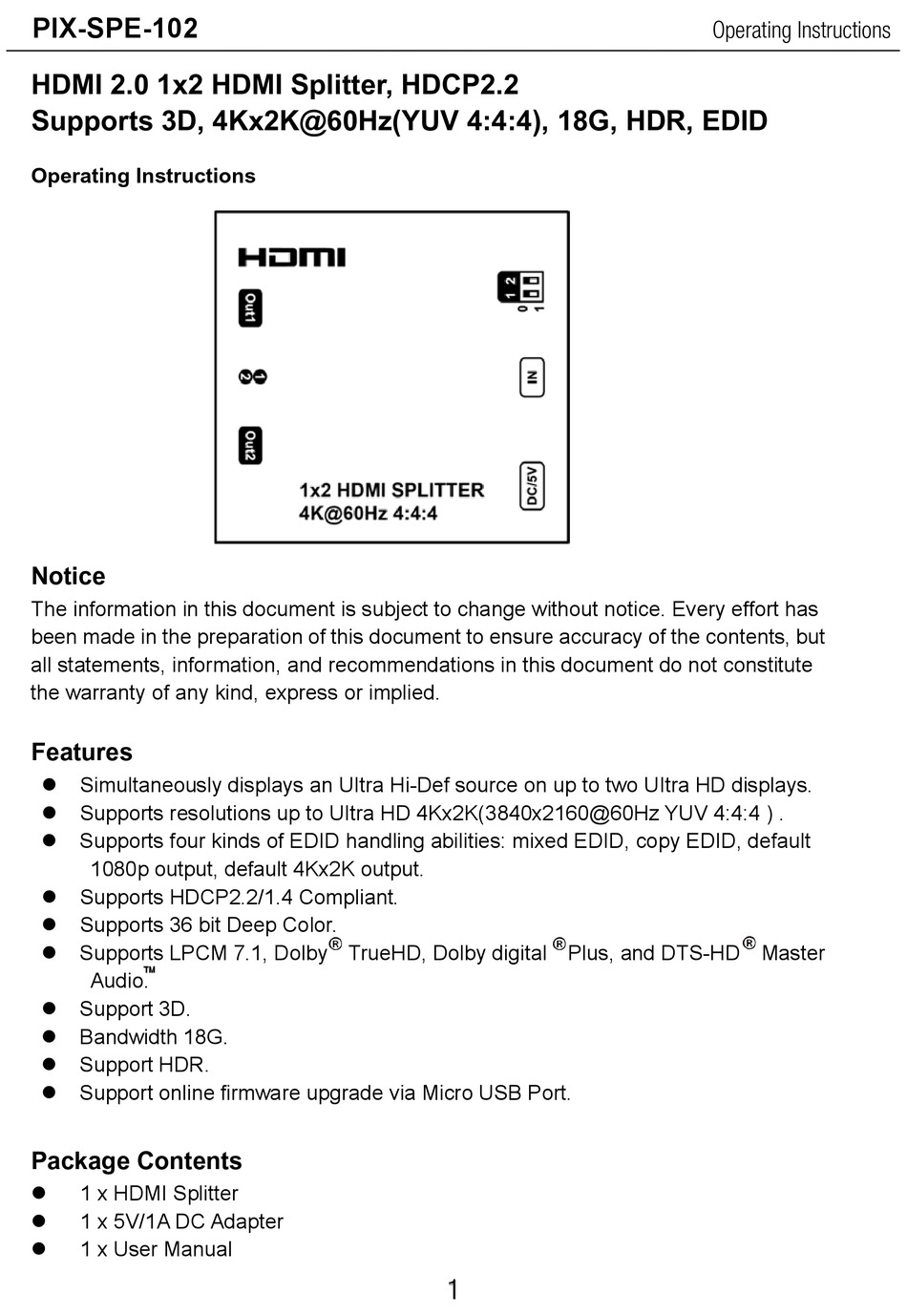

PIX-SPE-102
HDMI 2.0 1x2 HDMI Splitter, HDCP2.2
Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID
Operating Instructions
Notice
The information in this document is subject to change without notice. Every effort has
been made in the preparation of this document to ensure accuracy of the contents, but
all statements, information, and recommendations in this document do not constitute
the warranty of any kind, express or implied.
Features
Simultaneously displays an UItra Hi-Def source on up to two UItra HD displays.
Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ) .
Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default
1080p output, default 4Kx2K output.
Supports HDCP2.2/1.4 Compliant.
Supports 36 bit Deep Color.
Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master
Audio.
Support 3D.
Bandwidth 18G.
Support HDR.
Support online firmware upgrade via Micro USB Port.
Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adapter
1 x User Manual
1
Operating Instructions
Advertisement
Table of Contents
Related Manuals for Foxun PIX-SPE-102
Summary of Contents for Foxun PIX-SPE-102
- Page 1 PIX-SPE-102 Operating Instructions HDMI 2.0 1x2 HDMI Splitter, HDCP2.2 Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID Operating Instructions Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
- Page 2 Operating Instructions SPECIFICATIONS Operating Temperature Range -5 to +35℃(+23 to +95℉) Operating Humidity Range 5 to 90%RH (No Condensation) Bandwidth frequency 18Gbps Resolution outputs up to 4Kx2K(3840x2160@60Hz YUV 4:4:4) Dimensions(LxWxH) 75x70x23.1mm Power consumption 1.5W(MAX) Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG PANEL DESCRIPTIONS HDMI output ports HDMI output ports...
- Page 3 Operating Instructions EDID Introduction: 00: 4K: output a default 4Kx2K source, in this case all outputs will display 4Kx2K if they support resolution 4Kx2K and above. 11: Default 1080p output: output a default 1080p source, in this case all outputs will display 1080p if they support resolution 1080p and above.
- Page 4 Operating Instructions Safety information Safeguards To reduce the risk of electric shock, do not expose this product to rain or moisture PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
