2x8 HDMI Splitter with 1 UTP input ,
Support 4K, Audio Extraction, EDID
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
FEATURES
2x8 HDMI Splitter, with 1xHDMI input, 1xUTP input, 8 HDMI outputs.
Resolution reach up to 4Kx2K.
Transmit 50m when connect the source to the UTP input of HDMI splitter..
Manual or IR remote controller to select the input sources.
Advanced EDID management for rapid integration of sources and displays.
With Audio extraction via optical cable.
Support 3D format.
Supports LPCM7.1, Dolby TrueHD, Dolby Digital plus DTS-HD Master Audio.
Supports 36 bit deep color display.
Bandwidth: 9Gbps (Maximum).
DC 5V3A Power supply.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1
Operating Instructions
Advertisement
Table of Contents
Related Manuals for Foxun SX-SP28-Audio
Summary of Contents for Foxun SX-SP28-Audio

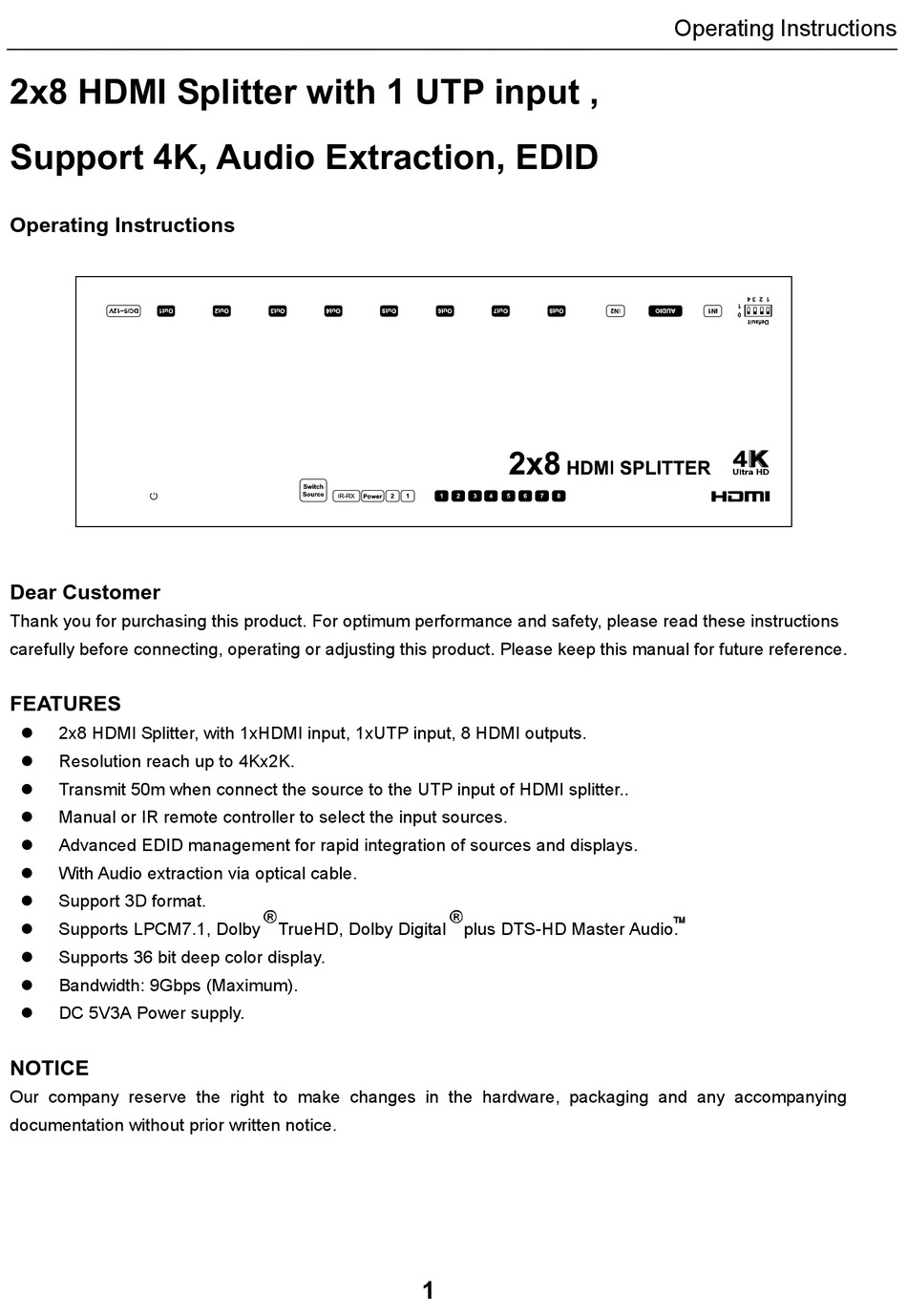

- Page 1 Operating Instructions 2x8 HDMI Splitter with 1 UTP input , Support 4K, Audio Extraction, EDID Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES 2x8 HDMI Splitter, with 1xHDMI input, 1xUTP input, 8 HDMI outputs.
- Page 2 Operating Instructions TABLE OF CONTENTS Introduction Specifications Package Contents Panel Descriptions EDID Introduction Connecting and Operating Typical Application Product Service Warranty INTRODUCTION It is newest 2x8 HDMI splitter with 50m UTP Input ,supports all the mandatory and several optional 3D formats, maintains sharp HDTV resolution up to 4Kx2K full HD.
-
Page 3: Panel Descriptions
Operating Instructions PACKING CONTENTS 1) Main Unit. 8-port HDMI splitter 2) 5V3A DC Power Supply. 3) Operating Instructions 4) Remote Controller. Notes: Please confirm if the product and the accessories and all in duded, if not please contact with the dealers. PANEL DESCRIPTIONS Front Panel 1) Power on/off: press the up/down to open/close the device. - Page 4 1) Connect the HDMI sources 1 (such as PS3, STB, DVD, ETC) to the “ input 1 ” of 2x8 HDMI splitter. 2) Connect the HDMI sources 2 (such as PS3, STB, DVD, ETC) to our Foxun’s 50m HDMI extender transmitter (SX-EX11-TX) or 8x8 HDMI matrix over 50m cat5e/6 cable (SX-MX88-3DCAT).
- Page 5 Operating Instructions Application 2 This is the 8x8 HDMI matrix via cat5e/6 cable SX-MX88-3DCAT SX-SP28-Audio HDMI Source HDMI cable 3D TV HDMI cable Ca5e/6 cable Amplifier Audio extraction Optical fiber cable 3D TV Attention: 1) Insert/Extract cable gently. 2) Please don’t insert into or pull out HDMI Cable when power on. please connect Cable only when power is off.
- Page 6 Operating Instructions WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
