Z-SMART PLUS
Massage Chair

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-SMART PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZARIFA USA Z-SMART PLUS

Summary of Contents for ZARIFA USA Z-SMART PLUS

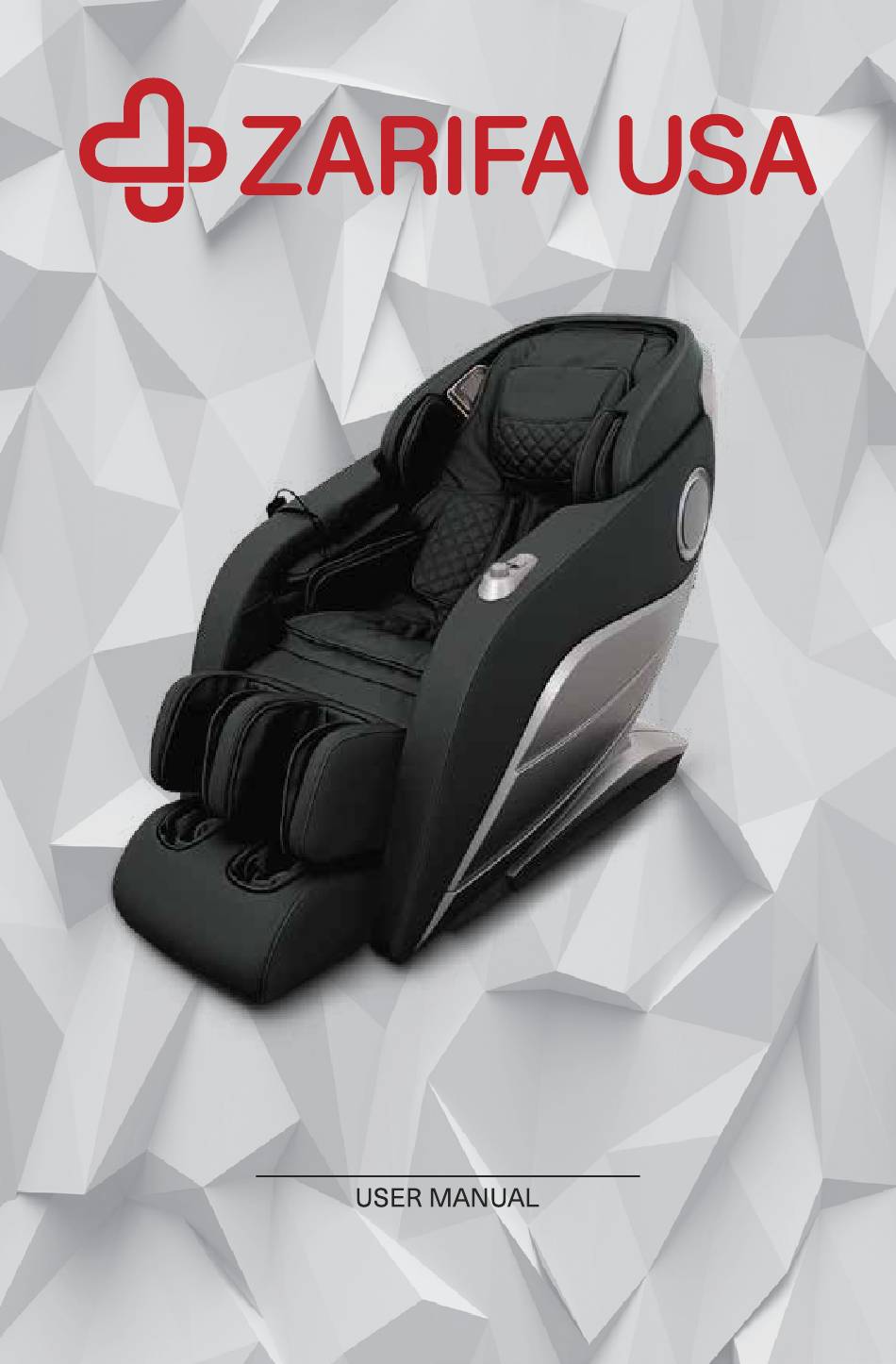

  • Page 1 Z-SMART PLUS Massage Chair...
  • Page 2 THANK YOU! Loyal Customer Our goal is to provide a graceful living experience through drug-free pain relief. Our products are made with the customer in mind. During trying times of an opioid epidemic, we aim to provide the highest quality products using modern methods of traditional practices Meeting our customers and hearing their stories is what continually drives us each day.

  • Page 3: Table Of Contents

    Massage Chair Contents Massage Chair Thank you for purchasing our product. Please read the safety and operating procedures in this User Manual before using the massager. Keep this booklet in a safe place for future reference. Contents Safety Warnings 03-04 Safety and Maintenance 05-08 Parts and Functions...

  • Page 4: Safety Warnings

    Massage Chair Safety warnings Important Safety Warnings Do not put hands or fingers near the massage mechanism or rollers while this product is running. Touching the mechanism can result in injury from the rollers squeezing together. Ensure that the unit is properly grounded before operating. Do not leave the product unattended.
  • Page 5 Massage Chair Safety warnings People Not Suitable To Use The Chair People with circulatory problems (such as varicose veins or thrombosis), children, and those advised not to use a massage chair by their doctor should not use this chair. If you have any of the following health conditions, please consult your doctor for medical advice before using this chair: serious heart problems, serious diabetes, advanced osteoporosis, serious skin conditions, malignant tumor(s), sensory impairment, pregnancy (or suspected pregnancy) or those who have just given birth,...

  • Page 6: Safety And Maintenance

    Massage Chair Safety and maintenance Environment Usage Do not use if air openings are blocked or obstructed. Inspect regularly to ensure air openings are free from debris such as lint, hair, or foreign objects. Environmental Usage Never drop or insert anything into the openings of the chair. Do not use this product when standing on a damp floor, or when any part of the body is in contact with metal or any similar ground.
  • Page 7 Massage Chair Safety and maintenance Maintenance This product is designed and built to be maintenance-free. No periodic lubrication is required. Environmental Usage No user-serviceable parts inside. To be repaired by manufacture certified technician only. If the product is not in use for a long time, store it appropriately. It's recommended to cover the chair, tuck the power cord away, and store it in an environment that is dust and moisture-free.
  • Page 8 Massage Chair Safety and maintenance Warning Do not push down on the footrest when the footrest is lifting this may result in personal injury or damage to the chair. Do not sit or stand on footrest. Warning Ensure massaging hands are lowered before sitting to avoid discomfort.
  • Page 9 Massage Chair Safety and maintenance Warning Do not pull on the remote control cable or power cord. It is recommended that the power cable is unplugged when the chair is not in use. Warning Inspect the area before enabling zero gravity mode to make sure the area is free of children and pets to avoid injury.

  • Page 10: Parts And Functions

    Massage Chair Parts and functions Name and function of components 1. Head cushion 2. 3D digital speaker 3. O2 ionizer 4. Upper arm airbag component 5. Arm airbag component 6. Quick access controller 7. Hip airbag component 8. Seat cushion 9.
  • Page 11 Massage Chair Parts and functions Functions Intelligent, quiet, 3D massage hands that hands combine for a professional massage experience. Automatic shoulder detection that can manually be adjusted. 8 different intelligent massage modes: fast, comfort, relax, stretch, full body, neck & shoulder, back & waist.

  • Page 12: Remote Control Introduction

    Massage Chair Remote control introduction Remote Controller Display Note: Remote pictured may differ from actual unit. 1. TFT colorful LCD 12. Shoulder position adjustment 2. Massage function information display 13. Bluetooth display 3. O2 ionizer 14. Massage mode display 4. Time display 15.
  • Page 13 Massage Chair Remote control introduction Button Panel 1. Power: on/off 12. Lie down: lowers backrest down and raises 2. Adjustment: enters adjustment mode footrest up 3. Auto: enters automatic program selection 13. Zero gravity: adjust zero gravity function 4. Menu: enter main menu 14.

  • Page 14: Operating Instructions

    Massage Chair Operating instructions Operating Instructions 1. Plug in and power on Plug in the power cable Turn on the main power switch Plug in power cable Plug in power cable Turn on main power to wall to chair switch 2.
  • Page 15 Massage Chair Operating instructions Choose an automatic massage mode, the backrest and leg rest will adjust after selection to a fixed angle. After adjusting the angle the chair will perform a scan for optimal positioning. You can press “OK” to skip this and start the default massage program. Once the shoulder position is detected the buzzer tone will sound.
  • Page 16 Massage Chair Operating instructions After entering the massage modes, the shoulder position can be adjusted using the shoulder adjustment menu. 3. Pause button When a massage mode is operating, press “pause” to temporarily suspend all massage functions. Press “pause” again to resume. If the function remains paused for over 20 min, then all massage functions will shut down automatically.
  • Page 17 Massage Chair Operating instructions 4. Menu Press “menu” to navigate to the main menu selections, including automatic mode, manual mode, adjustments, customize, settings, and device information. Press “up” or “down” to select a function, then press “OK” to confirm the selection. Press “back”...
  • Page 18 Massage Chair Operating instructions Function Description Fast Express massage mode for a quick massage. A full body massage comfortable pressure massage. Comfort Kneading and air pressure massage programmed to provide relief from fatigue Relax and stress. Back and waist targeting massage to loosen stiff muscles and target the lower Stretch lumbar and thoracic region.
  • Page 19 Massage Chair Operating instructions 1. Manual mode (manual button – mode) Manual mode (mode): including kneading, flap, kneading & flap, shiatsu, tapping, five different massage modes. When in flap, shiatsu, or tapping, the width of massage ball can be adjusted. Press “up”...
  • Page 20 Massage Chair Operating instructions 2. Manual mode (manual button – massage area) Manual mode (massage area): spot, partial, full back, upper back, lower back. Press “up” or “down” to select the massage area button, press “OK” to confirm. Spot Function Description Express massage mode for a quick Spot...
  • Page 21 Massage Chair Operating instructions 3. Manual mode (manual button – air pressure) Manual mode (air pressure): Including upper body, lower body air pressure massage function. Press “up” or “down” to choose a different air pressure function, press “OK” to confirm it. Function Description Upper air...
  • Page 22 Massage Chair Operating instructions Manual mode (other – heat therapy) Press “OK” to turn on/off back heating or footrest heating. Once enabled allow 3 min for it to come up to temperature. Press “up” or “down” to select other massage functions, press “back” to return to the function selecting screen.
  • Page 23 Massage Chair Operating instructions Manual mode (other – negative (oxygen) ions) Turn the negative oxygen ions function on/off by pressing the “OK” button. Press “up” or “down” to select other massage functions, press “back” to return to the function selecting screen. Manual mode (other –...
  • Page 24 Massage Chair Operating instructions 7. Adjustment function (adjustment button – you can also directly press the “adjustment button” to enter the adjustment function interface) Press “menu” to enter the main menu interface, select the adjustment function button. This will adjust massage techniques, massage area, intensity, other (currently timing), and other adjustment functions.
  • Page 25 Massage Chair Operating instructions 1. Adjust function (adjust button – massage mode) Adjustment function (massage mode): adjust massage mode including speed, width, intensity. Press the “up” or “down” button to select the speed or width function, and press the “OK” button to adjust.
  • Page 26 Massage Chair Operating instructions 2. Adjustment function (adjustment button – massage area) Adjustment function (massage area): In the modes of fixed point or partial massage area, press and hold the “up” button to move the massage area up, release to stop. Press and hold the “down”...
  • Page 27 Massage Chair Operating instructions 4. Adjustment function (adjustment button – other adjustments) Adjustment function (other adjustments), Settings for timing currently. Each time you press the “OK” button it will be adjusted in increments of 5 min. Once the maximum of 40 min is reached it will return to the minimum amount of 5 minutes.
  • Page 28 Massage Chair Operating instructions 9. Setting Press “menu” to enter the main menu screen, select “setting” function button, to enter the settings screen. Adjust language, back light, lock screen, and other settings. Press the “left” button or “right” button to switch the sub menu. Press “up” or “down” to select the function, press “back”...
  • Page 29 Massage Chair Operating instructions 2. Settings (lock screen) Settings (lock screen): Press “OK” to adjust the lock screen sleep setting time. Each time you press “OK” the lock screen is adjusted between the following settings: 15 seconds, 30 seconds, 1 minute, 2 minutes, or never lock screen. Press “OK” to enter the loop and press “back”...
  • Page 30 Massage Chair Operating instructions 11. Zero gravity button Press “zero gravity” to turn on the zero gravity massage function, you can choose “zero gravity I” or “zero gravity II” mode to find the setting that best fits your needs. Function Description 12.
  • Page 31 Massage Chair Operating instructions 13. Position and adjustment buttons Function Description Footrest rise button: press and hold this button to slowly adjust the frame up, release to stop rising. After adjusted it will cycle to auto-detect to the length of leg and foot.

  • Page 32: Quick Access Controls

    Massage Chair Operating instructions 3. Quick access controller 1. Power button: press and hold this button to turn 5. Heat button: turns on or off carbon fiber heating. all massage functions on or off. It will also 6. Automatic massage mode cycle: cycles between pause and ongoing massage program the automatic massage modes.
  • Page 33 Massage Chair Operating instructions Function Description Power button: press 1 second to pause, press 3 seconds to turn on or off. If the functions remains paused for over 20 min, then all massage functions will shut down automatically. 3D intensity button: 3D massage intensity adjustment. Moves the massage rollers inward and outward.

  • Page 34: Voice Commands

    Massage Chair Operating instructions 4. Voice control instruction When the massage chair is turned on or in standby mode, say “hi Alice” to wake up the voice control function. After the successful wake-up, the massage chair will reply “I’m here”. You now have 6 seconds to respond with one of the voice commands below.

  • Page 35: Stop Massage And Power Off

    Massage Chair Operating instructions 5. Power off, stop massage At any time during the massage process press the power key to stop all massage functions. The seat and backrest will return to the starting position and all functions of the massage are immediately turned off.
  • Page 36 Massage Chair Operating instructions 3. Connect each plug and the air pipe securely. Once connected tuck excess wire into the center frame. (figure 3) 4. Ensure that the air pipe has adequate room and is not being cut off or pinched. (figure 4) 5.

  • Page 37: Footrest Installation

    Massage Chair Operating instructions 9. Align the mounting hardware on the steel frame at the front end of the fixed armrest and secure it with two M5x16 screws. (figure 9) 10. Install the screw cover for the rear end screw recess. (figure 10) 8.
  • Page 38 Massage Chair Operating instructions 3. Insert the rotating inner sleeve and the rotating outer sleeve into the left side of the footrest and the right side of the lower leg (note: the large step must face inward). (figure 3) 4. Open the footrest support hinge cover on the left and right mounts of the massage chair. (figure 4) 5.

  • Page 39: Backrest And Head Pillow Adjustments

    Massage Chair Operating instructions 7. After the screw is installed, install the provided footrest cover (figure 7). 9. Pillow and backrest adjustments The head pillow has a three-part (three-layer) fold-down design. Choose the number of layers for the right fit for you. For a gentler massage separate the hook and loop fastener on the headrest to reveal the back pad.

  • Page 40: Floor Protection

    Massage Chair Operating instructions 10. Floor protection Place on carpet or floor protector to avoid damage to surfaces. The massage chair can do damage to sensitive surfaces, such as wood flooring. Caution: do not move the chair by the wheels on wood flooring, rough ground, or narrow spaces.

  • Page 41: Product Specifications

    Massage Chair Product Specifications Class I...
  • Page 42 ZARIFA USA 465 West Century Dr. #3 Murray, UT 84123...
