INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity and the feature sticker from the oven door panel (if
available). Check the unit for any damage, such as a misaligned door, damaged door seals around the door
or dents inside the oven cavity or on the door. If there is any damage, please do not operate the oven until
it has been checked by the SHARP SERVICE CENTER and repaired, if necessary.
2. Accessories provided
1) Turntable
3. Fit the roller stay and turntable referring to OVEN DIAGRAM below. Place the roller stay on the bottom of
oven and seat the turntable on the roller stay, while aligning well with the coupling in the center. NEVER use
the oven without the turntable and roller stay.
4. The oven should not be installed in any area where heat and steam are generated, for example, next to a
conventional oven unit.
The oven should be installed so as not to block ventilation openings.
Allow space of at least 15cm from top of the oven for air ventilation.
This oven is not designed to be built-in to a wall or cabinet.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or personal
injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage and frequency must correspond to the one indicated on the rating plate on the back of the oven.
6. This appliance must be properly earthed to prevent an electric shock due to an electrical short circuit or a
deterioration in the insulation of wires and electrical parts.
EARTHING INSTRUCTIONS
Earth the 30 mm exposed lead of the earth wire into the ground.
CATUION: Never connet the earth wire to a gas or plastic water pipe as they will not act as a proper grounding.
7. IMPORTANT: The wires in power supply cord are colored in accordance with the following code:
As the colors of the wires in the power supply cord of this appliance may not correspond with the colored
marking identifying the terminals in your plug, proceed as follows:
The wire which is colored green-and-yellow must be connected to the terminal in the plug which is marked
with the letter E or by the earth symbol
The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored blue.
The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored
brown.

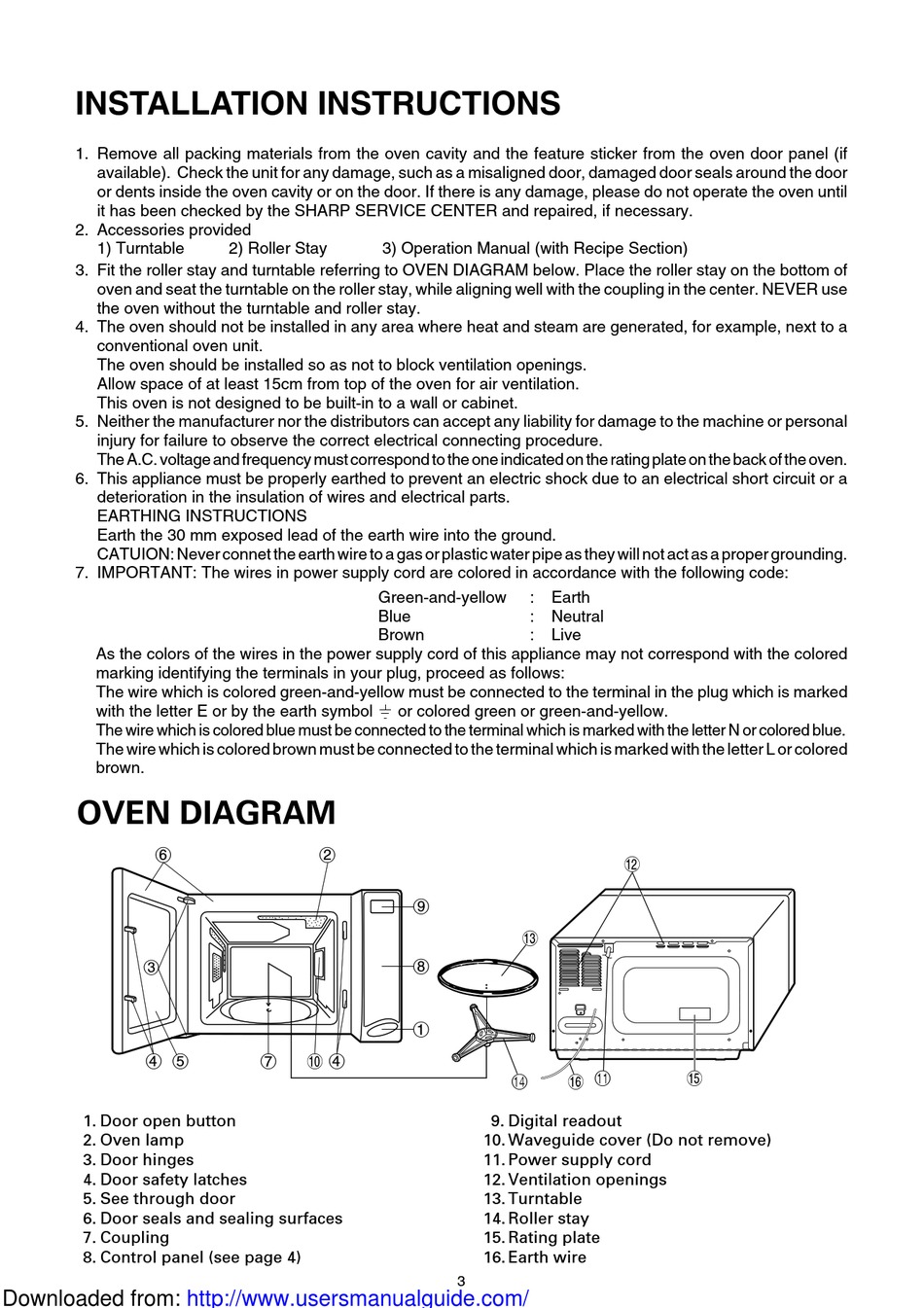

OVEN DIAGRAM

6
3
4 5
1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Coupling
8. Control panel (see page 4)
Downloaded from:
2) Roller Stay
2
7 0 4
http://www.usersmanualguide.com/
3) Operation Manual (with Recipe Section)
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
or colored green or green-and-yellow.
9
e
8
1
r
9. Digital readout
10. Waveguide cover (Do not remove)
11. Power supply cord
12. Ventilation openings
13. Turntable
14. Roller stay
15. Rating plate
16. Earth wire
3
w
q t
y
