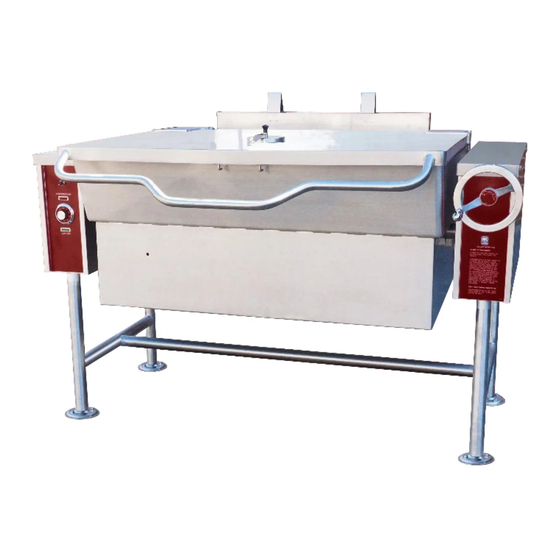

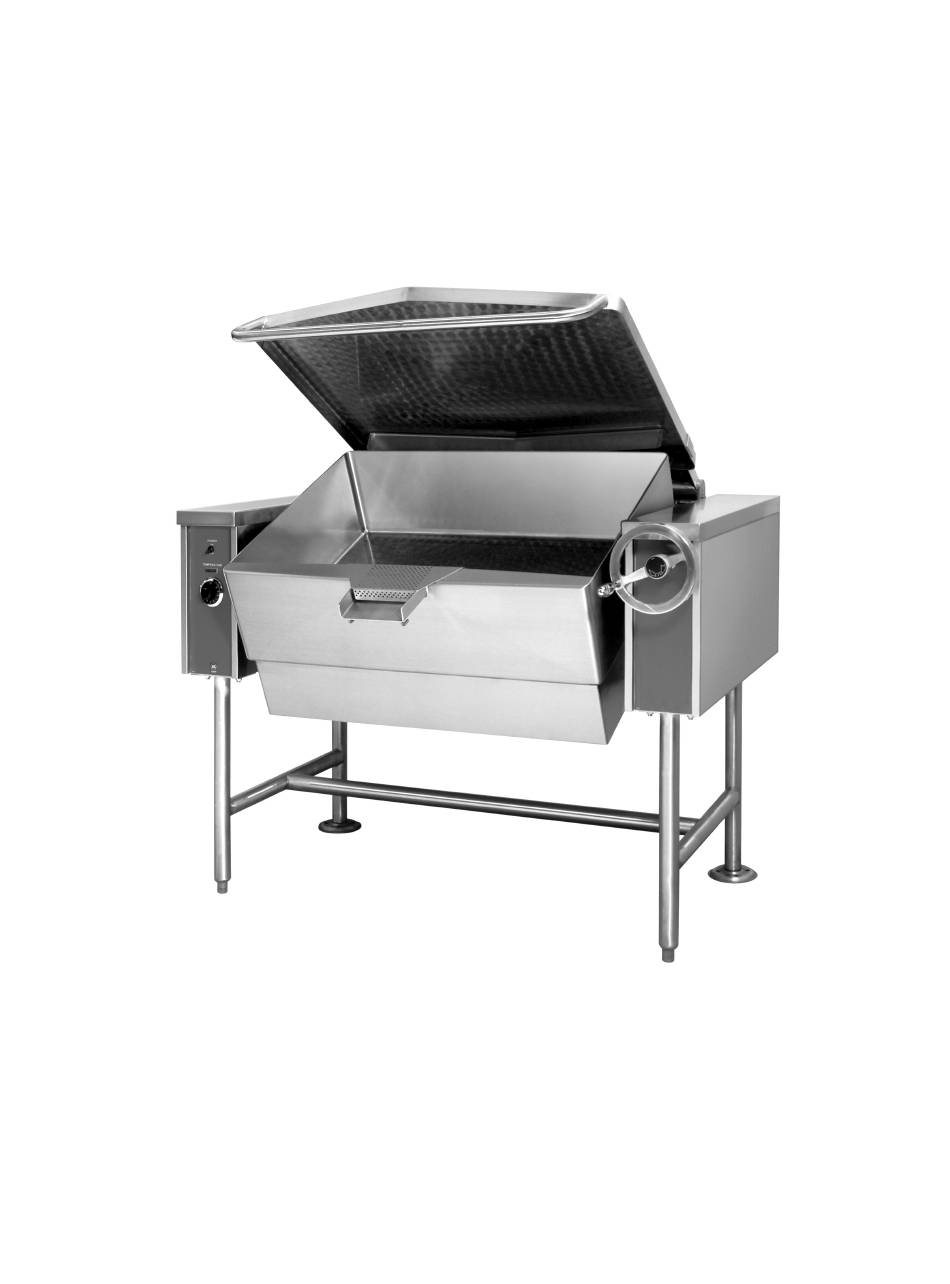

- Page 1 INSTALLATION AND OPERATION MANUAL GAS SKILLETS MODELS: GTS-30 GTS-40 CROWN FOOD SERVICE EQUIPMENT LTD. 70 OAKDALE ROAD, DOWNSVIEW, (TORONTO), ONTARIO, CANADA, M3N 1V9 TELEPHONE: (416) 746-2358, FAX: (416) 746-8324 PRINTED IN CANADA PART NUMBER 10093R2 2003-07-08...
-
Page 2: Important Notes For Installation And Operation
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully. This manual should be retained for future reference. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 3: Table Of Contents
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 TABLE OF CONTENTS DESCRIPTION PAGE Important Notes for Installation and Operation ........2 Service Connections . -
Page 4: Service Connections
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 PART NUMBER 10093R2 2003-07-08... -
Page 5: Installation Instructions
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 1.0 INSTALLATION INSTRUCTIONS INSTALLATION CODES AND STANDARDS Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, as applicable. - Page 6 INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 1.0 INSTALLATION INSTRUCTIONS (Continued) LOCATION The equipment must be kept free and clear of combustible substances. The appliance, when installed, must have minimum clearance from combustible and non-combustible construction of 0" from sides and 6" (152 mm) from the rear. The appliance is intended for use on non- combustible floors.
- Page 7 INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 1.0 INSTALLATION INSTRUCTIONS (Continued) GAS CONNECTIONS All gas supply connections and any pipe joint compound used must be resistant to the action of propane gases. The gas inlet is located under the left hand control console.
- Page 8 INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 WARNING: For an appliance equipped with casters, the installation shall be made with a connector that complies with the Standard for Connectors for Moveable Gas Appliances, ANSI Z21.69-CSA 6.16 and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use with Gas Fuel, ANSI Z21.41-CSA...
-
Page 9: Operating Instructions
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 2.0 OPERATING INSTRUCTIONS CAUTION: The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance. BEFORE FIRST USE Using a non-corrosive, grease-dissolving commercial cleaner, clean the protective metal oils from all surface parts and the interior of the tilting braising pan. - Page 10 INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 LIGHTING (Continued) 7. Turn the “POWER” switch to “OFF” when the skillet is not in use and close the manual gas shut-off valve. DAILY SHUTDOWN PROCEDURE 1. Turn skillet off, turn thermostat dial to off; turn power switch off.
-
Page 11: Cleaning
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 3.0 CLEANING WARNING: Disconnect the power supply to the appliance before cleaning or servicing. WARNING: The appliance and its parts are hot. Use care when operating, cleaning and servicing the kettle. -
Page 12: Troubleshooting
INSTALLATION AND OPERATION MANUAL, GAS SKILLETS, MODELS GTS-30, GTS-40 5.0 TROUBLESHOOTING PROBLEM LOOK FOR: Burner does not come on: Gas supply to unit is “OFF” Manual shut off valve is “OFF”. Thermostat is not turned “ON” Pan not in lowest position.
