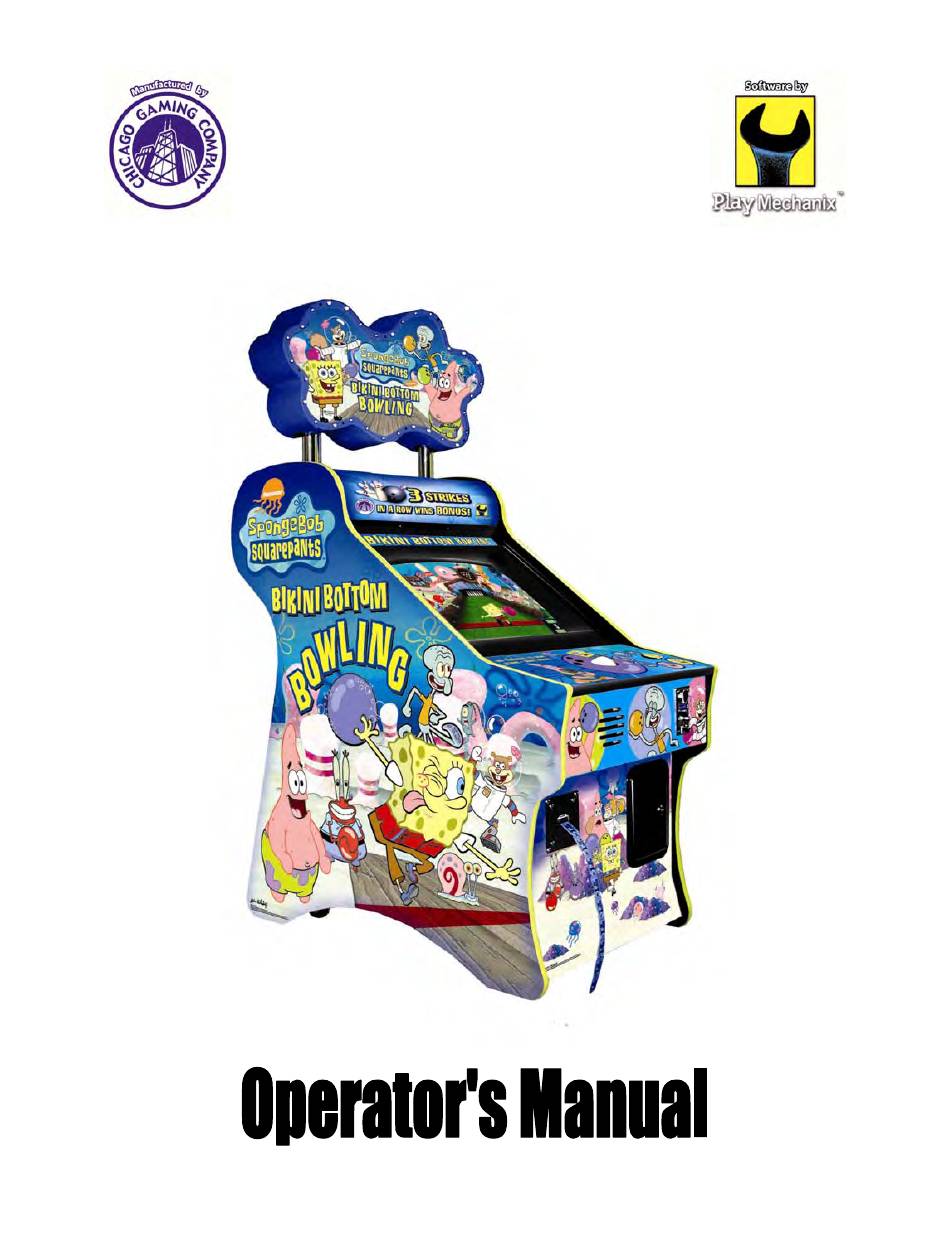

- Page 1 Bikini Bottom Bowling Chicago Gaming Company, 4616 W. 19 Street, Cicero, IL 60804 (Rev 1.0) Copyright © Chicago Gaming Company Page 1...
-
Page 2: Table Of Contents
The following safety instructions apply to all game operators. We recommend that you read this page before setting-up Bikini Bottom Bowling. Use the following safety guidelines to help protect the system from potential damage and to ensure your personal safety. -
Page 3: Fcc Compliance
Note that the ticket drawer slides out on rollers, like a drawer, rather than tilting open. Ticket and Coin Meter Pull the Ticket Drawer in This Direction to Access Ticket Dispenser and Service Panel Copyright © Chicago Gaming Company Page 3... -
Page 4: Setting Coin Comparator
Setting Coin Comparator Bikini Bottom Bowling ships with a faux plastic token installed in the coin comparing mechanism. Follow the instructions below to set up the machine to accept the preferred coin or token. 1) Using the key, open the control panel. -
Page 5: Service Menu
Service Menu items are adjusted by using the “Up” and “Down” buttons, or by using the trackball. To exit the Service Menu and save settings, or to go back a menu, select EXIT and press the test button. Copyright © Chicago Gaming Company Page 5... -
Page 6: Main Menu Map
Reset Game Audits Sound Test Reset Credits File Test Reset Tickets Coin Meter Test Reset Coin Counters Ticket Dispenser Test Reset Adjustments Dipswitch Settings Factory Reset Lamp Flash Test Watchdog Test Trackball Test Copyright © Chicago Gaming Company Page 6... -
Page 7: Main Menu
To enter the Main Menu, press the “Test” Button located on the Service Panel. Navigate the Menus using the Trackball or Vol+ / Vol- to move. Use “Test” or the Start Button to select an item. Copyright © Chicago Gaming Company Page 7... -
Page 8: Operator Adjustments Menu
Operator Adjustments Menu From the Main Menu, select Operator Adjustments. From here, you can select gameplay, ticket, coinage, or sound adjustments. Then go to the selected menu and tailor the game to your installation. Copyright © Chicago Gaming Company Page 8... -
Page 9: Game Adjustments Menu
Very Slow, Slow, Adjusts sensitivity of trackball Medium Sensitivity Medium, Fast, Very Fast None, Very Small, Small, Trackball Adjusts area around trackball Medium Medium, Large, Very Deadzone where movement is not recorded Large, Extra Large Copyright © Chicago Gaming Company Page 9... -
Page 10: Ticket Adjustments
Ticket Value (IN CENTS) 0.01 0.01 - 1.00 Credit Value (IN CENTS) 0.25 0.01 - 1.00 Target Payout Percent 0.35 0.01 - 1.00 SEE TICKET PAYOUT Ticket Payout Table TABLE ON NEXT PAGE Copyright © Chicago Gaming Company Page 10... -
Page 11: Ticket Payout Table
1 Pin 0-10 2 Pins 0-10 3 Pins 0-10 4 Pins 0-10 5 Pins 0-10 6 Pins 0-10 7 Pins 0-10 8 Pins 0-10 9 Pins 0-10 Strike 0-50 Strike 0-100 Jackpot 0-1000 Copyright © Chicago Gaming Company Page 11... -
Page 12: Coin Adjustments Menu
3. Maximum This sets the limit for credits $500.00 $125 - $500 Credits that can be put on the machine. Bonus Award $0.00 $0 - $5.00 Units for Bonus $0.00 $0 - $50.00 Copyright © Chicago Gaming Company Page 12... -
Page 13: Player Cost Menu
Settings, Defaults, & Choices Setting Name Description Default Choices This setting adjusts the cost of Cost to Play $0.25 $0.25 - $63.75 1 credit (1 frame) of play Copyright © Chicago Gaming Company Page 13... -
Page 14: Volume Menu
Minimum Volume 0 - 32 volume • Off: Never Plays Attract Sounds • Occasionally: Select how often Attract Sometimes plays Attract Sounds Occasionally Sounds will play Attract Sounds • Always: Constantly Plays Attract Sounds Copyright © Chicago Gaming Company Page 14... -
Page 15: General Audits
Main Menu General Audits Menu General Audits Menu From the Main Menu, select General Audits. From here, you can view records of different aspects of the game, ticket payouts, and coin records. Copyright © Chicago Gaming Company Page 15... -
Page 16: Game Audits Menu
• Zeros Hit Displays total number of 0 pins hit. • 2X Hits Displays total number of 2X multipliers hit. • Avg. Pins Per Displays average number of pins knocked down per ball Ball Copyright © Chicago Gaming Company Page 16... -
Page 17: Ticket Audits Menu
When the ticket dispenser is empty, yet tickets are owed to a player, the machine tracks how many tickets • Tickets Owed are owed. This audit displays the number of tickets currently owed. Copyright © Chicago Gaming Company Page 17... -
Page 18: System Audits Menu
• Watchdogs Displays number of times the watchdog reset the system. • Exceptions Displays total number of exceptions that have occurred. • Bad Traps Displays total number of Bad Traps that have occurred. Copyright © Chicago Gaming Company Page 18... -
Page 19: Coin Audits Menu
This displays the total number of coins • Lifetime Coin Count accepted by the machine. It is NEVER reset. This displays the total number of • Service Credits service credits ever added to the machine. It is NEVER reset. Copyright © Chicago Gaming Company Page 19... -
Page 20: Reset Menu
Reset Menu From the Main Menu, select Reset Menu. Selecting any of these options will result in a reset to the default values. Note: Lifetime Coin Count and Service Credits are not reset. Copyright © Chicago Gaming Company Page 20... -
Page 21: System Tests Menu
Coin Meter. Selecting Coin Meter Test should cause the coin meter to add another number. Selecting Ticket Dispenser Test should cause a ticket to be dispensed through the ticket drawer. Copyright © Chicago Gaming Company Page 21... -
Page 22: Version List Menu
Main Menu System Tests Menu Version List Menu Version List Menu From the System Tests Menu, select Version List. This displays the versions of software, JAMMA, and sound on the machine. Copyright © Chicago Gaming Company Page 22... -
Page 23: Switch Tests Menu
System Tests Menu Switch Tests Menu Switch Tests Menu From the System Tests Menu, select Switch Tests. In this test, pressing buttons should cause the corresponding name to be highlighted in the menu. Copyright © Chicago Gaming Company Page 23... -
Page 24: Screen Tests Menu
Main Menu System Tests Menu Screen Tests Menu Screen Tests Menu From the System Tests Menu, select Screen Tests. Copyright © Chicago Gaming Company Page 24... -
Page 25: Color Adjustment
Main Menu System Tests Menu Screen Tests Menu Color Adjustment Color Adjustment From the Screen Tests Submenu, select Color Adjustment. The color bars help when making adjustments to the monitor. Press Start to exit. Copyright © Chicago Gaming Company Page 25... -
Page 26: Screen Adjustment
System Tests Menu Screen Tests Menu Screen Adjustment Screen Adjustment From the Screen Tests Submenu, select Screen Adjustment. The Screen Adjustment Grid helps in adjusting the size and position of the monitor screen. Copyright © Chicago Gaming Company Page 26... -
Page 27: Color Screens
Screen Tests Menu Color Screens Color Screens From the Screen Tests Menu, select Color Screens. Pressing the Start button will cycle through the different color screens, which are Black, White, Green, Red, and Blue. Copyright © Chicago Gaming Company Page 27... -
Page 28: Sound Tests Menu
Selecting this test plays the pin crash effect. • 100 Hz Sine Wave Selecting this test plays a 100 Hz sine wave. • 1000 Hz Sine Wave Selecting this test plays a 1000 Hz sine wave. Copyright © Chicago Gaming Company Page 28... -
Page 29: File Test
Main Menu System Tests Menu File Test File Test To run the File Test, select File Test from the System Tests Submenu. Copyright © Chicago Gaming Company Page 29... -
Page 30: Dipswitch Settings
Dipswitch Settings From the System Tests Menu, select Dipswitch Settings. This displays the current position of the dipswitches. The default dipswitch settings are OFF, or in the up position on the I/O board. Copyright © Chicago Gaming Company Page 30... -
Page 31: Lamp Flash Test
From the System Tests Menu, select Lamp Flash Test. The Lamp Flash Test begins. During this test, the Start button should be lit up when the screen indicates so. The button should be dark when the lamp is off. Press Start to exit. Copyright © Chicago Gaming Company Page 31... -
Page 32: Watchdog Test
Main Menu System Tests Menu Watchdog Test Watchdog Test To begin the Watchdog Test, select Watchdog Test from the System Tests Menu. Pressing Start or Volume will exit the Watchdog Test. Copyright © Chicago Gaming Company Page 32... -
Page 33: Trackball Test
Vol+ increases the calibration to the right, while Vol- increases the calibration to the left. The trackball can be set between 100% to the left and 100% to the right. Copyright © Chicago Gaming Company Page 33... -
Page 34: Main Cabinet
Main Cabinet Power Switch Coin Comparator Ticket Drawer Service Panel Coin Box and Ticket/Coin Meter Copyright © Chicago Gaming Company Page 34... -
Page 35: Parts List With Part Numbers
BBB-ART-BEZEL Bezel Art BBB-ART-LFTSIDE Left Side Art BBB-ART-LOWERFT Lower Front Panel Art BBB-ART-LOWMARQ Lower Marquee Art BBB-ART-POLYCPO Control Panel Overlay BBB-ART-RGTSIDE Right Side Art BBB-ART-TOPMARQ Top Marquee Art BBB-ART-UPPERFT Upper Front Panel Art Copyright © Chicago Gaming Company Page 35... - Page 36 BBB-CBL-MLAMP1 Cable Marquee Lamp 2 BBB-CBL-MLAMP2 Cable Marquee Lamp 3 BBB-CBL-MLAMP3 Cable Marquee Lamp 4 BBB-CBL-MLAMP4 Cable BBB-CBL-PCPOWR PC Power Cable BBB-CBL-POWER BBB A/C Power BBB-CBL-TICKLOW Ticket Low Cable BBB-CBL-TRCKBAL BBB Trackball Cable Copyright © Chicago Gaming Company Page 36...
- Page 37 Bright White LED T5 000-FUS-5A250V 5A 250V Fast Blow Fuse 23 15/16” x 23 15/16” 000-GLS-239375S Front Glass 3” Trackball (white) 000-HAP-3TBALL (Happ Part # 56-0100-11HLB) 5V Meter 000-HAP-5VMETER (Happ Part # 42-0756-07) Copyright © Chicago Gaming Company Page 37...
- Page 38 Coin Door (Blank) 000-HAP-SMDOOR (Happ Part # 40-0057-00) 3” Trackball Plate 000-HAP-TBALPLT (Happ Part # 55-0265-00) Ticket Switch 000-HAP-TICSWIT (Happ Part # 95-4255-10) Ticket Tray 000-HAP-TICTRAY (Happ Part # 42-0539-00) 000-HDW-18GLIDE 18” Drawer Glide Copyright © Chicago Gaming Company Page 38...
- Page 39 Florescent Light Kit 000-LMP-18FLORE 18” Florescent Lamp Florescent Light 000-LMS-18-FLORE Fixture (Single Bulb 18” Long) Electronic Coin Mech. 000-MCH-COINCOM (Betson Part # 40-1500-02) Ticket Dispenser 000-MCH-DL1275 Deltronics DL-1275 Continuous Type BBB-MLS-CNTRBRK Counter Mount Bracket Copyright © Chicago Gaming Company Page 39...
- Page 40 Power Inlet Plate BBB-MLS-LOCKCAM Lock Dual Cam BBB-MLS-LONGLAT Lock Long Latch BBB-MLS-LSUPRT Latch Support Bracket Marquee Bottom BBB-MLS-MARQBOT Bowling BBB-MLS-MARQTOP Marquee Mount Top 000-MLS-PWRPLT Power Switch Plate BBB-MLS-SHORTLAT Lock Short Latch BBB-MLS-SVCPNL Service Button Panel Copyright © Chicago Gaming Company Page 40...
- Page 41 CGC Part Number Part Name 24” CGA Monitor 000-NEO-24S501 Neotec Part # S-501) 000-PLF-24BEZEL Bezel BBB-PLF-TOPBOX1 Top Box Vacuum Form Speakers 8 Ohm 5-½” 000-SPK-5IN8OHM (5060CESH) Alcoswitch, 16A, 000-SWC-ALCO16A Double Pole, Single Throw, Rocker, Black Copyright © Chicago Gaming Company Page 41...
-
Page 42: Wiring Schematic
Wiring Schematic For Technical Assistance and parts call Chicago Gaming Company at (708) 780-0070 Copyright © Chicago Gaming Company Page 42...
