Summary of Contents for Chicago Gaming Arcade Legends

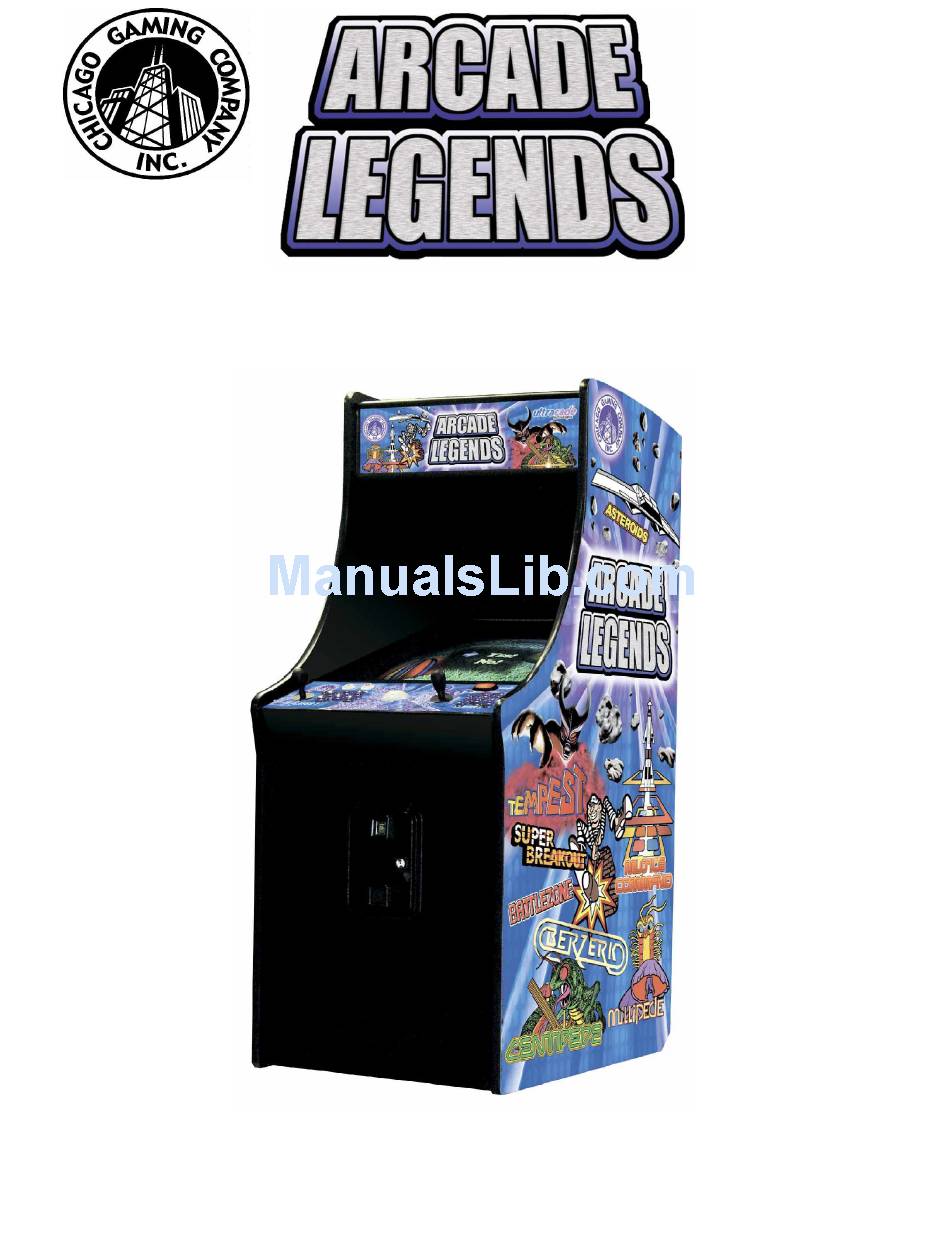

- Page 1 Owner’s Manual Chicago Gaming Company, 4616 W. 19th Street, Cicero, IL 60804 (708)780-0070...
- Page 2 1. LEGAL INFORMATION 1.4 WARRANTY INFORMATION 1.1 SAFETY NOTICES Arcade Legends is warranteed against manufacturing defects for 90 days. After that we will provide free telephone support. The following safety instructions apply to all game owners. We recommend that you read this page before setting-up Arcade Legends.
- Page 3 2.2 On/Off Switch 3.1 SOUND VOLUME The On/Off switch is located on the top of the This menu option allows you to set the Sound Volume level be- machine in the back right hand corner. tween one and ten. To adjust, highlight Sound Volume on the ARCADE SETUP MENU (Fig.
-
Page 4: Sound Test
The Add Games Menu allows you to add new games to your to encompass the entire JAMMA harness and connector. Oper- Arcade Legends via Game Packs. When you are ready to ate each player control in turn through the JAMMA Test screen install a new Game Pack, enter the Add Games Menu and and check that it lights up on the screen. - Page 5 3.5 CABINET SET-UP: • High Frequency: You will hear a high pitched sound coming from both speakers. • Low Frequency: You will hear a low pitched sound coming from both speakers. FIGURE 3-9 CABINET SETUP 3.5.1 ATTRACT MODE VOLUME FIGURE 3-7 SOUND TEST This option allows you to turn the Attract Mode Volume on or off.
-
Page 6: Troubleshooting
4. TROUBLESHOOTING 4.1 OS RE-INSTALLATION The Arcade Legends Operating System comes pre-installed but if for any reason you need to reinstall your Arcade Legends operating system, follow these steps: • Power Arcade Legends on. • Open the faux coin-door and insert the system CD supplied with your Arcade Legends into the CD-ROM. - Page 8 Arcade Legends PC Cable Configuration...
