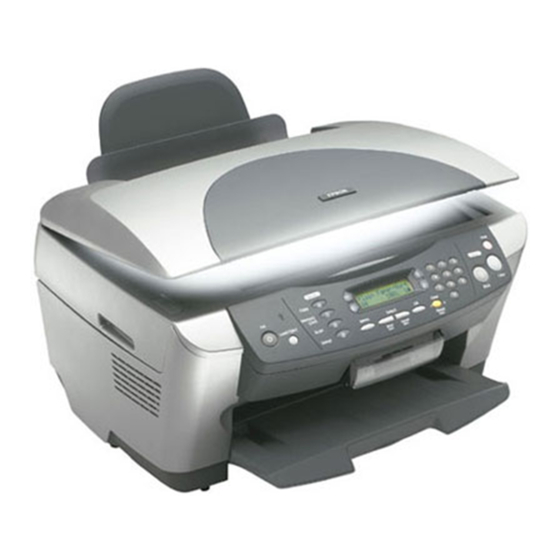

Epson Stylus Photo RX510 Setup Manual
Epson stylus photo rx510: install guide
Hide thumbs
Also See for Stylus Photo RX510:
- Service manual (103 pages) ,
- Operation manual (102 pages) ,
- Brochure & specs (6 pages)
Advertisement
Quick Links
9
Setup
4047356-00
XXX
Cautions and Notes
Cautions must be observed to avoid damage to your
c
equipment.
Notes contain important information and useful tips on the
operation of this product.
Unpacking
Make sure the following parts are included and not damaged.
feeder guard
film holder
paper support
ink
power cord
cartridges
CD-ROM
The contents may vary in certain locations.
The power cord comes attached in some countries.
Removing Protect
Material
Pick up the protective material and install it in the secure position
following the Notice Sheet. Make sure the protective material
around the ink cartridges are removed.
Unlocking
Open the document cover and slide the transportation lock lever.
Attaching the Parts
1. Attach the paper support.
2. Connect the document cover’s cable to the TPU interface
connector.
Turning On
Plug in the power cord and press the P On button to turn on this
product.
Press
Note:
Do not connect this product to your computer before step
,
or you will fail to install the software.
Installing Ink Cartridges
1. Open the scanner unit.
2. Open the cartridge cover.
3. Remove an ink cartridge from its package.
Do not touch
4. Place each cartridge into its holder. Then, push the ink cartridge
down until it clicks into place and close the cartridge cover.
Note:
Install all ink cartridges. This product does not work unless all
cartridges are installed properly.
5. Lower the scanner unit.
Ink charging starts and it takes about two minutes to complete.
Initial charge... appears on the LCD panel and this product
produces a variety of mechanical sounds. This is normal.
Caution:
c
Never turn off this product during the ink charging process.
Do not load paper until ink charging is complete.
Selecting a Language
1. Press the Setup button and
1
2
A button until 6.Languages
appears on the LCD panel
and then press the x Color
A
button.
D
2. Select a language by
pressing the D button.
3. Press the OK button.
3
Menu items appear in the
selected language.
Loading Paper
1. Open the output tray.
2. Move the feeder guard towards you.
3. While holding down its locking tab, slide out the edge guide.
4. Load the stack of paper with the printable side facing up and
resting against the guide of feeder guard.
guide
5. Stand the stack of paper against the paper support.
6. Move the feeder guard back.
Now you are ready to use this product as a stand-alone device.
See the next section to learn how to make a test copy. If you want
to install software, see “Connecting to Your Computer” on the
reverse side of this sheet.
Making Copies
1. Place a document on the document table.
2. Press the Copy Mode button to enter the Copy Mode.
Copyright© 2003 by SEIKO EPSON CORPORATION, Nagano, Japan.
Printed in XXX XX-XX.XX
