- Page 1 ZP8003 MERCEDES SERVICE GUIDE...
- Page 2 Please follow the directions in the attached service guide to check the connections on your ride on. Most times it is a loose plug or switch that causes electric ride’s to stop working. Keep in mind the ride will not operate if the power adaptor/charger cable is plugged into the ride, this is a safety feature to ensure a child does not take off while it’s plugged in and damage it.

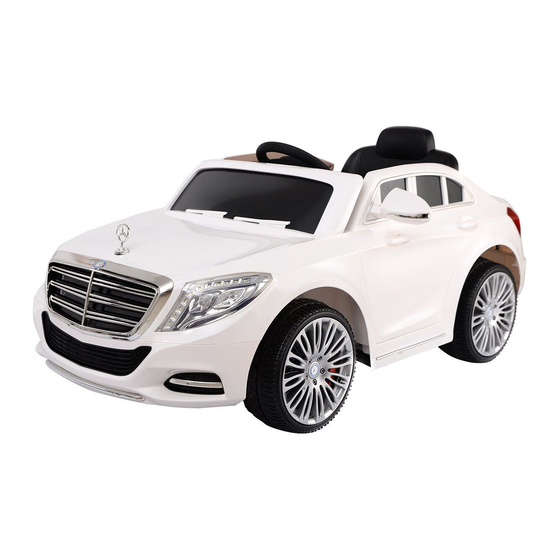

- Page 3 Item #: 5179 Model #: JE108B ZP8003 Description: Mercedes Benz S600 step1 step2 3-Sep step4 step5 step6 step7 step8 step9 step10 1. per above steps to take off the windshield before checking the power switch...
- Page 4 step1 step2 step3 step4 step5 step6 step7 step8 srep9 step10 2.pls check if the power switch is connected like image shown...
- Page 5 step1 step2 step3 step4 step5 step6 step7 step8 3.per above spteps to check if the forwarder & reverse switch step9...
- Page 6 step1 step2 step3 step4 step5 step6 step7 4. per above steps to check if the pedal switch is connected...
- Page 7 step1 step2 step3 step4 step5 step6 step7 step8 5.Open the seat to check the internal wire and plug is connected as image showed .
- Page 8 step9 step10 step11 step12 step13 step14 step15 6. per steps to check if the auto-set fuse is connected as image showed.
- Page 9 step1 step2 step3 step4 step5 step6 step7 step8 7. per above steps to cheking the internal and plug is connected as the image for battery...
- Page 10 step1 step2 step3 step4 step5 step6 step7 8.replace the gear box a.Per the above step ,unlock the screws b.disconnect the plug of the battery and gear box c.disconnect the battery wire.the disassemble the driving wheel and rear wheel ,then pull out the rear axle d.unlock the screws of the grey plastic box ,then open it to get the gear box...
- Page 11 MOTOR PLUG – PIN TROUBLESHOOT No. Pin pushed to side. Yes. Pin is central. When plugged together the pin is not connecting with other plug.
