Summary of Contents for Hunter Products Dirt Racer 22

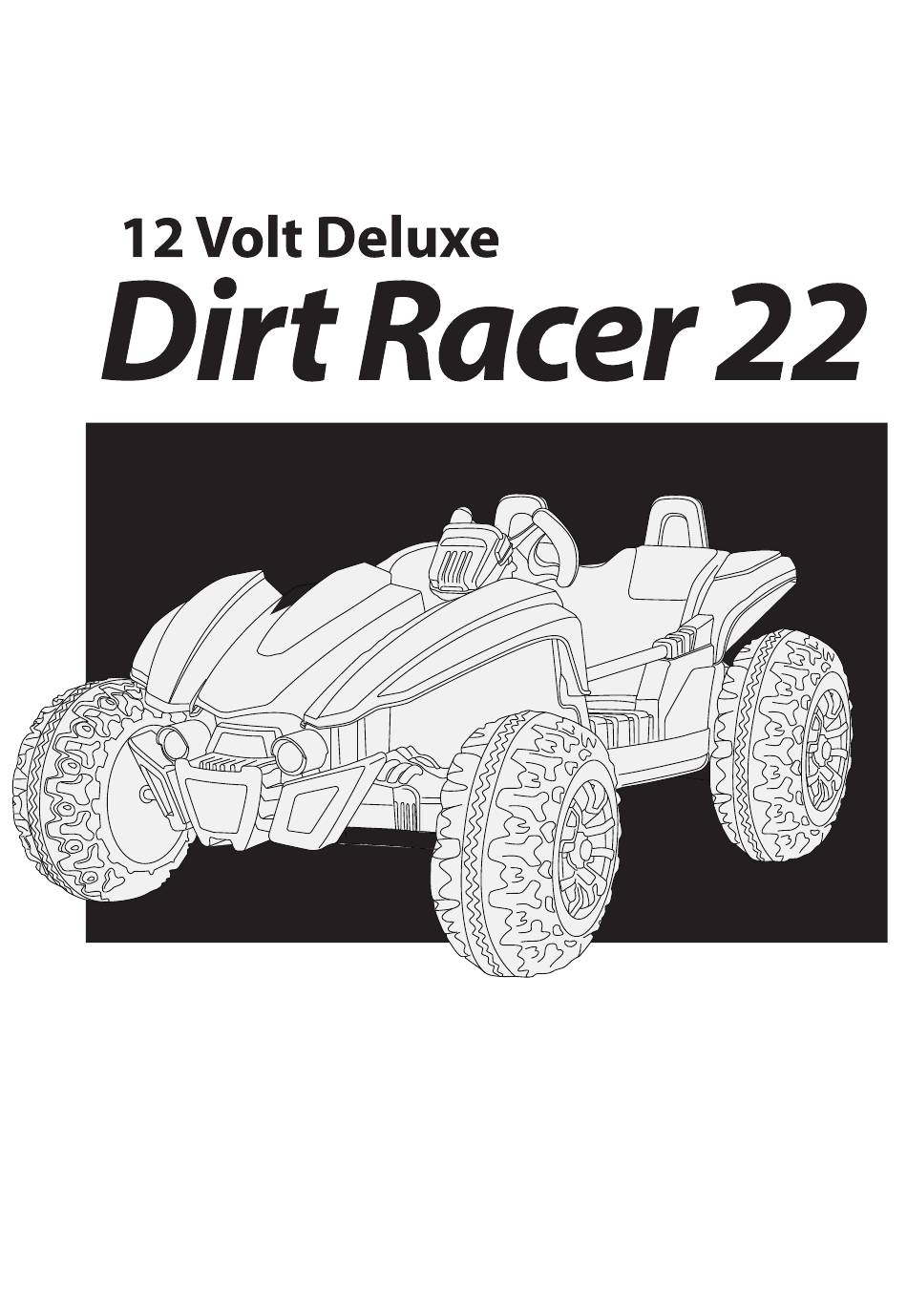

- Page 1 AGES 3+ YEARS (MAX WEIGHT 40KG) MADE IN CHINA ITEM NO.: 0502...
- Page 2 WARNING! WARNING: To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles,on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes and never allow more than 1 rider. It is parent’s responsibility to check main parts of the vehicle before using.
-
Page 3: Tools Required
Tools required Philips head screwdriver Pliers Adjustable wrench Component List Main body×1 Front hood×1 Front bumper×1 Front wheel×2 Front wheel cover ×2 Rear wheel cover ×2 Rear wheel×2 Lef rear fender ×1 Right rear fender ×1 Headrest ×2 Steering wheel×1 Steering wheel cover×1 10mm Lock nut×5 14mm Washer×2... - Page 4 10mm Lock nut×5 Main body×1 Front bumper×1 12mm Washer×5 Front hood×1 14mm Washer×2 Front wheel×2 Rear axle×1 Rear wheel×2 butterfly-head screw×4 Front wheel cover ×2 4mm×16mm Flat self-tapping screw×4 4mm×16mm Circular self-tapping Rear wheel cover ×2 screw×3 Lef rear fender ×1 Wrench ×2 Right rear fender ×1 Steering wheel×1...
- Page 5 INSTRUCTION OF THE PRODUCT ASSEMBLY DRAWING 1. One side of steering brackets are not 2. Release 3 pcs flat self-tapping screw connected.Use the 6mm x 16mm steering from top of side panels to remove the fixing bolt, 6mm washer & 6mm lock nut side panels top part from body.
- Page 6 7. Follow the illustration to assemble Front & Rear wheels. Note 1 - Make sure the raised point on wheel rim is matched to the hollow spot on wheel. Note 2 - Make sure to use 14mm spacer (part #20) on FRONT wheel assembly and 16mm spacer (part #21) on REAR wheel assembly.
- Page 7 OPERATING FEATURES Your car is fitted with 2 gearboxes containing 2 forward speeds and 1 reverse speed. The operating speed of your car can be controlled by the gear lever. Pushing it all the way forward will engage forward speed on high speed.
-
Page 8: Product Specification
Product Specification Suitable age grading 3+yrs Usage temperature range 0-40 degrees C Maximum user weight 40 kg Speed 2.17-4.35/mph Charger Input AC 240V Output DC 12V 1000mA Battery 12V 10AH×1 Charger time 8-12hrs Battery life Appro×300 charges Battery safety information Disposal Of Battery Disposal Of Battery Charging tips... -
Page 9: Safety Warnings
Check all electrical connections and ensure there is no damage. Car is running slower than normal. Stop use immediately and recharge battery. If you are experiencing any further difficulties with the product,please contact HUNTER PRODUCTS CUSTOMER SERVISE TOLL FREE NUMBER:1800 224 094 Safety warnings WARNING: WARNING:...
