INSTRUCTION MANUAL
Spider-Man 6 volt Motorbike
Styles and colours may vary.
general enquiries please contact:
Web: www.electricrideon.com.au
Toll Free Service Phone: 1800 224 094
Email: enquiries@hunterproducts.com.au
Item No.: HUN8091
Model No.: ZP3999B
SUITABLE FOR AGES 3 YEARS +
MAXIMUM USER WEIGHT 25KG
ONLY 1 RIDER AT A TIME
FORWARD GEAR ONLY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hunter Products HUN8091
Summary of Contents for Hunter Products HUN8091
- Page 1 INSTRUCTION MANUAL Spider-Man 6 volt Motorbike Item No.: HUN8091 Model No.: ZP3999B Styles and colours may vary. SUITABLE FOR AGES 3 YEARS + general enquiries please contact: MAXIMUM USER WEIGHT 25KG Web: www.electricrideon.com.au ONLY 1 RIDER AT A TIME Toll Free Service Phone: 1800 224 094 FORWARD GEAR ONLY Email: enquiries@hunterproducts.com.au...
-
Page 2: Table Of Contents
Contents Before First Use: ..................2. Product Specifications: ................ 3. Safety Precautions & Warnings: ............4-7. Parts List: .................... 8-9. Parts Diagram: ..................10. Assembly Instructions: ................11. Important Information: .................12. Charging Instructions: ................ 13 . Reset Fuse: ..................14. Maintenance: ..................15. General Care: ..................16. -
Page 3: Before First Use: 2
Before First Use: 2 This Instruction Manual contains important safety information as well as assembly, use and maintenance instructions. This bike must be assembled by an adult who has read and understands the instructions in this manual. Keep the packaging away from children and dispose of properly before use. -
Page 4: Product Specifications

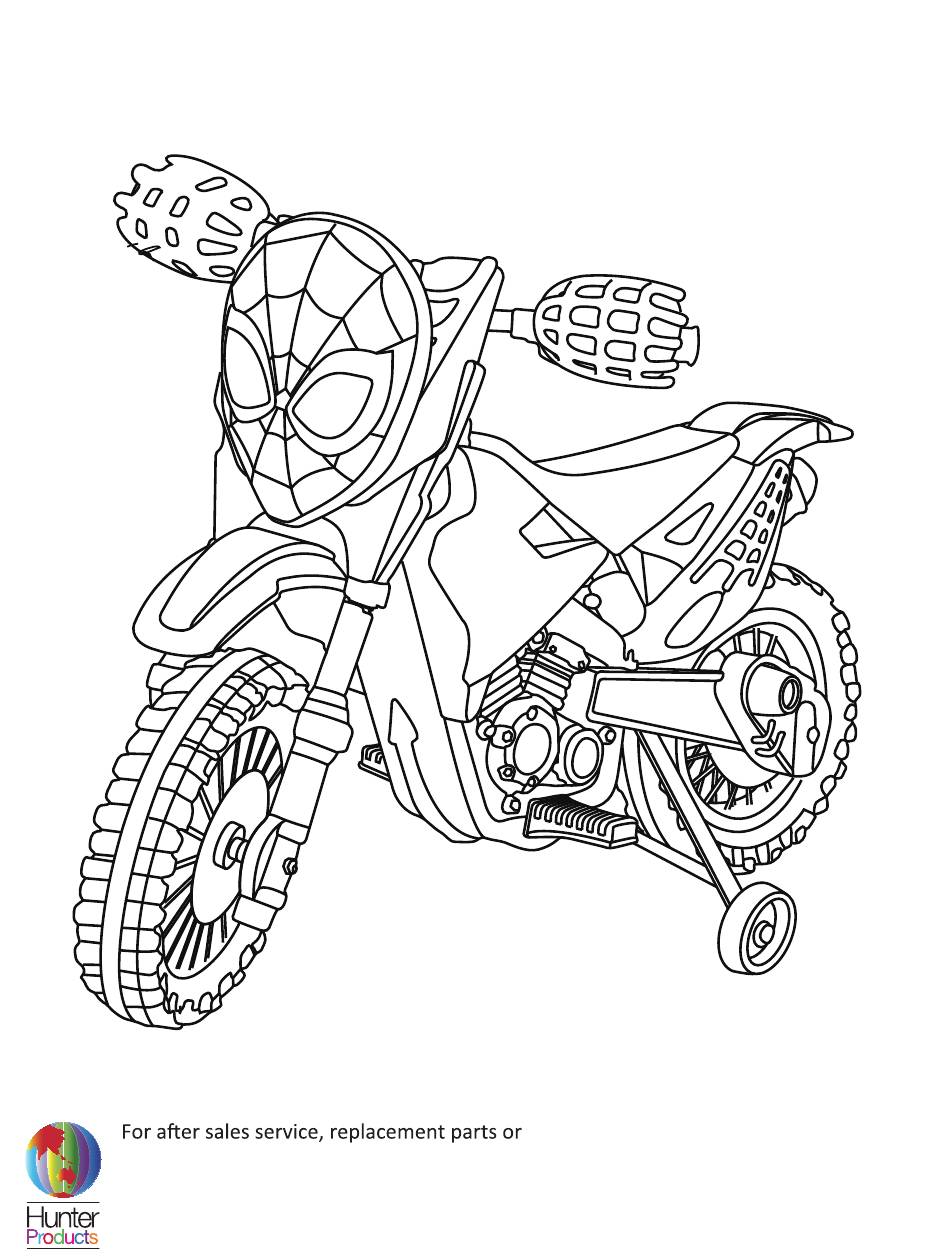

3 Product Specifications: EXTERNAL 107x53x70 cm Rechargeable POWER MODE DIMENSIONS suitable for children 5 amp Thermal Fuse AGES FUSE SPEC 3+ years MAX WEIGHT 25 kg 8-12 hours. CHARGING TIME LIMIT 8V 0.5A CHARGING SPEC SPEED BATTERY 6V, 4.5AH SPEC. For after sales service, replacement parts or general enquiries please contact: Web: www.electricrideon.com.au Toll Free Service Phone: 1800 224 094... -
Page 5: Safety Precautions & Warnings 4
Safety Precautions & Warnings 4 WARNING! The following safety hazards may result in serious injury or death to the user of the vehicle Spider-Man 6v Motorbike Ride-on: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. - Page 6 5 Safety Precautions & Warnings 3 to 7 years Age Range No more than 25kg Weight Range Before using the vehicle the child should understand the vehicle controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls.
- Page 7 Safety Precautions & Warnings 6 WARNING! The following safety hazards may result in serious injury or death to the user of the vehicle: Use of a battery or charger other than the supplied 6v rechargeable battery and • charger may cause a fire or explosion. Only use the supplied 6v rechargeable battery and charger with the vehicle.
- Page 8 7 Safety Precautions & Warnings WARNING! Battery posts, terminals and related accessories contain lead and lead • compounds (acid), chemicals and are toxic and corrosive. Never open the battery. • Tampering or modifying the electric circuit system may cause or explosion and permanently damage the system. Exposed wiring, circuitry in the charger may cause electric shock.
- Page 9 Parts List 8 PART PART REMARKS REMARKS Front Handle bar fender Decorative Front wheel front fork (no gear cover attachment) Front axle Bushing Front Mask panel Pedal Body plate(1) Pedal Training plate(2) wheel Dashboard Dashboard cover...
-
Page 10: Parts List
9 Parts List PART PART REMARKS REMARKS Screw M10*140mm Screw Washer 4*12mm Already Bolt Bolt installed on the M6*16mm M5*25mm Already Washer installed Charger on the OPERATION MANUAL 6V Dirt Bike Item No.: 55180 Instruction Included manual Tools: 10mm×1 8mm×2 SUITABLE FOR AGES 3 YEARS + MADE IN CHINA MAXIMUN USE WEIGHT: 25kgs... -
Page 11: Parts Diagram 10
Parts Diagram 10 Bushing Nut 8mm Handle bar Pedal plate(2) Mask Screw 4*12mm Front fender Training wheel Decorative front Front panel Dashboard Washer 8mm fork cover Front wheel (no Dashboard cover Body Bolt M5*25mm gear attachment) Screw Front axle Nut 5mm Pedal plate(1) M10*140mm Washer 6mm... -
Page 12: Assembly Instructions
11 Assembly Instructions BIKE ASSEMBLY: ⑤ ③ ⑥ ① B type helmet shield ④ ⑧ ⑦ ② B type has no A and B plug-ins STEPS: Step 1: Install handle bar over front fender and into front fork covers in the same order as diagram 1. Step 2: Install the front wheel with axle rod and nuts, pay attention to diagram 2 for order of parts assembly. -
Page 13: Important Information 12
Important Information 12 1: Before using the bike for the first time locate the plugs on the right hand side of the handlebars as per image 1 below. Ensure these plugs are connected together. 2: Charging Information. Refer to image 2 below. Round charge port located on right side of bike is indicated with an arrow. 3: Add the Batteries (NOT PROVIDED) of dashboard a. -
Page 14: Charging Instructions
13 Charging Instructions To Charge the Battery: 1: Ensure the bike is stopped and turned off. 2: Plug the round charge pin into the charge port on the right side of the bike. As per image below. 3: Plug transformer into a 240 V outlet. NOTE: First time charge should be for 10-14 hours Subsequent charges should be 8-10 hours. -
Page 15: Reset Fuse 14
Reset Fuse 14 Thermal Overload Fuse: This bike is fitted with a thermal overload fuse. If the bike is overloaded the fuse will cut off power to the bike for 10-20 seconds before resetting itself. To avoid the fuse activating please follow the below guidelines. -
Page 16: Maintenance
15 Maintenance Important Battery and Charger Information Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. Charge the battery for 10-14 hours before using the vehicle for the first time. -
Page 17: General Care 16
General Care 16 Regularly inspect all vehicle parts to ensure they are in good working condition. Regularly inspect the charger, cord, plug, and other related parts for damage. Remove any damaged parts and immediately contact Customer Service for replacement parts. DO NOT operate the vehicle if there are any damaged parts. -
Page 18: Troubleshooting
17 Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 19 Troubleshooting Guide 18 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 20: Service And Repairs
19 Service and Repairs If your product requires service, repairs or replacement parts, please visit us online at www.electricrideon.com.au HUNTER PRODUCTS 233 Bay Street, Brighton, Victoria 3186 Ph: 1800 224 094 Office hours: Monday to Friday 9am to 5pm AEST... -
Page 21: Warranty 20
Competition and Consumer Act 2010 (Commonwealth), and any other statutory rights to which you may already be entitled, and this warranty does not exclude, restrict or modify any such rights or remedies that are implied by law. HUNTER PRODUCTS 233 Bay Street, Brighton, Victoria 3186 Ph: 1800 224 094 Office hours: Monday to Friday 9am to 5pm AEST Email: enquiries@hunterproducts.com.au...
