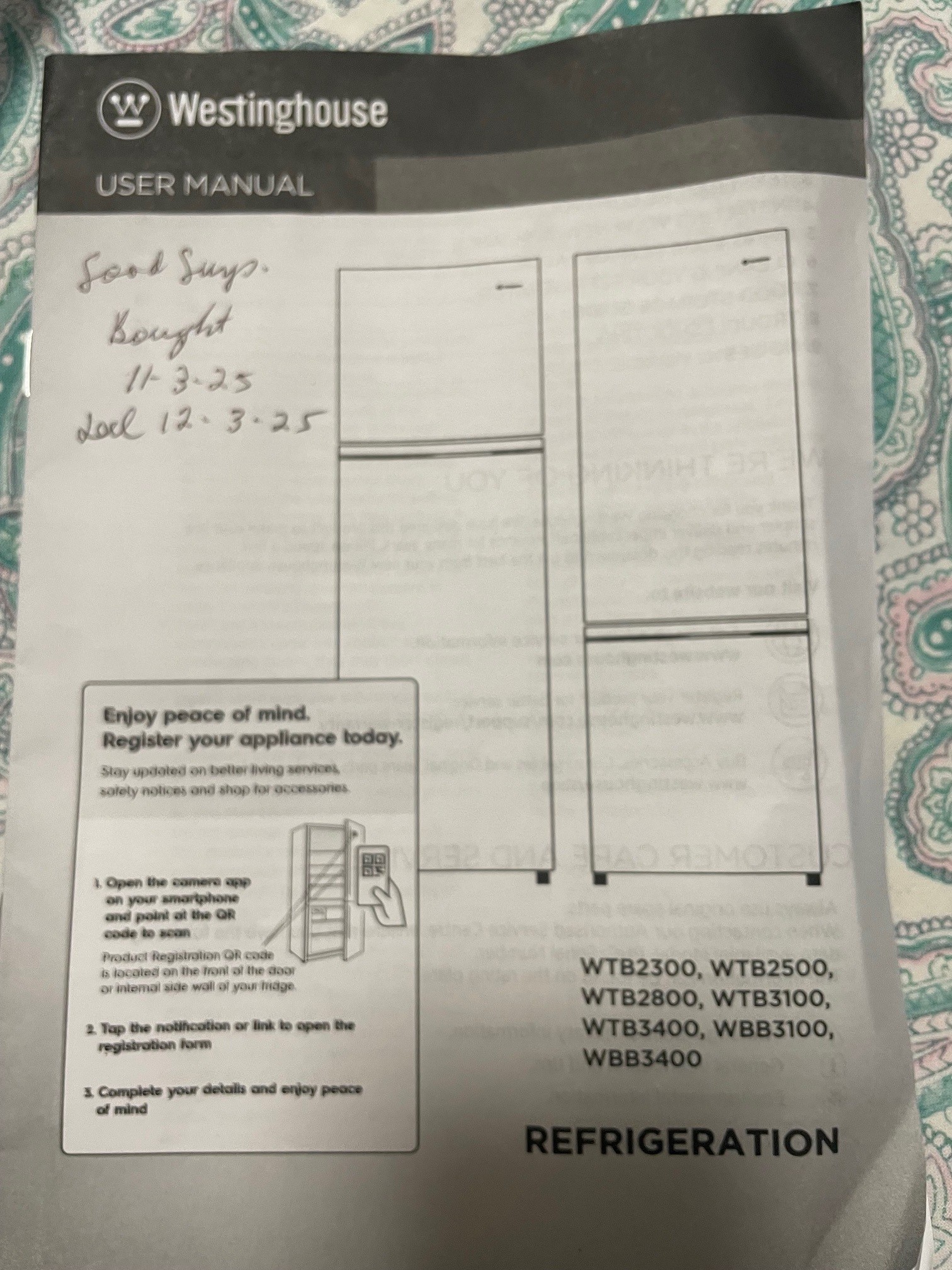

- Page 1 USER MANUAL WTB2300, WTB2500, WTB2800, WTB3100, WTB3400, WBB3100, WBB3400 REFRIGERATION...
-
Page 2: Table Of Contents
9. NOISES ............................17 WE’RE THINKING OF YOU Thank you for choosing Westinghouse. We have designed this product to make your life simpler and deliver impeccable performance for many years. Please spend a few minutes reading this document to get the best from your new Westinghouse appliance. -
Page 3: Safety Information
SAFETY INFORMATION Note: You must read these warnings carefully WARNING before installing or using the refrigerator. If R600a refrigerant warning you need assistance, contact your customer care centre. The manufacturer will not accept This appliance contains flammable liability, should these instructions or any R600a refrigerant. - Page 4 • When transporting and installing the Side View refrigerator, care should be taken to ensure that no parts of the refrigerating circuit are damaged. • Keep ventilation openings in the Stabilising foot appliance enclosure or in the built-in wound down structure clear of obstruction.
-
Page 5: Description Of The Appliance
2. DESCRIPTION OF THE APPLIANCE TOP MOUNT REFRIGERATOR FEATURES • WTB2300 • WTB2500 • WTB2800 ICEMAX ICEMAX The details of the refrigerator feature: Door Humidity Slide Control Door Handle Crisper Twist Ice and Serve Adjustable Feet Temperature Control (Freezer) Gaskets... - Page 6 TOP MOUNT REFRIGERATOR FEATURES • WTB3100 • WTB3400 The details of the refrigerator feature: Door Sealed Crisper Door Handle Adjustable Feet Twist Ice and Serve Gaskets Temperature Control (Freezer) Freezer Door Bins Freezer Shelf Egg Tray Chiller Compartment Door Bin Upper...
- Page 7 BOTTOM MOUNT REFRIGERATOR FEATURES • WBB3100 • WBB3400 The details of the refrigerator feature: Door Drawer Meat Box Door Handle Drawer Middle Freezer Multiflow Drawer Lower Refrigerator Light Adjustable Feet Adjustable Glass Shelves Gaskets Temperature Control (Refrigerator) Door Bin Dairy Temperature Control (Freezer) Egg Tray Humidity Slide Control...
-
Page 8: Temperature Control
3. TEMPERATURE CONTROL 3.2 Bottom mount models Set the temperature by using the slide temperature controls, refer to the relevant instruction for Bottom mount freezer or Top Bottom mount refrigerator temperature mount freezer models shown in this section. adjustment... -
Page 9: Installing Your New Appliance
4. INSTALLING YOUR NEW APPLIANCE Unpacking Adequate ventilation around your refrigerator ENVIRONMENT The diagram below shows the recommened Most of the packing materials are airspace to allow for ventilation of your recyclable. Please dispose of those refrigerator. materials through your local recycling •... - Page 10 DEPTH DEPTH DOOR aligned to HEIGHT (W1) (D1) OPEN cupboards top of refrigerator is (D2) ie. even gap level ie. horizontal WTB2300 1405 1110 aligned to cupboards WTB2500 1470 1110 top of refrigerator is ie. even gap WTB2800 1605 1110 level ie.
-
Page 11: Using Your Refrigerator
5. USING YOUR REFRIGERATOR Refrigerators work by transferring heat 5.1 USING AND REMOVING FEATURES from the food inside to the outside air. This operation makes the back and sides 5.1.1 Glass Shelves of the refrigerator feel warm or even hot To remove the shelves, gently pull them particularly at start-up and on warm days –... - Page 12 5.1.5 Crisper Drawer 5.1.3 Crisper Drawer Door storage bins for model : WTB23** , Crisper drawer is designed for storing WTB25** , WTB28** fruits, vegetables, and other fresh Crisper drawer is designed for storing produce. Crisper have an auto humidity...
-
Page 13: Cleaning Your Refrigerator
6. CLEANING YOUR REFRIGERATOR WARNING CAUTION BEFORE CLEANING: Turn the Never use hot water, solvents, commercial kitchen cleaners, refrigerator off at the electric aerosol cleaners, metal polishes, outlet and unplug the cord to caustic or abrasive cleaners, or prevent any chance of electrocuting scourers to clean your refrigerator. -
Page 14: Food Storage Guide
7. FOOD STORAGE GUIDE RECOMMENDED STORAGE TIMES FOR FRESH FOODS * CATEGORY PRODUCT STORAGE TIPS REFRIGERATOR FREEZER MEAT Sausages and 1-2 Days 2-3 Months Keep cold meat at the back of the Mince refrigerator where it is coldest. Plastic can cause meat to sweat if stored in... -
Page 15: Troubleshooting
8. TROUBLESHOOTING Appliance does not operate at desired temperature In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments through air vents using a high efficiency fan. CONCERN WHAT TO DO Refrigerator is too warm. •... - Page 16 Refrigerator operation CONCERN WHAT TO DO When your appliance is not operating • Check that the power cord is plugged into the power outlet properly and that the outlet is switched on. • Try running another appliance from the same power outlet. If no power is coming out from the outlet, you may have a blown fuse or tripped your household power supply circuit.
-
Page 17: Noises
9. NOISES Appliance noise Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. - Page 18 (c) ‘ASC’ means Electrolux’s authorised serviced centres; (vi) incomplete or improper installation; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products (vii) incorrect, improper or inappropriate operation; Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (viii) insect or vermin infestation;...
- Page 19 Notes...
- Page 20 Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery, home service and spare parts. and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. © 2017 Electrolux Home Products Pty Ltd.
