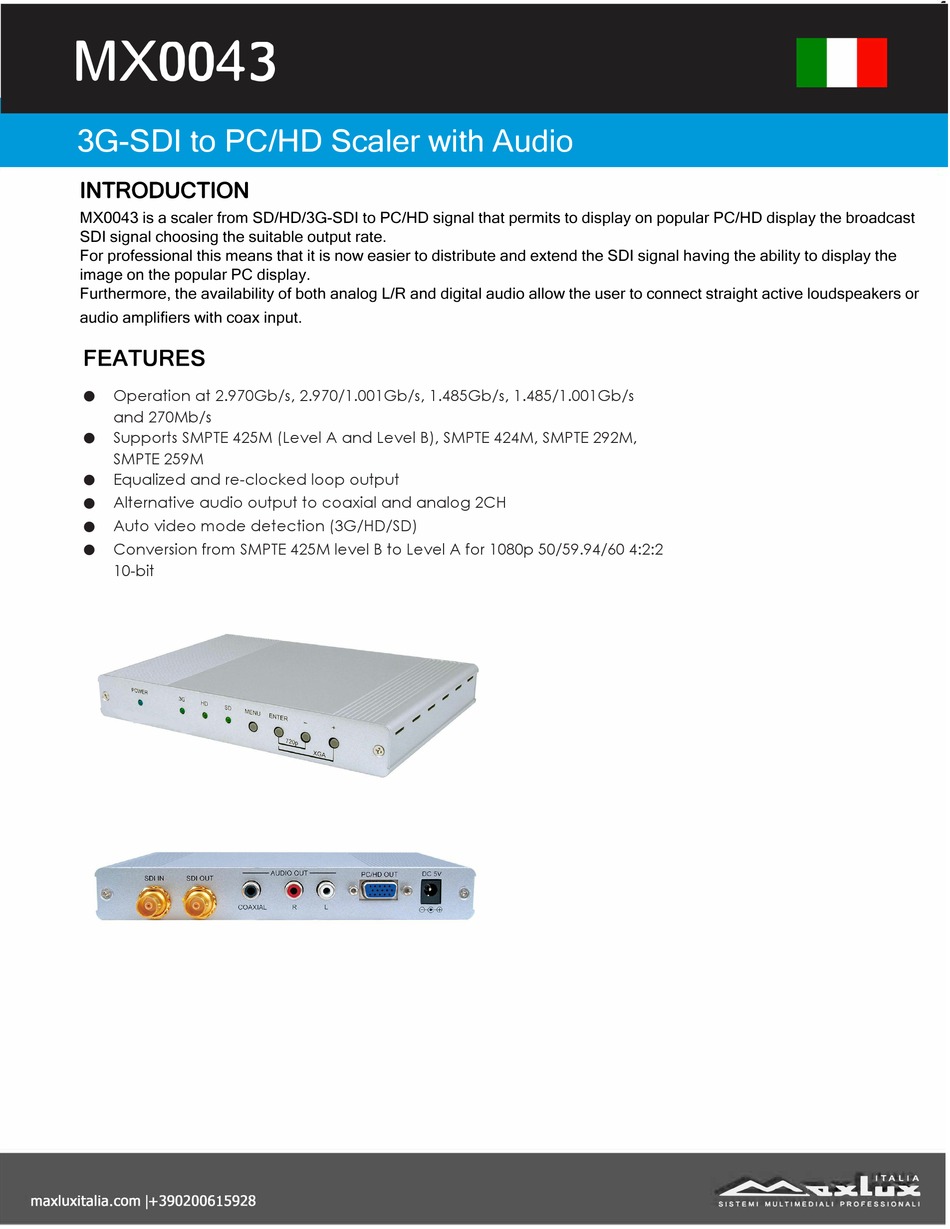

MaxLux MX0043 Quick Start Manual

MX0043
3G-SDI to PC/HD Scaler with Audio
INTRODUCTION
MX0043 is a scaler from SD/HD/3G-SDI to PC/HD signal that permits to display on popular PC/HD display the broadcast
SDI signal choosing the suitable output rate.
For professional this means that it is now easier to distribute and extend the SDI signal having the ability to display the
image on the popular PC display.
Furthermore, the availability of both analog L/R and digital audio allow the user to connect straight active loudspeakers or
audio amplifiers with coax input.
FEATURES
Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s

and 270Mb/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,

SMPTE 259M
Equalized and re-clocked loop output

Alternative audio output to coaxial and analog 2CH

Auto video mode detection (3G/HD/SD)

Conversion from SMPTE 425M level B to Level A for 1080p 50/59.94/60 4:2:2

10-bit
