MX0053 1x4 Splitter w/HDCP compliance INTRODUCTION MX0053 è un distributore DVI compatibile HDCP ad alte prestazioni. Permette di replicare una sorgente DVI o HDMI fino a 4 uscite identiche e bufferate per poter collegare lo stesso segnale a piu dislays FEATURES •...
Page 2

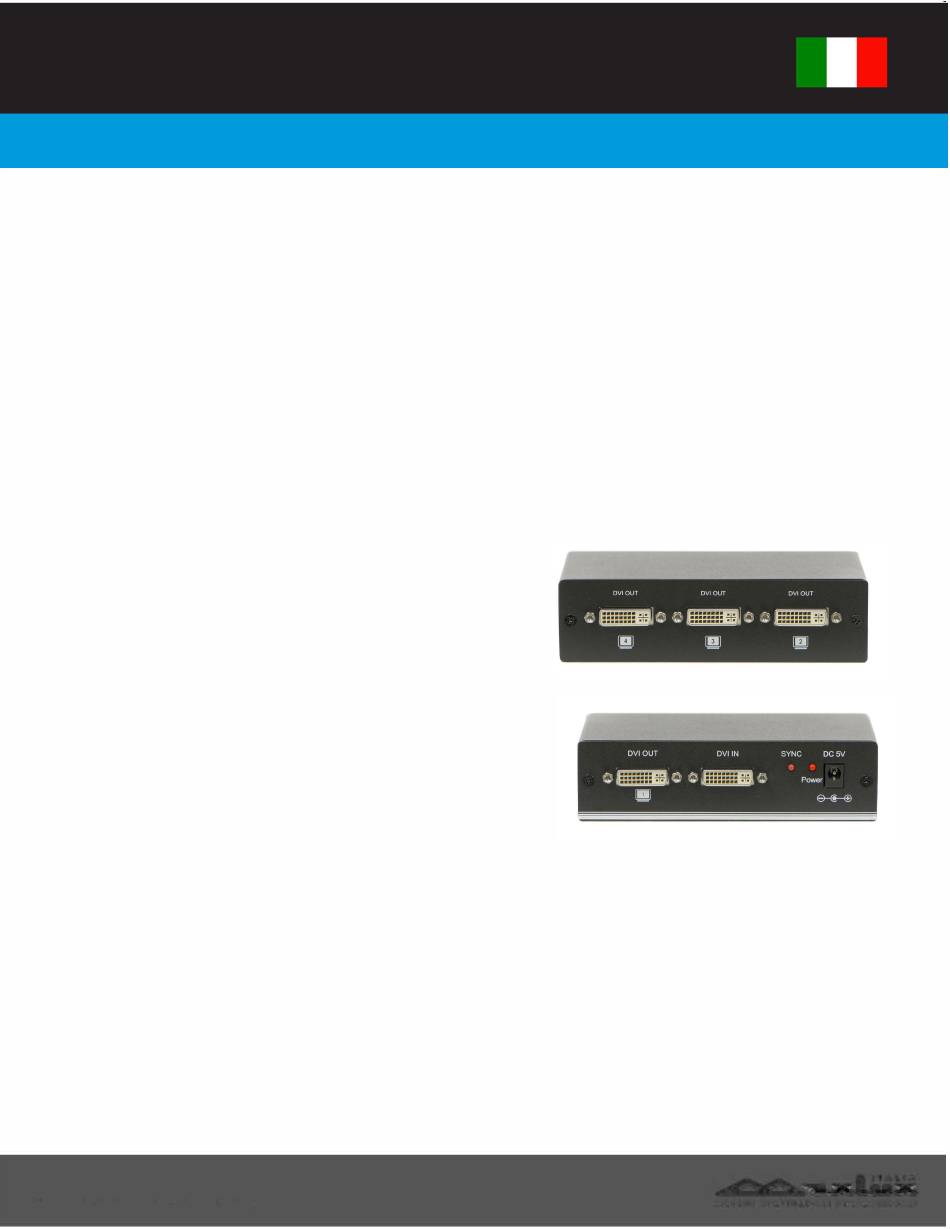

MX0053 OPERATION CONTROLS AND FUNCTION Front Panel DVI OUT DVI OUT SYNC DVI IN DVI OUT POWER DC 5V DVI OUT 7/8/1: Connect to a DVI equipped TV/monitor for display of the DVI input source signal. SYNC LED: This LED will illuminate in RED when the source signal is connected and detected by the unit.
Page 3
MX0053 CONNECTION DIAGRAM PC/Laptop DVI Input Simultaneous DVI Outputs Power Supply DVI OUT DVI OUT SYNC DVI IN DVI OUT POWER Example Shown: DC 5V 1 by 8 DVI Splitter DVI OUT DVI OUT DVI OUT DVI OUT DVI OUT TV/Monitors ITALIA �.
