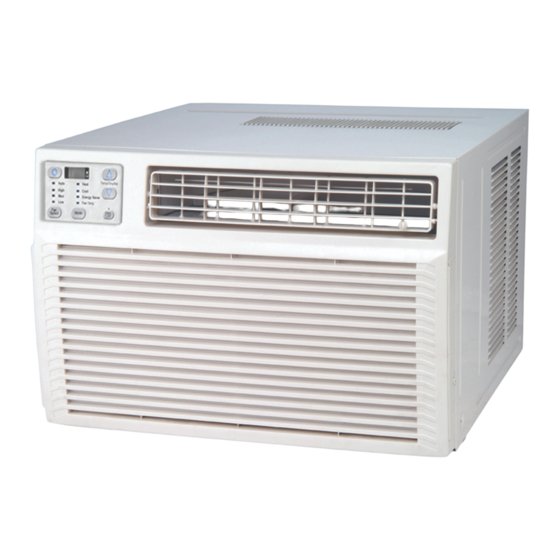

- Page 1 OWNER’S MANUAL Room Air Heat Pump with R-410A: RAH-123M RAH-183M www.marsdelivers.com...
- Page 2 OWNER’S MANUAL - RAH-123M, 183M EXPLANATION OF SYMBOLS Indicates a hazardous situation that, if not avoided, will result in death or serious injury. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
-
Page 3: Table Of Contents
OWNER’S MANUAL - RAH-123M, 183M Room Air Conditioner & Heat Pump Use and Care Manual Contents Introduction ..............1 Safety Information ............1 Normal Care and Maintenance ........3 Installation Requirements ..........5 Electrical Requirements ..........6 Installation Instructions ..........8 Through-the-Wall Cabinet Installation ......10 Complete Installation ..........12... - Page 4 OWNER’S MANUAL - RAH-123M, 183M OWNER'S PRODUCT IDENTIFICATION WARNING Instructions for installation and use of this MODEL NUMBER product are provided by the manufacturer. SERIAL NUMBER To prevent heat related illness or death,do MANUFACTURING NUMBER not use this device for unattended cooling of persons or animals unable to react to product failure.
-
Page 5: Normal Care And Maintenance
OWNER’S MANUAL - RAH-123M, 183M page included with this manual or in the mounting kit Unit Plug Receptacle Circuit Rating, Voltage assembly. Follow these instructions carefully. Keep these Type Required Breaker, Time Rating On instructions with this manual for future reference. Your unit Delay Fuse Nameplate will be one of the following three designs:... - Page 6 OWNER’S MANUAL - RAH-123M, 183M NOTICE: Air Filter Cleaning The life of your unit may be greatly reduced A dirty air filter reduces operating efficiency of unit. Filter if you live in a salt air or other corrosive type environment. should be inspected at least once every week during opera- Under these conditions, the unit should be removed from tion.
-
Page 7: Installation Requirements
OWNER’S MANUAL - RAH-123M, 183M IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions: Plug into a grounded 3 prong outlet. Do not use an extension cord. Do not remove ground prong. -
Page 8: Electrical Requirements
OWNER’S MANUAL - RAH-123M, 183M Window installation Electrical Requirements Window opening measurements: WARNING 27" min. to 39" max. opening width. 16¹⁄ " min. opening height. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. - Page 9 OWNER’S MANUAL - RAH-123M, 183M WARNING Recommended grounding method This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a grounded 3 prong plug. To minimize possible shock hazard, the cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances.
-
Page 10: Installation Instructions
OWNER’S MANUAL - RAH-123M, 183M INSTALLATION INSTRUCTIONS Unpacking 3. Remove front panel by removing 2 phillips screws on both WARNING bottom left right sides of front. 3A: Remove both knobs from control panel. Excessive Weight Hazard 4. Pull on handle to slide air conditioner out of cabinet. Place air Use two or more people to move and install air conditioner. - Page 11 OWNER’S MANUAL - RAH-123M, 183M Attach Side Curtains Attach foam adhesive seal 1. Locate provided bag of screws. Attach foam adhesive seal along the bottom of the curtain bottom channel. 2. Insert top and then bottom of right-hand curtain housing in top and bottom curtain guides on air conditioner cabinet.
-
Page 12: Through-The-Wall Cabinet Installation
OWNER’S MANUAL - RAH-123M, 183M 4. Use a ³ ⁄ " dr ill bit to drill 3 starter holes 1/2" deep through the 2. Insert one of the #10 x ³ ⁄ " round-head screws through 3 holes in the cabinet and into the windowsill. hole and into lower window sash. - Page 13 OWNER’S MANUAL - RAH-123M, 183M Option 1—Wood, metal or plastic molding Use 1" or thicker lumber for wood frame. When you are using wood, metal or plastic molding, the wood frame should line up with inside wall as shown. A B C A.
-
Page 14: Complete Installation
OWNER’S MANUAL - RAH-123M, 183M Complete Installation NOTICE: Handle air conditioner gently. 3. Install ground screws on both sides of cabinet . WARNING 4. Insert front tabs of front panel into top of cabinet and swing front into place. 5. Attach bottom front of panel with front panel screws. Replace Excessive Weight Hazard control knobs (on some models). -
Page 15: General Operating Instructions
OWNER’S MANUAL - RAH-123M, 183M To install, remove the unit chassis from the outer case. Insert General Operating Instructions the condensate drain cup through the recessed ½” hole on While operation of all units is similar, controls vary slightly the back center of the outer case. Once inserted, place a ½” from model to model. -
Page 16: Operating Controls
OWNER’S MANUAL - RAH-123M, 183M Operating Controls(For Electronic units) T emp Increase /Decrease Pads Use to set temperature when in Heat (on some models)/Cool/Energy Saver Operating your air conditioner properly helps you to obtain the best possible results. The Set light will turn on while setting. This section explains proper air conditioner operation. - Page 17 OWNER’S MANUAL - RAH-123M, 183M Buttons on remote controller ON/OFF button MODE button +/- button FAN button SWING button SLEEP button TIMER button Introduction for icons on display screen Timer on Timer off Sending signal auto operation swing operation cool operation sleep operation save operation SAVE...
- Page 18 OWNER’S MANUAL - RAH-123M, 183M ● When selecting auto mode, air conditioner will operate automatically according to ambient temperature. Set temper- ature can't be adjusted and won't be displayed either. Press FAN button to adjust fan speed. (The auto mode is not available for this model.) ●...
- Page 19 OWNER’S MANUAL - RAH-123M, 183M Function introduction for combination buttons Child lock function Pressing “+” and “-” buttons simultaneously will turn on or turn off child lock function. When child lock function is started Press “+” and “-” buttons simultaneously can turn on or turn off child lock function. When child lock function is started LOCK indicator on remote controller is ON.
-
Page 20: Before Calling Service
OWNER’S MANUAL - RAH-123M, 183M Before Calling Service WARNING To reduce the risk of electric shock,personal injury,or death,turn the fan control to the off position and remove the unit plug from the wall outlet before doing any inspection or maintenace work. The following is a list of problems that are sometimes encountered when using a room air conditioner. -
Page 21: Thru-Wall Installation Instructions
OWNER’S MANUAL - RAH-123M, 183M Thru-wall Installation Instructions Thru-wall Installation Instructions for Heat Controller Room Air Conditioner for GREE ® Introduction This instruction sheet provides guidelines for installing a compact air conditioner through an outside wall. CAUTION Installing an air conditioner through a wall requires extensive carpentry and/or mason- ry experience. - Page 22 OWNER’S MANUAL - RAH-123M, 183M Placement of Outer Case in Opening Place outer case in opening, flush against one side of opening. Use carpenter’s level and ensure case is level from side to side and has a -inch slope from front to back (back of case must be -inch lower than front to ensure proper condensate drainage).
- Page 23 OWNER’S MANUAL - RAH-123M, 183M Installation in Wall Thicker Than 5½inches The side louvers in outer case provide ventilation to air con- ditioner compressor and fan motor and must not be blocked. When installing unit in a wall over 5 -inches thick, provisions must be made in wall opening to ensure free air flow to the side louvers.
- Page 24 LIMITED EXPRESS WARRANTY REMEDY PROVIDED BY THE LIMITED EXPRESS WARRANTY Congratulations on purchasing your new HVAC equipment. It’s been designed for long life and reliable service, and is backed The sole remedy under the Limited Warranty is replacement of the by one of the strongest warranties in the industry.
- Page 25 marsdelivers. 11/2018...
