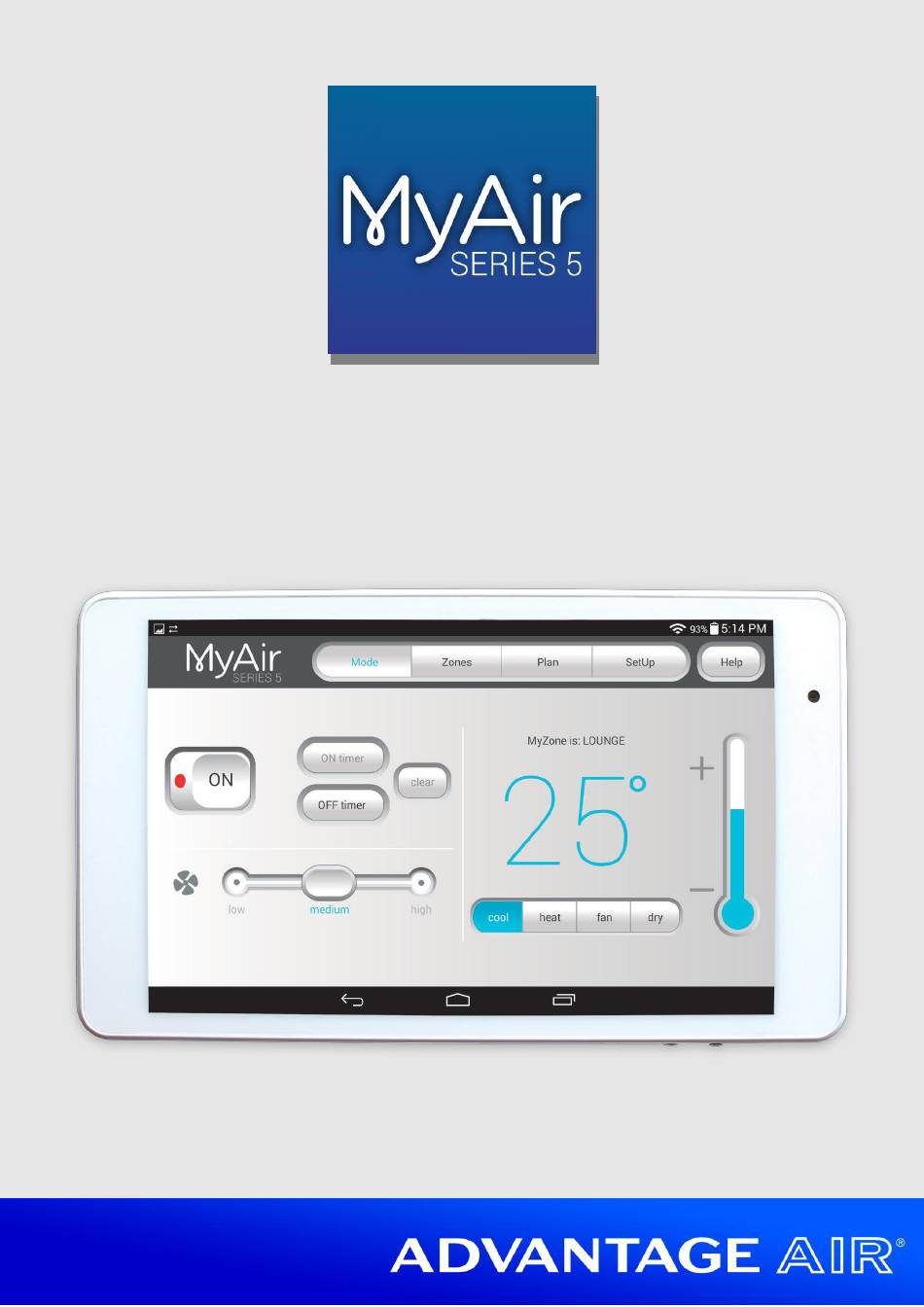

  • Page 1 User Guide...

  • Page 2: Table Of Contents

    MyAir5 User Guide Introduction ....................... 3 Mode Page ......................4 Zones Page ....................... 10 Plans Page ......................13 Setup Page ....................... 17 Constant Zones ....................19 Android Tablet ....................20 Smart Phone Control – Quick Setup Guide ............21 Network Troubleshooting ................29 Remote Access - 3G/4G ...................

  • Page 3: Introduction

    MyAir5 User Guide Introduction Welcome to your new MyAir5 system. The information provided in this user manual will help you to ensure you get the most from your new air conditioning system. Upon first power up, the system will take a few minutes to initialise. If you walk away from your screen it will go to sleep, to wake the screen press the button on the left hand side of the screen.

  • Page 4: Mode Page

    MyAir5 User Guide Mode Page Your Mode screen will look like this, easy to read & intuitive, the large power switch is used to turn your Air Conditioner ON or OFF. HANDY HINT: To move between Mode, Zones, Plan & Setup you can simply swipe left or right.
  • Page 5 MyAir5 User Guide SIMPLE TIMER The MyAir5 system features a SIMPLE TIMER which you can use to have your air conditioning system turn ON or OFF after 30minutes, 1 hour 1 hours or 2 hours. Note: This is a once-only timer that does not repeat each day. More advanced timers can be set using the Plan menu.
  • Page 6 MyAir5 User Guide FAN SPEED FAN SPEED can be used to change the volume of airflow produced by your indoor fan between LOW, MED, HIGH & AUTO. Some air conditioning unit brands/models may not include AUTO FAN functionality.
  • Page 7 MyAir5 User Guide MODE MODE allows you to change between the different modes of operation HEAT – Warm your home in winter COOL – Cool your home in summer FAN ONLY – Used to recirculate air within the home, a great energy efficient option if you just want to move some air around the home as only your fan in the roof space will run &...
  • Page 8 MyAir5 User Guide TARGET TEMPERATURE TARGET TEMPERATURE is your main temperature set-point, your air- conditioning unit will respond to the temperature set here, to adjust press the symbols For the most energy efficient operation we recommend 24C when you are cooling your home &...
  • Page 9 MyAir5 User Guide FRESH AIR (Optional) Setting fresh air to ON will enable your system to draw in air from outside the home. This feature is particularly useful when the outside temperature is pleasant such as in the evenings. To use this functionality, set your mode to FAN & turn your fresh air ON and this will draw fresh air in &...

  • Page 10: Zones Page

    MyAir5 User Guide Zones Page Press Zones button from the menu bar to bring up the Zones Screen: Pressing a zone name toggles that zone between ON and OFF; the zone turns blue when it is on. There are 3 different types of zones in MyAir5 system depending on the options selected when purchasing your system.
  • Page 11 MyAir5 User Guide  MyZone™ (Optional): If enabled any zone with temperature control (or motion sensor) can be designated as a MyZone. Press the thermometer to designate that particular zone as the MyZone. The MyZone feature makes that particular zone the “information centre”...
  • Page 12 MyAir5 User Guide larger requirement for air conditioning than in other rooms in the house. Setting the MEDIA as MyZone will ensure that the system continues running until the temperature set-point for that room is achieved. Only one temperature controlled zone can be the MyZone at any one time, if you are using multiple zones it is recommended that you make the largest zone the MyZone &...

  • Page 13: Plans Page

    MyAir5 User Guide Plans Page Allow you to program your air-conditioner to turn on/off at specific times, and/or to alter the on/off state of any of the zones. Press next to bring up the list of active programs: To add a program press new program at the bottom of the screen, this will bring you to the following screen:...
  • Page 14 MyAir5 User Guide Enter a start & finish time for the program by swiping the selection wheel up or down, the wheel will stop slowly after swiping. Press next to continue to the following screen: Select the days for the program to run. Press next to continue to the zone selection screen:...
  • Page 15 MyAir5 User Guide Select the zones you would like to run during the program. When you select a zone on it will default to its last percentage air volume setting or temperature setting if you have temperature sensors. Note: Your system will start in its last set MODE & FAN setting eg If the system was last used for cooling &...
  • Page 16 MyAir5 User Guide DISABLE PROGRAMS This feature is handy to use when going away on holidays and provides a quick and easy way to you save energy by ensuring the air-conditioner does not run when you’re not at home. To disable a program press the program you wish to edit from the PROGRAM LIST &...

  • Page 17: Setup Page

    MyAir5 User Guide Setup Page Screen Beep You can turn the screen beep ON or OFF depending on your preference. Rename Zones Press this button to change the zone names, you will be presented with a list of all your zones press any zone to edit the name. You can use the symbols &...
  • Page 18 MyAir5 User Guide Press the DEL key (X) to delete each character Enter new zone name using the on-screen keyboard Zone names can be up to 12 characters in length, when finished press DONE. ADVANCED INFO This page will display information about your system & the way it has been configured, this info may be used by your air conditioning professional when servicing.

  • Page 19: Constant Zones

    MyAir5 User Guide Constant Zones Your MyAir5 system may be set up with electronic Constant Zones. These are pre-programmed zones that open up to relieve excess air pressure in your air- conditioning system if insufficient zones are open. Constant Zones are noted with a small letter c to the right of the zone name.

  • Page 20: Android Tablet

    MyAir5 User Guide Android Tablet Great news! Your MyAir5 system is also an Android tablet which means you can install your favourite apps such as News apps, Email & Weather all from the Google Play Store. Your MyAir5 tablet is permanently attached to your wall with the ability to pivot the tablet between portrait &...

  • Page 21: Smart Phone Control - Quick Setup Guide

    MyAir5 User Guide Smart Phone Control – Quick Setup Guide Once your air conditioner is installed: 1. Ensure you have an existing home Wi-Fi network is working & you have your password on hand. 2. Press the home button...
  • Page 22 MyAir5 User Guide 3. Press the app drawer button. 4. Press the settings button...
  • Page 23 MyAir5 User Guide 5. Ensure you are connected to your home Wi-Fi network, if it is OFF as shown in the image below press the switch to turn it ON 6. Once you have Wi-Fi turned ON you need to find your home Wi-Fi network in the list then press it.
  • Page 24 MyAir5 User Guide 7. After pressing the home Wi-Fi button you will need to enter your home Wi-Fi network password then press CONNECT. 8. Once you have connected successfully (may take up to 5 minutes) you will see the word CONNECTED below your home Wi-Fi network name as per above image.
  • Page 25 MyAir5 User Guide 9. Connect your smart device (your tablet or phone) to your home Wi-Fi network. You will need to enter your network password as you did above for the MyAir5 screen. TIP: Some routers have the network name (SSID) & password printed on a sticker located on the reverse of the router.
  • Page 26 Click on the Search tab. c. Type “MyAir5” into the search box. d. Press Search. e. Select the correct MyAir5 App by Advantage Air (It’s Free). f. To install, press the blue FREE button, and then Green GET button.
  • Page 27 MyAir5 User Guide g. Enter your Apple ID password (it’s case sensitive). Apple Installation Troubleshooting 1. Is your device an iPhone 3 or older? If so, Apple no longer support these devices and our App cannot be downloaded to your device. Requirements: Compatible with iPhone, iPod touch and iPad.
  • Page 28 MyAir5 User Guide Android Devices To start downloading items on the Google Play Store app, you need to add a Google Account on your device. Here's how to add a Google Account on your device: 1. Under "Accounts", touch + Add account. 2.

  • Page 29: Network Troubleshooting

    MyAir5 User Guide Network Troubleshooting Assistance for the Homeowner’s IT professional: 1. Check the Wi-Fi router is turned ON. 2. Check that your smart phone or tablet device is connected to the home Wi-Fi (not using “Mobile Data/3g/4g”), also ensure signal strength is adequate.
  • Page 30 MyAir5 User Guide Issue Possible Cause Possible Solution 1. MyAir5 App does not Your smart phone or tablet cannot find your Check both your phone/tablet & MyAir5 connect to MyAir5 MyAir5 system. system are connected to the same Wi-Fi system. network.
  • Page 31 MyAir5 User Guide How to reset your Wi-Fi control 1. Turn off the power to your home Wi-Fi router. 2. Turn off the power to your air-conditioning system. One way to do this is at the isolating switch, usually located on the wall near your air conditioning outdoor unit.

  • Page 32: Remote Access - 3G/4G

    MyAir5 User Guide Remote Access - 3G/4G MyAir5 has the ability to control your system from your Android or Apple smart device when you are outside of the home Wi-Fi network using your mobile network data (eg 3G/4G). Your Android or Apple smart device will also require the latest MyAir5 app, go to Apple App store or Google Play to ensure you have the latest version.
  • Page 33 MyAir5 User Guide The below instructions assume the following:  MyAir5 touch screen is connected to the home Wi-Fi network.  You are able control your system from your mobile device when connected to your home Wi-Fi network. 1. Press the home button. 2.
  • Page 34 MyAir5 User Guide 3. Find & press the app called AA Waca 4. To disable remote access press the Disable button once & the button will turn blue. Disabling remote access also clears all paired smart phones/tablets.
  • Page 35 MyAir5 User Guide 5. To enable remote access press the enable button once & the button will turn blue. 6. Whilst your system is enabling remote access you will notice the status will change numerous times, when remote access is successful the status should change to STATUS: 5, 8 or 11, if your status is something else wait or refer to troubleshooting guide below (please wait 10 minutes first).
  • Page 36 MyAir5 User Guide 7. When STATUS: 5, 8 or 11 are displayed remote access has been successfully configured. 8. Open the MyAir5 app on your Android /Apple device whilst it is connected to your home Wi-Fi network to pair your air conditioner with the phone/tablet then close the app.

  • Page 37: Remote Access - Troubleshooting

    MyAir5 User Guide Remote Access – Troubleshooting Assistance for the Homeowner’s IT professional: Status Cause Solution  Confirm the tablet is connected 3, 6, 9 No internet access – cannot to the home Wi-Fi network. contact server Open browser & confirm you ...

  • Page 38: General Troubleshooting

    MyAir5 User Guide General Troubleshooting If you are experiencing problems with the operation of the system, you may reset the system using the isolator switch located next to your air-conditioner’s outdoor unit. Turn the Isolator switch off, then try pressing the button to wake the touch screen.

  • Page 39: Service Records

    MyAir5 User Guide Service Records BATTERIES DATE SERVICED BY COMMENTS CHANGED YES / NO YES/ NO YES / NO YES / NO YES / NO YES / NO...
