Ksenia gemino KSI4104000.310 Installation Manual

gemino IoT
Communicator 4G-LTE/IP
Installation guide

INTRODUCTION

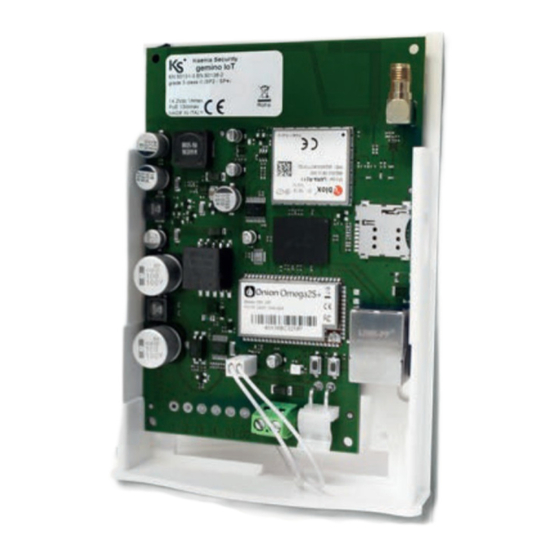

gemino IoT is an IP Communicator that increases the communication capabilities of the lares 4.0 IoT
platform on two transmission channels: Ethernet/IP (with proprietary protocol) and 4G data network (with
reception also on 2G/GPRS bands). gemino IoT allows lares 4.0 IoT platforms, installed on sites that do not
have sufficient GSM coverage, to be reachable from 4G data network or via Internet, in a completely
transparent way for the installer and end-user as well. Also it provides a high-speed data channel (up to
10Mbit/s in download) able to offer a complete back-up of communication network in the event of failure or
temporary lack of coverage, from the 4G network to the IP-LAN network and vice versa, ensuring a total
communications and data security.
It can also be used as a ROUTER in the absence of a wired internet connection, in that way gemino IoT
implements a DHCP server that assigns IP addresses to devices connected on the same network that make
request of them. Also, it allows them to connect to Internet through the connection data ensured by the
GSM module, in 4G technology or in EDGE or 2G.

MAIN FEATURES

• Programming and management of the lares 4.0 IoT platform;
• Push notifications when events occur;
• Sending of signals with SIA DC09 digital protocol, with channel and receiver supervision (dual-path)
• Video-verification of IP cameras connected to the local network where lares 4.0 resides;
• Easy management and fast synchronization of voice messaging (TTS Loquendo® di Nuance
Communication®);
• Supervision and the sending of voice, SMS and Contact ID reports when any of the events programmed
occur;
• Remote control of the system through vocal menu-driven;
• Router operation can be activated and used in the absence of a wired internet connection and of
another router;
• Power supply PoE 13W or 12 VDC.
code R30037.101en
ed.04/2020
www.kseniasecurity.com
