- Page 1 Planetary Mixer Instruction manual Model: GL190-A / GL191-A / GJ461-A GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 1 2019/3/21 17:55...
- Page 2 Exploded diagram and spare parts list GL190 GL190-A GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 2 2019/3/21 17:55...
- Page 3 GL190-A Exploded diagram and spare parts list GL190 Description Description Description Flat Beater Bearings Support Dough Hook Seal Washer Wire Whip Bearings Type 1 Hexagon Nut Gear Box Gear Shaft Screw Circlip Key: 5x10 Lifting Support Worm Gear Key: 5x10 Hexagon Seal Gear...
- Page 4 GL190-A Exploded diagram and spare parts list GL190 Gear Retainer Pin 126 Type 1 Bowl 127 Bracket Hexagonal Nut Ring Gasket Screw 128 Distance Switch Gear Washer 129 Screw Shaft sleeve Rear Guard 130 Type 1 Claw Clutch Bolt 132 Shaft Pin Hexagonal Nut Key: 5x25 133 Split Washer...
- Page 5 GL191-A GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 5 2019/3/21 17:55...
- Page 6 GL191-A DESCRIPTION DESCRIPTION DESCRIPTION Wire Whip Nut Worm wheel Spiral Dough Hook Gear Box Motor (With Tool) Flat Beater Gear Box Oil seal Safety Guard End Cap Green Button Bowl Assembly Internal Gear Red Button Gear Panel Spring Operating Shaft Motor Housing Pin Shaft Bearing Key Shifting Yoke Oil Seal Shaft Worm Gear 10 Cam Gear Working Shaft Worm Wheel/Gear 11 Transmission Plate Retainer Pin Rear Casing 12 Transmission Plate...
- Page 7 GJ461-A Exploded diagram and spare parts list GJ461 GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 7 2019/3/21 17:55...
- Page 8 GJ461-A Exploded diagram and spare parts list GJ461 Description Description Description Dough Hook Top Hat Valve Gear Shaft Flat Beater Flat Valve Cap Gear Wire Whip Bearing Bushing Safety Guard Spacer Gear Bowl Gear Gear Upper Panel Gear Pressing Plate Screw Bushing Spacer...
-
Page 9: Safety Tips
Telephone Helpline: 1300225960 Safety Tips THE PLANETARY MIXER IS A DANGEROUS APPLIANCE AND MUST ONLY BE USED BY TRAINED PERSONNEL IN ACCORDANCE WITH THESE INSTRUCTIONS. • Position on a flat, stable surface. • A service agent/qualified technician should carry out installation and any repairs if required. -
Page 10: Product Description

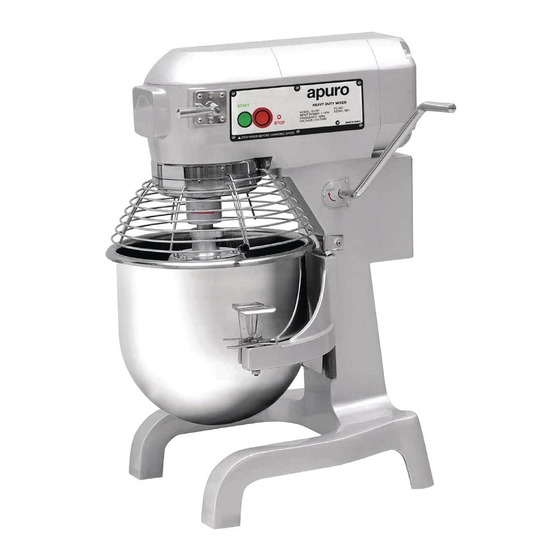

GL191-A - 20 litre planetary mixer GJ461-A - 29 litre planetary mixer The Apuro Planetary Mixer is a free standing machine that consists of a large bowl mounted below a motor and gearbox arrangement to which a mixing tool can be attached. -
Page 11: Pack Contents
• Instruction Manual Apuro prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your Apuro dealer immediately. - Page 12 Rubber feet Note: Once the rubber feet have been installed, ensure the machine is stable. The type of rubber feet GL190-A GL191-A GJ461-A GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 12 2019/3/21 17:55...
- Page 13 Changing the Mixer Attachment 1. Turn Off the appliance. 2. Open the safety guard by turning it to the left (GL190-A & GL191-A) or lifting it above the mixer (GJ461-A). 3. Lower the bowl with the bowl handle.
-
Page 14: Operation
2. Fill the bowl. 3. Select the desired speed and close the guard. Note: Apuro recommend that you start with the slowest speed and increase the speed gradually as necessary. Ensure the safety guard is fully closed or the mixer will not work. -
Page 15: Cleaning, Care And Maintenance
Mixing Capacity Model Bowl Volume Max Flour Max Dough GL190-A 3.2kg GL191-A GJ461-A 7.5kg 11.3kg Changing Mixing Speed Note: ALWAYS stop the mixer before attempting to change the mixing speed. With the appliance turned Off: 1. Select the required gear using the gear change lever. -
Page 16: Troubleshooting
Telephone Helpline: 1300225960 Troubleshooting If your Apuro appliance develops a fault, please check the following table before making a call to the Helpline or your Apuro dealer. Fault Probable Cause Solution The appliance is The unit is not switched on... -
Page 17: Electrical Wiring
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Apuro. Every effort is made to ensure all details are correct at the time of going to press, however, Apuro reserve the right to change specifications without notice. - Page 18 DECLARATION OF CONFORMITY Equipment Type Planetary Mixer - 9Ltr, 20Ltr & 29Ltr Model GL190-A, GL191-A, GJ461-A Legislation Electrical Safety Electromagnetic Compatibility Standards AS/NZS 60335-1:2011 +A11:2012 IEC 60335-2-64:2002 +A1:2007 AS/NZS CISPR 14.1:2013 Producer Name Apuro Producer Address 15 Badgally Road, Campbelltown, NSW 2560 I, the undersigned, hereby declare that the equipment specified above conforms to the above Legislation and Standard(s).
- Page 19 GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 19 2019/3/21 17:55...
- Page 20 GL190-A_GL191-A_GJ461-A_A5_v5_20190321 GL190-A_GL191-A_GJ461-A_A5_v5_20190321.indb 20 2019/3/21 17:55...
