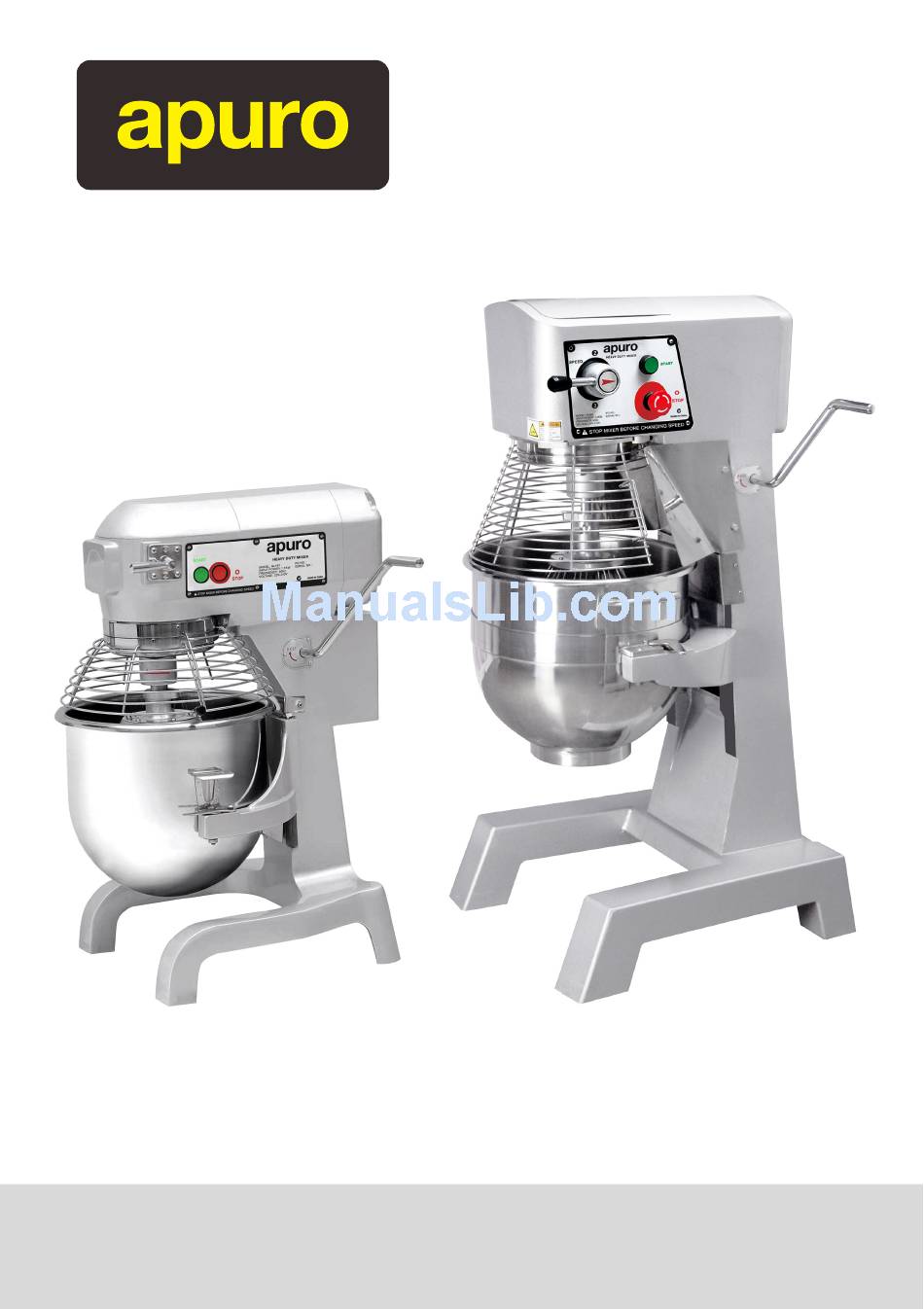

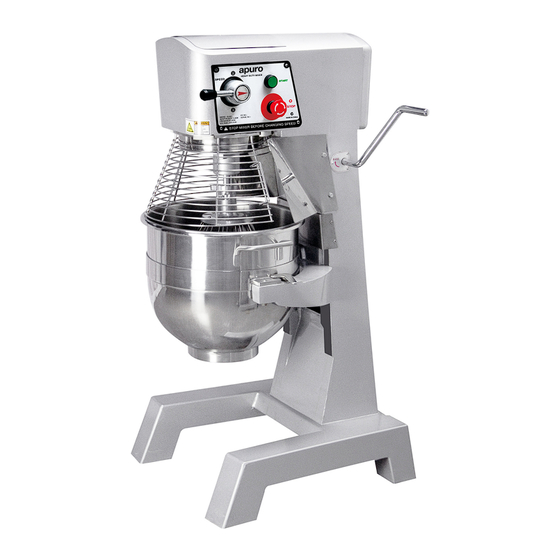

- Page 1 Planetary Mixer Instruction manual Model Modèle Modell Modello Modelo Malli: • • • • • GL190-A / GL191-A / GJ461-A...
- Page 2 Exploded diagram and spare parts list GL190...
- Page 3 Exploded diagram and spare parts list GL190 Description Description Description Flat Beater Bearings Support Dough Hook Seal Washer Wire Whip Bearings Type 1 Hexagon Nut Gear Box Gear Shaft Screw Circlip Key: 5x10 Lifting Support Worm Gear Key: 5x10 Hexagon Seal Gear Locking Nut...
- Page 4 Exploded diagram and spare parts list GL190 Gear Retainer Pin 126 Type 1 Bowl 127 Bracket Hexagonal Nut Ring Gasket Screw 128 Distance Switch Gear Washer 129 Screw Shaft sleeve Rear Guard 130 Type 1 Claw Clutch Bolt 132 Shaft Pin Hexagonal Nut Key: 5x25 133 Split Washer...
- Page 5 Exploded diagram and spare parts list GL191...
- Page 6 Exploded diagram and spare parts list GL191 Description Description Description Wire Whip Seal Washer Spiral Dough Working Shaft Worm Wheel Flat Beater Retainer Pin Seal Hook Safety Guard Spring Green Button Bowl Assembly Pressing Plate Red Button Transmission Panel Spring Support Bearing Motor Housing...
- Page 7 Exploded diagram and spare parts list GJ461...
- Page 8 Exploded diagram and spare parts list GJ461 Description Description Description Dough Hook Top Hat Valve Gear Shaft Flat Beater Flat Valve Cap Gear Wire Whip Bearing Bushing Safety Guard Spacer Gear Bowl Gear Gear Upper Panel Gear Pressing Plate Screw Bushing Spacer Spring...
-
Page 9: Safety Tips
Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities. • If the power cord is damaged, it must be replaced by an Apuro agent or a recommended qualified technician in order to avoid a hazard. Product Description... -
Page 10: Pack Contents
Introduction The Apuro Planetary Mixer has been designed to mix a range of foodstuffs, varying from cream to dough. Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your Apuro product. - Page 11 Push the mixer attachment up and to the left to release it. Insert the desired attachment. Push up and to the right to lock it into place. Raise the bowl. Apuro recommend the following uses for each attachment:. Heavy mixes Suitable Gears: 1 Spiral Dough hook dough, pie pastry etc.
-
Page 12: Layout Of Controls
Firm mixes Suitable Gears: 1, 2 Beater light pastry, cake/biscuit mix, icings, Medium fillings and mashed vegetables Light mixes Suitable Gears: 1, 2, 3 Whisk whipped cream, mayonnaise, egg Fast whites, pancakes and soufflés Layout of Controls Gear lever ON switch OFF switch ON button - Press to start the mixer. -
Page 13: Operation
Fill the bowl. Select the desired speed and close the guard. Note: Apuro recommend that you start with the slowest speed and increase the speed gradually as necessary. Ensure the safety guard is fully closed or the mixer will not work. -
Page 14: Cleaning, Care And Maintenance
Overload Switch The Overload switch is situated at the back of the machine Overload beside the cable entry. If the appliance becomes too hot the switch Overload switch will stop the machine automatically. If this happens: Turn Off the mixer. Reduce the load in the mixing bowl. -
Page 15: Troubleshooting
Telephone Helpline: 1300 225 960 Troubleshooting If your Apuro appliance develops a fault, check the following table before making a call to the Helpline. Fault Probable Cause Action The appliance is not The unit is not switched on Check the unit is plugged in... -
Page 16: Electrical Wiring
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Apuro. Every effort is made to ensure all details are correct at the time of going to press, however, Apuro reserve the right to change specifications without notice. -
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Equipment Type Planetary Mixer Model GL190-A/GL191-A/GJ461-A Serial Number Year of Manufacture Application of Council Directives(s) C-TICK AS/NZ 3820 Essential Safety Requirements for Low Voltage Electrical Equipment AS/NZS CISPR14.1:2013 Standards IEC60335-2-64:2008 (Third Edition) +A1 in conjunction with IEC60335-1:2010 (Fifth Edition) - Page 20 GL190_1_GJ461_Aus_A5_v1...
