Cabletron Systems ST-500 Installation Manual

Ethernet/ieee 802.3 transceiver with lanview
Hide thumbs
Table of Contents

Advertisement

Quick Links

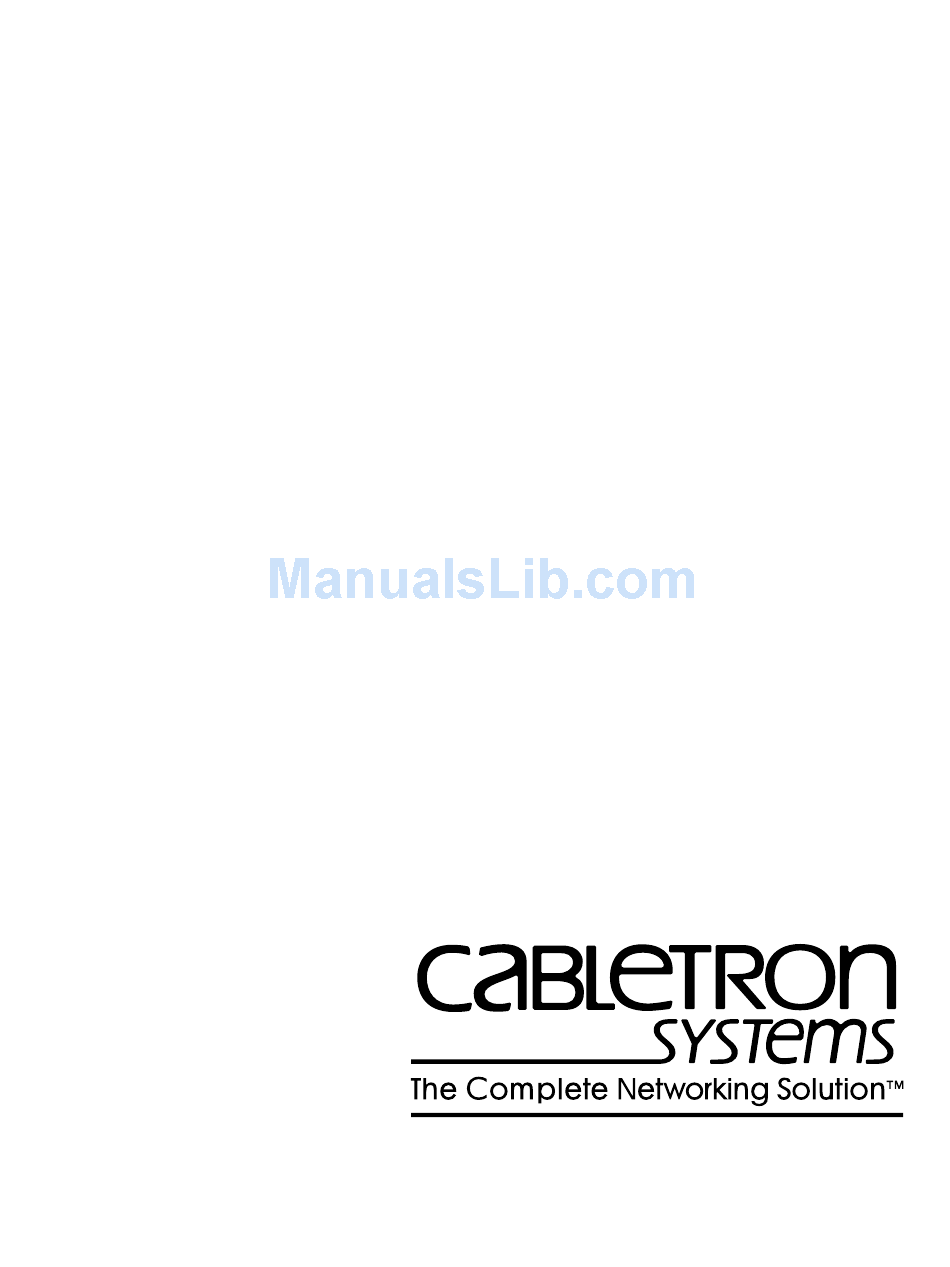

ST-500
ETHERNET/IEEE 802.3
TRANSCEIVER WITH LANVIEW
INSTALLATION GUIDE
CABLETRON SYSTEMS, P. O. Box 5005, Rochester, NH 03866-5005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cabletron Systems ST-500

Summary of Contents for Cabletron Systems ST-500

  • Page 1 ST-500 ETHERNET/IEEE 802.3 TRANSCEIVER WITH LANVIEW INSTALLATION GUIDE CABLETRON SYSTEMS, P. O. Box 5005, Rochester, NH 03866-5005...
  • Page 2 P.O. Box 5005, Rochester, NH 03866-5005 All Rights Reserved Printed in the United States of America Part Number: 9030008-02 March 1995 LANVIEW is a registered trademark of Cabletron Systems, Inc. Ethernet is a trademark of Xerox Corp. ST-500 INSTALLATION GUIDE...

  • Page 3: Fcc Notice

    A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. NOTICE: To insure FCC and DOC compliance and proper operation of the ST-500 transceiver, SHIELDED transceiver cables must be used. ST-500 INSTALLATION GUIDE...

  • Page 4: Vcci Notice

    Technology Equipment (VCCI) aimed at preventing radio interference in commercial and/or industrial areas. Consequently, when used in a residential area or in an adjacent area thereto, radio interference may be caused to radios and TV receivers, etc. Read the instructions for correct handling ST-500 INSTALLATION GUIDE...

  • Page 5: Table Of Contents

    1.2 Getting Help ... 1-4 CHAPTER 2 INSTALLATION 2.1 Unpacking the ST-500 Transceiver... 2-1 2.2 Items Needed to Install the ST-500 Transceiver... 2-1 2.3 Installation Site... 2-2 2.4 Setting the SQE (Heartbeat Test ) Switch... 2-2 2.5 Installing the Transceiver Tap ... 2-3 2.5.1...

  • Page 6: Chapter 1: Introduction

    Prior to installing and operating the ST-500 transceiver, read through this manual completely to become familiar with its content and to gain an understanding of the ST-500 features. A general working knowledge of Ethernet/802.3 networks is helpful when installing the transceiver.
  • Page 7 CHAPTER 1: INTRODUCTION The type of tap provided with the transceiver body defines one of four models of the ST-500 transceiver. The four models are: • ST-500-00 - transceiver body only (no tap included) • ST-500-01 - with non-intrusive (stinger style) Ethernet tap •...

  • Page 8: Lanview Leds

    1.1.1 LANVIEW LEDs The ST-500 transceiver has five LANVIEW LEDs that monitor network activity (transmit, receive and collision present), power status, and heart- beat (SQE) test status. These LEDs are described in Table 1-1. They serve as a useful tool to quickly diagnose physical layer problems.

  • Page 9: Getting Help

    COLLISION Figure 1-2. Collision Test Signal Timing 1.2 Getting Help If there is any additional support needed for the ST-500 transceiver or if there are any questions, comments, or suggestions related to this man- ual, contact Cabletron Systems Technical Support:...

  • Page 10: Chapter 2: Installation

    Heartbeat (SQE) test switch, perform the tap installation procedure that is applicable to the transceiver model. 2.1 Unpacking the ST-500 Transceiver Open the package containing the ST-500 transceiver and check its con- tents: • 1 ST-500 transceiver body •...

  • Page 11: Installation Site

    CHAPTER 2: INSTALLATION 2.3 Installation Site To install the ST-500 transceiver, a minimum area of 17.8-cm (7-in) high by 20.3-cm (8-in) wide by 10.2-cm (4-in) deep is recommended to pro- vide enough space for the transceiver, tap, and Attachment Unit Inter- face (AUI) cable connections.

  • Page 12: Installing The Transceiver Tap

    There are three types of taps that can be installed in the transceiver. To install the transceiver tap, proceed to the appropriate transceiver tap in- stallation instructions, as follows: • For ST-500-01 transceivers, go to Section 2.5.1. • For ST-500-02 and ST-500-03 transceivers, go to Section 2.5.2.
  • Page 13 CHAPTER 2: INSTALLATION PRESSURE SCREW CLAMP SECTION FLAT-HEAD SCREWS Figure 2-2. Non-Intrusive Tap Kit Page 2-4 BRAID PICKS ST-500 INSTALLATION GUIDE ETHERNET COAXIAL CABLE CABLE BED SECTION CENTER PROBE...
  • Page 14 Thread the pressure screw into the top of the clamp and tighten it using the hex wrench supplied in the tap kit. CLAMP SECTION Figure 2-4. Installing the Cable Clamp ST-500 INSTALLATION GUIDE Installing the Transceiver Tap HOLES PRESSURE SCREW 2.5-METER CABLE...
  • Page 15 Install the center probe using the nut driver end of the coring tool (see Figure 2-6). Insert the center probe into the hole in the underside of the cable bed and tighten until snug. Page 2-6 CORING TOOL ST-500 INSTALLATION GUIDE CABLE...
  • Page 16 Caution: Avoid forcing the tap into the case. Very little force is needed. If the tap does not seat easily, remove it to determine the cause of the obstruction. Insert and tighten the flat-head screws shown in Figure 2-7. ST-500 INSTALLATION GUIDE Installing the Transceiver Tap CENTER PROBE...

  • Page 17: Installing The St-500-02 Or -03 Transceiver Tap

    As shown in Figure 2-8, the ST-500-02 transceiver has a tap with two male N-series connectors for network cable connections, while the ST-500-03 has a tap with a BNC and T-connector to make the cable connections. Both connections are intrusive taps that Page 2-8 Figure 2-7.
  • Page 18 N-SERIES FEMALE-TO-FEMALE BARREL CONNECTOR ST-500-2 TRANSCEIVER WITH N-SERIES (INTRUSIVE) ETHERNET TAP Figure 2-8. N-Series and BNC Taps If the tap is already installed on the transceiver body, go to step 3. Oth- erwise, proceed as follows: Remove the two flat-head screws from the transceiver case and...
  • Page 19 Note: If the transceiver is the last device on the network cable, connect a terminator to the open end of the T-connector. The transceiver is now ready to connect to the host system cable. Proceed to Section 2.6. Page 2-10 Figure 2-9. Installing the Tap ST-500 INSTALLATION GUIDE...

  • Page 20: Connecting The Transceiver To The Host

    2.6 Connecting the Transceiver to the Host The ST-500 Transceiver is designed to operate with Ethernet Version 1.0, Version 2.0, and IEEE 802.3 compliant systems. However, each version requires different wiring for the transceiver cable. Since cable grounding is accomplished at the host end of the cable, the correct cable must be used according to the requirements of the host equipment.

  • Page 21: Checking The Installation

    SQE Enabled On during host transmissions Flashes to indicate network traffic On for collisions on the network and host transmissions ST-500 INSTALLATION GUIDE SQE Disabled On during host transmissions Flashes to indicate network traffic On for collisions on the network...

  • Page 22: Chapter 3: Troubleshooting

    Note: The SQE LED is not discussed here, since the SQE LED is on with SQE enabled and off with SQE disabled. If, after setting the SQE configuration, the LED does not indicate the proper setting, the problem is in the transceiver. ST-500 INSTALLATION GUIDE Page 3-1...
  • Page 23 Ensure that the depth of the center probe hole is correct (drill the hole again if necessary). Ensure that all coaxial cables are properly terminated. ST-500 INSTALLATION GUIDE...
  • Page 24 Condition 5 - PWR on, XMT flashing, RCV on/flashing or off, and CLN on steady. 1. Collision path via trans- ceiver cable is broken. Colli- sion is not being recognized by the controller. ST-500 INSTALLATION GUIDE Troubleshooting Corrective Action Check other stations for the same condition. Check the transceiver tap instal- lation.

  • Page 25: A.2 Transmitter Specification

    ST-500 TRANSCEIVER SPECIFICATIONS This appendix provides the specifications for the ST-500 Transceiver. A.1 Receiver Specification Item Leakage Current: Input Impedance: Coax Cable Tap Capacitance: 3.7 pF Delay Time (Input to Output): Turn-On Steady-State DI Rise/Fall Time: DI Output Voltage: A.2 Transmitter Specification...

  • Page 26: Appendix A: St-500 Transceiver Specifications

    APPENDIX A: ST-500 TRANSCEIVER SPECIFICATIONS Item Delay Time (Input to Output): Start-Up Steady-State Signal Spectrum Harmonic: Second and Third Fourth and Fifth Sixth and Seventh Higher Input Impedance: Differential Common-mode Frequency Range: Common-mode Voltage Range at Input Differential Input Voltage Required for Operation: A.3 Collision Detector Specification...

  • Page 27: A.4 Power Specification

    Delay Duration Output Voltage: Jabber Control: Time-out Reset Time A.4 Power Specification Item Input Voltage: Current: ST-500 INSTALLATION GUIDE Power Specification Typical Worst Case Value -1566 mV -1510 to 1591 mV 800 ns 731 to 864 ns 752 ns 709 to 812 ns...

  • Page 28: Interface Connector Pinout Identification

    The ST-500 transceiver is compliant with the IEEE 802.3 standard and compatible with Ethernet versions 1.0 and 2.0. However, the AUI cable used to connect a device to the ST-500 transceiver is dependent on the Ethernet version of that device. The cable wiring configurations accord- ing to IEEE 802.3 and Ethernet versions 1.0 and 2.0 are as follows:...

  • Page 29: A.6 Environmental Specifications

    A.6 Environmental Specifications Non-Operating Temperature: Operating Temperature: Operation Humidity: Note: The ST-500 transceiver meets all federal, state, and city stan- dards for use in air plenums. Electromagnetic Susceptibility: Operates properly in the following externally applied fields: 10 kHz to 30 MHz...

  • Page 30: A.8 Physical Specification

    APPENDIX A: ST-500 TRANSCEIVER SPECIFICATIONS A.7 Service Specification MTBF (MHBK-217D): MTTR: A.8 Physical Specification The following dimensions and weight are for the transceiver (ST-500-00) without the optional tap. Height: 7.0 cm (2.75 in) Width: 8.8 cm (3.46 in) Depth: 4.5 cm (1.77 in)
