Whynter BWB-3388FDS Instruction Manual

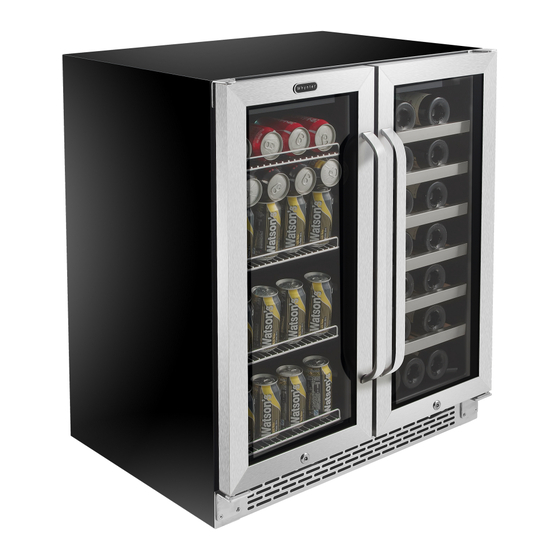

30″ built-in french door dual zone 33 bottle wine refrigerator 88 can beverage center
Hide thumbs Also See for BWB-3388FDS:

Advertisement

Quick Links

Whynter 30" Built-In French Door Dual Zone
33 Bottle Wine Refrigerator 88 Can Beverage Center
Model # : BWB-3388FDS
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BWB-3388FDS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whynter BWB-3388FDS

Summary of Contents for Whynter BWB-3388FDS

  • Page 1 33 Bottle Wine Refrigerator 88 Can Beverage Center Model # : BWB-3388FDS INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    Table of Contents PAGE Safety Precautions 3 - 4 Parts Product Features Installation 7 - 9 Operation and Controls 10 - 12 Storage 13 - 14 Care and Maintenance Troubleshooting 16 - 17 Warranty Information...

  • Page 3: Safety Precautions

    Safety Precautions APPLIANCE SAFETY Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions This is the Safety Alert Symbol. This symbol alerts you to potential hazards that may result in serious injury.
  • Page 4 Safety Precautions • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the appliance or any other appliance. • Before proceeding with cleaning and maintenance operations, make sure to unplug the appliance. • Do not connect or disconnect the electric plug with wet hands.

  • Page 5: Parts

    Parts BOTTOM BACK SIDE 1. Beverage Refrigerator Control Panel 9. Wine Refrigerator Wooden Shelves (6) 2. Beverage Refrigerator Internal Fan 10. Glass Door 3. Beverage Refrigerator Wire Shelves (4) 11. Wine Refrigerator Door Lock Latch 4. Door Handle (2) 12. Leveling Legs (4) 5.

  • Page 6: Product Features

    4 removable pull-out sliding wire shelves - Beverage Refrigerator (Left Zone) 6 removable pull-out sliding wooden shelves - Wine Refrigerator (Right Zone) • Environmentally friendly refrigerant TECHNICAL DATA BWB-3388FDS MODEL : Left Zone : 88 12oz standard cans Capacity Right Zone : 33 standard 750ml wine bottles...

  • Page 7: Installation

    Installation IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury WARNING when using your appliance, follow these basic pre- cautions: • Read all instructions before using the appliance. • DANGER or WARNING: An empty refrigerator can be a hazardous for children or small pets. If disposing of the refrigerator, remove gasket seals, latches, lids or the doors from your unused appliance, or take other action to ensure the refrigerator is harmless.
  • Page 8 WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or contact Whynter Service Department This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

  • Page 9: Operation And Controls

    Operation and Controls It is recommended you install the appliance in a place where the ambient temperature is between 72º- 78ºF / 23º-26ºC. If the ambient temperature is above or below recommended temperatures, the performance of the wine refrigerator may be affected. For example, placing your appliance in extreme cold or hot conditions may cause interior temperatures to fluctuate.
  • Page 10 Operation and Controls NOTE: If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 -5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance may not start. SETTING THE TEMPERATURE CONTROL •...
  • Page 11 Operation and Controls • Fan operating sound, to circulate the air within the wine cabinet. • Unusual noise is normally the result of improper installation. • Where the unit is installed in open-plan kitchen or in partition walls, the level of operating noise will be heard more acutely.

  • Page 12: Storage

    Storage BEVERAGE REFRIGERATOR ZONE Shelf One - 12 standard 12oz cans per shelf Shelf Two - 36 standard 12oz cans per shelf Shelf Three - 24 standard 12oz cans per shelf Bottom Section - 16 standard 12oz cans WINE REFRIGERATOR ZONE Shelf One to Six - 5 standard 750ml bottles per shelf Bottom Section - 3 standard 750ml bottles...
  • Page 13 Storage STORAGE Beverage cans and wine bottles may differ in size and dimensions so the actual number of cans and bottles can be stored may vary. The 88 can or 33 bottle capacities are approximate maximums when storing 12 oz. cans or traditional Bordeaux 750 ML bottles and includes bulk storage.

  • Page 14: Care And Maintenance

    Care and Maintenance CAUTION: Failure to unplug the appliance during service could result in electrical shock or personal injury. CLEANING YOUR APPLIANCE  Turn off the power, unplug the appliance, and remove all items including shelves.  Wipe the interior with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water.

  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Causes Solutions The appliance does not  There is a power failure  Ensure the appliance is plugged in and operate the power outlet has power  The appliance is not plugged in  Replace the broken fuse or reset the ...
  • Page 16 Troubleshooting Problem Possible Causes Solutions • Call for service Displays “EL” or “EH” • “EL” indicates defective NTC error code sensor • “EH” indicates short circuit error The icon “--” is lit up and • The display temperature is out of •...
  • Page 17 All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to Whynter’s Service Center. This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will be the responsibility of the original owner.
