Summary of Contents for Maktec M9400

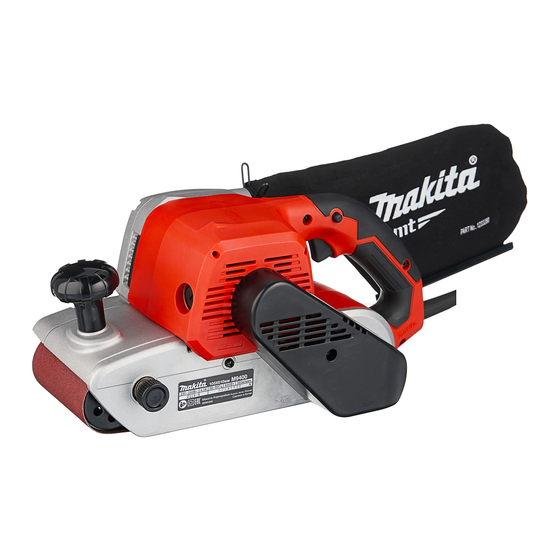

- Page 1 INSTRUCTION MANUAL Belt Sander M9400 013111 DOUBLE INSULATION IMPORTANT: Read Before Using.
- Page 2 ENGLISH (Original instructions) SPECIFICATIONS Model M9400 Belt size 100 mm x 610 mm Belt speed 380 m/min Overall length 354 mm Net weight 6.2 kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice.
- Page 3 Belt Sander Do not expose power tools to rain or wet Model No./ Type: M9400 conditions. Water entering a power tool will Conforms to the following European Directives: increase the risk of electric shock.
- Page 4 GEB015-3 17. If devices are provided for the connection of dust extraction collection facilities, BELT SANDER SAFETY ensure these are connected and properly WARNINGS used. Use of dust collection can reduce dust- related hazards. Hold power tool insulated gripping Power tool use and care surfaces, because the belt may contact its 18.
- Page 5 FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and • unplugged before adjusting or checking function on the tool. Switch action 013114 1. Switch trigger Installing or removing step 2. Lock button 1. Step 2. Knob 013112 CAUTION: Before plugging in the tool, always check to see...
- Page 6 When the dust bag is about half full, remove the dust Replace an carbon plate on the cork rubber plate when bag from the tool and pull the fastener out. Empty the it is worn down. Remove screws on the strap washer dust bag of its contents, tapping it lightly so as to and the worn carbon plate, place a new carbon plate remove particles adhering to the insides which might...
- Page 8 Makita Jan-Baptist Vinkstraat 2, 3070, Belgium Makita Corporation Anjo, Aichi, Japan www.makita.com 885404-221...
