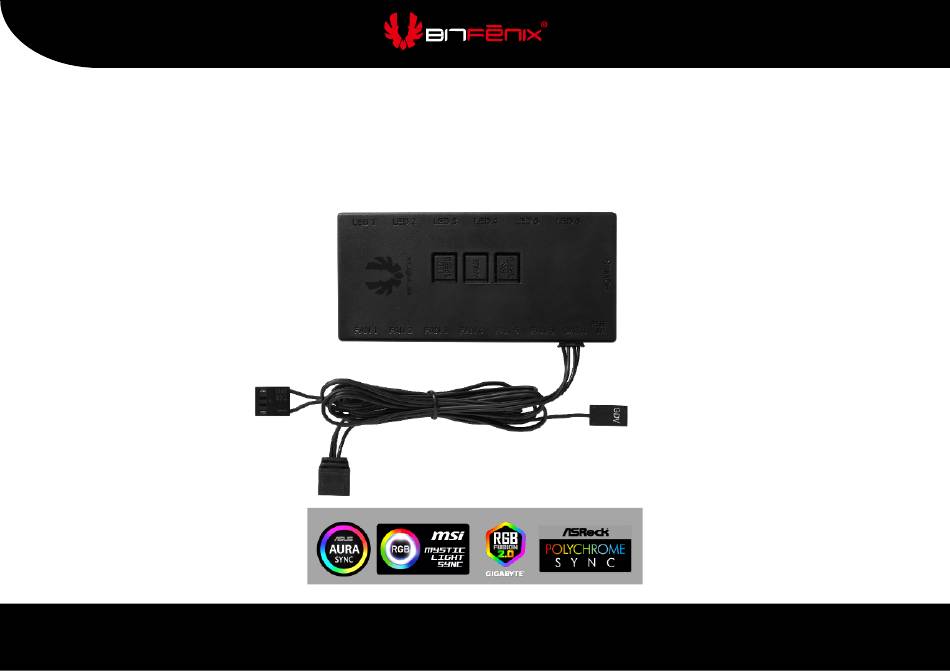

- Page 1 Spectre ARGB SE Controller Introduction...
- Page 2 Spectre ARGB SE Controller • Rated voltage DC12V/DC5V • With 6 ARGB 3Pin 5V sockets, 6 12-volt fan sockets and ARGB & Fan headers connected to Motherboard • A single ARGB socket can bear 36 LEDs • Fan sockets support a total of 36W •...
- Page 3 How to connect the fans to the Connect With Motherboard Connect With BitFenix Controller controller Please go to page 9 Please go to page 20 Please go to page 15 Gigabyte MB...
- Page 4 Connect to Fan Connect to Gigabyte Motherboard Addressable RGB 3pin socket Connect to Motherboard Fan socket Connect to Motherboard(or Bitfenix controller) Addressable RGB 3pin socket Please DO NOT connect VDG header and ARGB header together on Motherboard at the same time. Cable/LED...
- Page 5 Spectre ARGB SE Remote M/B sync: Switch to M/B control or controller control Q1, Q2, Q3, Q4, Q5: Five different preset modes Fan AUTO: Switch to Motherboard control or controller control FAN +/-: Switch to High speed (100%RPM) and low speed (70%RPM) on controller...
- Page 6 Spectre ARGB SE Spectre ARGB SE Introduction...
- Page 7 Spectre ARGB SE Dimension 120 x 120 x 25mm Rated voltage DC 12V Start Voltage ≦ 6V Bearing Type Hydraulic Bearing Speed 1200 ± 200 RPM Max Air Flow 33.2 CFM Noise 24.4 dB-A Power Consumption Fan: 2.4W LED: 1.5W 8 PCS •...
- Page 8 Spectre ARGB SE Connect to fan header Connect to ARGB LED on motherboard or connector on motherboard controller for power or controller with 3 pin ARGB LED connector...
- Page 9 How to Follow the Motherboard for fan speed How to connect on Motherboard Fan socket • If you connect the controller to the Motherboard, press the switch of FAN AUTO on remote to enter the motherboard follow mode and press the switch again to switch the control to controller.
- Page 10 How to connect the fans to the controller...
- Page 11 How to connect the fans to the controller Fan power header ARGB LED connector Connect to fan header Connect to ARGB LED on motherboard or connector on motherboard or controller for power. controller with 3 pin.
- Page 12 How to connect the fans to the controller How to connect ARGB header on controller Each socket supports up to 36 LEDs...
- Page 13 How to connect the fans to the controller How to connect fan header on controller Fan sockets support a total of 36W Please turn it over and plug in...
- Page 14 How to connect the fans to the controller How to connect ARGB accessories on controller in Spectre ARGB SE Fan kit and use remote to control the ARGB lighting SATA...
- Page 15 Connect With BitFenix Controller Control by the button on case...
- Page 16 How to connect with Bitfenix controller (Dawn/ Saber/ Enso /Enso Mesh) • If you connect the controller to BitFenix controller, press the switch of M/B sync on remote to switch different control method to BitFenix controller and use the button which connected to the controller to control the ARGB lighting...
- Page 17 • If you connect the controller to BitFenix 6+6 controller, press the switch of M/B sync on remote to switch the control method to BitFenix 6+6 controller and use the button which connected to the controller to control the ARGB lighting...
- Page 18 Connect With BitFenix Controller Control by Remote...
- Page 19 • If you connect BitFenix 6+6 controller to the controller in Spectre ARGB SE Fan kit, long press the button on case till the light flash white twice and it will switch the control method to the Fan kit controller and use the remote to control the ARGB lighting.
- Page 20 Control by Motherboard...
- Page 21 Control by Motherboard How to connect by Motherboard Addressable RGB 3pin socket • If you connect the controller to the Motherboard, press the switch of M/B sync on remote to enter the Motherboard follow mode and press the switch again to switch the control to controller.
- Page 22 Control by Motherboard How to connect by Motherboard Addressable RGB VDG socket (Gigabyte version) • If you connect the controller to the Motherboard, press the switch of M/B sync on remote to enter the Motherboard follow mode and press the switch again to switch the control to controller.
- Page 23 Connect with Other ARGB accessories...
- Page 24 Connect with Other ARGB accessories How to connect with BitFenix controller and other BitFenix ARGB accessories SATA...
- Page 25 Connect with Other ARGB accessories How to connect with BitFenix 6+6 controller and other BitFenix ARGB accessories S ATA S ATA...
- Page 26 Connect with Other ARGB accessories How to connect with Bitfenix 6+6 controller and controller in Spectre ARGB SE Fan kit, and use the remote to control. S ATA S ATA...
- Page 27 Connect with Other ARGB accessories How to connect with Motherboard and other BitFenix ARGB accessories...
- Page 28 Connect with Other ARGB accessories How to connect with Motherboard and other Bitfenix ARGB accessories (Gigabyte MB version) Please DO NOT connect VDG header and ARGB header together on Motherboard at the same time. Cable/LED...
