Summary of Contents for BitFenix 6+6 CONTROLLER

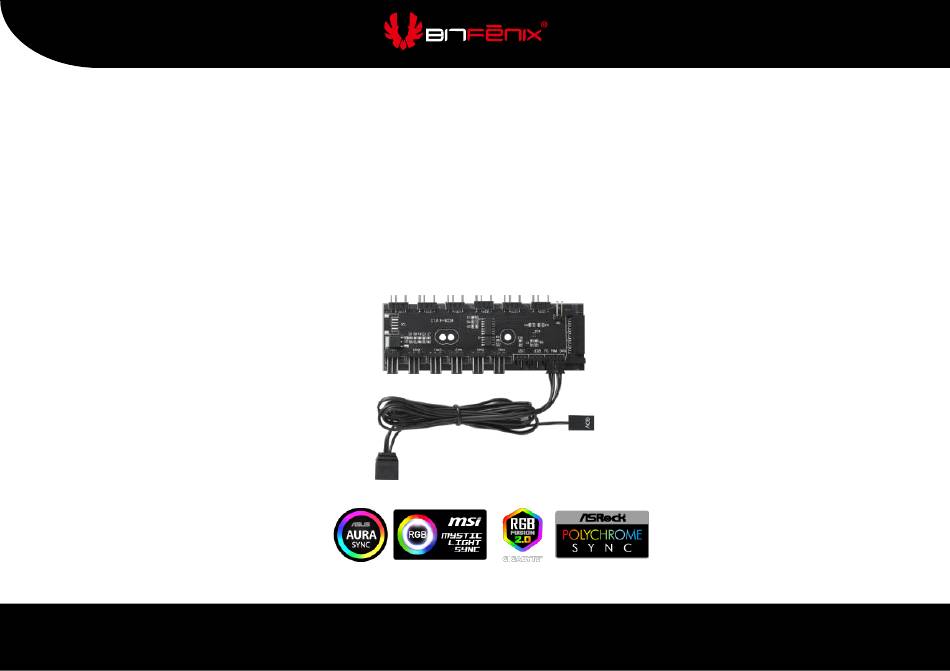

  • Page 1 6+6 Controller Introduction...

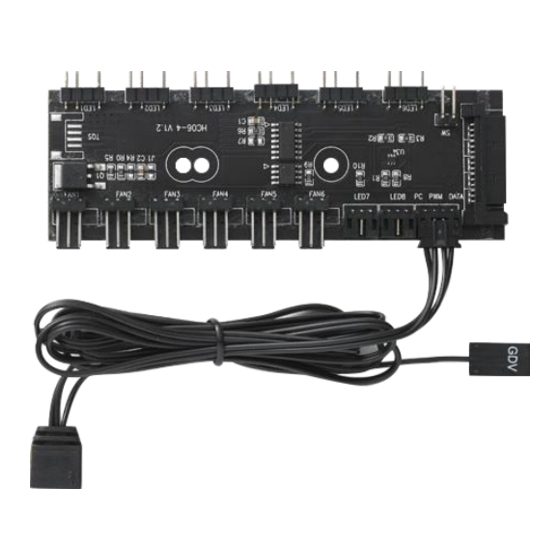

  • Page 2 6+6 Controller • Rated voltage DC12V/DC5V • With 6 ARGB 3Pin 5V sockets, 6 12-volt fan sockets and a ARGB header connected to Motherboard • A single ARGB socket can bear 80 LEDs • A single fan socket can withstand 6 12-volt fans •...
  • Page 3 6+6 Controller Front RGB switch Addressable RGB 3pin socket SATA power cable (Connect to Power supply ) Connect to Fan Connect to Gigabyte Motherboard Addressable RGB 3pin socket Connect to Motherboard Addressable RGB 3pin socket...
  • Page 4 6+6 Controller Please remove the 6+6 controller from the case , before you connect the ARGB cable or fan. Remove...
  • Page 5 6+6 Controller Fan power header ARGB LED connector Connect to fan header Connect to ARGB LED on motherboard or connector on motherboard or controller for power. controller with 3 pin.
  • Page 6 6+6 Controller How to connect ARGB header on 6+6 controller Each socket support up to 80 LEDs...
  • Page 7 6+6 Controller How to connect fan header on 6+6 controller Each socket support up to 6 fans Please turn it over and plug in...
  • Page 8 6+6 Controller How to connect by Motherboard Addressable RGB 3pin socket • If you connect the controller to the Motherboard, long press the switch for the first time to enter the Motherboard follow mode and long press the switch again, the fan will flash white light then turn off.
  • Page 9 Please press LED button to switch the light mode • A total of 60 lighting illumination modes • If you connect the controller to the Motherboard, long press the switch for the first time to enter the Motherboard follow mode and long press the switch again, the fan will flash white light then turn off.
  • Page 10 6+6 Controller How to daisy chain with 6+6 controller and other Bitfenix ARGB accessaries...
  • Page 11 6+6 Controller How to daisy chain with 6+6 controller and other Bitfenix ARGB accessaries (Gigabyte MB version)
  • Page 12 Spectre SE Addressable RGB Spectre SE Addressable RGB Introduction...
  • Page 13 Spectre SE Addressable RGB Dimension 120 x 120 x 25mm Rated voltage DC 12V ≦ 6V Start Voltage 1200 ± 200 RPM Speed Max Air Flow 33.2 CFM Noise 24.4 dB-A 8 PCS • This fan compatible with Asus AURA SYNC, MSI Mystic Light, Gigabyte RGB Fusion 2.0 and Asrock Poloychrome SYNC...
  • Page 14 Spectre SE Addressable RGB Connect to fan header Connect to ARGB LED on motherboard or connector on motherboard controller for power or controller with 3 pin ARGB LED connector...
  • Page 15 Spectre SE Addressable RGB How to connect ARGB header on 6+6 controller Each socket support up to 80 LEDs...
  • Page 16 Spectre SE Addressable RGB How to connect fan header on 6+6 controller Each socket support up to 6 fans Please turn it over and plug in...
  • Page 17 6+6 Controller How to daisy chain with 6+6 controller and other Bitfenix ARGB accessaries...
  • Page 18 6+6 Controller How to daisy chain with 6+6 controller and other Bitfenix ARGB accessaries (Gigabyte MB version)
