Summary of Contents for Daikin FT50FVM

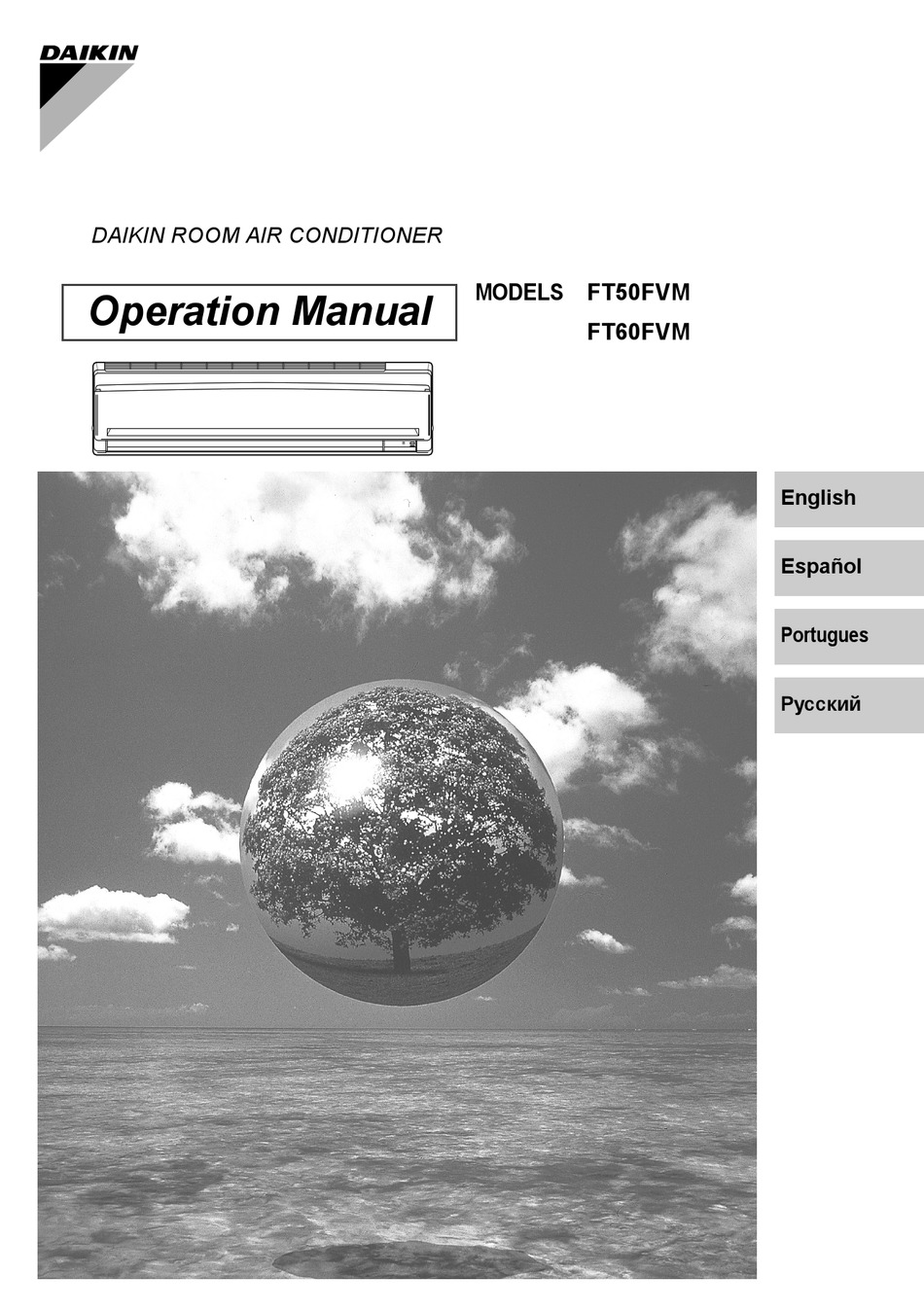

- Page 1 DAIKIN ROOM AIR CONDITIONER MODELS FT50FVM Operation Manual FT60FVM English Español Portugues Рóссêий...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION DRY · COOL · FAN Operation ..... 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 13 TIMER Operation ......... 14 CARE Care and Cleaning ........ -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. - Page 4 • Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury. • Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions, moisture in the air may condense and drip.
-
Page 5: Names Of Parts
Names of parts ■ Indoor Unit... - Page 6 ■ Outdoor Unit ■ Indoor Unit 1. Air filter 12. TIMER lamp (yellow): (page 14.) 2. Titanium Apatite Photocatalytic 13. Indoor Unit ON/OFF switch: Air-Purifying Filter • Push this switch once to start operation. Push once again to stop it. 3.
- Page 7 ■ Remote Controller < ARC433A73 > 1. Signal transmitter: 7. FAN setting button: • It sends signals to the indoor unit. • It selects the air flow rate setting. 2. Display: 8. SWING button: (page 12.) • It displays the current settings. •...
-
Page 8: Preparation Before Operation
Preparation Before Operation ■ To set the batteries Position + and 1. Slide the front cover to take it off. – correctly! 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION ■ About batteries • When replacing the batteries, use batteries of the same type, and replace the two old batteries together. - Page 9 Preparation Before Operation ■ To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, such as a curtain, the unit will not operate.
- Page 10 ■ To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. Holding down “ ” or “ ” button rap- idly increases or decreases the time dis- play.
-
Page 11: Dry · Cool · Fan Operation
OPERATION DRY · COOL · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ To start operation 1. Press “MODE selector button” and select a operation mode. - Page 12 ■ To change the air flow rate setting 5. Press “FAN setting button”. DRY mode COOL or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” are available. The air flow rate setting is not variable. NOTE ■...
-
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your com- fort. ■ To adjust the horizontal blade (flap) 1. Press “SWING button ”. • “ ” is displayed on the LCD. 2. When the flap has reached the desired position, press “SWING button ”... -
Page 14: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling effect in any operation mode. You can get the maximum capacity. ■ To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 15: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. ■ To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. - Page 16 ■ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. (page 9.) 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches the point you like.
-
Page 17: Care And Cleaning
CARE Care and Cleaning CAUTION Before cleaning, be sure to stop the operation and turn the breaker OFF. Units ■ Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. ■ Front panel 1. Open the front panel. •... - Page 18 Filters 1. Open the front panel. (page 16.) 2. Pull out the air filters. • Push a little upwards the tab at the center of each air filter, then pull it down. 3. Take off the Titanium tabs (3 tabs at top) Apatite Photocatalytic Air-Purifying Filter.
- Page 19 NOTE • Operation with dirty filters: (1) cannot deodorize the air. (2) cannot clean the air. (3) results in poor cooling. (4) may cause odour. • To order Titanium Apatite Photocatalytic Air-Purifying Filter contact to the service shop there you bought the air conditioner. •...
-
Page 20: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 21 Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •...
- Page 22 Call the service shop immediately. WARNING ■ When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. ■...
- Page 23 MEMO...
- Page 24 Two-dimensional bar code is a code for manufacturing. 3P192025-3 M06B141 (0612) HT...
