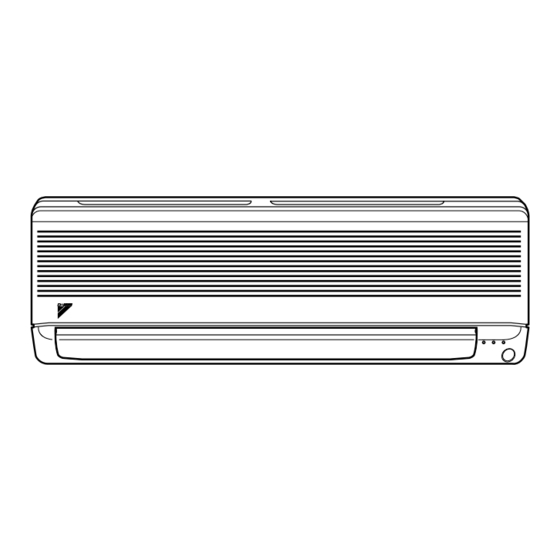

- Page 1 DAIKIN ROOM AIR CONDITIONER MODELS FT50GAVEA FTY50GAV1A Operation Manual FT60GAVEA FTY60GAV1A ENGLISH ESPAÑOL TURKISH...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION I Safety Precautions ..........2 I Names of Parts G Indoor unit, Opening the front grille ....5 G Remote controller ......... 6 G Outdoor unit ..........6 I Preparation Before Operation G Remote controller ......... 7 G Indoor unit ............. -
Page 3: Safety Precautions
Safety Precautions I Read the following warnings and cautions WARNING carefully before operating the system and Failure to follow a warning is very likely to use it correctly. result in such grave consequences as death or I This manual classifies the precautions to the serious injury. - Page 4 G G G G G Do not stand or sit on the outdoor unit. Do not place any object on the unit. The object or the person may fall down or drop, causing injury. G G G G G Do not place under the indoor or outdoor unit anything which must be kept away from moisture.
- Page 5 Installation site I To install the air conditioner in the following types of environments, consult the shop. G Places with an oily ambient or where steam or soot occurs. G Salty environment such as coastal areas. G Places where sulfide gas occurs such as hot springs. G Places where snow may block the outdoor unit.
-
Page 6: Names Of Parts
Indoor unit Air purifying filter Air inlet Air purifying filters are attached to the inside of the air filters. Front grille Grille tab DAIKIN Diffuser Air filter Air outlet Louvre Flap (vertical blades) (Horizontal blade) The louvre is inside of the air outlet. -
Page 7: Remote Controller
Names of Parts Remote controller Transmitter Display It sends signals to the indoor unit. It displays the Open current settings. (In this illustration, cover. each section is shown with all its displays ON for the purpose of explanation. Some TEMPERATURE models may not adjustment buttons show all its... -
Page 8: I Preparation Before Operation G Remote Controller
Preparation Before Operation I I I I I Operating the remote controller Remote controller G To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals I I I I I Setting the batteries between the unit and the remote controller, such as a curtain, the unit will not operate. -
Page 9: G Indoor Unit
Preparation Before Operation Indoor unit I I I I I Setting the clock I I I I I Setting the air purifying filters Open the front grille. Press G Hold the grille by the tabs on the two sides and lift it until it stops with a click. (about 60°) is displayed. -
Page 10: I Auto • Dry • Cool • Heat • Fan Operation
AUTO • DRY • COOL • HEAT • FAN Operation I I I I I To change the air flow rate setting: The air conditioner operates with the settings of your choice. Press FAN . From the next time on, the air conditioner will operate with the same settings. -
Page 11: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction Notes on flap angles You can adjust the air flow direction to increase your comfort. G When SWING is selected, the flap swinging range depends on the operation mode. (See the figure.) Adjusting the G The real flap angles are differ from the horizontal blade (flap) display of remote controller. -
Page 12: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity with a touch of a button. G Pressing the (POWERFUL) button during operation starts POWERFUL operation. G POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 13: G Off Timer Operation
Timer Operation Timer functions are useful for automatically ON TIMER operation switching the air conditioner on or off at night or in G Check that the clock is correct. If not, set the the morning. You can also use OFF TIMER and clock to the present time (See page 8). -
Page 14: Care And Cleaning
Care and Cleaning CAUTION Cleaning the indoor and outdoor units and the remote controller Before cleaning, be sure to stop the operation and turn the breaker OFF. G Wipe them with dry soft cloth. For cleaning, do not use water hotter than Cleaning the air filters 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing... -
Page 15: Cleaning The Front Grille
Care and Cleaning Check Cleaning the front grille Check that the base, stand and other You may remove the front grille for cleaning. fittings of the outdoor unit are not decayed or corroded. CAUTION G When removing or attaching the front grille, use a robust Check that nothing blocks the air and stable stool and watch your steps carefully. -
Page 16: Trouble Shooting
Trouble Shooting G G G G G These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation G This is to protect the air conditioner. Operation does not start soon. -
Page 17: G Check Again
Trouble Shooting G G G G G Check again Please check again before calling a repair person. Case Check G Hasn’t a breaker turned OFF or a fuse blown? The air conditioner does not G Isn’t it a power failure? operate. -
Page 18: G Call The Service Shop Immediately
Trouble Shooting G G G G G Call the service shop immediately. WARNING I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. - Page 20 3P062628-7L M00B041E (0507) HT...
