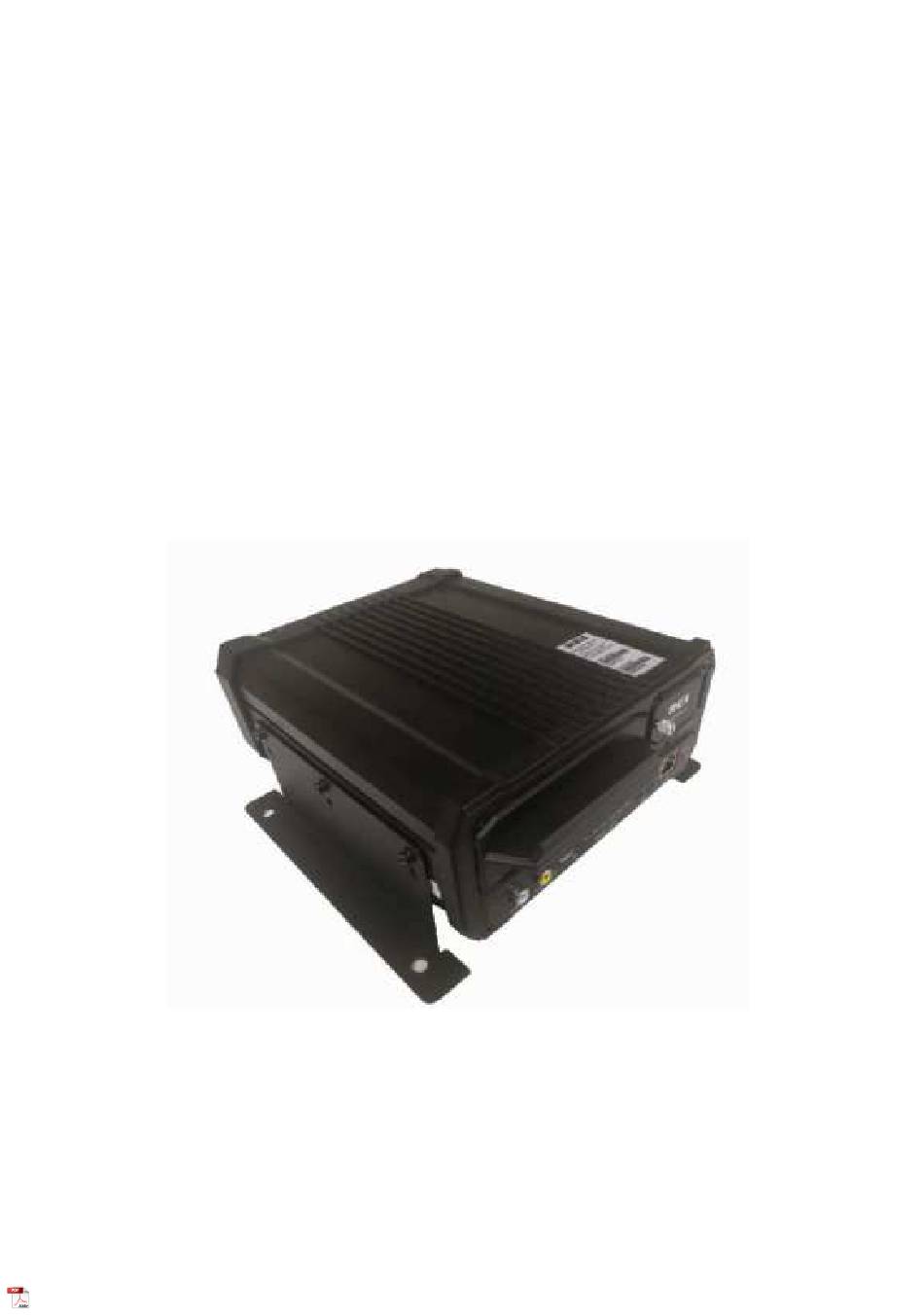

- Page 1 User Manual Digital Video Recorder HD6-600W...
-
Page 2: Guarantee & Warnings
Notice The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without any notice. The purpose of this manual is to kindly aid the user for the operation for our MDVR. The user should have a basic understanding of computer operation and basic knowledge of how to connect peripherals and make some settings. -
Page 3: Product Characteristics
1. PRODUCT CHARACTERISTICS 1.1. OVERVIEW HD6-600W is developed from the brand new platform N9M, which is an advanced and function-extensive Mobile Video Recorder specially designed for network high definition, analog audio & video input and excellent extension. It uses high-speed processor and embedded operating system, patented file system 4.0 to ensure the safety and integration of important data, combining with H. - Page 4 Digital: 1080P(1920X1080),720P(1280X720) Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Schedule/Alarm Pre- recording 0-60minutes Post-recording 0-30 minutes Mirror/Dual Recording Support Playback Channel Single/Multi-channel playback Playback Search Mode Date/time, channel, event WIFI 802.11a/b/g/n/ac(2.4GHz, 5.2GHz and 5.8GHz) Network IPC Ethernet(Back) 2 x10/100 M RJ45 ports IPC Ethernet(Front)
- Page 5 1.3. DIMENSION Unit: mm - 10...
- Page 6 1.4. PANEL INTERFACE Front panel Serial No. Print Description AUDIO Audio out VIDEO Video out Power LED HTR LED Recording LED FLT LED Alarm LED VLOSS VLOSS LED 2 x USB 2.0 RJ45 1 x 10/100/1000M RJ45 WAKE Wake Button - 10...
- Page 7 Rear panel: Serial No. Print Description Power DC8-30V power input CAM5-6 IP Camera input 5~6 USB2.0 port (Type B/ to connect fire proof box) EXT HDD ESATA Connector CAMERAS AHD A/V input1~4 WIFI WIFI 1-2 antenna port(2.4GHz & 5.8GHz) GPS antenna port INPUT Sensor input J1939...
-
Page 8: Frequently Asked Questions
2. FREQUENTLY ASKED QUESTIONS The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition. - Page 9 If the device has been set with schedule recording, it can’t shutdown if it is still during recording time of the task table. How to install the WIFI antenna? The antenna must be installed on unobstructed place of the roof, and be fixed with glue. The device cannot be shut down when in ignition ON/OFF mode.
-
Page 10: Fcc Statement
3. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
