2/27/2016
ALZO PORTAFLASH SOFTBOX ASSEMBLY
Figure 1
Figure 2
http://www.alzodigital.com/customer_support/assy_alzo_porta_flash_softboxshopify.htm
ALZO Porta Flash Softbox Assembly
Assembling the ALZO Porta Flash Mini Softbox is
very fast and simple when you follow these
instructions.
You will need a 3 ft x 3 ft clean clear table
space to assemble the ALZO Porta Flash
softbox.

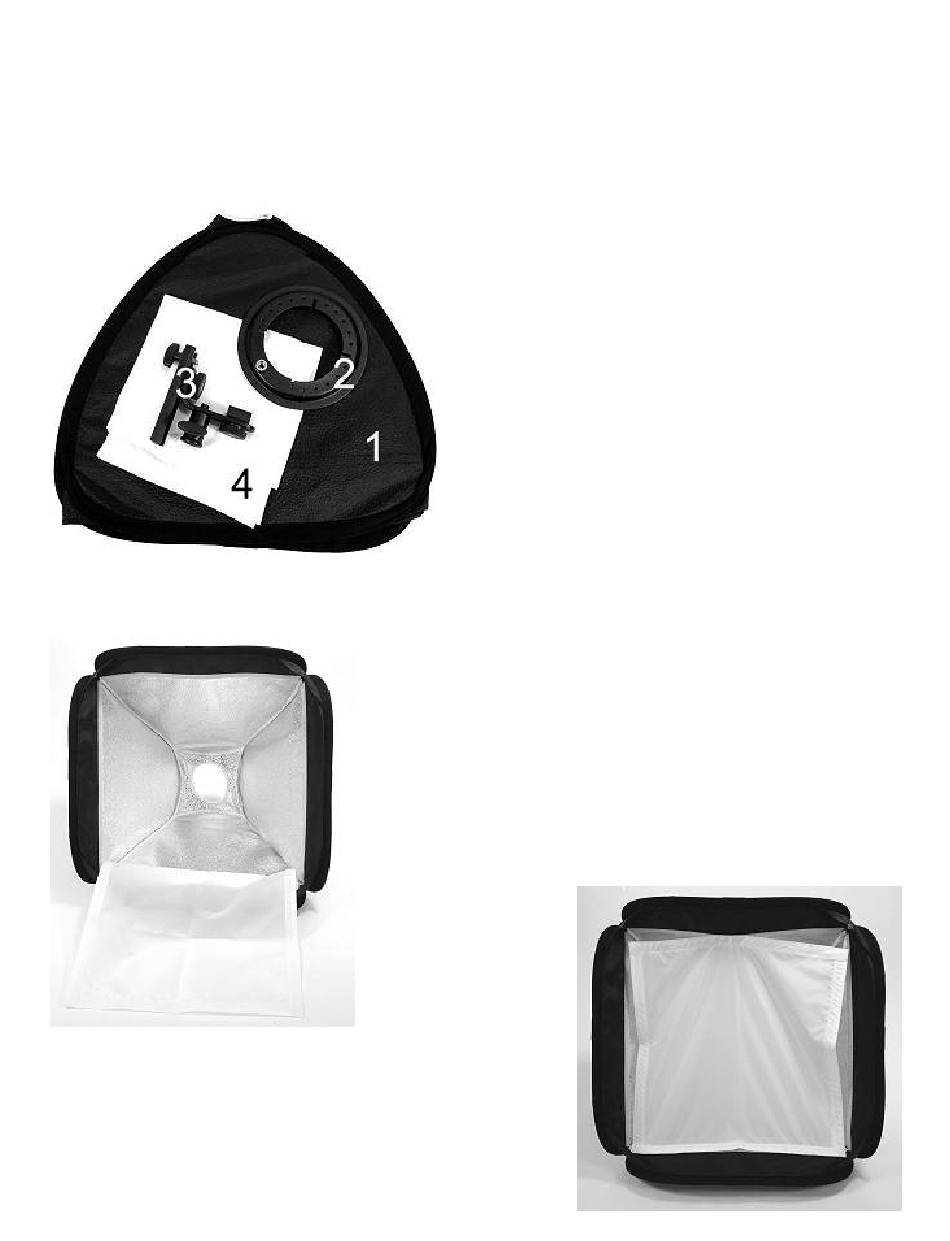

The softbox consists of 4 parts:
1. Wire frame Softbox
2. Ring
3. Flash mount bracket
4. Diffuser
STEP 1: ASSEMBLE SOFTBOX
Open the softbox by inserting a hand inside the
folded softbox pushing on the wire frame in the
fabric until it pops open. Set it on a table facing
you. Lay the diffuser in front of the softbox with
the Velcro hooks side facing up, Roll the back
edge of the diffuser and attach the diffuser edge
to the bottom interior Velcro strip inside the
softbox.
Now pull the center front edge of the diffuser up
and attach it to the center upper interior Velcro
strip of the softbox as shown below.
1/4
Advertisement
Table of Contents
Related Manuals for ALZO Porta Flash Mini
Summary of Contents for ALZO Porta Flash Mini
- Page 1 2/27/2016 ALZO Porta Flash Softbox Assembly ALZO PORTAFLASH SOFTBOX ASSEMBLY Assembling the ALZO Porta Flash Mini Softbox is very fast and simple when you follow these instructions. You will need a 3 ft x 3 ft clean clear table space to assemble the ALZO Porta Flash softbox. The softbox consists of 4 parts: 1. Wire frame Softbox 2. Ring 3. Flash mount bracket 4. Diffuser Figure 1 STEP 1: ASSEMBLE SOFTBOX Open the softbox by inserting a hand inside the folded softbox pushing on the wire frame in the fabric until it pops open. Set it on a table facing you. Lay the diffuser in front of the softbox with the Velcro hooks side facing up, Roll the back edge of the diffuser and attach the diffuser edge to the bottom interior Velcro strip inside the softbox. Now pull the center front edge of the diffuser up and attach it to the center upper interior Velcro strip of the softbox as shown below. Figure 2 http://www.alzodigital.com/customer_support/assy_alzo_porta_flash_softboxshopify.htm...
- Page 2 2/27/2016 ALZO Porta Flash Softbox Assembly Using the following sequence attach the remaining edges of the diffuser to the interior Velcro strips in the softbox. STEP 2: ASSEMBLE BRACKET Attach the ring to the bracket with the supplied wing screw (1) as shown and tighten securely. Position the Hot Shoe mount (3) to the rear most position. NOTE: The Flash shoe mount (3) can be removed providing a 1/4 x 20 screw mount. NOTE: The Flash shoe mount (3) is insulated. The flash will require a sync cord connection to the camera. NOTE: Thumb screw adjusters (2) and (3) allow for positioning the ring relative to your flash. Adjuster (2) sets the height of the ring, while adjuster (3) positions the front of the flash. Attach your flash to the shoe mount connected to (3). Adjust (2) and (3) such that the flash face enters the opening in the ring or rests up against the ring surface. Then remove the flash and tighten the thumb screws. Hot shoe mount Figure 3 (3) can be rotated to allow front or rear entry of flash hot shoe mount. Attach the bracket to the rear of the softbox (flash removed) by slipping the ring under 3 of the wire frame protrusions and prying up the last protrusion. http://www.alzodigital.com/customer_support/assy_alzo_porta_flash_softboxshopify.htm...
- Page 3 2/27/2016 ALZO Porta Flash Softbox Assembly Figure 4 STEP 3: ATTACH FLASH Loosen the thumbscrew (3), attach the flash, adjust position of flash and tighten (3). The entire assembly can now be set on top of the ALZO Digital Flip Bracket or light stand. NOTE: The Flash shoe mount (3) can be removed providing a 1/4 x 20 screw mount. FOLDING and STORING the ALZO Porta Flash Mini Softbox http://www.alzodigital.com/customer_support/assy_alzo_porta_flash_softboxshopify.htm...
- Page 4 2/27/2016 ALZO Porta Flash Softbox Assembly Then insert into zippered case http://www.alzodigital.com/customer_support/assy_alzo_porta_flash_softboxshopify.htm...
