ALZO SMOOTHY RIG STABILIZER USER GUIDE

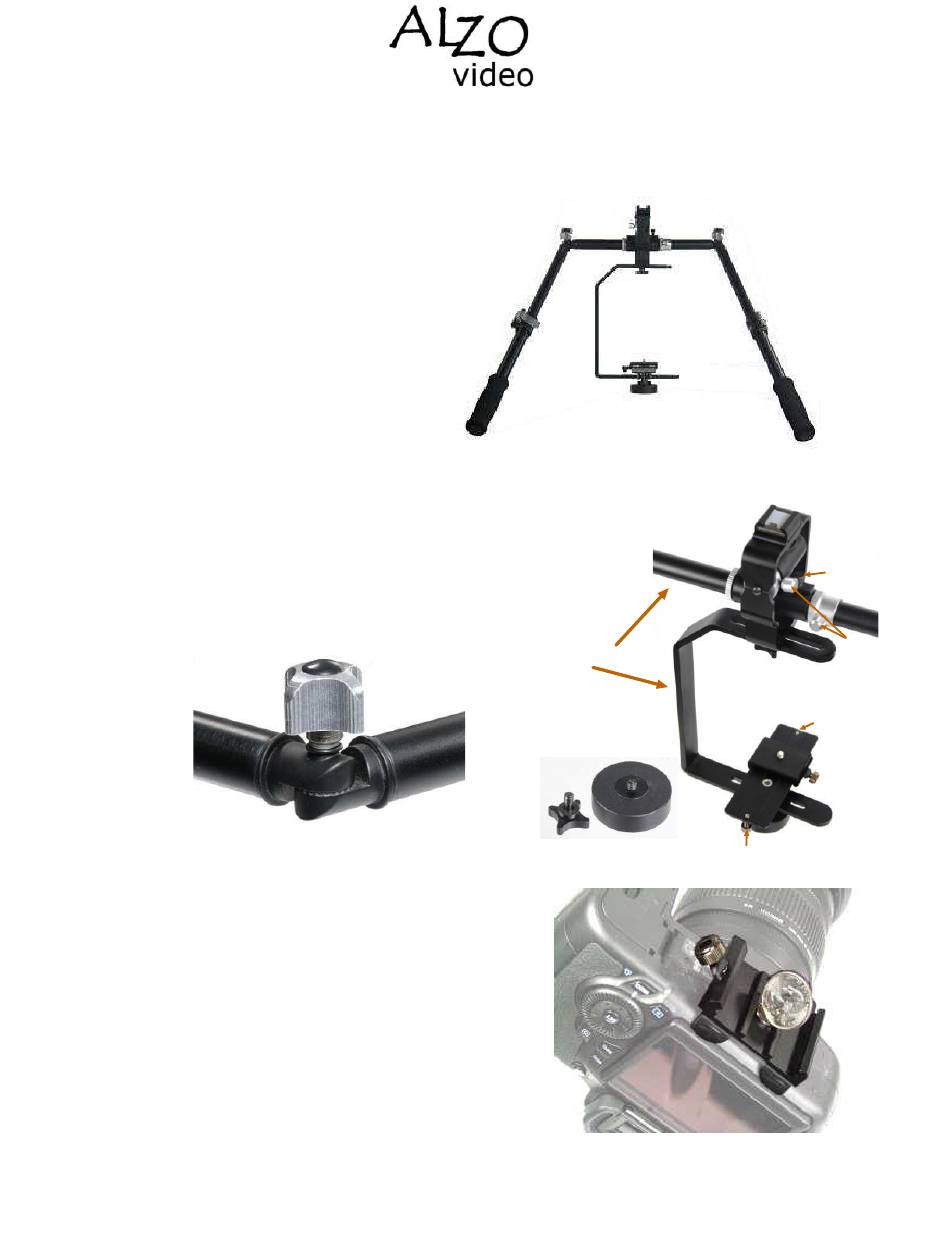

ALZO SMOOTHY RIG PARTS
•
Adjustable length arms
•
Gimbaled camera mount bracket
with shoe mount
•
X/Y adjustable camera mount bracket
•
Focus or Zoom assist
•
Optional counter weight
IDENTIFY ALZO SMOOTHY RIG FEATURES
1) Camera mount adjuster
2) DSLR anti-rotation camera release plate
3) Anti-camera release screws
4) Camera balance adjuster
5) Gimbal friction adjusters
6) X axis lock (black set screw)
7) Shoe mount for video light
8) Optional counter weight. The counter weight is recommended
for very light cameras and small camcorders. Most DSLR
cameras do not require the use of the counter weight.
9) Gimbal Camera Mount Bracket.
ASSEMBLE THE RIG
Attach the arms to the gimbal assembly with the
supplied silver wing screws.
Remove the hex nut from the DSLR Anti-rotation camera
release plate. Loosen the set screw on the side of the
camera release plate and slide it off of the Camera
mount adjuster.
Attach the camera release plate [2] to the base of the
camera with the wings facing backwards and up against
the camera body. Tighten the camera mount screw with
a coin. Counterclockwise rotate the set screw on the
camera release plate until some resistance is felt.
alzovideo.com
Y - AXIS
MOTION
csupport@alzovideo.com
SHOE MOUNT
GIMBAL
CAMERA
MOUNT
BRACKET
CAMERA BALANCE
ADJUSTER WITH
COUNTER WEIGHT
X - AXIS
MOTION
9
8
800-582-7009
ADJUST-
ABLE ARM
7
6
5
4
3
2
1
3
2
1502-IS
Advertisement
Table of Contents
Related Manuals for ALZO SMOOTHY RIG
Summary of Contents for ALZO SMOOTHY RIG
- Page 1 ALZO SMOOTHY RIG STABILIZER USER GUIDE ALZO SMOOTHY RIG PARTS SHOE MOUNT GIMBAL • Adjustable length arms • Gimbaled camera mount bracket with shoe mount • X/Y adjustable camera mount bracket ADJUST- • Focus or Zoom assist CAMERA ABLE ARM •...
- Page 2 ALZO SMOOTHY RIG STABILIZER USER GUIDE Attach the camera mount adjuster [1] to the gimbal camera mount bracket [9] as shown with the black wing screw. NOTE the black wing screw has a 1/4 x 20 threaded hole for mounting the optional counter weight.
- Page 3 ALZO SMOOTHY RIG STABILIZER USER GUIDE IMPROVE STABILIZATION To improve stabilization you can add the top counter weight. Adding a top counter weight will raise the center of gravity of the rig enhancing the stability of camera. First remove the top shoe mount on the gimbal and then attach the black end of the top counter weight extension.
