2/29/2016
STUDIO BOOM ASSEMBLY & USER GUIDE

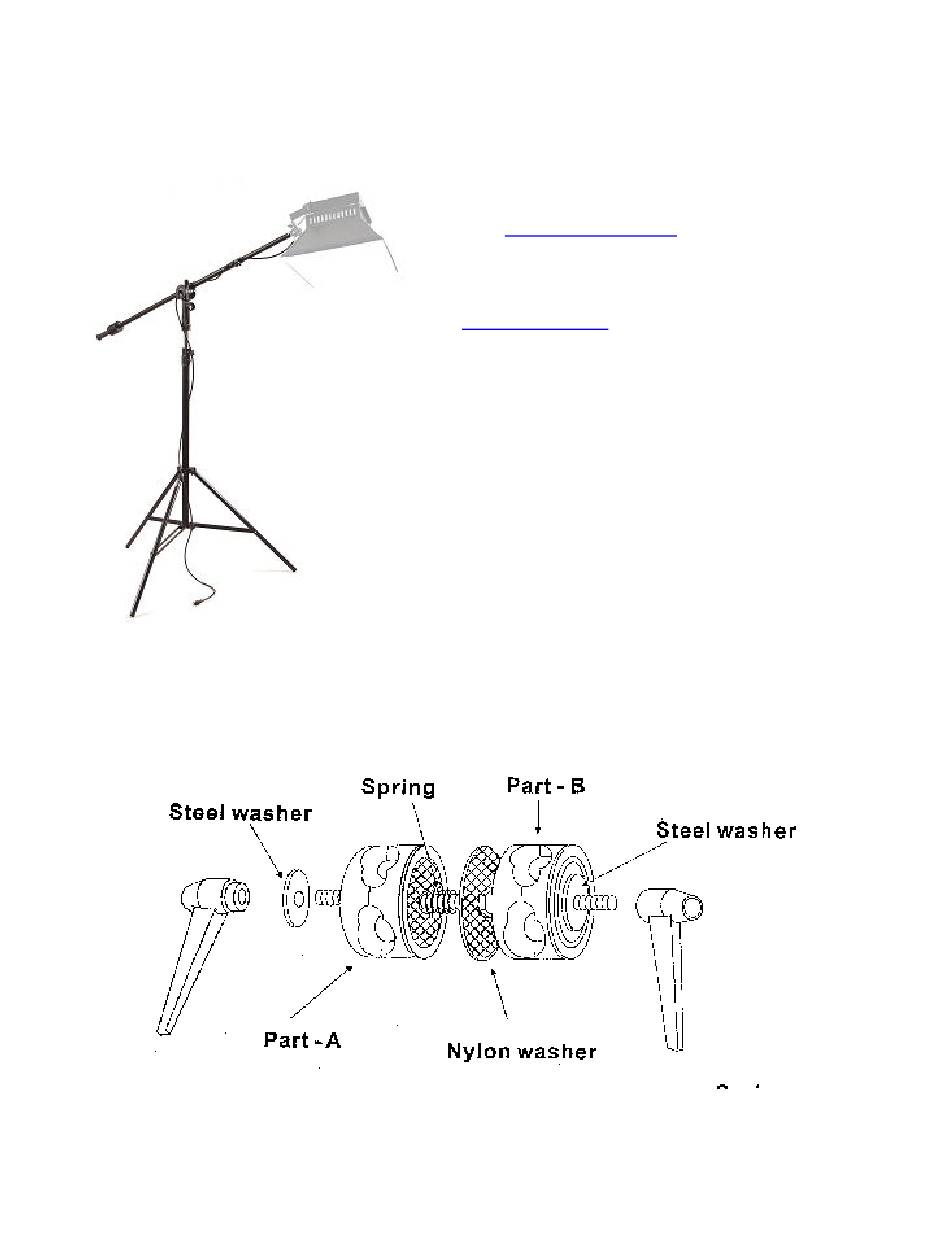

studio boom fully assembled with
ALZO 600 Light (gray)
http://www.alzodigital.com/customer_support/assy_alzo_studio_boomshopify.htm
ALZO Studio Boom Assembly & User Guide
Figure 1
The 4lb counter weigh of the ALZO Studio Boom is designed
to support photography light fixtures that weigh less than 4
lbs. For increased extension or heavier light fixtures an
additional counterweight sandbag can be used on the boom
placed next to the counter weight.
The ALZO Studio Boom is designed to support ALZO 300,
600, 600EX, 750 continuous lights and all flash lights..
NOTE: Never exceed a total of 16 lbs total for the light
fixture and an additional counter weight.
ASSEMBLY INSTRUCTIONS
1. Set up the ALZO 10' light stand with the tripod base fully
extended and clamped tight. Fully extend the top section of
1/2
Advertisement
Table of Contents
Related Manuals for ALZO STUDIO BOOM
Summary of Contents for ALZO STUDIO BOOM
- Page 1 2/29/2016 ALZO Studio Boom Assembly & User Guide STUDIO BOOM ASSEMBLY & USER GUIDE The 4lb counter weigh of the ALZO Studio Boom is designed to support photography light fixtures that weigh less than 4 lbs. For increased extension or heavier light fixtures an additional counterweight sandbag can be used on the boom placed next to the counter weight. The ALZO Studio Boom is designed to support ALZO 300, 600, 600EX, 750 continuous lights and all flash lights.. NOTE: Never exceed a total of 16 lbs total for the light fixture and an additional counter weight. studio boom fully assembled with ALZO 600 Light (gray) Figure 1 ASSEMBLY INSTRUCTIONS 1. Set up the ALZO 10' light stand with the tripod base fully extended and clamped tight. Fully extend the top section of http://www.alzodigital.com/customer_support/assy_alzo_studio_boomshopify.htm...
- Page 2 2/29/2016 ALZO Studio Boom Assembly & User Guide the stand and lock it securely in place. 2. Attach the counter weight to the boom arm end with protruding screw. Tighten firmly. 3. The studio boom clamp is a 2 section clamp with several different diameter "clamp holes" to allow the clamp to be used on different diameter sections of light stands and booms. 4. Unscrew and remove the locking handle on the PARTB clamp section. Remove the washer under the locking handle. Do not lose the washer. 5. Place matching diameter hole onto the top section of the light stand about 3 inches below the top of the stand. 6. Replace the outside section of the clamp over the light stand. Replace the washer. Screw the locking handle onto the clamp until the clamp grips the light stand. Do not over tighten the locking handle. 7. Adjust the boom arm by loosening the locking handle on the clamp holding the boom arm. After adjustments have been made, tighten the clamp until it grips the boom arm securely. Do not over tighten. 8. For maximum stability, rotate the boom arm and position it over one of the legs of the light stand. Attach the light fixture and power cord to the 5/8? post end of the boom arm. Wrap the power cord around the boom arm and light stand such that the cord exits the light stand near the base. Slide the boom arm in the clamp until the boom arm is in balance. To compensate for the weight of the light, a small counter weight or sand bag can be fastened near the fixed counter weight. http://www.alzodigital.com/customer_support/assy_alzo_studio_boomshopify.htm...
