  • Page 1 TEX30 TEX302TFT 2TFT USER MANUAL VOLUME1 Manufactured by R.V.R. ELETTRONICA Italy...
  • Page 2 Limitations of use can apply in respect of operating freuency, transmitter power and/or channel spacing. Declaration of Conformity Hereby, R.V.R. Elettronica, declares that this FM transmitter is in complian- ce with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 3 TEX302TFT ELETTRONICA Technical Specifications TEX302TFT Parameters U.M. Value Notes GENERALS Frequency range 87,5 - 108 Rated output power Continuously variable by software from 0 to maximum Modulation type F300E Operational Mode Mono, Stereo, MPX Working temperature °C -5 to 60...
  • Page 4 TEX302TFT ELETTRONICA AUDIO INPUTS Connector XLR F Type Balanced Left / Mono Impedance 10 k or 600 Selectable by rear panel dip switches Input Level /Adjust -12 to +12 continuosly variable Connector XLR F Type Balanced Right Impedance 10 k or 600...

  • Page 5: Table Of Contents

    TEX302TFT ELETTRONICA Table of Contents 1. Preliminary Instructions 2. Warranty 3. First aid 3.1 Treatment of electric shocks 3.2 Treatment of electrical burns 4. General description 4.1 Unpacking 4.2 Features 4.3 Description of the Front Panel 4.4 Description of the Rear Panel 4.5 Description of the Connectors...
  • Page 6 TEX302TFT ELETTRONICA Quick guide 1. Turn on the switch on the front panel 2. Set the working frequency via the FRQ menu To change the value, simply use the + or - buttons and then confirm with ENTER or cancel with ESC (in mechanical key mode) or type the value directly on the display (in touchscreen mode).

  • Page 7: Preliminary Instructions

    The product should not be incorporated into a rack unless retailers. it is provided with adequate ventilation or the manufacturer's if your retailer cannot help you, contact R.V.R. Elettronica instructions have been followed. and describe the issue; if the staff deems it necessary, the authorization to send the equipment will be sent to you with the appropriate instructions;...

  • Page 8: First Aid

    TEX302TFT ELETTRONICA The customer always assumes the risks of loss (i.e., R.V.R. is never liable for damage or loss), until the package reaches the R.V.R. facility. For this reason, we suggest that you insure the goods for their full value.

  • Page 9: General Description

    - Minimum rated output power: 45 dBm ±1 dB - Gain : Not applicable (the equipment is supplied without a radiant system, which is the customer’s responsibility). The TEX302TFT is designed to be contained in a 2HE 19” rack box. 4.1 Unpacking The package contains the following:  1 TEX302TFT...

  • Page 10: Features

    (CCIR, FCC or ETSI) and can be connected directly to the antenna. The salient features of the TEX302TFT are compactness and great ease of use. Furthermore, the equipment is designed in a modular way: the various functions are performed by modules connected mostly with male and female connectors or with flat cables terminated by connectors. This type of design facilitates maintenance...

  • Page 11: Description Of The Front Panel

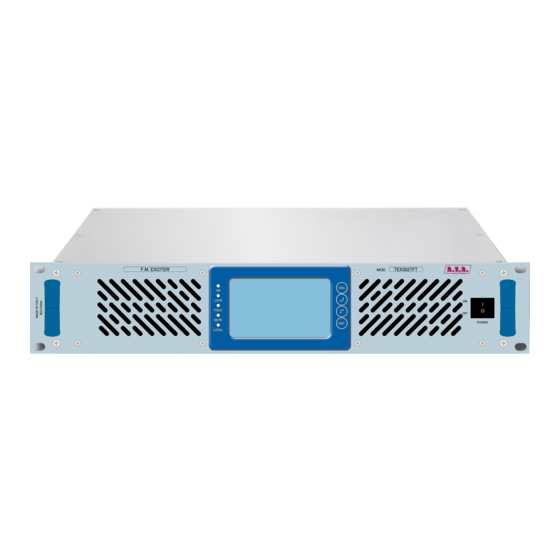

    TEX302TFT ELETTRONICA 4.3 Description of the Front Panel F.M. EXCITER TEX302TFT MOD. ELETTRONICA LOCK FOLD. MUTE POWER ENTER LOCAL Figure 4.1 [1] AIR FLOW Grids for forced ventilation. [2] ON Green LED, lit when the transmitter is power enabled. [3] LOCK Green LED, lit when the PLL is locked to the working frequency.

  • Page 12: Description Of The Rear Panel

    TEX302TFT ELETTRONICA 4.4 Description of the Rear Panel PHASE RIGHT R.F. OUTPUT MAINS VOLTAGE 50 Ω 24Vdc GSM/LAN EXT REF 10MHz 10KΩ 600Ω 10KΩ 600Ω SCA1/RDS CARRIER FREQ. ADJ EXT AGC R.F. TEST 19KHz PILOT SCA2 MAINS max 20dBm RFL FWD...

  • Page 13: Description Of The Connectors

    TEX302TFT ELETTRONICA 4.5 Description of the Connectors 4.5.1 Left (MONO) / Right Type: XLR female Positive Negative 4.5.2 Remote Type: DB15 female Pin Name Type Meaning Interlock Inhibits if power is closed to GND Ext AGC FWD External signal, 1-12V, for limitation (AGC)

  • Page 14: Installation And Configuration Procedure

    TEX302TFT ELETTRONICA 5. Installation and Configuration Procedure Instructions are given in this chapter on installation and configuration of the equipment. Carefully perform all the steps described in this chapter both upon initial start-up and every time the main configuration is changed, for example when moving to a new transmission station or when replacing the equipment.

  • Page 15: Installation

    TEX302TFT ELETTRONICA 5.1 Installation 5.1.1 General Requirements The ventilation of the equipment and workplace must be suitable for maintenance according to the directive in force in the country in which this equipment is installed. To ensure correct operation of the appliance, there must be a clearance of at least 50 cm at the front and back of the device to facilitate the circulation of air through the ventilation grids.
  • Page 16 TEX302TFT ELETTRONICA TEX302TFT @ 230 Vac Main fuse (1x) F 3.15AT type 5x20 Table 5.1: Fuses 5.1.3 Placement of the device Useful tips for correct installation: • Avoid the presence of external elements near the ventilation inlets and outlets, as they could prevent proper ventilation of the device.
  • Page 17 TEX302TFT ELETTRONICA The station normally has an air outlet at the rear of the equipment: in which case, ensure adequate ventilation of the room. COLD 50cm Alternatively it is cooled by forced ventilation and the air intake is located on the roof of the equipment.
  • Page 18 Note: to ensure the safety of the operators, prepare the wiring according to the laws and regulations in the country where this equipment is installed. Check that the POWER switch on the front panel of the TEX302TFT is in the “OFF” position.
  • Page 19 √ For functional tests only: • a dummy load with 50 Ohm impedance and of appropriate power (minimum 300W for TEX302TFT). • Coaxial cable with BNC connectors for connecting the interlock signal to the load protection. √ Connection cable kit including: •...
  • Page 20 Check that the POWER switch on the front panel of the TEX302TFT is in the “OFF” position. Connect the audio and RDS/SCA cables of your sources to the input connectors.
  • Page 21 TEX302TFT ELETTRONICA 5.1.6.1 Power on After making the connections described above, turn on the device at the power switch on the front. The default screen appears on the display and when the PLL is locked to the working frequency, the LOCK LED lights up.
  • Page 22 TEX302TFT ELETTRONICA 5.1.6.5 Modulation adjustments To modify the levels and operating modes of the equipment, access the AUD menu and use the touchscreen or keys to adjust the various settings. Note: On the rear panel of the device there are trimmers for the fine adjustment of some inputs of the equipment and the screen printed diagram indicates which input each trimmer refers to.

  • Page 23: Management Firmware

    TEX302TFT ELETTRONICA 5.2 Management Firmware The device has a TFT touchscreen display, on which a set of menus are shown which indicate all the operating parameters of the product. To navigate the menus, use the touchscreen or the four mechanical keys that operate in the same way. An overall view of the menus is given in figure 5.2.
  • Page 24 TEX302TFT ELETTRONICA Menu 1 NOTE: in power saving mode, the Menu key becomes ESC: press it to exit this mode. Pressing the ESC button (both in mechanical key and TouchScreen mode) while in the default menu (menu 1) opens the selection screen (menu 2), from which...
  • Page 25 TEX302TFT ELETTRONICA 5.2.2 Power Menu (PWR) This screen shows the user the parameters relating to the power delivery of the device. To edit one of the items, select it with the + or - buttons (the selected item is highlighted) and then press the ENTER button (both in mechanical key and TouchScreen mode).
  • Page 26 TEX302TFT ELETTRONICA 5.2.3 Frequency Menu (FRQ) This menu allows you to read and set the working frequency. To change the value, simply use the + or - buttons and then confirm with ENTER or cancel with ESC (in mechanical key mode) or type the value directly on the display (in touchscreen mode).
  • Page 27 TEX302TFT ELETTRONICA At any time it is possible to return to the selection screen(menu 2) by pressing the ESC button (both in mechanical key and TouchScreen mode) or after one minute of inactivity. Menu 5 Mode Selection of the audio coder mode between mono, stereo or composite mode.
  • Page 28 TEX302TFT ELETTRONICA 5.2.5 Amplifier Menu (PA) This menu allows you to read the parameters relating to the power amplifier. At any time it is possible to return to the selection screen (menu 2) by pressing the ESC button (both in mechanical key and TouchScreen mode) or after one minute of inactivity. Menu 6 Shows the forward power expressed in Watts.
  • Page 29 TEX302TFT ELETTRONICA 5.2.6 Real Time Clock (RTC) menu This menu allows you to read and set the time and date of the device. To modify the value, simply use the + or - buttons and then confirm with ENTER or cancel with ESC (in mechanical key mode) or type the value directly on the display (in touchscreen mode).
  • Page 30 TEX302TFT ELETTRONICA 5.2.7 Frequency-shift keying (FSK) menu This menu provides the FSK (Frequency Shift Keying) adjustments of the exciter. To modify the value, simply use the + or - buttons and then confirm with ENTER or cancel with ESC (in mechanical key mode) or type the value directly on the display (in touchscreen mode).
  • Page 31 The percentage value of Power Good refers to the nominal power of the device (300 W for the TEX302TFT), not to the direct power delivered. So if you set a value equal to 50%, it will correspond to 150 W, regardless of the power set.
  • Page 32 TEX302TFT ELETTRONICA 5.2.9 Version menu (Vrs) This screen shows information about the version of the device. At any time it is possible to return to the selection screen (menu 2) by pressing the ESC button (both in mechanical key and TouchScreen mode) or after one minute of inactivity.

  • Page 33: Identification And Access To The Modules

    ELETTRONICA 6. Identification and Access to the Modules 6.1 Identification of the Modules The TEX302TFT is composed of several modules which are interconnected with connectors to facilitate maintenance and replacement of the modules. 6.1.1 TEX302TFT Top view The figure below shows the top view of the device, indicating the various components.

  • Page 34: Principles Of Operation

    TEX302TFT ELETTRONICA 7. Principles of Operation There is a schematic view of the modules and connections that make up the TEX302TFT in figure 7.1. R.F. R.F. 1 X R.F. 1 X R.F. R.F. OUTPUT LPF + RF MODULES DIRECT. COUPL. R.F. INPUT (AUDIO/RDS)

  • Page 35: Telemetry Board

    REMOTE or INTERLOCK of the power amplifier. In case of amplifier faults, the central conductor is grounded forcing the equipment to enter stand-by mode. 7.4 Power Supply Block The power supply of the TEX302TFT provides the two main power supplies: 1. Services. This voltage powers elements that do not directly affect the power supply such as the motherboard, panel board and fans. 2. Power supply. This voltage powers the RF power amplifier module and protects the equipment from any sudden fluctuations in the mains voltage.

  • Page 36: Control Board

    • Low-pass filter, which also includes the power meter. In this block there is an RF pickup at -46dB (for the TEX302TFT model) approximately with respect to the output which is available on a BNC connector below the transmitter output connector. This pickup is used to assess the characteristics of the carrier, but not those of the upper harmonics.

  • Page 37: Maintenance And Repair Procedures

    The fans should be replaced in case of problems as soon as possible and in any case at least every 24 months. 8.3.1 Replacing malfunctioning fans • Open the top cover of the TEX302TFT by unscrewing all the screws. • Disassemble the power supply module as described below. •...

  • Page 38: Replacing The Modules

    Put the cover back and tighten all the screws needed to close it. 8.4 Replacing the Modules Arrange for authorized and qualified technical personnel to replace the component parts in the device. 8.4.1 Replacing the power supply Open the top cover of the TEX302TFT by unscrewing all the screws. • • Identify the power supply module to be replaced. / 42 User Manual Rev.
  • Page 39 TEX302TFT ELETTRONICA • Unscrew all points A using an Allen key. • Eliminate the air conveyor system B. • Unscrew the connector C and disconnect all connectors at points D. Unscrew all points E using a flat head screwdriver. • User Manual / 42 Rev. 1.0 - 18/03/21...
  • Page 40 Put the cover back and tighten all the screws needed to close it. 8.4.2 Replacing the RF module • Open the top cover of the TEX302TFT by unscrewing all the screws. • Identify the RF module to be replaced. •...
  • Page 41 Open the top cover of the TEX302TFT by unscrewing all the screws. • Identify the module to be replaced. • Unscrew the screws that secure the card to the rear panel of the TEX302TFT. • Unscrew the screw A of the cover box of the motherboard. User Manual / 42 Rev.
  • Page 42 • Put the cover back and tighten all the screws needed to close it. 8.4.4 Replacing the panel board Unscrew the six screws A of the TEX302TFT front panel. • / 42 User Manual Rev. 1.0 - 18/03/21...
  • Page 43 TEX302TFT ELETTRONICA Unscrew all points B using an Allen key. • • Remove panel C. User Manual / 42 Rev. 1.0 - 18/03/21...
  • Page 44 TEX302TFT ELETTRONICA • Unscrew all points D using a socket screwdriver, and then lift the protective plastic cover. • Disconnect the connectors E. Unscrew all points F internally using a screwdriver. • • Disconnect the connector G, being very careful to unlock the two side locks before proceeding with the operation.

  • Page 45: Options

    TEX302TFT ELETTRONICA 9. Options This section shows views on the variants with respect to the basic version to be requested when ordering. For more information about the options, refer to the respective instruction manuals. 9.1 Option /AUDIGIN-TFT Digital Input Left (MONO) / Right...

  • Page 46: Option /Tlw-Tft-E-2He

    TEX302TFT ELETTRONICA Service/RDS Tipo: Femmina DB9 1 GND 2 RS232 TX 3 RS232 RX 4 NC 5 GND 6 NC 7 NC 8 RDS CARRIER OUT 9 PILOT IN 9.3 Option \TLW-TFT-E-2HE Ethernet Tipo: femmina RJ45 1 TX+ 2 TX-...

  • Page 47: Option /Tlw-Tft-2He

    TEX302TFT ELETTRONICA 9.4 Option \TLW-TFT-2HE RS232 Bus Modem Tipo: Femmina DB9 Tipo: Femmina DB9 1 NC 1 NC 2 TX_D 2 NC 3 RX_D 3 NC Internamente connesso con 6 5 GND 5 GND Internamente connesso +12 V con 4...

  • Page 48: Up/Down Power Option (Software Only)

    TEX302TFT ELETTRONICA 9.5 UP/DOWN Power option (software only) The UP/DOWN Power option modifies the function of receiving signals present on the telemetry connector. Specifically, the on and off control signals of the RF section become control signals of the emitted RF power level, allowing UP/DOWN adjustment. The UP or DOWN command is provided by connecting the relative signal on the connector to ground for at least 500mS (the pin has an internal pull-up towards the power supply).
  • Page 49 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 50 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 51 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
