R282-Z96

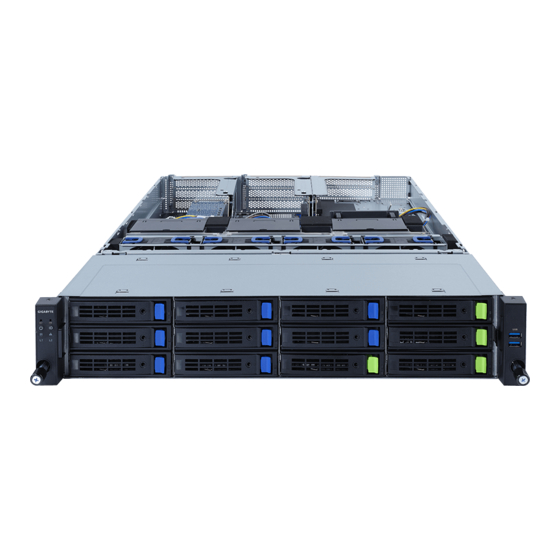

AMD EPYC™ 7002 DP Server System - 2U 12-Bay GPU & NVMe sku
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte R282-Z96

Summary of Contents for Gigabyte R282-Z96

  • Page 1 R282-Z96 AMD EPYC™ 7002 DP Server System - 2U 12-Bay GPU & NVMe sku User Manual Rev. 1.0...
  • Page 2 GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentation:  User Manual: detailed information & steps about the installation, configuration and use of this product (e.g.
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Pieces of additional information related to the current topic. CAUTION! Precautionary measures to avoid possible hardware or software problems. WARNING! Alerts to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fin-gertips or with a pair of fine needle nosed pliers. If the jumpers do not have such a tab, take care when us- ing needle nosed pliers to remove or install a jumper;...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ................... 11 Installation Precautions .................. 11 Product Specifications ..................12 System Block Diagram ................... 16 Chapter 2 System Appearance ..................17 Front View ...................... 17 Rear View ....................... 18 Front Panel LEDs and Buttons ............... 19 Rear System LAN LEDs .................
  • Page 8 The Main Menu ....................55 Advanced Menu ..................... 58 5-2-1 Trusted Computing ....................59 5-2-2 PSP Firmware Versions ..................60 5-2-3 Legacy Video Select ....................61 5-2-4 AST2500 Super IO Configuration ................62 5-2-5 S5 RTC Wake Settings ...................64 5-2-6 Serial Port Console Redirection ................65 5-2-7 CPU Configuration ....................68 5-2-8...
  • Page 9 5-8-2 UEFI Application Boot Priorities ................120 Save & Exit Menu ..................121 5-10 ABL POST Codes ..................122 5-10-1 Start Processor Test Points ..................122 5-10-2 Memory test points ....................122 5-10-3 PMU Test Points ....................122 5-10-4 Original Post Code ....................123 5-10-5 CPU test points .....................124 5-10-6 Topology test points ....................124 5-10-7 Extended memory test point .................124 5-10-8 Gnb Earlier init ......................125...
  • Page 10 This page intentionally left blank - 10 -...

  • Page 11: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the service guide and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 12: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. Š AMD EPYC™ 7002 series processor family Š Dual processors, 7nm, Socket SP3 Š Up to 64-core, 128 threads per processor Š...
  • Page 13 Expansion Slot Riser Card CRS2014: 1 x PCIe x16 slot (Gen4 x16), FHFL Š Riser Card CRS2026: 2 x PCIe x16 slot (Gen4 x16), FHFL Š Riser Card CRS2026: 1 x PCIe x16 slot (Gen4 x16), FHFL Š - 1 x PCIe x16 slot (Gen4 x16); Occupied by CNV3134, 4 x NVMe Gen4 Š...
  • Page 14 Hardware Installation - 14 -...
  • Page 15 System Š Aspeed® AST2500 management controller Management Š AMI MegaRAC SP-X Solution web interface Š Dashboard Š JAVA Based Serial Over LAN Š HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.) Š Sensor Reading History Data Š FRU Information Š...

  • Page 16: System Block Diagram

    System Block Diagram Hardware Installation - 16 -...

  • Page 17: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View HDD#9 HDD#0 HDD#3 HDD#6 HDD#10 HDD#4 HDD#1 HDD#7 HDD#11 HDD#2 HDD#5 HDD#8 Description Front Panel LEDs and Buttons 3.5" HDD Bays Front USB 3.0 Ports NOTE! The Green Latch Supports NVMe • Refer to section 2-3 Front Panel LEDs and Buttons for a detailed description of the function of the LEDs.

  • Page 18: Rear View

    Rear View PSU1 PSU2 Description Description Mezzanine Slot (for OCP 3.0 Mezzanine Slot (for OCP 2.0 Card, Card, SFF Type, optional) optional) ID Button with LED VGA Port Server Management LAN Full-Height GPU Card Slot Port 1 GbE LAN Ports Full-Height GPU Card Slot USB 3.0 Port x 2 Full-Height GPU Card Slot...

  • Page 19: Front Panel Leds And Buttons

    Front Panel LEDs and Buttons No. Name Color Status Description Reset Button Press this button to reset the system. Press this button for the server to generate a NMI to the NMI button processor. If multiple-bit ECC errors occur, the server will effectively be halted.
  • Page 20 Green Indicates system is operating normally. Indicates a critical condition, may include: - System fan failure - System temperature Amber Indicates non-critical condition, may include: System - Redundant power module failure Blink Status LED - Temperature and voltage issue - Chassis intrusion Indicates system is not ready, may include: - POST error - NMI error...

  • Page 21: Rear System Lan Leds

    Rear System LAN LEDs Name Color Status Description Yellow 1 Gbps data rate 1GbE Green 100 Mbps data rate Speed LED 10 Mbps data rate Link between system and network or no access 1GbE Green Link/ Blink Data transmission or receiving is occurring Activity No data transmission or receiving is occurring...

  • Page 22: Power Supply Unit Led

    Power Supply Unit LED PSU LED State Description No AC power to all power supplies 0.5Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updateing mode AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power Amber Power supply critical event causing shut down:...

  • Page 23: Hard Disk Drive Leds

    Hard Disk Drive LEDs LED #1 LED #2 HDD Present RAID SKU LED #1 Locate Rebuilding HDD Access Fault (No Access) Green ON(*1) BLINK (*2) Disk LED (LED on Back Panel) Amber No RAID configuration Removed HDD Green ON(*1) (via HBA) Slot (LED on Amber Back Panel)
  • Page 24 This page intentionally left blank System Appearance - 24 -...

  • Page 25: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself. •...

  • Page 26: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the chassis cover: Remove the screw securing the chassis cover. Loosen the thumbnail screw securing the chassis cover.

  • Page 27: Removing And Installing The Fan Duct

    Removing and Installing the Fan Duct Follow these instructions to remove the fan duct: Lift up to remove the fan duct. To reinstall the fan duct, align the fan duct with the guiding groove. Push down the fan duct until it is firmly seated on the system.

  • Page 28: Removing And Installing The Heat Sink

    Removing and Installing the Heat Sink Read the following guidelines before you begin to install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...

  • Page 29: Removing And Installing The Cpu

    Removing and Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 30 • Tighten the CPU cover screws in sequential order (1g2g3). • The screw tightening torque: 16.1 ± 1.2 kgf-cm (14.0± 1.0 lbf-in) System Hardware Installation - 30 -...

  • Page 31: Removing And Installing Memory

    Removing and Installing Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 32: Removing And Installing A Memory Module

    3-5-2 Removing and Installing a Memory Module Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR4 DIMMs on to this motherboard.

  • Page 33: Dimm Population Table

    3-5-4 DIMM Population Table • When only one DIMM is used, it must be populated in memory slot DIMM1. RDIMM Maximum Frequency Supported DIMM Frequency (MT/s) DIMMs 1.2V Populated 3200 3200 2933 2933 2933 LRDIMM Maximum Frequency Supported DIMM Frequency (MT/s) DIMMs 1.2V 2S2R...

  • Page 34: Removing And Installing The Gpu Card

    Removing and Installing the GPU Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered off and all power sources have been disconnected from the server prior to installing a GPU card.
  • Page 35 - 35 - System Hardware Installation...

  • Page 36: Installing The Mezzanine Card

    Installing the Mezzanine Card 3-7-1 Installing the OCP 3.0 Mezzanine Card Use of the following type of OCP 3.0 NIC is recommended: • OCP 3.0 SFF with pull tab • OCP 3.0 SFF with ejector latch Follow these instructions to install an OCP 3.0 Mezzanine card: Remove the two screws securing the OCP 3.0 card slot cover.

  • Page 37: Installing The Ocp 2.0 Mezzanine Card

    3-7-2 Installing the OCP 2.0 Mezzanine Card Follow these instructions to install an OCP 2.0 Mezzanine card: Remove the screw securing the OCP 2.0 card slot cover. Remove the slot cover from the system. Align the screw holes on the OCP 2.0 card with the heads of the stand-off screws ensuring that the ports on the card are properly fitted into the rear panel of the system.

  • Page 38: Removing And Installing The Hard Disk Drive

    Removing and Installing the Hard Disk Drive Read the following guidelines before you begin to install the hard disk drive: • Take note of the HDD tray orientation before sliding it out. • The tray will not fit back into the bay if it is inserted incorrectly. •...
  • Page 39 Push Push - 39 - System Hardware Installation...

  • Page 40: Installing And Removing An M.2 Device

    Installing and Removing an M.2 Device WARNING: Installation of the thermal pad over the M.2 device is required when installing an M.2 device. Lack of the thermal pad may result in system overheat and throttle the system performance. CAUTION: The position of the stand-off screw will depend on the size of the M.2 device. The stand-off screw is pre-installed for 22110 cards as standard.

  • Page 41: Replacing The Fan Assembly

    3-10 Replacing the Fan Assembly • The image below shows the system image of R282-Z90. The same process applies to R282-Z91 and R282-Z90. Follow these instructions to replace a fan assembly: Flip the latches on the top of the fan outwards. Using the latches, lift up the fan assembly from the chassis.

  • Page 42: Removing And Installing The Power Supply

    3-11 Removing and Installing the Power Supply Before you remove or install the power supply unit: • Make sure the system is not turned on or connected to AC power. Follow these instructions to replace the power supply: Flip up and then grasp the power supply handle. Press the retaining clip on the right side of the power supply unit in the direction indicated.

  • Page 43: Cable Routing

    3-12 Cable Routing Onboard SATA Cable Onboard SATA Cable - 43 - System Hardware Installation...
  • Page 44 HDD Backplane Board Power Cable HDD Backplane Board Signal Cable System Hardware Installation - 44 -...
  • Page 45 Front Panel USB 3.0 Ports Cable Front Panel LEDs and Buttons Cable - 45 - System Hardware Installation...
  • Page 46 GPU Card Power Cable System Hardware Installation - 46 -...
  • Page 47 NVMe Card Cable U2_8 CNV3134 U2_A U2_9 CNV3134 U2_B - 47 - System Hardware Installation...
  • Page 48 NVMe Card Cable U2_10 CNV3134 U2_C U2_11 CNV3134 U2_D System Hardware Installation - 48 -...

  • Page 49: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components 16 17 11 12 CPU0 CPU1 Item Description HDD Back Plane Board Connector Front Panel USB 3.0 Connector Front Panel Connector 2 x 4 Pin P12V GPU Power Connector 2 x 4 Pin P12V GPU Power Connector IPMB Connector Serial Port Cable Connector OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16)
  • Page 50 TPM Module Connector (SPI Interface) SlimLine SAS Connector (SLSAS_0/PCIe/SATA/Defined by SKUs) SlimLine SAS Connector (SLSAS_1/PCIe/SATA/Defined by SKUs) System Battery Riser Connector #1 (PCIe Gen4/x32 Slot) M.2 Connector (PCIe4 x4, Supports NGFF-22110) 2 x 4 Pin P12V GPU Power Connector 2 x 3 Pin Rear Back Plane Board Power Connector OCP Mezzanine Connector (OCP 2.0/Gen3 x8) Riser Connector #2 (PCIe Gen4/x32 Slot) Riser Connector #3 (PCIe Gen4/x16 Slot)

  • Page 51: Jumper Settings

    Jumper Settings NCSI Switch Default Clear CMOS CLR_CMOS Enable Onboard LAN OCP2.0 Mezzanine OCP 3.0 Mezzanine CPU0 CPU1 HOST_SMBUS_SEL BIOS Defined PMBUS_SEL BIOS Defined Clear supervisor Normal BIOS_PWD password [Default] Normal BIOS_RCVR BIOS recovery mode [Default] - 51 - Motherboard Components...
  • Page 52 This page intentionally left blank Motherboard Components - 52 -...

  • Page 53: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 54  Main This setup page includes all the items in standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 55: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 56 Parameter Description BIOS Information Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information BMC Firmware Version Displays version number of the BIOS setup utility.
  • Page 57 Parameter Description Total Memory Displays the total memory size of the installed memory. (Note1) Memory Speed Displays the frequency information of the installed memory. (Note1) VR Information Version Displays VR version information. AGESA PI Version PI Version Displays AGESA PI version information. Onboard LAN Information LAN1 MAC Address Displays LAN MAC address information.

  • Page 58: Advanced Menu

    Advanced Menu The Advanced menu display submenu options for configuring the function of various hardware components. Select a submenu item, then press [Enter] to access the related submenu screen. BIOS Setup - 58 -...

  • Page 59: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Select Enable to activate TPM support feature. Security Device Support Options available: Enable/Disable. Default setting is Enable. SPI TPM Support Options available: Enabled/Disabled. Default setting is Enabled - 59 - BIOS Setup...

  • Page 60: Psp Firmware Versions

    5-2-2 PSP Firmware Versions The PSP Firmware Versions page displays the basic PSP firmware version information. Items on this window are non-configurable. BIOS Setup - 60 -...

  • Page 61: Legacy Video Select

    5-2-3 Legacy Video Select Parameter Description Select between onboard or external VGA support. OnBrd/Ext VGA Select Options available: Auto/Onboard/External. Default setting is Onboard. - 61 - BIOS Setup...

  • Page 62: Ast2500 Super Io Configuration

    5-2-4 AST2500 Super IO Configuration Parameter Description AST2500 Super IO Configuration Super IO Chip Displays the super IO chip information. BIOS Setup - 62 -...
  • Page 63 Parameter Description Press [Enter] to configure advanced items. Serial Port (Note1) Š – Enable/Disable the Serial Port (COM). When set to Enabled allows you to configure the Serial port 1/2 settings. When set to Disabled, displays no configuration for the serial port. –...

  • Page 64: S5 Rtc Wake Settings

    5-2-5 S5 RTC Wake Settings Parameter Description Enable or disable system wake on alarm event. Select Fixed Time, system will wake on the time (HH:MM:SS) specified. Select Dynamic Time and the Wake system from S5 system will wake at the current time plus an increase in minute(s). Options available: Disabled/Fixed Time.

  • Page 65: Serial Port Console Redirection

    5-2-6 Serial Port Console Redirection Parameter Description Select whether to enable console redirection for specified device. Console COM1/SOL / COM2 Console redirection enables the users to manage the system from a remote location. Redirection (Note) Options available: Enabled/Disabled. Default setting is Disabled. Selects a COM port for Legacy serial redirection.
  • Page 66 Parameter Description Bits per second Š – Selects the transfer rate for console redirection. – Options available: 9600/19200/38400/57600/115200. Default setting is 115200. Data Bits Š – Selects the number of data bits used for console redirection. – Options available: 7/8. Default setting is 8. Parity Š...
  • Page 67 Parameter Description Redirection COM Port Š – Selects a COM port to display redirection of Legacy OS and Legacy OPROM Messages. – Options available: COM1/SOL / COM2. Default setting is COM1/ SOL. Resolution Š Legacy Console Redirection – On Legacy OS, the number of rows and columns supported in Settings redirection.

  • Page 68: Cpu Configuration

    5-2-7 CPU Configuration Parameter Description CPU Configuration Enable/disable the CPU Virtualization. SVM Mode Options available: Enabled/Disabled. Default setting is Enabled. Controls the Secure Memory Encryption Enable (SMEE) function. SMEE Options available: Enabled/Disabled. Default setting is Enabled. CPU 0 Information Press [Enter] to view more information related to CPU 0. CPU 1 Information Press [Enter] to view more information related to CPU 1.

  • Page 69: Pci Subsystem Settings

    5-2-8 PCI Subsystem Settings Parameter Description PCI Bus Driver Version Displays the PCI Bus Driver version information. Change the PCIe lanes. SLOT1_F / SLOT1_R / SLOT2_F / Options available: SLOT2_R / SLOT3 / OCP1 / OCP2 Auto / x16 / x8 x8 / x8 x4 x4 / x4 x4 x8 / x4 x4 x4 x4 Lanes (OCP2 Lanes only features Auto / x8 / x4 x4.) (Note1)
  • Page 70 Parameter Description If the system has SR-IOV capable PCIe devices, this item Enable/ SR-IOV Support Disable Single Root IO Virtualization Support. Options available: Enabled/Disabled. Default setting is Enabled. BIOS Setup - 70 -...

  • Page 71: Usb Configuration

    5-2-9 USB Configuration Parameter Description USB Configuration USB Module Version Displays the USB version. USB Controllers Displays the supported USB controllers. USB Devices Displays the USB devices connected to the system. Enable/disable the Legacy USB support fuction. AUTO option disables legacy support if no USB devices are connected.
  • Page 72 Parameter Description USB mass storage device Start Unit command time-out. Device reset time-out Options available: 10 sec/20 sec/30 sec/40 sec. Default setting is 20 sec. Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses default value: for a Root port it is 100 ms, for Device power-up delay a Hub port the delay is taken from Hub descriptor.

  • Page 73: Nvme Configuration

    5-2-10 NVMe Configuration Parameter Description NVMe controller and Drive Displays the NVMe devices connected to the system. Information - 73 - BIOS Setup...

  • Page 74: Sata Configuration

    5-2-11 SATA Configuration BIOS Setup - 74 -...

  • Page 75: Network Stack Configuration

    5-2-12 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled/Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support (Note) Options available: Enabled/Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support (Note) Options available: Enabled/Disabled.

  • Page 76: Amd Mem Configuration Status

    5-2-13 AMD Mem Configuration Status Parameter Description Press [Enter] for configuration of advanced items. Channel A/BC/D/E/F/G/H Š – DIMM0 Presence – DIMM1 Presence CPU 0 – Chipset/Bank Interleave Dram EC Š Dram Parity Š Dimm Sensor Fine Grain Mode Š Press [Enter] for configuration of advanced items.

  • Page 77: Iscsi Configuration

    5-2-14 iSCSI Configuration Parameter Description Press [Enter] and name iSCSI Initiator. Only IQN format is accecpted. iSCSI Initiator Name Range: from 4 to 223 Add Attempt Press [Enter] for configuration of advanced items. Delete Attempt Press [Enter] for configuration of advanced items. Change Attempt Order Press [Enter] for configuration of advanced items.

  • Page 78: Tls Auth Configuration

    5-2-15 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444- 1234567890ab format. –...

  • Page 79: Intel(R) I350 Gigabit Network Connection

    5-2-16 Intel(R) I350 Gigabit Network Connection - 79 - BIOS Setup...
  • Page 80 Parameter Description Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated/10 Mbps Half/10 Mbps Full/100 Mbps Half/100 Mbps Full. Default setting is Auto Negotiated. NIC Configuration Wake On LAN Š...

  • Page 81: Vlan Configuration

    5-2-17 VLAN Configuration - 81 - BIOS Setup...
  • Page 82 Parameter Description Press [Enter] to configure advanced items. Create new VLAN Š VLAN ID Š – Sets VLAN ID for a new VLAN or an existing VLAN. – Press the <+> / <-> keys to increase or decrease the desired values. The valid range is from 0 to 4094.

  • Page 83: Mac Ipv4 Network Configuration

    5-2-18 MAC IPv4 Network Configuration Parameter Description Indicates whether network address is configured successfully or not. Configured Options available: Disabled/Enabled. Default setting is Disabled. Enable DHCP Options available: Enabled/Disabled. Default setting is Enabled. (Note) Local IP Address Press [Enter] to configure local IP address. (Note) Local NetMask Press [Enter] to configure local NetMask.

  • Page 84: Mac Ipv6 Network Configuration

    5-2-19 MAC IPv6 Network Configuration Parameter Description Press [Enter] for configuration of advanced items. Interface Name Š Interface Type Š MAC address Š Host address Š Route Table Š Gateway addresses Š DNS addresses Š Interface ID Š Enter Configuration Menu –...

  • Page 85: Amd Cbs Menu

    AMD CBS Menu AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen. - 85 - BIOS Setup...

  • Page 86: Valhalla Common Options

    5-3-1 Valhalla Common Options Parameter Description Valhalla Common Options Press [Enter] for more options. Custom Core Pstates Š – Allows you to accept or decline custom core pstates. When accepted you can disable or customize ceratin pstates. Performance CCD/Core/Thread Enablement Š...
  • Page 87 Parameter Description From a workaroud for GCC/C000005 issue for XV Core on CZ A0, setting MSRC001_1029 Decode Configuration (DE_CFG) bit 14 RedirectForReturnDis [DecfgNoRdrctForReturns] to 1. Options available: Auto/1/0. Default option is Auto. Enable/Disable PFEH, cloak individual banks, and mask deferred error Platform First Error Warning interrupts from each bank.
  • Page 88 Parameter Description By default (Auto) the bronze workaround is applied. Bronze workaround: DbReq and PDM function as expected, breakpoint redirect capability compromised. Xtrig7 Workaround Silver workaround: DbReq, PDM, and breakpoint redirect function as expected, SCAN capability compromised. Options available: Auto/No Workaround/Bronze Workaround/Silver Workaround.

  • Page 89: Df Common Options

    5-3-2 DF Common Options Parameter Description Press [Enter] for configuration of advanced items. DRAM scrub time Š – Provides a value that is the number of hours to scrub memory. – Options available: Disabled/1 hour/4 hours/8 hours/16 hours/24 hours/48 hours/Auto. Default option is Auto. Poison scrubber control Š...
  • Page 90 Parameter Description Press [Enter] for more options. NUMA notes per socket Š – Specifies the number of desired NUMA (Non-uniform Memory Access) notes per socket. Zero will attempt to interleave the two sockets together. – Options available: NPS0/NPS1/NPS2/NPS4/Auto. Default option is Auto.
  • Page 91 Parameter Description Press [Enter] for more options. GMI encryption control Š – Control GMI link encryption. – Options available: Disable/Enable/Auto. Default option is Auto. xGMI encryption control Š – Control xGMI link encryption.Options available: Disable/Enable/ Auto. Default option is Auto. CAKE CRC perf bounds control Š...

  • Page 92: Umc Common Options

    5-3-3 UMC Common Options Parameter Description Press [Enter] for more options. Enforce POR Š – Press [Enter] to configure the enforcement of Plan Of Record (POR) which enables enforcement of POR restrictions for DDR4 frequency and voltage programming. Memory speeds will be capped at Intel guidelines.
  • Page 93 Parameter Description Press [Enter] for more options Chipselect Interleaving Š – Interleave memory blocks across the DRAM chip slects for node 0 – Options available: Disabled/Auto. Default option is Auto. BankGroupSwap Š – Configures the BankGroupSwap. BankGroupSwap (BGS) is a memory mapping option in AGESA that alters how applications get assigned to physical locations within the memory modules.

  • Page 94: Nbio Common Options

    5-3-4 NBIO Common Options Parameter Description NBIO Common Options Enable/Disable IOMMU. IOMMU Options available: Enabled/Disabled. Default setting is Disabled. AER must be enabled for ACS enable to work. ACS Enable Options available: Enable/Disabled/Auto. Default option is Auto. Enables Alternative Routing ID Interpretation. PCIe ARI Support Options available: Disable/Enable/Auto.
  • Page 95 Parameter Description Press [Enter] for more options. Determinism Control Š – Auto = Use the fused determinism, Manual = User can set customized determinism. – Options available: Manual/Auto. Default option is Manual. cTDP Control Š – Auto = Use the fused TDP, Manual = User can set customized TDP.
  • Page 96 Parameter Description Press [Enter] for more options. NBIO RAS Global Control Š – Options available: Manual/Auto. Default option is Auto. NBIO RAS Control Š – 0 = Disabled, 1 = MCA, 2 = Legacy. – Options available: Disabled/MCA/Legacy. Default option is MCA. Egress Poison Severity High Š...
  • Page 97 Parameter Description System Hub Watchdog Timer Š – Enter a value. This value specifies the timer interval of the SYSHUB watchdog timer in miliseconds. SLINK Read Response OK Š – This value specifies whether SLINK read response errors are converted to an Okay response. When this value is set to TRUE, read response errors are converted to Okay responses with data of all FFs.
  • Page 98 Parameter Description Sync Flood on PCIe Fatal Error Š – When 'Sync Flood on PCIe Fatal Error' is True, PcdAmdPcieSyncFloodOnFatal should be set to True. When 'Sync NBIO RAS Common Options Flood on PCIe Fatal Error' is False, PcdAmdPcieSyncFloodOnFatal (continued) should be set to False.

  • Page 99: Fch Common Options

    5-3-5 FCH Common Options Parameter Description FCH Common Options SATA Enable Š – Enable or disable OnChip SATA controller. – Options available: Disabled/Enabled/Auto. Default setting is Auto. SATA RAS Support Š – Enable or disable SATA RAS support. – Options available: Disabled/Enabled/Auto. Default setting is Auto. SATA Configuration Options Sata Disabled AHCI Prefetch Function Š...
  • Page 100 Parameter Description Press [Enter] for more options. XHCI Controller0 Enable Š – Enable or disable USB3 controller. – Options available: Enabled/Disabled/Auto. Default setting is Auto. XHCI Controller1 Enable Š USB Configuration Options – Enable or disable USB3 controller. – Options available: Enabled/Disabled/Auto. Default setting is Auto. USB ecc SMI Enable Š...
  • Page 101 Parameter Description Press [Enter] for more options. eMMC/SD Configure Š – Options available: Disabled/SD Normal Speed/SD High Speed/SD UHSI-SDR50/SD UHSI-DDR50/SDUHSI-SDR104/eMMC Emmc Backward Compatibility/eMMC High Speed SDR/eMMC High Speed DDR/eMMC HS200/eMMCHS400/eMMC HS300/Auto. Default setting is Auto. eMMC Options Driver Type Š –...

  • Page 102: Ntb Common Options

    5-3-6 NTB Common Options Parameter Description NTB Common Options Enable or disable OnChip SATA controller. NTB Enable Options available: Auto/Enable. Default setting is Auto. BIOS Setup - 102 -...

  • Page 103: Soc Miscellaneous Control

    5-3-7 SOC Miscellaneous Control Parameter Description Soc Miscellaneous Control Enable = Enable ConsoleOut Function for ABL Disable = Disable ConsoleOut Function for ABL ABL Console Out Control Auto = Keep default behavior Options available: Disable/Enable/Auto. Default setting is Auto. - 103 - BIOS Setup...

  • Page 104: Amd Pbs Option Menu

    AMD PBS Option Menu AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a submenu item, then press [Enter] to access the related submenu screen. Parameter Description AMD PBS Press [Enter] for advanced configurations. Enable or disable SPI Locking for protect ROM part.

  • Page 105: Ras

    5-4-1 RAS Parameter Description Enable or disable Periodic SMI for polling [MCA Threshold] error. RAS Periodic SMI Control Options Available: Disabled/Enabled. Default option is Enabled. Enter a value. Limits the number of [MCA Threshold and Deferred Error SMI source] SMI Threshold per a unit of time (Defined by [SMI Scale]).
  • Page 106 Parameter Description PCIe UnCorr GHES Notify Notification type for PCIe uncorrected errors. Type Options Available: Polled/NMI. Default option is NMI. PCIe Root Port Corr Err Mask Enter a value. Intialize the PCIe AER Corrected Error Mask register of Root Port. PCIe Root Port UnCorr Err Enter a value.

  • Page 107: Chipset Setup Menu

    Chipset Setup Menu Chipset Setup menu displays submenu options for configuring the function of the North Bridge. Select a submenu item, then press [Enter] to access the related submenu screen. Parameter Description PCIe Link training in 1 or 2 steps. PCIe Link Training Type Options available: 1 Step/2Step.

  • Page 108: Server Management Menu

    Server Management Menu Parameter Description FRB-2 Timer FRB-2 timer (POST timer). Configure the FRB2 Timer timeout. Options available: 3 minutes/4 minutes/5 minutes/6 minutes. Default setting is 6 FRB-2 Timer minutes. timeout (NOTE) This item is configurable when FRB-2 Timer is set to Enabled. Configure the FRB2 Timer policy.
  • Page 109 Parameter Description View FRU Press [Enter] to view the advanced items. Information BMC network Press [Enter] to configure advanced items. configuration IPv6 BMC Network Press [Enter] to configure advanced items. Configuration - 109 - BIOS Setup...

  • Page 110: System Event Log

    5-6-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled/Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Erasing SEL Options available: No/Yes, On next reset/Yes, On every reset.

  • Page 111: View Fru Information

    5-6-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased. - 111 - BIOS Setup...

  • Page 112: Bmc Network Configuration

    5-6-3 BMC Network Configuration Parameter Description BMC network configuration Lan Channel 1 Select to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters Configuration Address source during BIOS phase. Options available: Unspecified/Static/DynamicBmcDhcp. Default setting is DynamicBmcDhcp.

  • Page 113: Ipv6 Bmc Network Configuration

    5-6-4 IPv6 BMC Network Configuration Parameter Description IPv6 BMC Network Configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is IPv6 BMC Lan Option disabled, the system will not modify any BMC network during BIOS phase. Options available: Unspecified/Disable/Enable.

  • Page 114: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 115: Secure Boot

    5-7-1 Secure Boot Parameter Description System Mode Displays the system is in User mode or Setup mode. Enables/Disables Secure Boot. The mode change requires a platform Secure Boot reset. Options available: Disabled/Enabled. Default setting is Disabled. Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates.
  • Page 116 Parameter Description Factory Key Provision Š – Installs factory default Secure Boot keys after the platform resets and the system is in Setup Mode. – Options available: Disabled/Enabled. Default setting is Disabled. Restore Factory Keys Š – Installs factory default Secure Boot key databases. It will force the system in User Mode.

  • Page 117: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.

  • Page 118: Uefi Network Drive Bbs Priorities

    Parameter Description UEFI Network Drive BBS Press [Enter] to configure the boot priority. Priorities UEFI Application Boot Priorities Press [Enter] to configure the boot priority. BIOS Setup - 118 -...
  • Page 119 5-8-1 UEFI NETWORK Drive BBS Priorities The UEFI network drive BBS priorities submenu allows you to specify the boot device priority from the available UEFI network drives during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable.
  • Page 120 5-8-2 UEFI Application Boot Priorities The UEFI application boot priorities submenu allows you to specify the boot device priority from the available UEFI applications during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. BIOS Setup - 120 -...

  • Page 121: Save & Exit Menu

    Save & Exit Menu The Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press [Enter]. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes/No.

  • Page 122: Abl Post Codes

    5-10 ABL POST Codes 5-10-1 Start Processor Test Points Entry used for range testing for @b Processor related TPs 0xE000 5-10-2 Memory test points Memory structure initialization (Public interface) 0xE001 SPD Data processing (Public interface) 0xE002 Memory configuration (Public interface) Phase 1 0xE003 DRAM initialization 0xE004...

  • Page 123: Original Post Code

    ABL Mem - PMU Stage Training Wr 2D 0xE023 ABL Mem - PMU Queue Empty 0xE024 ABL Mem - PMU US message Start 0xE025 ABL Mem - PMU US message End 0xE026 ABL Mem - PMU Complete 0xE027 ABL Mem - PMU - After PMU Training 0xE028 ABL Mem - PMU - Before Disable PMU 0xE029...

  • Page 124: Cpu Test Points

    ABL Mem - Before OtherTiming 0xE04A ABL Mem - Before UMAMemTyping 0xE04B ABL Mem - Before SetDqsEccTmgs 0xE04C ABL Mem - Before MemClr 0xE04D ABL Mem - Before On DIMM Thermal 0xE04E ABL Mem - Before DMI 0xE04F ABL MEM - End of phase 3 memory code 0xE050 5-10-5 CPU test points Entry point CPU init after training...

  • Page 125: Gnb Earlier Init

    5-10-8 Gnb Earlier init TP0x90 0xE090 GNB earlier interface 0xE091 GNB internal debug code 0xE092 GNB internal debug code 0xE093 GNB internal debug code 0xE094 GNB internal debug code 0xE095 GNB internal debug code 0xE096 GNB internal debug code 0xE097 GNB internal debug code 0xE098 GNB internal debug code...
  • Page 126 ABL 2 Begin 0xE0B8 ABL 2 Initialization 0xE0B9 ABL 2 After Training 0xE0BA ABL 2 Debug Synchronization 0xE0BB ABL 2 Error detected 0xE0BC ABL 2 Global memory error detected 0xE0BD ABL 2 End 0xE0BE ABL 3 Begin 0xE0BF ABL 3 Initialziation 0xE0C0 ABL 3 GMI/xGMI Initialization Stage 1 0xB1C0...
  • Page 127 ABL 4 APOB Initialization - cold boot 0xE0CA ABL 4 Finalize memory settings - cold boot 0xE0CB ABL 4 CPU Initialize Optimized Boot - cold boot 0xE0CC ABL 4 Gmi Pcie Training - cold boot 0xE0CD ABL 4 Cold boot End 0xE0CE ABL 4 Initialization - Resume boot 0xE0CF...

  • Page 128: Pmu Test Points

    Before the memory code calls out to locate a buffer 0xE0F3 After the memory code calls out to locate a buffer 0xE0F4 Before the memory code calls out to locate a buffer 0xE0F5 After the memory code calls out to locate a buffer 0xE0F6 Before the memory code calls out to locate a buffer 0xE0F7...
  • Page 129 ABL Error for Soc Scan No Die error 0xE2AC ABL Error for Nb Tech Heap Aloc error 0xE2AD ABL Error for No Nb Constructor error 0xE2AE ABL Error for No Tech Constructor error 0xE2AE ABL Error for ABL1b Auto Alocation error 0xE2B0 ABL Error for ABL1b No NB Constructor error 0xE2B1...
  • Page 130 ABL Error over clock Mem Init Error 0xE2D5 ABL Error over clock Mem Other Error 0xE2D6 ABL Error for ABL6 General Error 0xE2D7 ABL Error Event Log Error 0xE2D8 ABL Error FATAL ABL1 Log Error 0xE2D9 ABL Error FATAL ABL2 Log Error 0xE2DA ABL Error FATAL ABL3 Log Error 0xE2DB...
  • Page 131 ABL Error ABL 2 Mem Init Error 0xE302 ABL Error ABL 4 Mem Init Error 0xE303 ABL Error ABL 6 Mem Init Error 0xE304 ABL Error ABL 1 error repor Error 0xE305 ABL Error ABL 2 error repor Error 0xE306 ABL Error ABL 3 error repor Error 0xE307 ABL Error ABL 4 error repor Error...

  • Page 132: Agesa Post Codes

    5-11 Agesa POST Codes 5-11-1 Universal Post Code Universal ACPI entry 0xA001 Universal ACPI exit 0xA002 Universal ACPI abort 0xA003 Universal SMBIOS entry 0xA004 Universal SMBIOS exit 0xA005 Universal SMBIOS abort 0xA006 5-11-2 [0xA1XX] For CZ only memory Postcodes Memory structure initialization (Public interface) 0xA101 SPD Data processing (Public interface) 0xA102...
  • Page 133 Calculate MaxRdLatency per channel 0xA120 TpProcMemReceiveDqsTraining 0xA121 Set Write Data delay 0xA122 Write test pattern 0xA123 Start read sweep 0xA124 Set Receive DQS delay 0xA125 Read Test pattern 0xA126 Compare Test pattern 0xA127 Update results 0xA128 Start Find passing window 0xA129 TpProcMemTransmitDqsTraining 0xA12A...
  • Page 134 Before InitMCT 0xA149 Before OtherTiming 0xA14A Before UMAMemTyping 0xA14B Before SetDqsEccTmgs 0xA14C Before MemClr 0xA14D Before On DIMM Thermal 0xA14E Before DMI 0xA14F End of memory code 0xA150 Entry point S3Init 0xA151 Sending MRS2 0xA180 Sedding MRS3 0xA181 Sending MRS1 0xA182 Sending MRS0 0xA183...

  • Page 135: S3 Interface Post Code

    BR Init Mid end 0xA19E BR Init Late entry 0xA19F BR Init Late install protocol 0xA1A0 BR Init Late end 0xA1A1 BR DXE install complete protocol 0xA1A2 UNB install complete PPI 0xA1A3 UNB AfterApLaunch callback entry 0xA1A4 UNB AfterApLaunch callback end 0xA1A5 5-11-3 S3 Interface Post Code Before the S3 save code calls out to allocate a buffer...
  • Page 136 PspSmmV1 SwSmiCallBack exit, build the S3 save area for resume 0xA511 PspSmmV1 BspSmmResumeVector entry 0xA512 PspSmmV1 BspSmmResumeVector exit 0xA513 PspSmmV1 ApSmmResumeVector entry 0xA514 PspSmmV1 ApSmmResumeVector exit 0xA515 PspP2CmboxV1 entry 0xA516 PspP2CmboxV1 exit 0xA517 // PSP V2 Modules PspPeiV2 entry 0xA521 PspPeiV2 exit 0xA522 PspDxeV2 entry...
  • Page 137 PspP2Cmbox Command SpiSetAttrib Handling entry 0xA592 PspP2Cmbox Command SpiGetBlockSize Handling entry 0xA593 PspP2Cmbox Command SpiReadFV Handling entry 0xA594 PspP2Cmbox Command SpiWriteFV Handling entry 0xA595 PspP2Cmbox Command SpiEraseFV Handling entry 0xA596 PspP2Cmbox Command Handling exit 0xA59E PspP2Cmbox Command Handling Fail exit 0xA59F // C2P mailbox Handling PSP C2P mailbox entry base [0xA5BX | Cmd]...

  • Page 138: 0Xa9Xx, 0Xaaxx] Assigned For Agesa Nbio Module

    5-11-6 [0xA9XX, 0xAAXX] assigned for AGESA NBIO Module // NbioBase AmdNbioBase PEIM driver entry 0xA900 AmdNbioBase PEIM driver exit 0xA901 AmdNbioBase DXE driver entry 0xA902 AmdNbioBase DXE driver exit 0xA903 // PCIe AmdNbioPcie PEIM driver entry 0xA904 AmdNbioPcie PEIM driver exit 0xA905 AmdNbioPcie DXE driver entry 0xA906...
  • Page 139 // APCB SMM APCB SMM Entry 0xA924 APCB SMM Exit 0xA925 // [0xA950, 0xA99F] NBIO PPI/PROTOCOL Callback NbioTopologyConfigureCallback entry 0xA950 NbioTopologyConfigureCallback exit 0xA951 MemoryConfigDoneCallbackPpi entry 0xA952 MemoryConfigDoneCallbackPpi exit 0xA953 DxioInitializationCallbackPpi entry 0xA954 DxioInitializationCallbackPpi exit 0xA955 DispatchSmuV9Callback entry 0xA956 DispatchSmuV9Callback exit 0xA957 DispatchSmuV10Callback entry 0xA958...

  • Page 140: 0Xacxx] Assigned For Agesa Ccx Module

    GfxConfigEnvInterface entry 0xA984 GfxConfigEnvInterface exit 0xA985 GfxEnvInterfaceCZ entry 0xA986 GfxEnvInterfaceCZ exit 0xA987 GfxMidInterfaceCZ entry 0xA988 GfxMidInterfaceCZ exit 0xA989 GfxIntInfoTableInterfaceCZ entry 0xA98A GfxIntInfoTableInterfaceCZ exit 0xA98B PcieMidInterfaceCZ entry 0xA98C PcieMidInterfaceCZ exit 0xA98D GnbMidInterfaceCZ entry 0xA98E GnbMidInterfaceCZ exit 0xA98F GnbSmuMidInterfaceCZ entry 0xA990 GnbSmuMidInterfaceCZ exit 0xA991 InvokeAmdInitLate entry 0xA992...

  • Page 141: 0Xadxx] Assigned For Agesa Df Module

    5-11-8 [0xADXX] assigned for AGESA DF Module DF PEI entry 0xAD50 DF DXE entry 0xAD55 DF Ready to Boot entry 0xAD56 DF PEI exit 0xADE0 DF DXE exit 0xADE5 DF Ready to Boot exit 0xADE6 5-11-9 [0xAFXX] assigned for AGESA FCH Module FCH InitReset dispatch point 0xAF01 FCH InitEnv dispatch point...
  • Page 142 FCH InitEnv AB Link 0xAF51 FCH InitEnv LPC 0xAF52 FCH InitEnv SPI 0xAF53 FCH InitEnv eSPI 0xAF54 FCH InitEnv SD 0xAF55 FCH InitEnv eMMC 0xAF56 FCH InitEnv SATA 0xAF57 FCH InitEnv USB 0xAF58 FCH InitEnv xGbE 0xAF59 FCH InitEnv HwAcpiP 0xAF5F FCH InitMid HwAcpi 0xAF60...

  • Page 143: Bios Post Beep Code (Ami Standard)

    5-12 BIOS POST Beep code (AMI standard) 5-12-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...

Table of Contents
