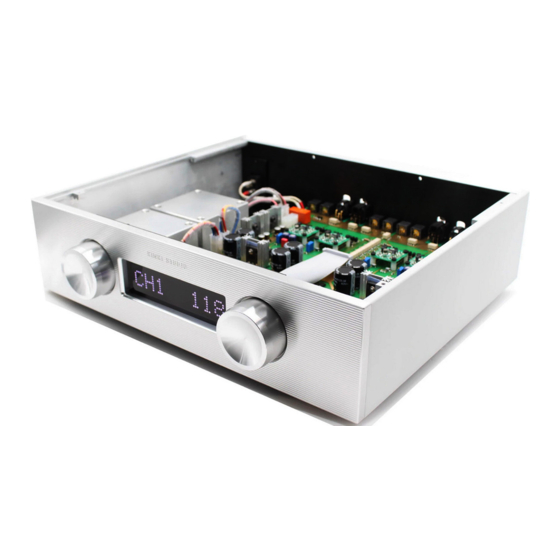

- Page 1 KINKI STUDIO EX-P7 PREAMPLIFIER INSTRUCTION MANUAL - We are from China -...
- Page 2 In order to obtain the best results, KINKI STUDIO insists on using the advanced technology in the audio industry, continuous improvement and refinement over the years, created KINKI STUDIO today.
- Page 3 WARNING 警 告 These instructions must be read before starting the connection or operation, otherwise the amplifier may be risk to mis-operational damage. Please read and understand the operation and application in detail below. This is a very high quality amplifier, features with new technology. It is the industry leading audio system for reproducing accurate sound.
-
Page 4: Table Of Contents
CONTENT 目 录 0 1 U n p a c k i n g - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 0 2 P l a c e m e nt &... -
Page 5: 1 U N P A C K I N G
If the preamplifier needs to be returned to the factory for servicing/warranty or secondary transportation, please use the original packaging. The packaging is specially designed and manufactured by KINKI STUDIO, which can better protect the amplifier during transportation, so please keep the original after unpacking the package. -
Page 6: 2 P L A C E M E Nt & C O L D S Ta R T
The normal working voltage of the EX-P7 is AC 100-120V for AC110 option, and AC 200V~245V for AC230 option. If your normal operating voltage is outside the above range, please consult us. The EX-P7 is protected by a fuse located at the IEC inlet, rated at 2A slow blow fuse. -
Page 7: 4 C O N N E C T I O N S
KINKI STUDIO 4. Connections Connect the power cord to the IEC inlet of the amplifier and plug it into the power plug socket. For safety reasons, a 3-wire grounding (earth) plug must be used, whenever possible. In order to get the best sound from the amplifier, avoid using any multiple plugs socket or extension cords. -
Page 8: 5 C O N T R O L
5. Control Power Up The power inlet IEC of the EX-P7 is located at the rear panel. After the power is supplied to the amplifier, it will be in Standby state. Press the front panel left knob (SELECT) once. The display indicator light flashes signify a Start Up sequence. - Page 9 KINKI STUDIO 5. Control – Con’t Mute Under normal working conditions, press the right knob (VOLUME) once, the display will show MUTE, the input source number and volume display will disappear, the amplifier will be in the Mute state. To un-mute, press the right knob again to return the amplifier to the Operational state.
-
Page 10: 6 O P T I M I Za T I O N
40 degrees Celsius. It is advisable to keep the supply power on all the time for optimal performance. Note: The EX-P7 amplifier takes about 300 hours to burn in. Please don't worry, the sound will and can only be improved as it burns in. -
Page 11: 7 Re M O T E C O N T Ro L
V+ V- (Volume Control) 8. Product Care The EX-P7 usually requires no maintenance and requires only occasional cleaning of the physical surface. The power must be turned off and removed before cleaning the amplifier. Clean the surface of the amplifier with a soft, slightly damp cloth. Wipe gently with a soft cloth dampened with water or a mild detergent solution. -
Page 12: 9 Te C H N I C A L Pa Ra M E Te Rs
KINKI STUDIO 10. Technical Parameters Frequency Response: 0-150kHz (±1dB) THDN: 0.003% (-80dB) S/N Ratio: >90dB Channel Separation: >90dB Input Sensitivity: 2.25Vrms - 3.6Vrms Input Impedance: 50kΩ Input Connector: RCA x 2, XLR x 1 Output Voltage: 2.25Vrms - 3.6Vrms Output Impedance: 75Ω... - Page 13 KINKI STUDIO Input Selection/On Off Display Volume Control Front Panel...
- Page 14 KINKI STUDIO HIGH A1 Preout A2 Preout B Preout Fuse Holder CH2 Input CH3 Input IEC Inlet CH1 Input Gain Switch High – Normal Low – Minus 4db Gain Rear Panel...
- Page 15 KINKI STUDIO...
