RACK EAR MOUNTING OPTIONS

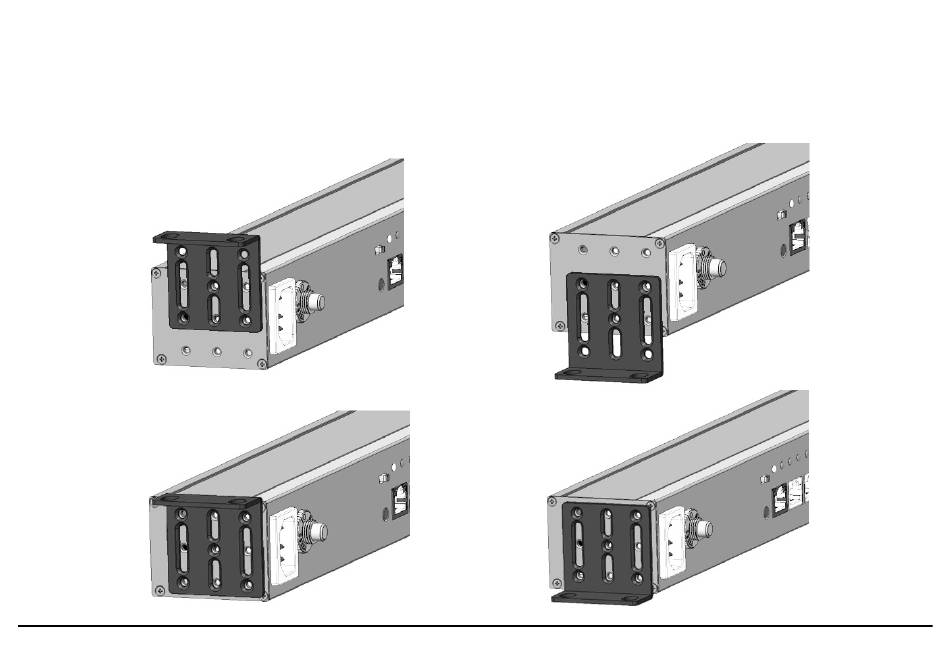

The rack ears can be used to mount the power strip in several arrangements other than on the rack. You can mount it under a counter
or shelf (below left), on top of a table (below right), or against the wall (not shown). With each of these options, you can choose to
mount it flush to the surface (bottom) or displaced (top). In addition, you can mount the unit at angled increments of 45°. See our
website for examples.
Page 5
