WATTBOX™ 600 Chassis Series Owners Manual
POWER
SAFE VOLTAGE
PROTECTED
GROUNDED

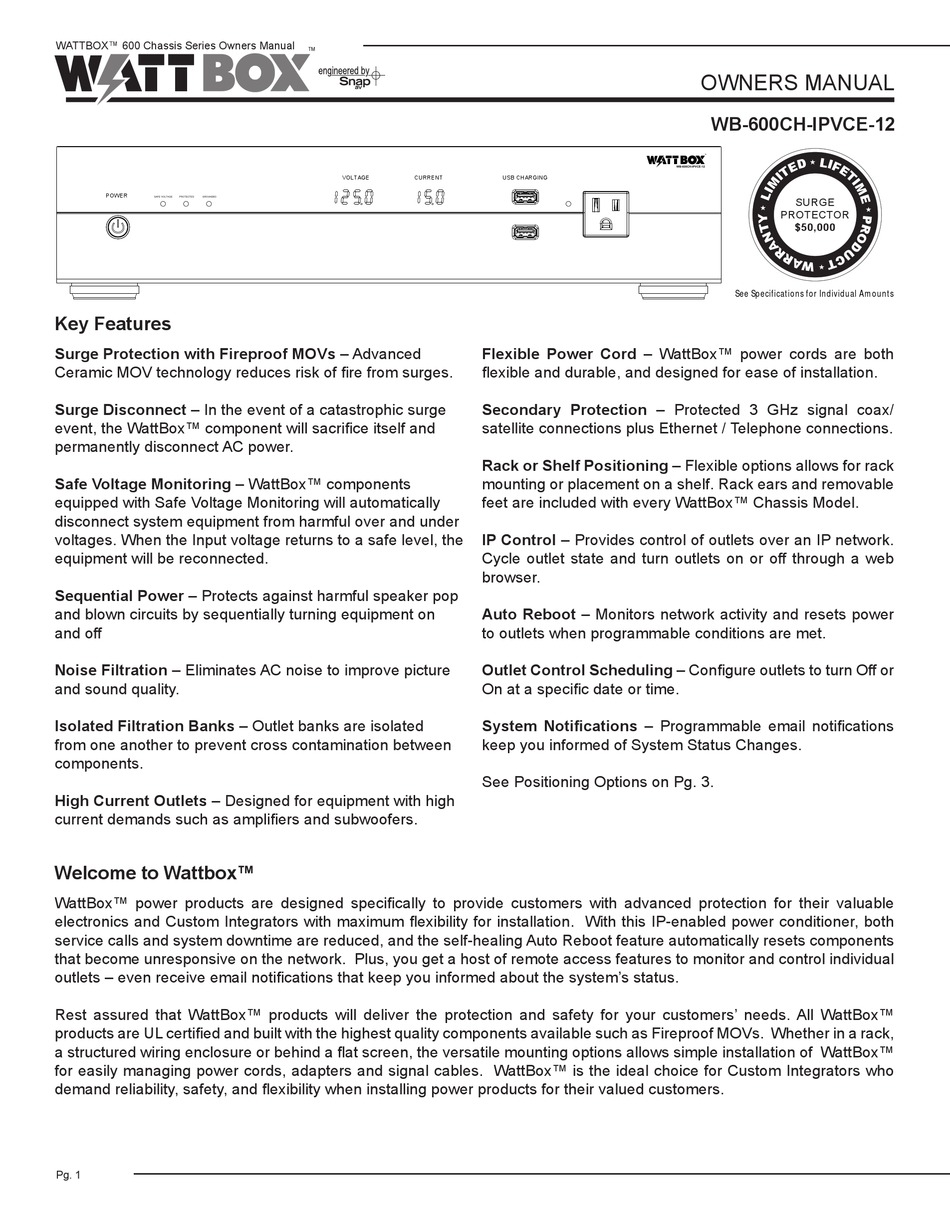

Key Features

Surge Protection with Fireproof MOVs – Advanced
Ceramic MOV technology reduces risk of fire from surges.
Surge Disconnect – In the event of a catastrophic surge
event, the WattBox™ component will sacrifice itself and
permanently disconnect AC power.
Safe Voltage Monitoring – WattBox™ components
equipped with Safe Voltage Monitoring will automatically
disconnect system equipment from harmful over and under
voltages. When the Input voltage returns to a safe level, the
equipment will be reconnected.
Sequential Power – Protects against harmful speaker pop
and blown circuits by sequentially turning equipment on
and off
Noise Filtration – Eliminates AC noise to improve picture
and sound quality.
Isolated Filtration Banks – Outlet banks are isolated
from one another to prevent cross contamination between
components.
High Current Outlets – Designed for equipment with high
current demands such as amplifiers and subwoofers.
Welcome to Wattbox™
WattBox™ power products are designed specifically to provide customers with advanced protection for their valuable
electronics and Custom Integrators with maximum flexibility for installation. With this IP-enabled power conditioner, both
service calls and system downtime are reduced, and the self-healing Auto Reboot feature automatically resets components
that become unresponsive on the network. Plus, you get a host of remote access features to monitor and control individual
outlets – even receive email notifications that keep you informed about the system's status.
Rest assured that WattBox™ products will deliver the protection and safety for your customers' needs. All WattBox™
products are UL certified and built with the highest quality components available such as Fireproof MOVs. Whether in a rack,
a structured wiring enclosure or behind a flat screen, the versatile mounting options allows simple installation of WattBox™
for easily managing power cords, adapters and signal cables. WattBox™ is the ideal choice for Custom Integrators who
demand reliability, safety, and flexibility when installing power products for their valued customers.
Pg. 1
VOLTAGE
CURRENT
Flexible Power Cord – WattBox™ power cords are both
flexible and durable, and designed for ease of installation.
Secondary Protection – Protected 3 GHz signal coax/
satellite connections plus Ethernet / Telephone connections.
Rack or Shelf Positioning – Flexible options allows for rack
mounting or placement on a shelf. Rack ears and removable
feet are included with every WattBox™ Chassis Model.
IP Control – Provides control of outlets over an IP network.
Cycle outlet state and turn outlets on or off through a web
browser.
Auto Reboot – Monitors network activity and resets power
to outlets when programmable conditions are met.
Outlet Control Scheduling – Configure outlets to turn Off or
On at a specific date or time.
System Notifications – Programmable email notifications
keep you informed of System Status Changes.
See Positioning Options on Pg. 3.

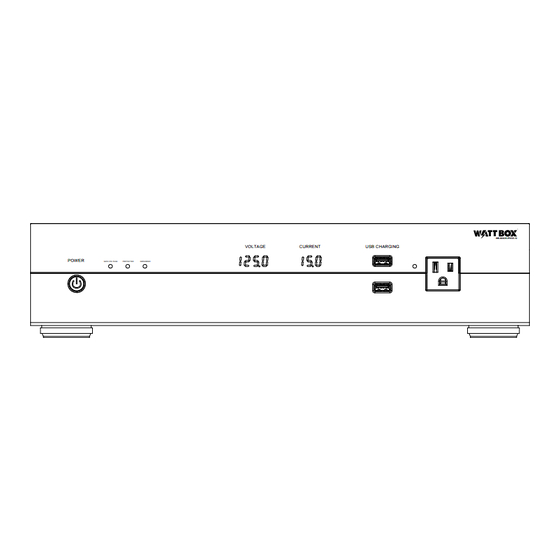

WB-600CH-IPVCE-12
USB CHARGING
OWNERS MANUAL
WB-600CH-IPVCE-12
SURGE
SURG E
PROTECTOR
PRO TEC TOR
$50,000
$50,000
See Specifications for Individual Amounts
