WattBox WB-ACC-TRIGGER Install Manual

The WattBox Trigger provides users with an easy way to cycle power on any or

all of the outlets on a WB-IP device.

Package Contents

• WattBox Trigger (normally open, momentary closed) switch with adhesive

backing

• Capacitor (buffers the system against stray signals that create a false trigger)

If your WattBox unit has a service tag (S/T) that ends with the letter "A," attach the

leads from the included capacitor to the leads from the trigger.

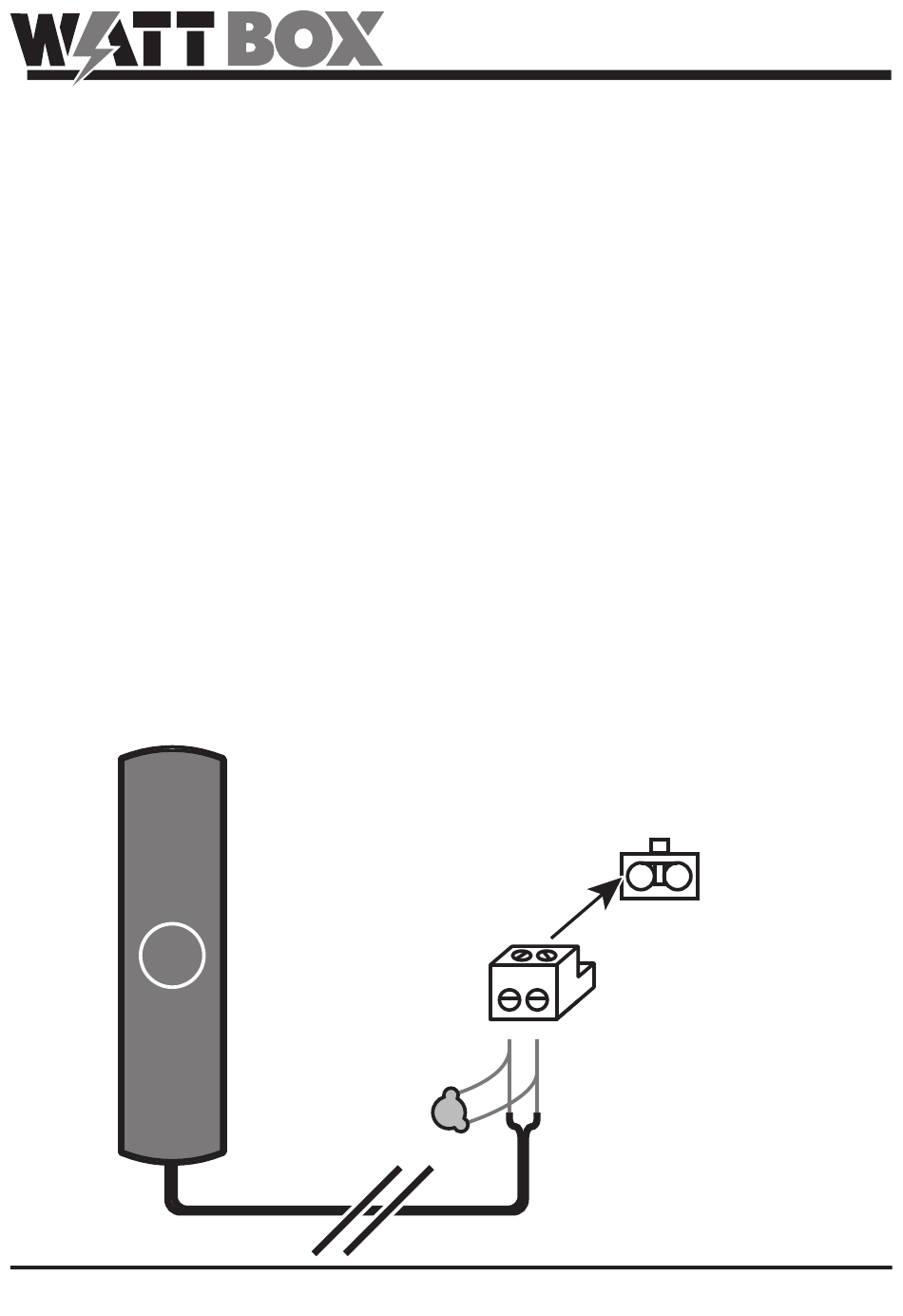

Position the switch in the desired location, then connect to the "REMOTE

TRIGGER" port on the WattBox using the phoenix connector included with the

IP device. Then log into the WB-IP interface to enable the trigger port and select

which outlets to power cycle.

Phoenix

connector

Capacitor

INSTALL GUIDE

WB-ACC-TRIGGER

Remote trigger

on the WattBox

Extend wiring

up to 45'/13.7m

using Cat5 or other

conductors 24AWG

or larger. Wires can

be connected either

way (no polarity).
