- Page 1 Manual for Installation, Operation and Maintenance of 6 Stage Point of Use RO & UV Drinking Water System AAA-RO50UVA AAA-RO100UVA Document ID #: AAAROUVA www.appliedmembranes.com (760) 727-3711 sales@ appliedmembranes.com Revision: 05/13/20...
-
Page 2: About Your Ro Water Treatment System
About Your RO Water Treatment System Thank you for your purchase of the AMI home RO reverse osmosis water treatment system. This drinking water system has been designed for quick and simple installation and maintenance. By carefully reading this instruction manual and following the operational guidelines you will ensure a successful installation and reliable operation. -
Page 3: Table Of Contents
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Table of Contents About Your RO Water Treatment System ......................1 5 Stages of Water Treatment ..........................1 System On/Off Valves ............................1 Table of Contents ............................... 2 Conditions for Operation ........................... -
Page 4: Conditions For Operation
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Conditions for Operation Source Water Supply Community/Private Non-Chlorinated – or chlorinated as long as the carbon filter is in place and replaced every 6 months. Chlorine will damage membranes if not removed properly. -
Page 5: System Flow Diagram
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV System Flow Diagram Water supply to the first housing Clean Water Outlet Water supply to the second housing Pollutants Outlet Water supply to the third housing Water Supply to the 4-way valve from the Housing with the RO Membrane elbow connector “OUT”... -
Page 6: Preparing For Installation
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Preparing For Installation Check the following list of components to ensure that all parts are packed with your system. RO System Filter Housing Filter Cartridges Manifold Assembly Sumps (Packed in Sumps) -
Page 7: Prepare Tubing
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Prepare Tubing When cutting tube lengths, it is important to ensure the system is accessible for maintenance. During installation and measuring, it is recommended to complete all of the tubing connections to the system with the system in front of the cabinet (before mounting) to allow enough slack for easy removal of the system for easier maintenance. -
Page 8: Step 1 - Drill A Hole Into The Sink For The Faucet
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Step 1 - Drill a Hole into the Sink for the Faucet Notice: If your sink is equipped with a pre-drilled 1 ¼” or 1 ½” hole suitable for the faucet installation, you may skip to step 2. -
Page 9: Step 2 - Faucet Installation
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Step 2 - Faucet Installation For this step, you will need: Faucet assembly kit included with System Tubing, cut to the appropriate length ... -
Page 10: Step 3 - Drain Saddle Installation
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Step 3 - Drain Saddle Installation Notice: Some states require the use of an air gap faucet. Check your local plumbing code to assure compliance. For this step you will need: o Masking tape or duct tape o Variable speed drill w/ ⅛”... -
Page 11: Step 4 - System Feed Line Installation
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Step 4 – System Feed Line Installation For this step you will need: ½” and ” open-end wrenches (or two adjustable wrenches) Teflon Tape ... -
Page 12: Step 5 - Installing The Ro Storage Tank
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Step 5 – Installing the RO Storage Tank For this step you will need: Storage Tank Tank Valve Tubing Notice: Do not tamper with the air valve on the low side of the storage tank. It has been factory charged to 8psi and covered with a black cap. -
Page 13: System Mounting
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV System Mounting Wall mounting is recommended for this system. Dry wall anchors and screws may be necessary (not included with the system). Mark screw locations at the desired positions. Use the two holes on the back of the RO System mounting bracket for marker guides. -
Page 14: Replacement Parts
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Replacement Parts Sediment Pre-Filter, Carbon Pre-Filter, Replacement Filter Kits: 5 Micron. Extruded Carbon Stage 1 Stage 2 & 3 Model: H-F1005CF Model: H-F2510AC Qty. 1 Per System Qty. -
Page 15: System Maintenance
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV System Maintenance Unplug the UV before perorming any maintenance to the system. Notice: Notice: If your RO system is connected to an icemaker or other equipment, you must turn off the connection to the equipment before performing any maintenance. - Page 16 Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Replacing UV Lamp UV lamps should be replaced every 12 months. The quartz sleeve can be re-used, but is very fragile. It is recommended to have a spare quartz sleeve on hand in case it is broken during the lamp change. Close the system feed valve and the Using a small container to drain Holding the chamber vertically,...
- Page 17 Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Cleaning and Replacing Quartz Sleeve Note: Minerals in the water slowly form a coating on the quartz sleeve. This coating must be removed because it reduces the amount of UV light reaching the water, thereby reducing disinfection performance.
-
Page 18: Sanitizing
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Sanitizing We recommend sanitizing the system at least once a year. This can be done while changing your filters. Shut down the system. If you have an icemaker hook-up installed, be sure the ball valve in the line to the refrigerator is in the closed position during this procedure. -
Page 19: Troubleshooting Chart
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Troubleshooting Chart Symptom Possible Cause Remedy No water in the storage Filter Cartridges have failed. Replace filter cartridges as indicated in tank maintenance section. Cartridges are out of Install cartridges in proper sequence as sequence. -
Page 20: Uv System Operation Safety
Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV UV System Operation Safety D A N G E R Failure to follow these instructions will result in serious injury or death. Electric Shock: To avoid possible electric shock, special care should be taken since water is present near the electrical equipment. Unless a situation is encountered that is explicitly addressed by the provided maintenance and troubleshooting sections, do not attempt repairs yourself, refer to an authorized service facility. - Page 21 Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Notes:_______________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ Copyright © 2020 Applied Membranes, Inc. Page 20 All Rights Reserved.
- Page 22 Installation and Service Manual – Under-the-Counter Point of Use 6 Stage Reverse Osmosis System with UV Notes:_______________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ Copyright © 2020 Applied Membranes, Inc. Page 21 All Rights Reserved.
- Page 23 Product Warranty SELLER hereby warrants to CUSTOMER that the goods herein described will be free from any liens or encumbrances, that good title to said goods will be conveyed to CUSTOMER by sale of same. SELLER warrants materials of its own manufacture against defects in material and workmanship under normal conditions of usage and service as specified in this manual for one year from whichever of the following events occur first: ...
- Page 24 Replacement Schedule Our recommended replacement schedule is for average feed water quality. For cleaner city water, a lower frequency schedule may be sufficient. For applications where the feed water is dirtier or has specific issues, more frequent change-outs may be required. Generally speaking, filters should be changed when there is a loss of performance and after any extended periods of non-use.
Need help?
Do you have a question about the AAA-RO50UVA and is the answer not in the manual?
Questions and answers

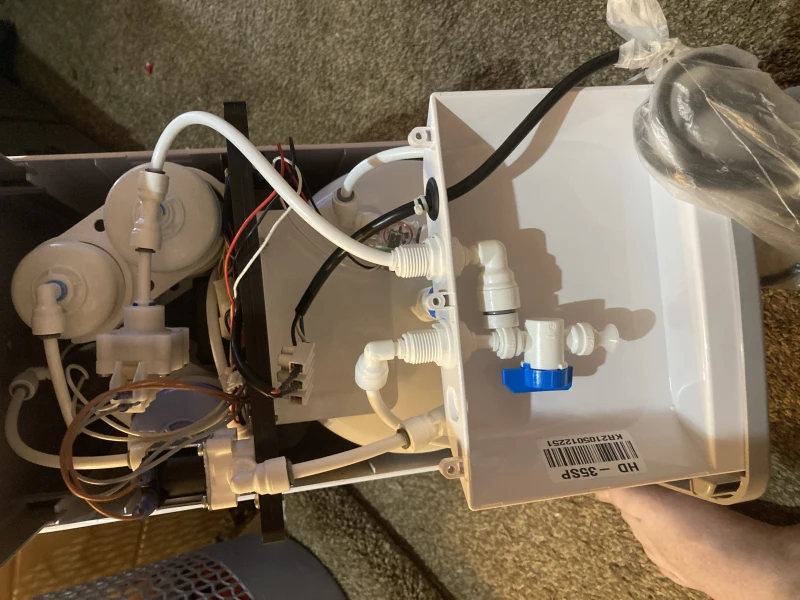

The instructions in the box does not tell you where the water inlet from the cold water supply k hill oils in to the water treatment system. I need to know where to hook up the line. I have other questions as well if you have a live tech support.
