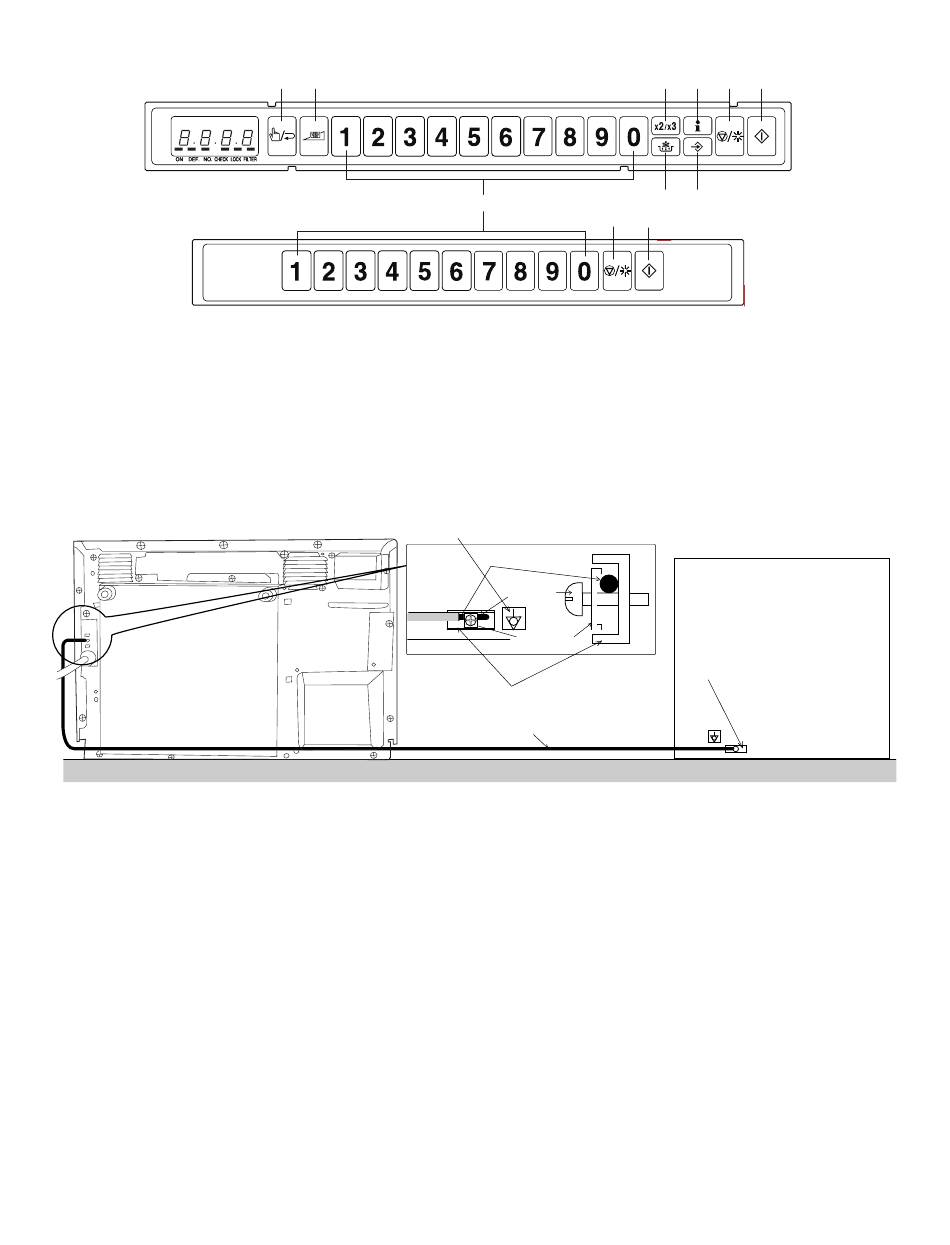

2. TOUCH CONTROL PANEL
DOOR SIDE
1. MANUAL/REPEAT pad
2. POWER LEVEL pad
3. DOUBLE/TRIPLE QUANTITY pad
[3] INSTALLATION INFORMATION
When this commercial microwave oven is installed near other commercial electrical appliances, connect a lead wire to each equivalent potential ter-
minal with equipotential marking between them (insert a lead wire between a washer and an earth angle, and screw them), as shown in Fig. A-1, to
make sure that they are at equivalent potential. If any lead wire is not connected between them, when person touch them he/she will get a electric
shock.
COMMERCIAL MICROWAVE OVEN
1
2
4. CUSTOM SETTING pad
5. STOP/CLEAR pad
6. START pad
Equipotential marking
Earth angle
(Equivalent potential terminal)
Figure A-1
3 – 2
7
5
7. Ten number pads
8. EXPRESS DEFROST pad
9. SET MEMORY pad
Lead wire
Screw
Washer
Lead wire
3
4
5
6
9
8
6
OTHER COMMERCIAL
ELECTRICAL APPLIANCE
Equivalent
potential terminal
R1500AT
