- Page 1 Upgrade dispenser S64/ S104 TechNote from Jäger to SycoTec S64/ S104...
-
Page 3: Table Of Contents
2.3 Estimated time required .................6 Disassembly dispenser ..................7 Assembly dispenser ..................11 Customer service ....................13 Appendix ......................14 6.1 List of tables ....................14 6.2 Revision list ....................14 LPKF Laser & Electronics AG | 05.10.2021 | V 1.0 3/15... -
Page 4: Purpose Of This Technote

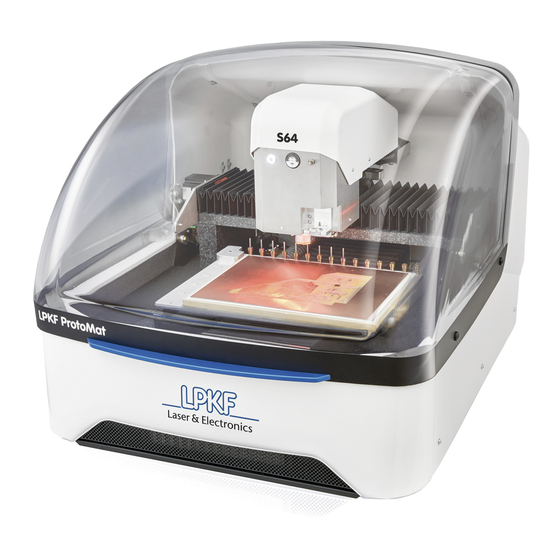

Jäger to SycoTec S64/ S104 Purpose of this TechNote This document describes how to replace the dispenser unit of the ProtoMat S64/S014. This TechNote contains specific warning messages for particular instruction steps. A detailed documentation for the appropriate system as well as further documentations for the software used can be found in the system documents. -
Page 5: Tools, Spare Parts And Auxiliary Supplies
Required tools Name Figure Flat-bladed screwdriver Diagonal pliers Torx screwdriver angled T10 Torx screwdriver angled T8 Table 3: Required tools LPKF Laser & Electronics AG | 05.10.2021 | V 1.0 5/15... -
Page 6: Required Spare Parts
5x N105927 Table 4: Required spare parts Estimated time required Work step Time required Disassembly dispenser unit 0.5 h Assembly dispenser unit 0.5 h Table 5: Estimated time required 6/15 V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG... -
Page 7: Disassembly Dispenser
Any physical contact to energized components or cables can cause, death by electrical shock, and/or fire. Only qualified electricians are allowed to work on energized parts of the system. Prerequisites • The system has been switched on LPKF Laser & Electronics AG | 05.10.2021 | V 1.0 7/15... - Page 8 Jäger to SycoTec S64/ S104 Step 1 Switch on machine Start CircuitPro Move the milling head to the middle of the x-axis Switch the machine off 8/15 V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG...
- Page 9 Step 3 Open the terminal connection CON 104 on the head pcb with a flat-bladed screwdriver Remove the conductors. Cut the cable ties with the diagonal pliers. LPKF Laser & Electronics AG | 05.10.2021 | V 1.0 9/15...
- Page 10 Disassembly dispenser from Jäger to SycoTec S64/ S104 Step 4 Remove the three screws using a Torx screwdriver T10 Remove the dispenser. The dispenser is removed. 10/15 V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG...
-
Page 11: Assembly Dispenser
Torx screwdriver Mount the cover sheets on the new dispenser unit using a Torx screwdriver Mount the dispenser Fasten the three screws using a Torx screwdriver T10 LPKF Laser & Electronics AG | 05.10.2021 | V 1.0 11/15... - Page 12 Fasten the five screws using a Torx screwdriver T10 Mount the upper head cover Fasten the four screws using a Torx screwdriver T10 The dispenser replacement is done 12/15 V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG...
-
Page 13: Customer Service
For technical information contact our LPKF Service. Visit our website for further information: http://www.lpkf.com Support via contact form or email If you want to send an email to the LPKF Service, use the contact form on our website: http://www.lpkf.com/support/contact.htm Or contact us via email:... -
Page 14: Appendix
Table 4: Required spare parts ..................6 Table 5: Estimated time required .................6 Table 6: Revision list ....................14 Revision list Version Date Change Changed by 05.10.2021 Draft S. Fehd Table 6: Revision list 14/15 V 1.0 | 05.10.2021 | LPKF Laser & Electronics AG... - Page 15 LPKF Laser & Electronics AG Osteriede 7 30827 Garbsen Germany Phone: +49 5131 7095-0 Fax: +49 5131 7095-90 www.lpkf.com...
