Summary of Contents for Mimo Monitors MWB-10-BSBI

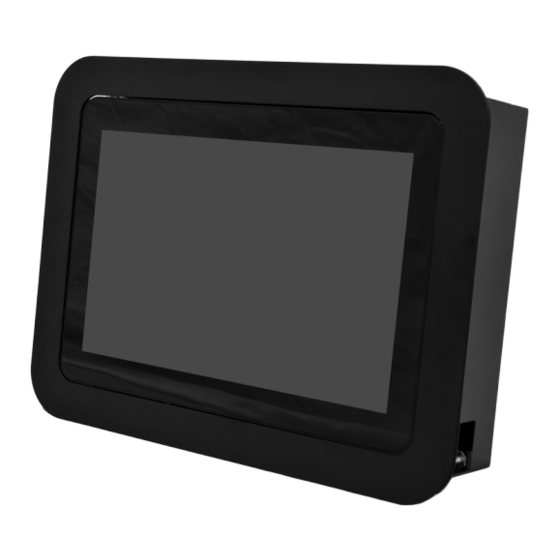

- Page 1 7”, 10.1” and 15.6” Tablet and 10.1” Vue Wall Box Installation Manual MWB-7-MCT/MWB-10-MCT/MWB-156-MCT/MWB-10-VUE/ MWB-10-BSBI Specifically designed to fit our products seamlessly.
- Page 2 Tools Parts (Before beginning, make sure you have all parts shown below) C ( 2 ) B ( 4 ) Parts List Front Bezel Mounting Plate l l a Tablet/Display Mounting Plate Front Bezel Dry Wall Clips (Installed) Dry Wall Clip Screws (Installed) M4 x 6mm Screws D ( 2 ) F ( 2 )
- Page 3 Use Stud Finder to locate and mark edge of studs. 1-2a The Mimo Monitor In-Wall Enclosure is designed to fit between studs in the vertical or horizontal direction. The 15.6" In-Wall Box in landscape mode will not fit between two 16" studs unless the studs are notched, see 1-2b below for details.
- Page 4 1- 4 Rotate one of the top drywall clips (D) by tightening the drywall clip screw (E) just enough to secure the box to the wall, do not over-tighten yet. While holding the box in place, repeat this for the opposite top clip, then the two bottom clips. 1- 5 Once box is secure enough that you don’t need to hold it any longer, level the box.
- Page 5 1- 9 1- 9 Install the bezel (B) by aligning and pressing in place. Install the bezel (B) by aligning and pressing in place. Mimo Monitors 743 Alexander Rd. Suite 15 Princeton, NJ 08540 2019-0521 info@mimomonitors.com Rev 1 - 79047...
