7", 10.1" and 15.6" Tablet and 10.1" Vue
Wall Box Installation Manual
MWB-7-MCT/MWB-10-MCT/MWB-156-MCT/MWB-10-VUE
Specifically designed to fit
our products seamlessly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWB-7-MCT and is the answer not in the manual?

Questions and answers

Summary of Contents for Mimo Monitors MWB-7-MCT

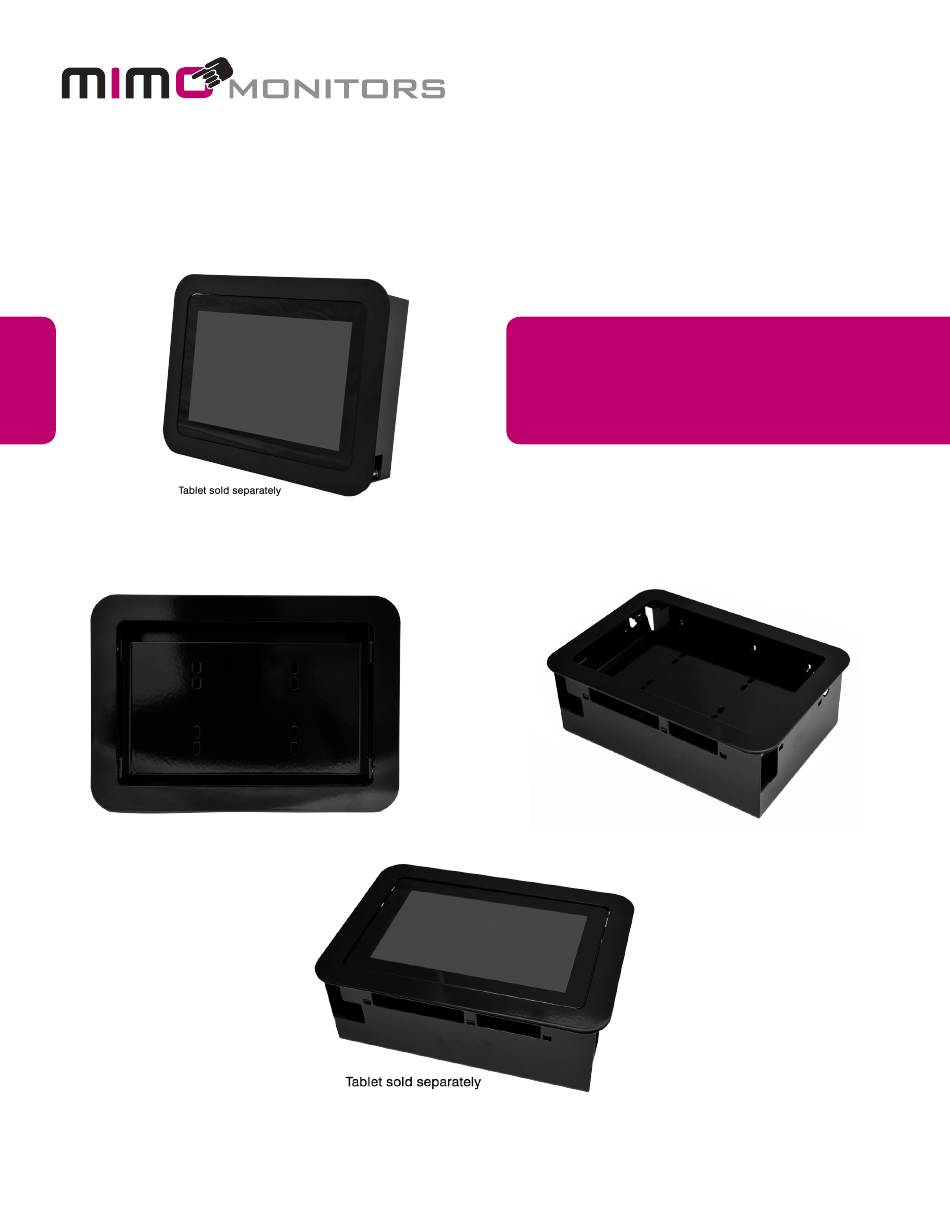

  • Page 1 7”, 10.1” and 15.6” Tablet and 10.1” Vue Wall Box Installation Manual MWB-7-MCT/MWB-10-MCT/MWB-156-MCT/MWB-10-VUE Specifically designed to fit our products seamlessly.
  • Page 2: Parts List

    Tools Parts (Before beginning, make sure you have all parts shown below) C ( 2 ) B ( 4 ) Parts List Front Bezel Mounting Plate l l a Tablet/Display Mounting Plate Front Bezel Dry Wall Clips (Installed) Dry Wall Clip Screws (Installed) M4 x 6mm Screws D ( 2 ) F ( 2 )
  • Page 3 Use Stud Finder to locate and mark edge of studs. 1-2a The Mimo Monitor In-Wall Enclosure is designed to fit between studs in the vertical or horizontal direction. The 15.6" In-Wall Box in landscape mode will not fit between two 16" studs unless the studs are notched, see 1-2b below for details.
  • Page 4 1- 4 Rotate one of the top drywall clips (D) by tightening the drywall clip screw (E) just enough to secure the box to the wall, do not over-tighten yet. While holding the box in place, repeat this for the opposite top clip, then the two bottom clips. 1- 5 Once box is secure enough that you don’t need to hold it any longer, level the box.
  • Page 5 1- 7 Mount the display to the adapter plate (B) using four M4 screws (F) provided and the Vesa 75 holes in the back of the display. 1- 8 Mount the adapter plate (B) using four M4 screws (F) provided to the wall box. 1- 9 Install the bezel (B) by aligning and pressing in place.

This manual is also suitable for:

Mwb-156-mctMwb-10-mctMwb-10-vue
