WY'EAST MEDICAL SUMMIT500 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

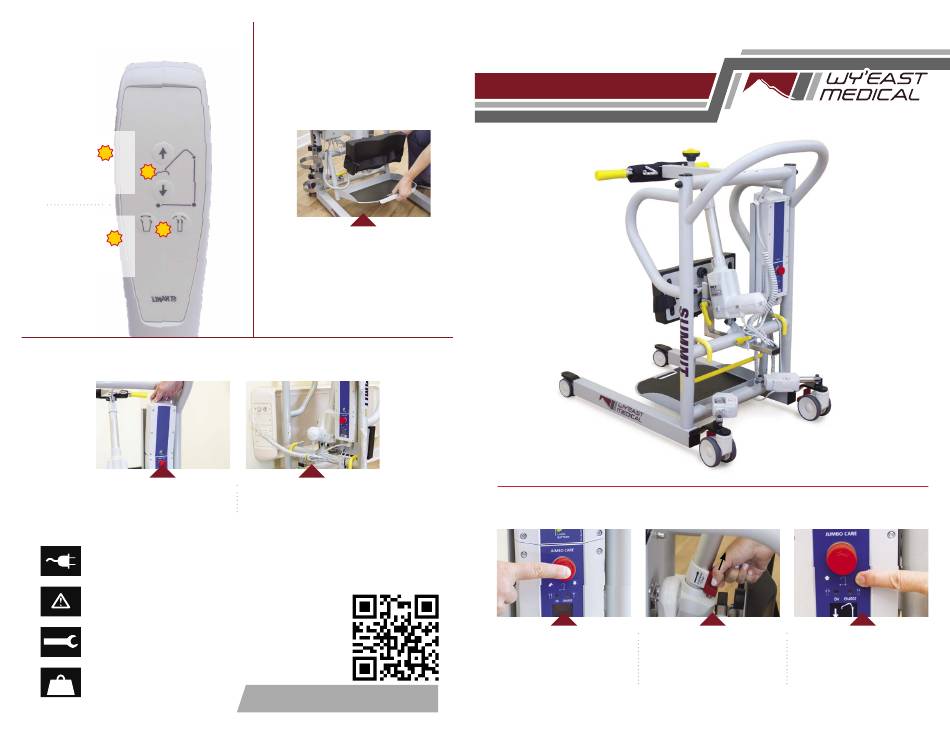

CONTROLS
PENDANT
Push and hold RAISE or
D
LOWER button
to
position the handlebar
D
& arm simultaneously
Push and hold CLOSE
A
or OPEN button
A
to expand lift legs to
needed width
BATTERY
Verify removable battery
pack is in place
CONTROL BOX DISPLAY
Charging Battery: Mains cable plugged in.
Lift will not work in this state.
Shor t circuit
Short circuit
Check C onne ct ion
Needs service: standard set to 12 months /
8000 cycles. System will still function
Serv ice
Ma x
Overload has occured
kg/lbs
REMOVABLE
FOOT PLATE
Removable footplate for
AMBULATION.
CHARGING
Plug charger jack into
outlet
800.255.3126 | wyeastmedical.com
SUMMIT
500
Instructions For Use
SAFETY
EMERGENCY
Off
Manual
Lowering of Handlebar
(Push to stop all functions
(Pull handle, must have
Twist clockwise to restore)
EMERGENCY
Powered
EMERGENCY
Lowering of Handlebar
(Push down arrow to
weight to lower)
lower handlebar)
51912-R05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUMMIT500 and is the answer not in the manual?

Questions and answers

Related Manuals for WY'EAST MEDICAL SUMMIT500

Summary of Contents for WY'EAST MEDICAL SUMMIT500

  • Page 1 SUMMIT CONTROLS PENDANT REMOVABLE Instructions For Use FOOT PLATE Push and hold RAISE or LOWER button position the handlebar & arm simultaneously Push and hold CLOSE Removable footplate for or OPEN button AMBULATION. to expand lift legs to needed width BATTERY CHARGING Verify removable battery...
  • Page 2 SUMMIT QUICK REFERENCE GUIDE READ USERS MANUAL BEFORE OPERATING Lower Raise sling sling Expand Close Move Handlebar Summit Summit Lift knob and adjust Secure legs legs Sling onto Patient All Yellow Areas (see sling IFU) on Equipment Expand Legs As Needed Are Adjustable Handset Functions Raise Patient to...
  • Page 3 SUMMIT Operator ’s Manual OPERATOR’S MANUAL SUMMIT POWERED SIT-TO-STAND Model No. 51750 51932 R07 Summit Powered Sit-to-Stand 800.255.3126 | wyeastmedical.com Operator’s Manual Page 1 of 24...
  • Page 4 SUMMIT Operator ’s Manual WARRANTY Wy’East Medical Corporation (Wy’East) warrants to the original user the Summit Powered Sit-to-Stand manufactured by the company is free from defects in material and workmanship under normal use and service. The term of warranty from the date of product receipt is for a period of two (2) years on mechanical lift components, one (1) year on electronic components, and one (1) year for the battery.

  • Page 5: Table Of Contents

    SUMMIT Operator ’s Manual Contents HOW TO USE THIS MANUAL: _________________________________________________ 5 DEFINITIONS: ______________________________________________________________ 5 SAFETY CONSIDERATIONS FOR ALL PROCEDURES: ____________________________ 7 CLEANING AND DISINFECTION: ______________________________________________ 7 PRIOR TO FIRST USE: _______________________________________________________ 8 FEATURES: ________________________________________________________________ 9 Install/Uninstall Footrest: __________________________________________________ 9 Shin Guard Cam Lever: ___________________________________________________ 9 Shin Guard Adjustment Toward/Away from Patient: ____________________________ 9 Shin Guard Adjustment Up/Down: __________________________________________ 9...
  • Page 6 SUMMIT Operator ’s Manual FACTORY ASSISTANCE: _____________________________________________________ 21 REPLACING ITEMS: ______________________________________________________ 21 RETURNING ITEMS: _____________________________________________________ 21 REPLACEMENT PARTS: _____________________________________________________ 22 NOTES: ___________________________________________________________________ 23 CONTACT INFORMATION ____________________________________________________ 24 51932 R07 Summit Powered Sit-to-Stand 800.255.3126 | wyeastmedical.com Operator’s Manual Page 4 of 24...

  • Page 7: How To Use This Manual

    SUMMIT Operator ’s Manual Consistent with our policy of continuing product improvement, WY’EAST MEDICAL CORPORATION reserves the right to change these specifications without notice or obligation. INTRODUCTION HOW TO USE THIS MANUAL: This manual is designed to familiarize you with the operation of the Summit Powered Sit-to-Stand. Read it thoroughly before using or servicing the equipment.
  • Page 8 SUMMIT Operator ’s Manual Your Summit Powered Sit-to-Stand is designed for assisting patients with partial weight bearing ability to stand and transfer. • Bed to Chair transfer. • Wheelchair repositioning. • Easy access for wheelchair. • Total adjustability for convenience and usability. •...

  • Page 9: Safety Considerations For All Procedures

    SUMMIT Operator ’s Manual SAFETY CONSIDERATIONS FOR ALL PROCEDURES: 1. The Summit is designed to be used ONLY on level surfaces. 2. ALWAYS unlock the wheels while lifting and lowering the patient. 3. Inspect the lift functions prior to any patient use. Ensure all functions are in proper working order.

  • Page 10: Prior To First Use

    SUMMIT Operator ’s Manual PRIOR TO FIRST USE: The battery must be charged for 24 hours in order to reach proper function and prolong the lifetime of the batteries. Ensure all cables are completely inserted. A light film of silicon grease may be dabbed onto o-ring to allow easier insertion.

  • Page 11: Features

    SUMMIT Operator ’s Manual FEATURES: Install/Uninstall Footrest: To remove the footrest, lift up by holding the yellow cross bar and handle (see Fig. 1). a. Raise the footrest 2 inches vertically. b. Remove as shown. Figure 1 Shin Guard Cam Lever: 1.

  • Page 12: Handlebar Release Knob

    SUMMIT Operator ’s Manual FEATURES: Handlebar Release Knob: To release the handlebar, pull up on yellow knob. Extend/Retract Handlebar: To extend the handlebar, push out while pulling up on yellow knob. To retract the handlebar, pull in while pulling up on yellow knob.

  • Page 13: Legs Open/Close Function

    SUMMIT Operator ’s Manual FEATURES: Legs Open/Close Function: 1. Press on handset to open legs. 2. Press on handset to close legs. This function allows for greater clearance for the caregiver to maneuver around a chair, wheelchair, or commode without crowding the patient. Lift Arm Lift/Lower Function: 1.

  • Page 14: Battery / Control Box Combo

    SUMMIT Operator ’s Manual FEATURES: Standard Upgrade Battery Battery / Control Box Combo: The control box disperses the power from the battery to the leg, lift arm, and handset functions. The Battery Cap (P/N: 51885) snaps into place on top of the battery.

  • Page 15: Control Box Connections

    SUMMIT Operator ’s Manual FEATURES: Control Box Connections: Mains The control box disperses the power from the battery to the Cable leg, lift arm, and handset functions. Leg Actuators Handset Lift Arm Actuator Figure 3 Emergency Off: In case of emergency, push the large red button to cut power to unit.

  • Page 16: Operating The Summit Powered Sit-To-Stand

    SUMMIT Operator ’s Manual OPERATING THE SUMMIT POWERED SIT-TO-STAND: 1. Secure Sling to patient. Follow sling instructions for proper fit, placement and use. 2. ENSURE patient is able to sit in an upright posture and position the Summit as shown in (Fig. 4). 3.
  • Page 17 SUMMIT Operator ’s Manual Figure 6 9. CAUTION: Ensure patient’s arms are OUTSIDE of the SLING prior to lifting. 10. Have the patient hold the yellow handles on the handlebar. This keeps their arms in a SAFE position for transfer. 11.

  • Page 18: Technical Specifications

    SUMMIT Operator ’s Manual TECHNICAL SPECIFICATIONS: PARAMETER SPEC • SWL 500 lbs • Device Part Number 51750 • Unit of Measure 1 Each • Battery Li-Ion 25.9V 2.25Ah • Number of Lifts per Charge 35 - 40 • Charge Time 24 hrs fully discharged •...

  • Page 19: Periodic Maintenance

    SUMMIT Operator ’s Manual PERIODIC MAINTENANCE: The following scheduled maintenance and inspections will help to ensure trouble-free operation of your Summit Powered Sit-to-Stand. Not recommended for use in shower. Do not pressure-wash the unit. Load Test: • Run the lift with specified load* all the way up and down.
  • Page 20 SUMMIT Operator ’s Manual Battery packs may emit hydrogen gas. Do not bring fire or a heated object close to the battery pack, and never use the battery near a spark, fuses and/or equipment that emits sparks. Further, do not store the battery in a closed environment or incorporate it into a closed structure of an enclosure.

  • Page 21: Electronics Environmental Conditions

    SUMMIT Operator ’s Manual Do not use or store LINAK battery packs where the surrounding temperature exceeds 50°C, such as inside a hot automobile, in direct sunlight, or in front of a stove or a source of intense heat. Doing so can shorten battery life, lower its performance level, cause the battery to leak fluid, become damaged, or deform.

  • Page 22: Troubleshooting

    SUMMIT Operator ’s Manual TROUBLESHOOTING: SYMPTOM POSSIBLE CAUSE ACTION Battery is not charged. Charge battery. Mains cable is plugged into Unplug mains cable. wall outlet. Connect the charger for approx. 15 seconds. Reference “Standby No power. Standby Mode. Mode” and/or “Deep Discharge Protection”...

  • Page 23: Factory Assistance

    SUMMIT Operator ’s Manual FACTORY ASSISTANCE: Expected lifetime: 8-10 years REPLACING ITEMS: To order replacement parts, contact Wy’East Medical Customer Service. Include the following information with your request: 1. Serial and Model numbers of your Summit Powered Sit-to-Stand. 2. Purchase date, if available. 3.

  • Page 24: Replacement Parts

    SUMMIT Operator ’s Manual REPLACEMENT PARTS: This manual provides maintenance and service information for the Summit Powered Sit-to-Stand. If replacement parts are required, contact WY’EAST MEDICAL with the serial number of your Summit Powered Sit-to-Stand to ensure the accuracy of replacement parts. 51885 51661 52431...

  • Page 25: Notes

    SUMMIT Operator ’s Manual NOTES: 51932 R07 Summit Powered Sit-to-Stand 800.255.3126 | wyeastmedical.com Operator’s Manual Page 23 of 24...

  • Page 26: Contact Information

    SUMMIT Operator ’s Manual CONTACT INFORMATION For questions or information regarding other Wy’East Medical products, contact: Wy’East Medical Corporation 16700 SE 120th Ave. Clackamas, OR 97015, USA (503) 657-3101 (800) 255-3126 wyeastmedical.com info@wyeastmed.com 51932 R07 Summit Powered Sit-to-Stand 800.255.3126 | wyeastmedical.com Operator’s Manual Page 24 of 24...
