INSTALLATION
(Continued)

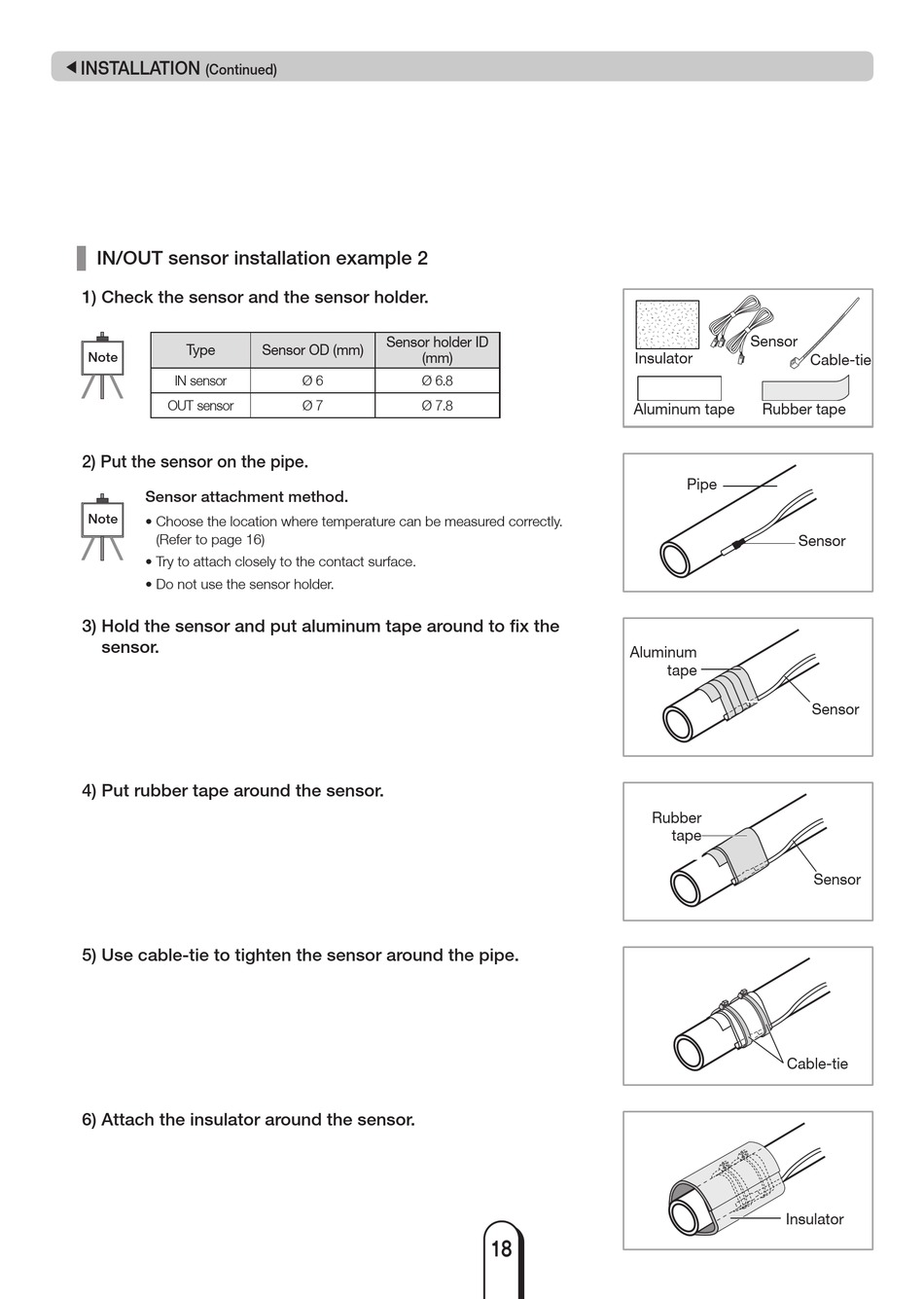

IN/OUT sensor installation example 2
1) Check the sensor and the sensor holder.
Type
Note
IN sensor
OUT sensor
2) Put the sensor on the pipe.
Sensor attachment method.
Note
• Choose the location where temperature can be measured correctly.
(Refer to page 16)
• Try to attach closely to the contact surface.
• Do not use the sensor holder.
3) Hold the sensor and put aluminum tape around to fix the
sensor.
4) Put rubber tape around the sensor.
5) Use cable-tie to tighten the sensor around the pipe.
6) Attach the insulator around the sensor.
Sensor holder ID
Sensor OD (mm)
(mm)
Ø 6
Ø 6.8
Ø 7
Ø 7.8
Insulator
Aluminum tape
Aluminum
Rubber
18
Sensor
Cable-tie
Rubber tape
Pipe
Sensor
tape
Sensor
tape
Sensor
Cable-tie
Insulator
